水凝胶灭火剂对磷酸铁锂电池组灭火效能研究

doi:10.16265/j.cnki.issn1003-3033.2023.01.0083

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (1): 161-168.doi: 10.16265/j.cnki.issn1003-3033.2023.01.0083

水凝胶灭火剂对磷酸铁锂电池组灭火效能研究

张作睿¹(), 张国维², 朱国庆¹, 李政¹, 袁狄平³, 金常伟⁴

¹ 中国矿业大学安全工程学院,江苏徐州 221116
² 中国矿业大学深圳研究院,广东深圳 518000
³ 深圳市城市公共安全技术研究院,广东深圳 518000
⁴ 北京凌天智能装备集团股份有限公司,北京 101100

收稿日期:2022-08-08 修回日期:2022-11-01 出版日期:2023-01-28 发布日期:2023-07-28
作者简介:
张作睿 (1998—),男,山东枣庄人,硕士研究生,研究方向为锂电池火灾机制、锂电池灭火。E-mail:814264148@qq.com。
张国维,副教授
朱国庆,教授
袁狄平,教授
基金资助:
山东省重大科技创新工程项目(2021CXGC011303)

Research on fire-extinguishing performance of hydrogel fire extinguishing agent on lithium iron phosphate battery pack

ZHANG Zuorui¹(), ZHANG Guowei², ZHU Guoqing¹, LI Zheng¹, YUAN Diping³, JIN Changwei⁴

¹ School of Safety Engineering, China University of Mining and Technology, Xuzhou Jiangsu 221116, China
² Shenzhen Research Institute of China University of Mining and Technology, Shenzhen Guangdong 518000, China
³ Shenzhen Institute of Urban Public Safety Technology, Shenzhen Guangdong 518000, China
⁴ Beijing Topsky Intelligent Equipment Group Co., Ltd., Beijing 101100, China

Received:2022-08-08 Revised:2022-11-01 Online:2023-01-28 Published:2023-07-28

摘要/Abstract

摘要：

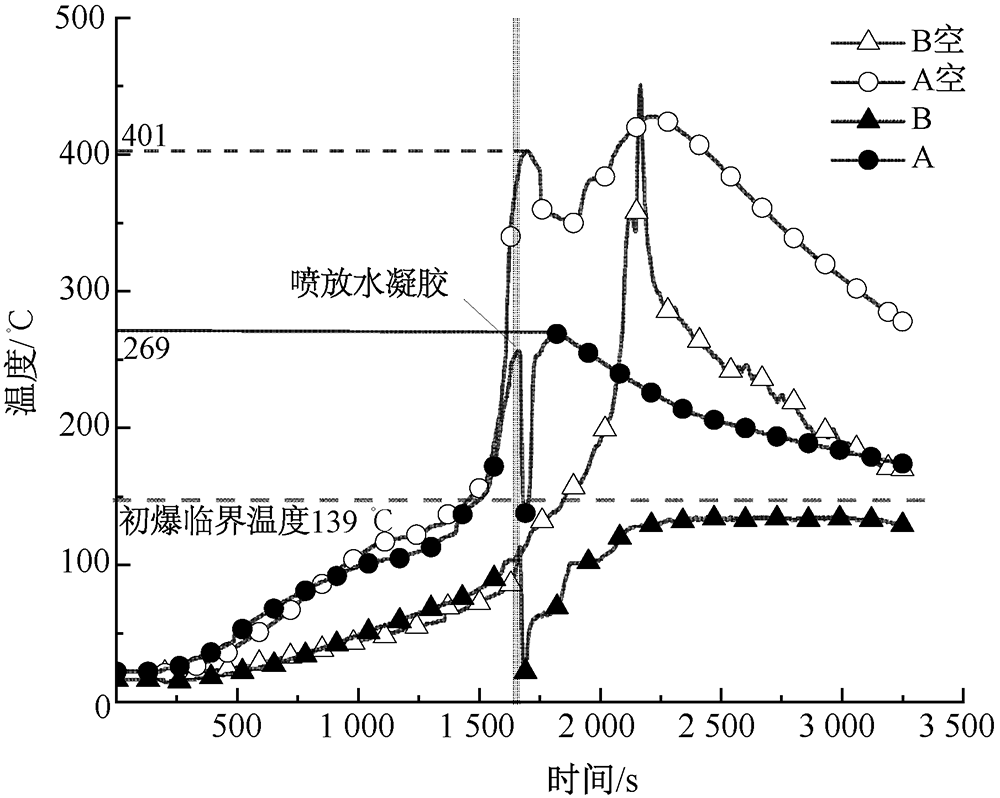

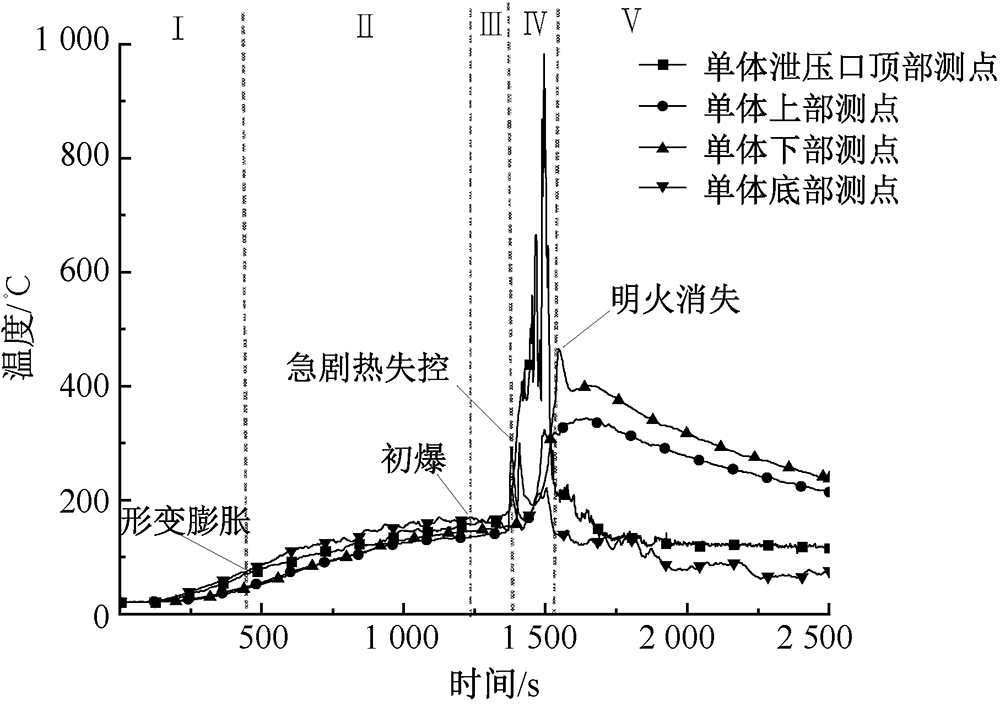

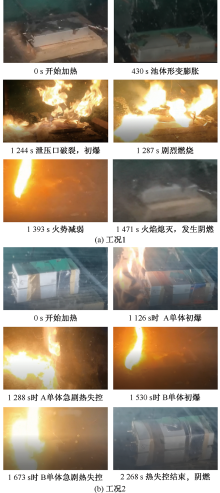

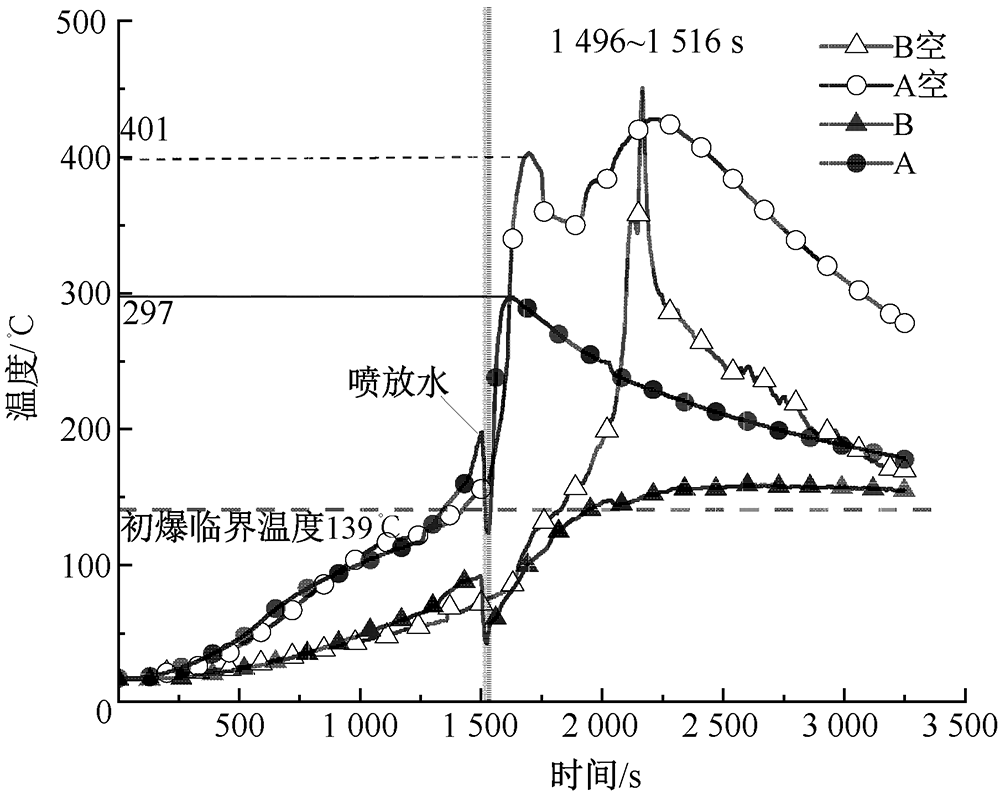

为探索针对磷酸铁锂电池组热失控行为的高效灭火剂,搭建锂电池燃烧-抑制试验平台,选取27 Ah磷酸铁锂电池组,以300 W外部热源过热诱发电池热失控至起火。在水阻断磷酸铁锂电池热失控行为试验基础上,开展水凝胶灭火剂对磷酸铁锂电池组热失控行为阻断效果试验研究,对比分析锂离子电池组热失控爆发时间、温度变化速率等参数。结果表明:水对锂电池组冷却深度不足且利用率不高,无法有效阻断电池组间热失控传播。水凝胶灭火剂可快速扑灭明火,结束喷放后电池表面温度始终低于热失控临界温度,可有效阻断电池组热失控行为。灭火剂喷放速率越大,阻止电池组热失控传播越明显,大流量的水凝胶灭火剂可完全阻止热失控在电池组单体间传播。

关键词: 水凝胶灭火剂, 磷酸铁锂电池, 灭火效能, 热失控, 降温速率

Abstract:

In order to explore the efficient fire extinguishing agent for the thermal runaway behavior of lithium iron phosphate battery packs, a lithium battery combustion-suppression test platform was built, and a 27 Ah lithium iron phosphate battery pack was selected to induce thermal runaway of the battery to fire with a 300 W external heat source. On the basis of the test of thermal runaway behavior of water blocking lithium iron phosphate battery, the blocking effect of hydrogel fire extinguishing agent on thermal runaway behavior of lithium iron phosphate battery pack was carried out, and the parameters such as thermal runaway burst time and temperature change rate of lithium-ion battery pack were compared and analyzed. The results show that the cooling depth of the lithium battery pack by water is insufficient and the utilization rate is not high, which cannot effectively block the thermal runaway propagation between the battery packs. The hydrogel fire extinguishing agent can quickly extinguish the open flame, and the surface temperature of the battery is always lower than the thermal runaway critical temperature after the end of spraying, which can effectively block the thermal runaway behavior of the battery pack. The greater the spray rate of the fire extinguishing agent, the more obvious the thermal runaway propagation of the battery pack is prevented, and the large flow of hydrogel fire extinguishing agent can completely prevent the thermal runaway propagation between the battery pack monomers.

Key words: hydrogel extinguishing agent, lithium iron phosphate battery, extinguishing efficiency, thermal runaway, cooling rate

张作睿, 张国维, 朱国庆, 李政, 袁狄平, 金常伟. 水凝胶灭火剂对磷酸铁锂电池组灭火效能研究[J]. 中国安全科学学报, 2023, 33(1): 161-168.

ZHANG Zuorui, ZHANG Guowei, ZHU Guoqing, LI Zheng, YUAN Diping, JIN Changwei. Research on fire-extinguishing performance of hydrogel fire extinguishing agent on lithium iron phosphate battery pack[J]. China Safety Science Journal, 2023, 33(1): 161-168.

图/表 14

图1

图2

表1

图3

图4

图5

图6

图7

图8

图9

表2

图10

图11

表3

参考文献 18

[1]	李振源. 锂离子电池的发展应用分析[J]. 当代化工研究, 2018(11): 1-2.
	LI Zhenyuan. Development and application analysis of lithium ion batteries[J]. Modern Chemical Research, 2018(11): 1-2.
[2]	FENG Xuning, OUYANG Minggao, LIU Xiang, et al. Thermal runaway mechanism of lithium ion battery for electric vehicles: a review[J]. Energy Storage Materials, 2018, 10: 246-267. doi: 10.1016/j.ensm.2017.05.013
[3]	孙一楠. 磷酸铁锂电池热失控特性及液氮防灭火效能试验研究[D]. 徐州: 中国矿业大学, 2021.
	SUN Yi'nan. Experimental study on thermal runaway characteristics and fire extinguishing effectiveness of liquid nitrogen in lithium iron phosphate battery[D]. Xuzhou: China University of Mining and Technology, 2021.
[4]	王久平. 及时应对储能安全风险挑战:从“4·16”北京丰台供电公司火灾事件说起[J]. 中国应急管理, 2021(5):10-13.
[5]	黄强, 陶风波, 刘洋, 等. 气液灭火剂对磷酸铁锂电池模组灭火能效研究[J]. 中国安全科学学报, 2020, 30(3):53-59. doi: 10.16265/j.cnki.issn1003-3033.2020.03.009
	HUANG Qiang, TAO Fengbo, LIU Yang, et al. Study on performance of gas-liquid extinguishing agent for lithium iron phosphate battery modules[J]. China Safety Science Journal, 2020, 30(3):53-59. doi: 10.16265/j.cnki.issn1003-3033.2020.03.009
[6]	张磊, 张永丰, 黄昊, 等. 抑制锂电池火灾灭火剂技术研究进展[J]. 科技通报, 2017, 33(8): 255-258.
	ZHANG Lei, ZHANG Yongfeng, HUANG Hao, et al. A review of extinguishing agent fighting li-Ion battery fires process[J]. Bulletin of Science and Technology, 2017, 33(8): 255-258.
[7]	于东兴, 李毅, 张少禹, 等. 基于实体试验的磷酸铁锂电池火灾危险性分析[J]. 消防科学与技术, 2017, 36(12):1731-1734.
	YU Dongxing, LI Yi, ZHANG Shaoyu, et al. Fire risk analysis of LiFePo4 batteries based on full scale test[J]. Fire Science and Technology, 2017, 36(12):1731-1734.
[8]	MALONEY T. Extinguishment of lithium-ion and lithium-metal battery fires[M]. Washington:US Department of Transportation, Federal Aviation Administration, 2014 : 1-24.
[9]	EGELHAAF M, KRESS D, WOLPERT D, et al. Fire fighting of Li-Ion traction batteries[J]. SAE International Journal of Alternative Powertrains, 2013, 2(1): 37-48.
[10]	LIU Tong, TAO Changfa, WANG Xishi. Cooling control effect of water mist on thermal runaway propagation in lithium ion battery modules[J]. Applied Energy, 2020, 267: DOI:10.1016/j.apenergy.2020.115087. doi: 10.1016/j.apenergy.2020.115087
[11]	刘昱君, 段强领, 黎可, 等. 多种灭火剂扑救大容量锂离子电池火灾的实验研究[J]. 储能科学与技术, 2018, 7(6): 1105-1112.
	LIU Yujun, DUAN Qiangling, LI Ke, et al. Experimental study on fire extinguishing of large-capacity lithium-ion batteries by various fire extinguishing agents[J]. Energy Storage Science and Technology, 2018, 7(6): 1105-1112.
[12]	戚瀚鹏. 空运锂电池ULD集成灭火系统研究[D]. 天津: 中国民航大学, 2015.
	QI Hanpeng. Study on ULD integrated fire extinguishing system for lithium battery during air transportation[D]. Tianjin: Civil Aviation University of China, 2015.
[13]	李洪武, 梅拥军, 李宏谱, 等. 水和凝胶对锂离子电池热失控的影响研究[J]. 消防科学与技术, 2017, 36(2):245-248.
	LI Hongwu, MEI Yongjun, LI Hongpu, et al. Study on influence of water and hydrogel on lithium-ion battery thermal runaway[J]. Fire Science and Technology, 2017, 36(2):245-248.
[14]	张青松, 曹文杰, 白伟. 细水雾对锂离子电池热失控抑制作用的实验研究[J]. 火灾科学, 2017, 26(4):239-243.
	ZHANG Qingsong, CAO Wenjie, BAI Wei. Experimental study on inhibition effect of water mist on thermal runaway of lithium ion batteries[J]. Fire Science, 2017, 26(4):239-243.
[15]	喻名成, 汤华清, 陈天豪, 等. 高分子水凝胶灭火剂灭火作战性能测试[J]. 消防科学与技术, 2020, 39(1):101-103.
	YU Mingcheng, TANG Huaqing, CHEN Tianhao, et al. Research on performance test of polymer hydrogel fire extinguishing agent[J]. Fire Science and Technology, 2020, 39(1):101-103.
[16]	朱秀凯, 吴之心, 卢宝阳. 水凝胶作为灭火防火材料的研究进展与应用[J]. 江西科技师范大学学报, 2020(6):42-46.
	ZHU Xiukai, WU Zhixin, LU Baoyang. Progress and application of hydrogels as extinguish and refractory materials[J]. Jiangxi Science & Technology Normal University Magazine, 2020(6):42-46.
[17]	陈玉红, 唐致远, 卢星河, 等. 锂离子电池爆炸机理研究[J]. 化学进展, 2006, 18(6):823-831.
	CHEN Yuhong, TANG Zhiyuan, LU Xinghe, et al. Research of explosion mechanism of lithium-ion battery[J]. Progress in Chemistry, 2006, 18(6): 823-831.
[18]	刘同宇, 李师, 付卫东. 大容量磷酸铁锂动力电池热失控预警策略研究[J]. 中国安全科学学报, 2021, 31(11): 120-126. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.017
	LIU Tongyu, LI Shi, FU Weidong, et al. Study on early warning strategy of large LFP traction battery's thermal runaway[J]. China Safety Science Journal, 2021, 31(11):120-126. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.017

工况	灭火剂	表面温度变化/℃	最大降温速率/ (℃·s^-1)	升温速率/ (℃·s^-1)	结束喷放20 min 后温度/℃	B单体热失控阶段
5	水	82	-7.5	2.5	159	初爆

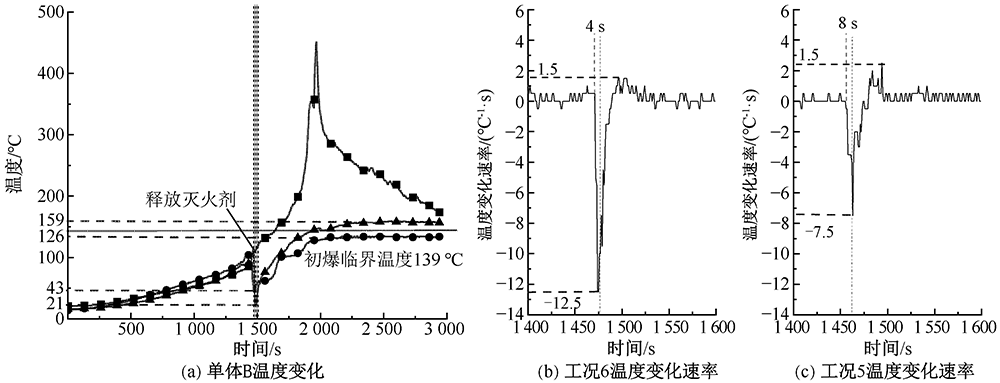

6	水凝胶	49	-12.5	1.5	126	形变膨胀

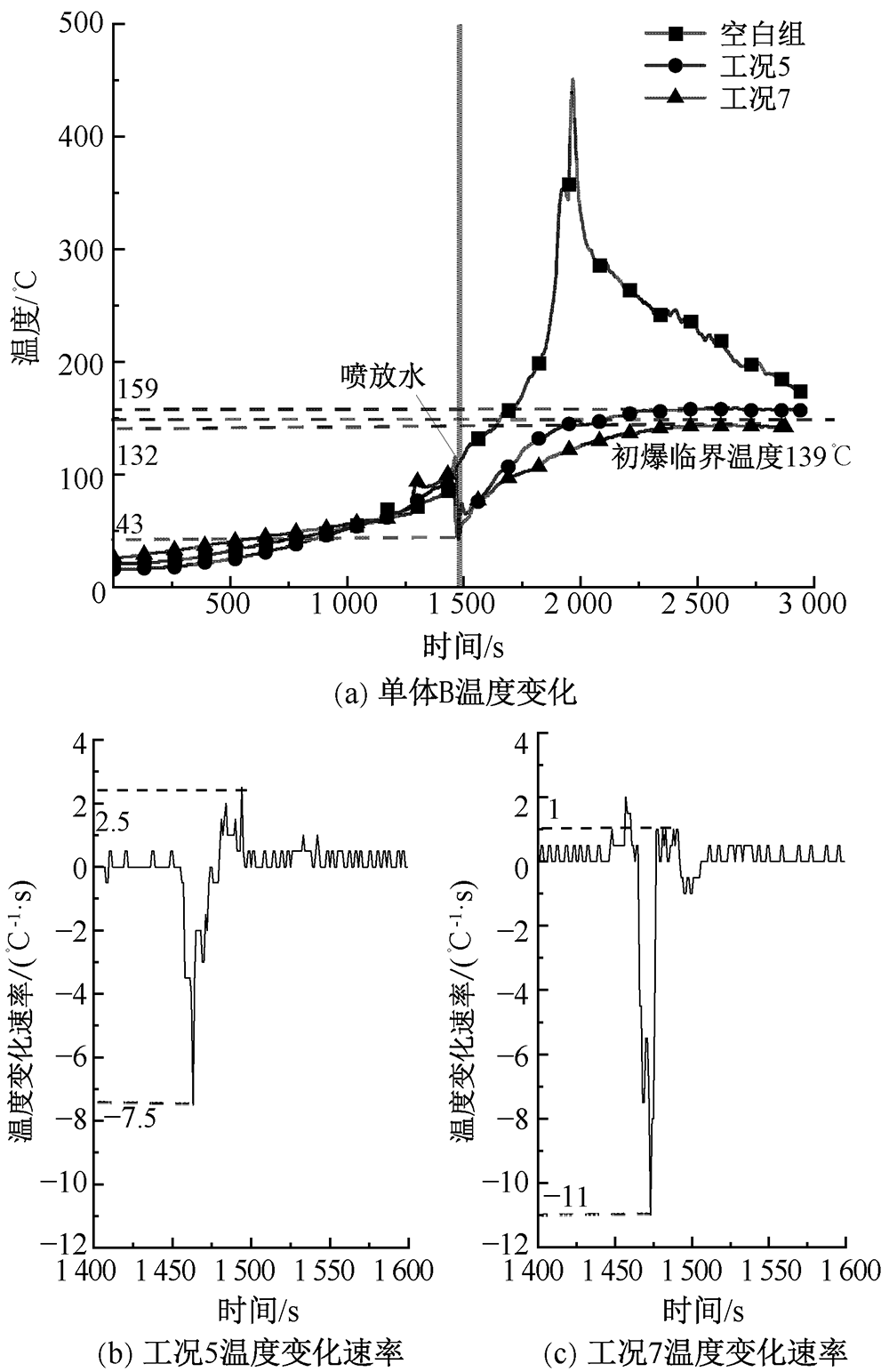

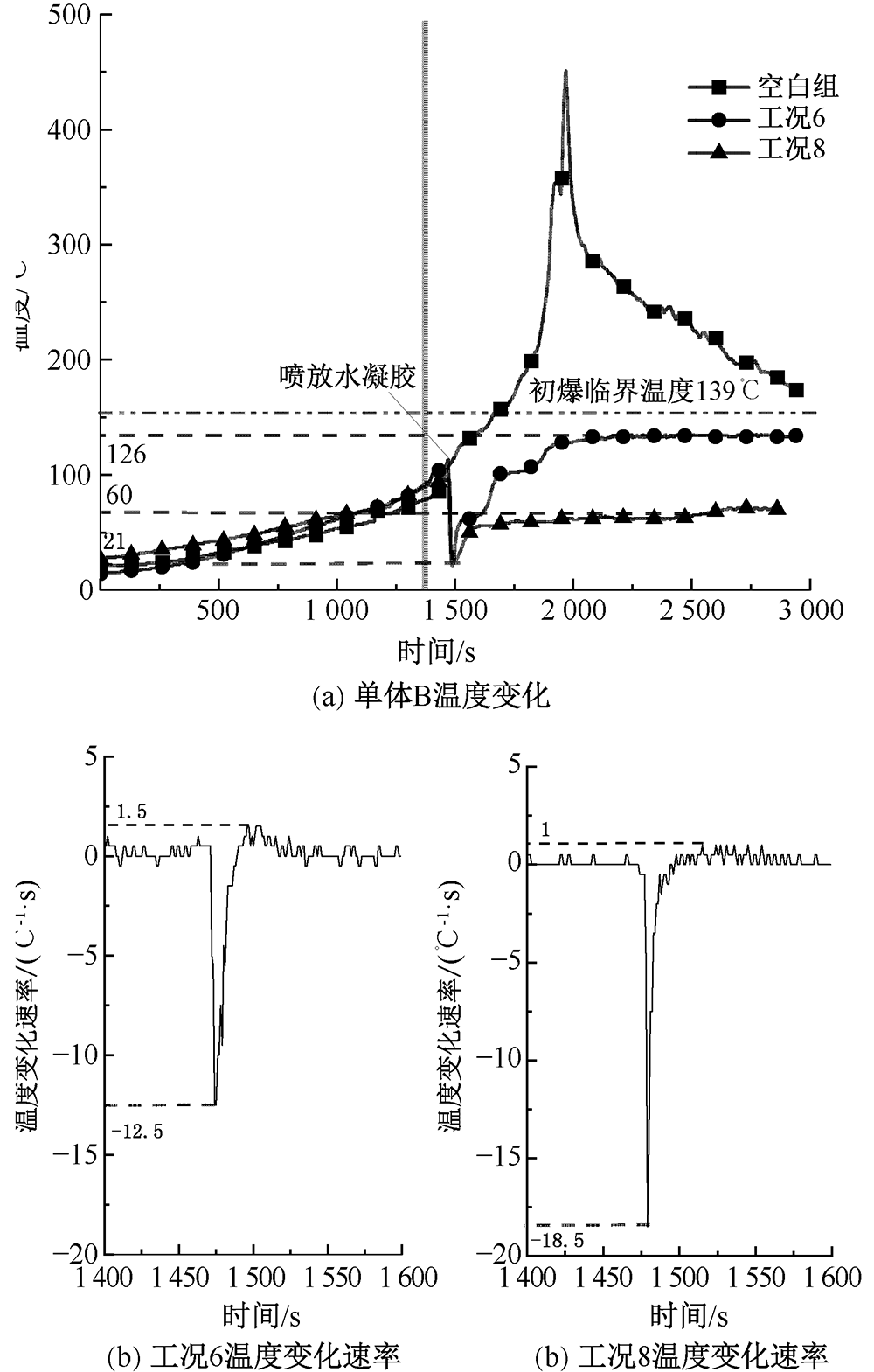

工况编号	灭火剂	喷放速率/ (kg·s^-1)	最大降温速率/ (℃·s^-1)	结束喷放时温度/℃	结束喷放20 min 后温度/℃	B单体热失控阶段
5	水	0.05	-7.5	43	159	初爆
7	水	0.1	-11	43	132	形变膨胀
6	水凝胶	0.05	-12.5	21	126	形变膨胀
8	水凝胶	0.1	-18.5	20	60	未发生热失控
