PVDF球形多孔材料的抑爆性能研究

doi:10.16265/j.cnki.issn1003-3033.2023.01.0437

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (1): 177-182.doi: 10.16265/j.cnki.issn1003-3033.2023.01.0437

PVDF球形多孔材料的抑爆性能研究

丁清泉(), 袁必和^**(), 陈先锋, 黄楚原, 贺云龙, 张玉铎

武汉理工大学安全科学与应急管理学院,湖北武汉 430070

收稿日期:2022-08-20 修回日期:2022-11-15 出版日期:2023-01-28 发布日期:2023-07-28
通讯作者: ** 袁必和(1988—),男,安徽庐江人,博士,副教授,主要从事安全功能材料和防火防爆技术方面的研究。E-mail: yuanbh@whut.edu.cn。
作者简介:
丁清泉 (1998—),男,河南周口人,硕士研究生,研究方向为防火防爆技术。E-mail: ding@whut.edu.cn。
陈先锋, 教授
黄楚原,副研究员
基金资助:
国家重点研发计划项目(2021YFB4000904); 湖北省重点研发计划项目(2021BCA218); 中央高校基本科研业务费资助项目(2022IVA086)

Study on explosion suppression performance of PVDF spherical porous material

DING Qingquan(), YUAN Bihe^**(), CHEN Xianfeng, HUANG Chuyuan, HE Yunlong, ZHANG Yuduo

School of Safety Science and Emergency Management, Wuhan University of Technology, Wuhan Hubei 430070, China

Received:2022-08-20 Revised:2022-11-15 Online:2023-01-28 Published:2023-07-28

摘要/Abstract

摘要：

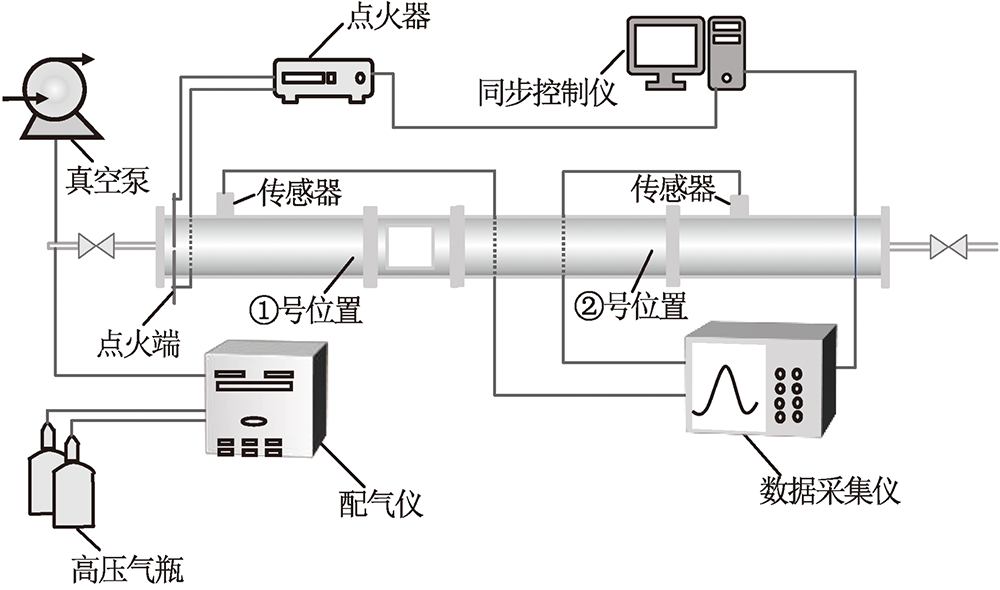

为分析聚偏氟乙烯(PVDF)球形多孔材料对管道内甲烷-空气预混气体的抑爆性能,自主搭建气体爆炸测试平台,试验研究球形多孔材料填充密度及填充方式等因素对甲烷-空气预混气体爆炸的影响机制。结果表明:与空爆相比,填充多孔材料后,管道内爆炸超压及最大爆炸超压上升速率均明显降低;对甲烷-空气的抑制效果与材料的填充密度呈正相关,当填充密度为0.077 g/cm³时,球形多孔材料对爆炸超压的抑制率达到54.7%,最大爆炸超压上升速率降低了58.3%;改变材料的填充方式显著影响管道内的气体爆炸超压,采用分散填充的方式增强了多孔材料对最大爆炸超压的抑制作用,在填充密度(为0.038 5 g/cm³时)不变的情况下,对管道末端气体最大爆炸超压的抑制率达到66%。说明改变材料填充密度和填充方式均会影响多孔材料对甲烷-空气预混气体爆炸的抑制效果。

关键词: 聚偏氟乙烯(PVDF), 球形多孔材料, 抑爆性能, 爆炸超压, 填充密度, 填充方式

Abstract:

In order to analyze the explosion suppression performance of PVDF porous spherical material on methane-air premix gas in the pipeline, a self-built gas explosion test platform was used to explore the influence mechanism of factors such as filling density and filling method of spherical porous material on the explosion of methane-air premix gas. The results show that compared with air explosion, the explosion overpressure and the ratio of the maximum explosion overpressure in the pipeline are reduced after filling the porous material. The inhibition effect of methane-air is positively correlated with the filling density of the material. When the filling density is 0.077 g/cm³, the inhibition rate of the spherical porous material on the explosion overpressure reaches 54.7%, and the ratio of the maximum explosion overpressure decreases by 58.3%. The different methods of material filling obviously impact the pipe gas explosion overpressure. The dispersed filling method enhances the suppression effect of the porous material on the maximum explosion overpressure. When the filling density is the same, 0.038 5 g/cm³ of material reaches 66% of the suppression efficiency on the maximum explosion overpressure. The inhibition effect of porous materials on methane-air premixed gas explosion will be affected by changing the filling density and filling method.

Key words: polyvinylidene fluoride(PVDF), porous spherical material, explosion suppression performance, explosion overpressure, filling density, filling method

丁清泉, 袁必和, 陈先锋, 黄楚原, 贺云龙, 张玉铎. PVDF球形多孔材料的抑爆性能研究[J]. 中国安全科学学报, 2023, 33(1): 177-182.

DING Qingquan, YUAN Bihe, CHEN Xianfeng, HUANG Chuyuan, HE Yunlong, ZHANG Yuduo. Study on explosion suppression performance of PVDF spherical porous material[J]. China Safety Science Journal, 2023, 33(1): 177-182.

图/表 7

图1

图2

图3

图4

图5

表1

表2

参考文献 18

[1]	袁必和, 张玉铎, 员亚龙, 等. 多孔聚丙烯复合材料的抑爆性能研究[J]. 中国安全科学学报, 2021, 31(8):91-96. doi: 10.16265/j.cnki.issn1003-3033.2021.08.013
	YUAN Bihe, ZHANG Yuduo, YUN Yalong, et al. Study on explosion suppression performance of porous polypropylene[J]. China Safety Science Journal, 2021, 31(8):91-96. doi: 10.16265/j.cnki.issn1003-3033.2021.08.013
[2]	湖北省十堰市张湾区艳湖社区集贸市场“6·13”重大燃气爆炸事故调查报告[EB/OL]. (2021-09-30). http://yjt.hubei.gov.cn/yjgl/aqsc/sgdc/202109/t20210930_3792103.shtml.
[3]	“1·30”长春居民楼燃气泄漏事故[EB/OL]. (2019-01-30). https://baike.baidu.com/item/1.30长春居民楼燃气泄漏事故/23275714#1.
[4]	无锡市锡山区鹅湖镇双乐小吃店“10·13”液化石油气爆炸较大事故调查报告[EB/OL]. (2020-01-22). https://www.wuxi.gov.cn/doc/2020/01/22/2767359.shtml.
[5]	孙绪绪, 郭进, 陆守香. 柴油舱组集中透气管燃爆危险性及阻隔防爆技术[J]. 爆炸与冲击, 2021, 41(5):138-144.
	SUN Xuxu, GUO Jin, LU Shouxiang. Explosion hazard in the concentrated ventilation tube for a group of diesel tanks and its suppression technologies[J]. Explosion and Shock Waves, 2021, 41(5):138-144.
[6]	邢志祥, 杜贞, 欧红香, 等. 多孔非金属材料在阻隔防爆方面的研究进展[J]. 安全与环境工程, 2015, 22(2):112-116.
	XING Zhixiang, DU Zhen, OU Hongxiang, et al. Progress of porous non-metallic materials on separate and explosion proof[J]. Safety and Environmental Engineering, 2015, 22(2):112-116.
[7]	邢志祥, 杜贞, 欧红香, 等. 新型多孔非金属材料阻火抑爆性能研究[J]. 中国安全科学学报, 2015, 25(7):74-79.
	XING Zhixiang, DU Zhen, OU Hongxiang, et al. Study on fire resistance-explosion proof performance of novel porous non-metallic material[J]. China Safety Science Journal, 2015, 25(7):74-79.
[8]	段玉龙, 王硕, 贺森, 等. 多孔材料下气体爆炸转扩散燃烧的特性研究[J]. 爆炸与冲击, 2020, 40(9):113-121.
	DUAN Yulong, WANG Shuo, HE Sen, et al. Characteristics of gas explosion to diffusion combustion under porous materials[J]. Explosion and Shock Waves, 2020, 40(9):113-121.
[9]	宋先钊, 解立峰, 李斌, 等. 甲烷气氛条件下网状铝合金材料阻隔防爆性能研究[J]. 消防科学与技术, 2018, 37(11): 1494-1497.
	SONG Xianzhao, XIE Lifeng, LI Bin, et al. Study on the barrier explosion-proof performance of mesh aluminum alloy under methane atmosphere[J]. Fire Science and Technology, 2018, 37(11):1494-1497.
[10]	徐海顺, 高林杰, 苏登. 铝镁合金泡沫抑制甲烷-空气混合物爆炸火焰传播[J]. 中国安全科学学报, 2019, 29(1):81-86. doi: 10.16265/j.cnki.issn1003-3033.2019.01.014
	XU Haishun, GAO Linjie, SU Deng. Suppression of methane-air mixtures explosion flame propagation using aluminum-magnesium alloy-based foam composite[J]. China Safety Science Journal, 2019, 29(1):81-86. doi: 10.16265/j.cnki.issn1003-3033.2019.01.014
[11]	NIE Baisheng, YANG Longlong, WANG Jingwei. Experiments and mechanisms of gas explosion suppression with foam ceramics[J]. Combustion Science and Technology, 2016, 188(11/12):2117-2127. doi: 10.1080/00102202.2016.1218161
[12]	JOO H, DUNCAN K, CICCARELLI G. Flame-quenching performance of ceramic foam[J]. Combustion Science and Technology, 2006, 178(10/11):1755-1769. doi: 10.1080/00102200600788692
[13]	HE Yunlong, FANG Quan, YUAN Bihe, et al. Explosion evolution behavior of methane/air premixed gas in a closed pipe filled with a bio-based porous material[J]. Fuel, 2022,318: DOI:10.1016/j.fuel.2022.123716. doi: 10.1016/j.fuel.2022.123716
[14]	徐阿猛, 陈学习, 贾进章. 障碍物对瓦斯爆炸冲击波传播的影响研究[J]. 中国安全科学学报, 2019, 29(9):96-101. doi: 10.16265/j.cnki.issn1003-3033.2019.09.015
	XU A'meng, CHEN Xuexi, JIA Jinzhang. Effects of obstacles on gas explosion shock wave propagation[J]. China Safety Science Journal, 2019, 29(9):96-101. doi: 10.16265/j.cnki.issn1003-3033.2019.09.015
[15]	王栋, 谢立峰, 韩志伟, 等. 非金属球形抑爆材料抗氧化能力和抑爆性能研究[J]. 中国安全科学学报, 2013, 23(12):66-70.
	WANG Dong, XIE Lifeng, HAN Zhiwei, et al. Study on antioxidant ability and explosion suppression performance of nonmetallic spherical explosion suppression materials[J]. China Safety Science Journal, 2013, 23(12):66-70.
[16]	CHEN Sining. Application of inherent safety explosion-proof technology in oil storage & transportation device[J]. Procedia Engineering, 2011, 15:4814-4818. doi: 10.1016/j.proeng.2011.08.899
[17]	尉存娟, 谭迎新, 张建忠, 等. 不同间距障碍物下瓦斯爆炸特性的实验研究[J]. 中北大学学报:自然科学版, 2015, 36(2):188-190, 196.
	YU Cunjuan, TAN Yingxin, ZHANG Jianzhong, et al. Experimental research on blast characters of methane under obstacle with different distance[J]. Journal of North University of China:Natural Science Edition, 2015, 36(2):188-190, 196.
[18]	刘磊, 宋双林, 葛欢, 等. 障碍物排列方式对甲烷/空气爆炸特性影响研究[J]. 能源与环保, 2022, 44(3):55-61.
	LIU Lei, SONG Shuanglin, GE Huan, et al. Study on influence of arrangement of obstacles on characteristics of methane-air explosion[J]. China Energy and Environmental Protection, 2022, 44(3):55-61.

填充密度/ (g·cm^-3)	分散填充/%		集中填充/%
填充密度/ (g·cm^-3)	1号传感器	2号传感器	1号传感器	2号传感器
0.046	56.6	52.5	41.5	22.5
0.062	62.3	55.0	47.2	25.0
0.077	66.0	60.0	54.7	47.5

填充密度/ (g·cm^-3)	分散填充/%		集中填充/%
填充密度/ (g·cm^-3)	1号传感器	2号传感器	1号传感器	2号传感器
0.046	45.7	43.0	33.3	9.5
0.062	45.7	38.0	41.7	4.9
0.077	54.0	47.5	58.3	47.5
