基于知识图谱的地震救援装备智能管理方法

doi:10.16265/j.cnki.issn1003-3033.2024.07.2014

摘要/Abstract

摘要：

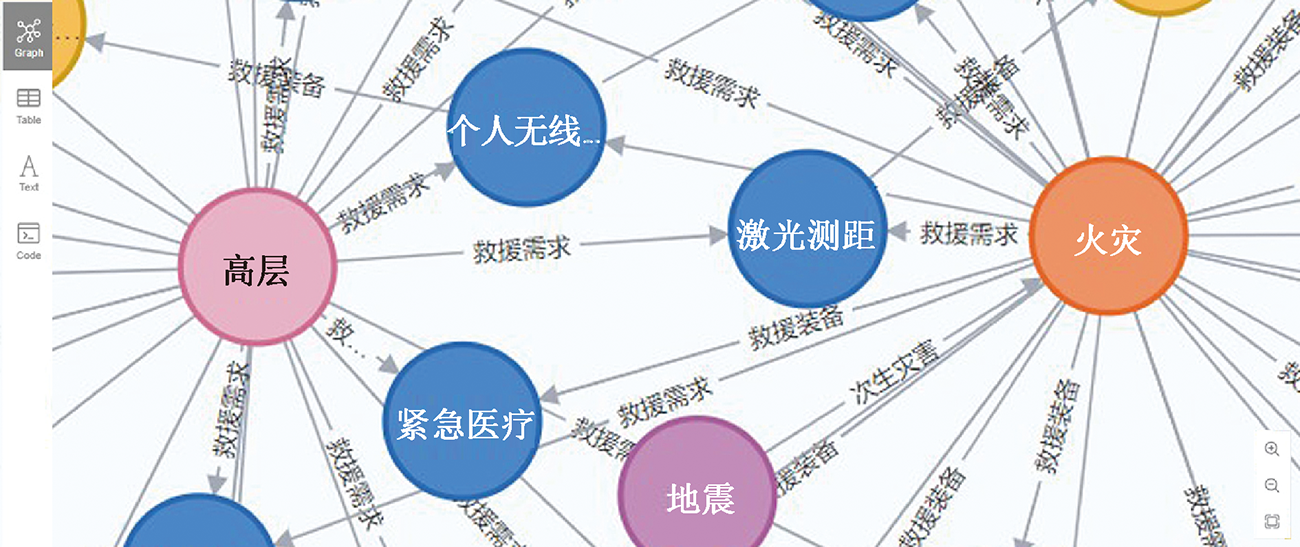

为提升地震救援人员的应急救援速度,适应多样化的搜救需求,提出一种基于知识图谱的智能化地震救援装备信息管理方法。首先,通过自顶向下的知识图谱构建方法,从多种信息源获取地震救援知识,并以此为基础进行知识建模;其次,用基于规则的方法抽取搜救知识,再基于余弦相似度进行知识融合,融合后的知识以资源描述框架(RDF)三元组的形式储存;然后,采用开源图数据库Neo4j将三元组组织成可视化的知识图谱;最后,基于知识图谱建立问答系统,方便用户以自然语言查询图谱上的知识。结果表明:知识图谱中包含灾害、次生灾害、环境因素、救援需求和救援装备5类实体及关系,且可以根据救援需求实现装备的快速匹配。基于知识图谱的方法可以实现对救援装备信息的管理与调度,有助于提升救援行动准备阶段的效率。

关键词: 知识图谱, 地震救援, 救援装备, 智能管理, 知识抽取, 知识融合, Neo4j

Abstract:

In order to assist earthquake rescue personnel in enhancing disaster response speed and adapting to diverse search and rescue needs, an intelligent management method for earthquake rescue equipment information based on a knowledge graph was proposed. Through the top-down knowledge graph construction method, earthquake rescue knowledge was first obtained from various information sources to serve as the basis for knowledge modeling. Next, a rule-based method was used to extract search and rescue knowledge, which was then integrated based on cosine similarity. The integrated knowledge was stored in the form of Resource Description Framework (RDF) triples. Subsequently, the open-source graph database Neo4j was employed to organize the triples into a visualized knowledge graph. Finally, a question-and-answer system was built based on the knowledge graph, allowing users to query the knowledge on the graph using natural language. The results indicate that the knowledge graph includes five categories of entities and relationships: disasters, secondary disasters, environmental factors, rescue needs, and rescue equipment. It facilitates quick matching of equipment based on rescue needs. The knowledge graph-based method can effectively manage and schedule rescue equipment information, improving the efficiency of the preparation phase of rescue operations.

Key words: knowledge graph, earthquake rescue, rescue equipment, intelligent management, knowledge extraction, knowledge fusion, Neo4j

中图分类号:

X913.1安全运筹学

郭天颖, 茆晓阳, 段齐骏, 马迪. 基于知识图谱的地震救援装备智能管理方法[J]. 中国安全科学学报, 2024, 34(7): 239-245.

GUO Tianying, MAO Xiaoyang, DUAN Qijun, MA Di. Intelligent management and scheduling approach for earthquake rescue equipment based on knowledge graph[J]. China Safety Science Journal, 2024, 34(7): 239-245.

图/表 8

图1

图2

表1

表2

表3

图3

图4

图5

参考文献 16

[1]	刘振亮, 苑溦, 李素超. 地震及次生突发灾害下公路桥梁网络韧性评估[J]. 中国安全科学学报, 2022, 32(8): 176-184. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1457
	LIU Zhenliang, YUAN Wei, LI Suchao. Resilience assessment of highway bridge networks subjected to both earthquakes and earthquake-induced secondary emergencies[J]. China Safety Science Journal, 2022, 32(8): 176-184. doi: 10.16265/j.cnki.issn1003-3033.2022.08.1457
[2]	高鹏飞, 刘方翔, 黄建华, 等. 考虑灾民心理痛苦的震后应急物资调配问题研究[J]. 中国安全科学学报, 2022, 32(11): 200-207. doi: 10.16265/j.cnki.issn1003-3033.2022.11.1392
	GAO Pengfei, LIU Fangxiang, HUANG Jianhua, et al. Research on post-earthquake emergency material allocation considering psychological pain of victims[J]. China Safety Science Journal, 2022, 32(11): 200-207. doi: 10.16265/j.cnki.issn1003-3033.2022.11.1392
[3]	彭卫平, 侯世科, 刘庆春, 等. 地震灾害现场医疗救援队分级标准化的探讨与设计[J]. 中国急救复苏与灾害医学杂志, 2011, 6(10): 833-835, 855.
	PENG Weiping, HOU Shike, LIU Qingchun, et al. Exploration on classification of medical rescue teams in earthquake disaster[J]. China Journal of Emergency Resuscitation and Disaster Medicine, 2011, 6(10): 833-835, 855.
[4]	张少见, 明鹏鹏. 基于消防救援力量合理布防的作战编成探讨[J]. 消防科学与技术, 2022, 41(8): 1151-1154, 1 159.
	ZHANG Shaojian, MING Pengpeng. Discussion on the operation programming based on the reasonable deployment of fire rescue forces[J]. Fire Science and Technology, 2022, 41(8): 1151-1154, 1 159.
[5]	ZOU Xiaohan. A survey on application of knowledge graph[C]. Journal of Physics: Conference Series. IOP Publishing, 2020: DOI:10.1088/1742-6596/1487/1/012016.
[6]	张明星, 张骁雄, 刘姗姗, 等. 利用知识图谱的推荐系统研究综述[J]. 计算机工程与应用, 2023, 59(4): 30-42. doi: 10.3778/j.issn.1002-8331.2209-0033
	ZHANG Mingxing, ZHANG Xiaoxiong, LIU Shanshan, et al. Review of recommendation systems using knowledge graph[J]. Computer Engineering and Applications, 2023, 59(4): 30-42. doi: 10.3778/j.issn.1002-8331.2209-0033
[7]	徐敬海, 聂高众. 地震应急决策知识地理本体建模[J]. 地震地质, 2015, 37(2): 588-597. doi: 10.3969/j.issn.0253-4967.2015.02.020
	XU Jinghai, NIE Gaozhong. Geo-ontology modeling for earthquake emergency decision-making knowledge[J]. Seismology and Geology, 2015, 37(2): 588-597. doi: 10.3969/j.issn.0253-4967.2015.02.020
[8]	SUN Xiaoqin, LI Qi, SUN Hai, et al. Earthquake knowledge graph constructing based on social intercourse using bilstm-crf[C]. IOP Conference Series: Earth and Environmental Science. IOP Publishing, 2020:DOI:10.1088/1755-1315/428/1/012080.
[9]	陶坤旺, 赵阳阳, 朱鹏, 等. 面向一体化综合减灾的知识图谱构建方法[J]. 武汉大学学报:信息科学版, 2020, 45(8): 1296-1302.
	TAO Kunwang, ZHAO Yangyang, ZHU Peng, et al. Knowledge graph construction for integrated disaster reduction[J]. Geomatics and Information Science of Wuhan University, 2020, 45(8): 1296-1302.
[10]	邱芹军, 吴亮, 马凯, 等. 面向灾害应急响应的地质灾害链知识图谱构建方法[J]. 地球科学, 2023, 48(5): 1875-1891.
	QIU Qinjun, WU Liang, MA Kai, et al. A knowledge graph construction method for geohazard chain for disaster emergency response[J]. Earth Sciences, 2023, 48(5): 1875-1891.
[11]	JIAO Yifan, YOU Sisi. Rescue decision via earthquake disaster knowledge graph reasoning[J]. Multimedia Systems, 2023, 29(2): 605-614.
[12]	谭德宝, 申邰洪, 陈蓓青. 空间信息技术在地震次生灾害防治中的应用[J]. 人民长江, 2008, 39(22): 99-101.
	TAN Debao, SHEN Taihong, CHEN Beiqing. Application of spatial information technology in prevention of earthquake-induced disasters[J]. Yangtze River, 2008, 39(22): 99-101.
[13]	张吉祥, 张祥森, 武长旭, 等. 知识图谱构建技术综述[J]. 计算机工程, 2022, 48(3): 23-37. doi: 10.19678/j.issn.1000-3428.0061803
	ZHANG Jixiang, ZHANG Xiangsen, WU Changxu, et al. Survey of knowledge graph construction techniques[J]. Computer Engineering, 2022, 48(3): 23-37. doi: 10.19678/j.issn.1000-3428.0061803
[14]	王飞, 易绵竹, 谭新, 等. 基于Neo4j对涉藏领域本体的存储方法研究[J]. 郑州大学学报:理学版, 2019, 51(2): 60-65.
	WANG Fei, YI Mianzhu, TAN Xin, et al. Storage method for Tibet-related domain ontology based on Neo4j[J]. Journal of Zhengzhou University: Natural Science Edition, 2019, 51(2): 60-65.
[15]	郝少璞, 刘全, 徐平安, 等. 基于余弦相似度的多模态模仿学习方法[J]. 计算机研究与发展, 2023, 60(6): 1358-1372.
	HAO Shaopu, LIU Quan, XU Pingan, et al. Multi-modal imitation learning method with cosine similarity[J]. Journal of Computer Research and Development, 2023, 60(6): 1358-1372.
[16]	DUBROVIN A S, OGORODNIKOVA O V, TSARKOVA E G, et al. Analysis and visualization in graph database management systems[C]. Journal of Physics: Conference Series. IOP Publishing, 2021:DOI: 10.1088/1742-6596/1902/1/012059.

救援需求	含义	装备示例
防护	保护救援人员自身安全	防护服、护目镜、通讯设备等
搜索	在废墟中搜寻和定位被困人员	生命探测仪器、搜救犬等
营救	帮助被困人员从废墟中脱困	绳索、钻探、破拆工具等
医疗	对伤者实施紧急医疗救助	担架、止血绷带、药品等
后勤	支持搜救行动运作	供能设备、照明设备、帐篷等

抽取规则	文本示例	抽取结果
地震—地点—引发—次生灾害	地震引发了泥石流	[地震,引发,泥石流]
灾害—导致—地点—环境影响	地震导致土耳其马拉蒂亚省大规模房屋倒塌	[地震,导致,大规模房屋倒塌]
救援组织名称—提供—救灾物资	巴基斯坦国家灾害管理局提供一批防寒帐篷和毯子	[防寒帐篷和毯子]
救援组织名称—携带/ 运输—救援装备—定性描述	搜救队携带急救箱、帐篷、床上用品、医疗用品和其他必要设备帮助受影响的人	[急救箱、帐篷、床上用品、医疗用品和其他必要设备]
︙	︙	︙

知识融合前	相似度	知识融合效果
提供电力,供电	0.812	供电
钢锯,锯子	0.811	锯子
氧气自救呼吸器, 正压氧气呼吸器	0.906	氧气呼吸器
︙	︙	︙
