基于MCDM-BPNN的城市内涝风险评价及调蓄池选址

doi:10.16265/j.cnki.issn1003-3033.2024.08.1518

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (8): 214-221.doi: 10.16265/j.cnki.issn1003-3033.2024.08.1518

基于MCDM-BPNN的城市内涝风险评价及调蓄池选址

郝景开¹^,²(), 李红艳¹^,²^,^**(), 张峰¹^,², 张翀³, 毛立波⁴, 刘大为¹^,²

¹ 太原理工大学环境科学与工程学院,山西晋中 030600
² 山西省市政工程研究生教育创新中心,山西晋中 030600
³ 山西省交通科技研发有限公司,山西太原 030032
⁴ 山西大地环境投资控股有限公司科创管理部,山西太原 030032

收稿日期:2023-12-11 修回日期:2024-03-19 出版日期:2024-08-28
通信作者:
** 李红艳(1975—),女,山西吕梁人,博士,副教授,主要从事灾害风险评估、城市水资源与水系统研究等。E-mail:lhy3162@126.com。
作者简介:
郝景开 (2000—),女,山西太原人,硕士研究生,研究方向为灾害风险评估、城市水资源与水系统。E-mail: 18536646570@163.com。
张峰, 副教授。
毛立波, 正高级工程师。
基金资助:
山西省自然科学研究面上项目(202203021221060); 山西省研究生创新项目(2023KY254); 吕梁市引进高层次科技人才重点研发项目(2021RC-1-22)

Risk assessment of urban waterlogging and site selection of storage tank based on MCDM-BPNN

HAO Jingkai¹^,²(), LI Hongyan¹^,²^,^**(), ZHANG Feng¹^,², ZHANG Chong³, MAO Libo⁴, LIU Dawei¹^,²

¹ School of Environmental Science and Engineering, Taiyuan University of Technology, Jinzhong Shanxi 030600, China
² Shanxi Municipal Engineering Graduate Education Innovation Center, Jinzhong Shanxi 030600, China
³ Shanxi Traffic Science and Technology Research and Development Co., Ltd., Taiyuan Shanxi 030032, China
⁴ Science and Technology Management Department of Shanxi Dadi Environmental Investment Holding Limited Liability Company, Taiyuan Shanxi 030032, China

Received:2023-12-11 Revised:2024-03-19 Published:2024-08-28

摘要/Abstract

摘要：

为建立一套较为完善的城市内涝风险评价体系,并据此确定调蓄池位置,首先,从积水风险、超载风险和边侧进流量3个维度构建评价指标,设计一种包括改进层次分析法(IAHP)、反熵权法(AEW)和优劣解距离法(TOPSIS)的混合多准则决策框架(MCDM);然后,将IAHP-AEW-TOPSIS模型分别与IAHP-TOPSIS、AEW-TOPSIS模型对比,通过斯皮尔曼排序相关系数验证排序一致性,通过计算变异系数、相对极差和灵敏度证实IAHP-AEW-TOPSIS模型的性能;最后,结合反向传播神经网络(BPNN),建立MCDM-BPNN模型,并以山西省某一内涝易发区域为例进行验证。结果表明:积水风险对城市内涝风险评价体系的影响最为显著,所占权重为0.46,其次为超载风险,所占权重为0.36;节点位置与连接管道数量很大程度上对该节点的内涝风险产生影响,在管道汇接处或汇流面积较大处内涝出现更为频繁;IAHP-AEW-TOPSIS模型在样本判别方面具有更好的性能;在5年与10年重现期下,MCDM-BPNN模型验证集准确率分别为93.3%和100%,能够准确快速模拟和预测城市洪水;应用案例设置调蓄池后,高、中、低风险节点数量分别为7、9、30和6、19、21,内涝溢流削减效果显著。

关键词: 多准则决策框架(MCDM), 反向传播神经网络(BPNN), 城市内涝, 风险评价, 调蓄池

Abstract:

To establish a comprehensive evaluation system for urban waterlogging risk, three dimensions were selected: water accumulation risk, overload risk, and lateral inflow. This system aims to provide a reference for the optimal placement of storage tanks. Firstly, a mixed MCDM framework including the improved analytic hierarchy process (IAHP), anti-entropy weight method (AEW), and technique for order preference by similarity to ideal solution (TOPSIS) was designed. Then, the IAHP-AEW-TOPSIS model was compared with IAHP-TOPSIS and AEW-TOPSIS model respectively, and the ranking consistency was verified by Spearman ranking correlation coefficient. The performance of IAHP-AEW-TOPSIS model was confirmed by calculating variation coefficient, relative range and sensitivity. Finally, a model based on MCDM-BPNN was established and verified by a waterlogging-prone area in Shanxi Province. The results show that water accumulation risk has the most significant influence in the evaluation system of urban waterlogging risk, with the weight of 0.46, followed by the overload risk with the weight of 0.36. The location of the node and the number of connecting pipes greatly affect the risk of waterlogging of the node, and waterlogging occurs more frequently at the junction of pipes or in larger confluence areas. There was better performance exhibited by the IAHP-AEW-TOPSIS model. In the 5-year and 10-year return periods, the accuracy of MCDM-BPNN model verification set is 93.3% and 100% respectively, which can accurately and rapidly simulate and predict urban floods. After the application case is set up, the number of high, medium and low risk nodes are 7, 9, 30 and 6, 19, 21 respectively, and the effect of reducing waterlogging overflow is remarkable.

Key words: multi-criteria decision making (MCDM), back propagation neural networks (BPNN), urban waterlogging, risk assessment, storage tank

中图分类号:

X915.5

郝景开, 李红艳, 张峰, 张翀, 毛立波, 刘大为. 基于MCDM-BPNN的城市内涝风险评价及调蓄池选址[J]. 中国安全科学学报, 2024, 34(8): 214-221.

HAO Jingkai, LI Hongyan, ZHANG Feng, ZHANG Chong, MAO Libo, LIU Dawei. Risk assessment of urban waterlogging and site selection of storage tank based on MCDM-BPNN[J]. China Safety Science Journal, 2024, 34(8): 214-221.

图/表 7

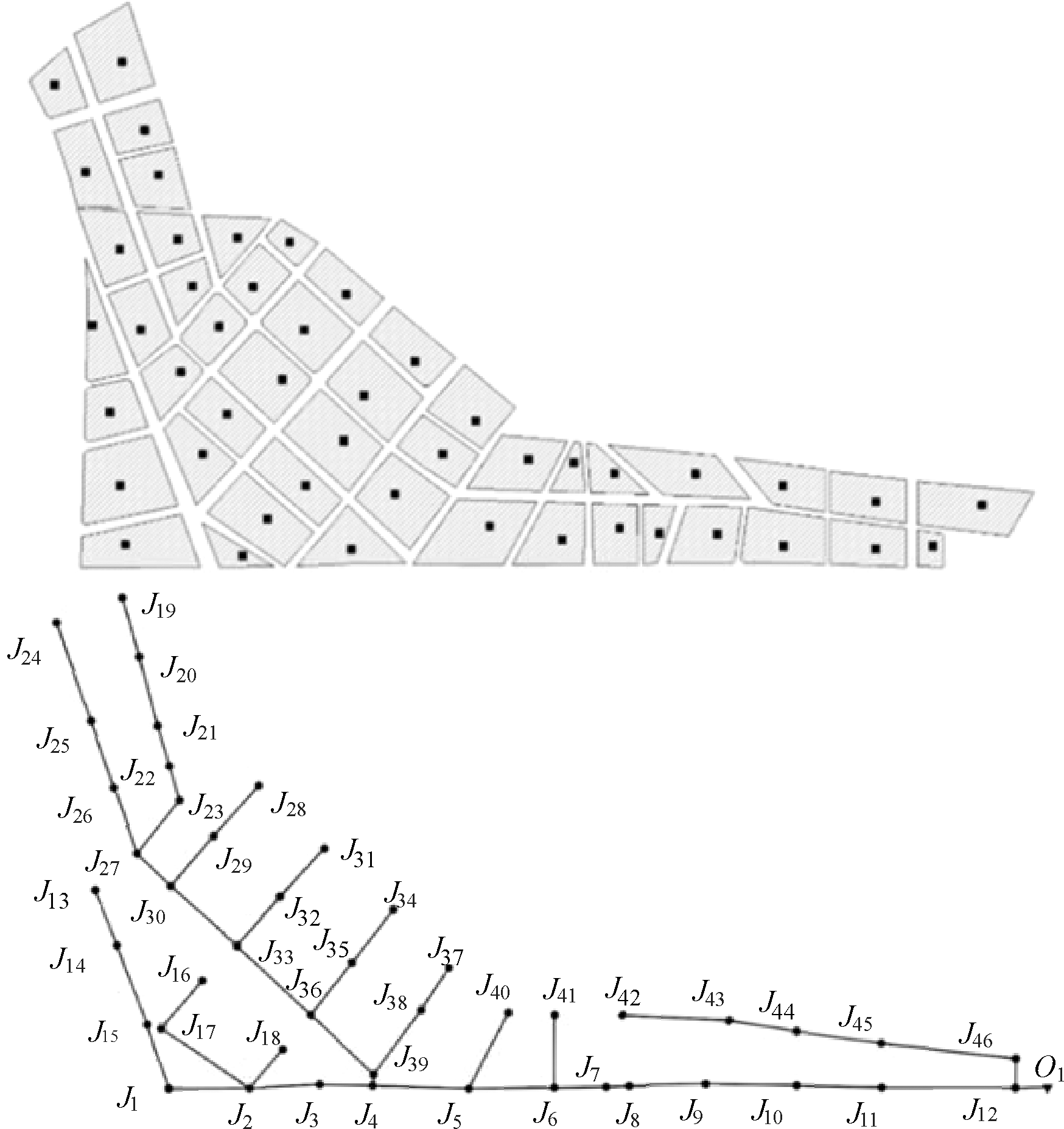

图1

图2

图3

图4

表1

表2

图5

参考文献 17

[1]	中华人民共和国2022年国民经济和社会发展统计公报[EB/OL].(2023-09-10). https://www.stats.gov.cn/.
[2]	唐少虎, 朱伟, 程光, 等. 暴雨内涝下城市道路交通系统安全韧性评估[J]. 中国安全科学学报, 2022, 32(7):143-150. doi: 10.16265/j.cnki.issn1003-3033.2022.07.1391
	TANG Shaohu, ZHU Wei, CHENG Guang, et al. Safety resilience assessment of urban road triffic system under rainstorm waterlogging[J]. China Safety Science Journal, 2022, 32(7):143-150. doi: 10.16265/j.cnki.issn1003-3033.2022.07.1391
[3]	李碧琦. 不同空间尺度下深圳市城市暴雨内涝灾害风险评估[D]. 广州: 华南理工大学, 2020.
	LI Biqi. Risk assessment of urban rainstorm waterlogging disaster at different spatial scales in Shenzhen[D]. Guangzhou: South China University of Technology, 2020.
[4]	DUAN Chenyu, ZHANG Jiquan, CHEN Yanan, et al. Comprehensive risk assessment of urban waterlogging disaster based on MCDA-GIS integration: the case study of Changchun,China[J]. Remote Sensing, 2022, 14(13):3 101-3 118.
[5]	LI Ziwei, TANG Xiangling, LI Liju, et al. GIS-based risk assessment of flood disaster in the Lijiang River basin[J]. Scientific reports, 2023, 13(1): 6 160-6 173.
[6]	郑安娜, 李建微, 陈思喜, 等. 城市洪涝风险评估中的软件应用及进展[J]. 中国安全科学学报, 2022, 32(9):118-125. doi: 10.16265/j.cnki.issn1003-3033.2022.09.2721
	ZHENG Anna, LI Jianwei, CHEN Sixi, et al. Application and progress of software in urban flood risk assessment[J]. China Safety Science Journal, 2022, 32(9): 118-125. doi: 10.16265/j.cnki.issn1003-3033.2022.09.2721
[7]	STEIN L, PIANOSI F, WOODS R. Event-based classification for global study of river flood generating processes[J]. Hydrological Processes 2020, 34(7):1 514-1 529.
[8]	王颖, 王圃, 王梓璇, 等. 山地城市供水管网水质安全风险评价方法[J]. 中国安全科学学报, 2023, 33(8):205-211. doi: 10.16265/j.cnki.issn1003-3033.2023.08.2146
	WANG Ying, WANG Pu, WANG Zixuan, et al. Risk assessment method for water quality safety of water supply network in mountainous cities[J]. China Safety Science Journal, 2023, 33(8):205-211. doi: 10.16265/j.cnki.issn1003-3033.2023.08.2146
[9]	AMIRHOSSEIN N, ABBAS R, MEHDY S S H. Integrated SUSTAIN-SWMM-MCDM approach for optimal selection of LID practices in urban stormwater systems[J]. Water Resources Management, 2023, 37(9):3 769-3 793.
[10]	李红艳, 张翀, 崔建国, 等. 基于博弈论赋权耦合灰色关联分析的调蓄池优化选址[J]. 同济大学学报:自然科学版, 2023, 51(3):426-432.
	LI Hongyan, ZHANG Chong, CUI Jianguo, et al. Optimal location of storage tanks based on game theory weighting GRATOPSIS[J]. Journal of Tongji University:Natural Science, 2023, 51(3):426-432.
[11]	ABDRABO K I, KANTOUSH S A, ESMAIEL A, et al. An integrated indicator-based approach for constructing an urban flood vulnerability index as an urban decision-making tool using the PCA and AHP techniques: a case study of Alexandria,Egypt[J]. Urban Climate, 2023,48:DOI:10.1016/J.UCLIM.2023.101426.
[12]	KHAN A, GONG Z W, SHAH A A, et al. A multi-criteria decision-making approach to vulnerability assessment of rural flooding in Khyber Pakhtunkhwa Province,Pakistan[J]. Environmental Science and Pollution Research International, 2023, 30(19):56 786-56 801.
[13]	HU Caihong, ZHANG Xueli, LI Changqing, et al. Real-time flood classification forecasting based on k-means++ clustering and neural network[J]. Water Resources Management, 2021, 36(1):103-117.
[14]	ZHU Huagui, LIU Fan. A group-decision-making framework for evaluating urban flood resilience: a case study in Yangtze river[J]. Sustainability, 2021, 13(2):DOI:10.3390/su13020665.
[15]	GUPTHA G C, SWAIN S, AL-ANSARI N, et al. Assessing the role of SuDS in resilience enhancement of urban drainage system:a case study of Gurugram City,India[J]. Urban Climate, 2022, 41:DOI:10.1016/j.uclim.2021.101075.
[16]	宋英华, 张哲, 方丹辉. 城市洪涝下承灾体暴露性及行人失稳风险分析[J]. 中国安全科学学报, 2020, 30(10):105-111. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.015
	SONG Yinghua, ZHANG Zhe, FANG Danhui. Analysis on exposure of disaster-bearing bodies and pedestrians instability risk under urban waterlogging[J]. China Safety Science Journal, 2020, 30(10):105-111. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.015
[17]	戢晓峰, 乔新, 普永明, 等. 地铁站周边建成环境对交通事故风险的影响机制[J]. 中国安全科学学报, 2022, 32(10):162-170. doi: 10.16265/j.cnki.issn1003-3033.2022.10.2546
	JI Xiaofeng, QIAO Xin, PU Yongming, et al. Influence mechanism of built environment around subway ststion on traffic accident risk[J]. China Safety Science Journal, 2022, 32(10): 162-170. doi: 10.16265/j.cnki.issn1003-3033.2022.10.2546

评价指标	最大贴近度值	最小贴近度值	极差
式(1)	0.958 9	0.195 2	0.763 7
式(6)	0.782 2	0.045 9	0.736 3

评价指标	斯皮尔曼排序相关系数	变异系数	相对极差	灵敏度
IAHP-AEW-TOPSIS	1.000 0	0.353 2	2.393 2	0.571 7
IAHP-TOPSIS	1.000 0	0.362 3	2.465 2	0.582 7
AEW-TOPSIS	0.968 2	0.292 9	1.828 2	0.440 9
