细粒尾矿沉积特性与矿浆流动特征流槽模型试验

doi:10.16265/j.cnki.issn1003-3033.2025.05.0918

中国安全科学学报 ›› 2025, Vol. 35 ›› Issue (5): 135-144.doi: 10.16265/j.cnki.issn1003-3033.2025.05.0918

细粒尾矿沉积特性与矿浆流动特征流槽模型试验

陈青林¹^,²(), 包礼霖¹^,², 王晓军¹^,²^,^**(), 戴泽宇¹^,², 张超³, 王光进¹^,²

¹ 稀有金属资源安全高效开采江西省重点实验室,江西赣州 341000
² 江西理工大学资源与环境工程学院,江西赣州 341000
³ 中国科学院武汉岩土力学研究所岩土力学与工程国家重点实验室,湖北武汉 430071

收稿日期:2024-12-05 修回日期:2025-02-15 出版日期:2025-05-28
通信作者:
^** 王晓军(1979—),男,山西晋中人,博士,教授,主要从事金属矿安全高效开采与灾害防治研究。E-mail: wangxiaojun@jxust.edu.cn。
作者简介:
陈青林 (1990—),男,江西抚州人,博士,副教授,主要从事采矿工程、尾矿坝灾变机制与防控技术,边坡稳定等方面的研究。E-mail: chenql@jxust.edu.cn。
陈青林, 副教授
王晓军, 教授
张超, 研究员
王光进, 教授
基金资助:
国家重点研发计划项目(2023YFC3012200); 国家自然科学基金资助(52104085); 江西省自然科学基金资助(20232BAB213069); 江西省双千计划项目(jxsq2023102139)

Sedimentation law of fine tailings and characteristics of slurry flow by flume model test

CHEN Qinglin¹^,²(), BAO Lilin¹^,², WANG Xiaojun¹^,²^,^**(), DAI Zeyu¹^,², ZHANG Chao³, WANG Guangjin¹^,²

¹ Jiangxi Province Key Laboratory of Safe and Efficient Mining of Rare Metal Resources, Ganzhou Jiangxi 341000, China
² School of Resources & Environment Engineering, Jiangxi University of Science and Technology, Ganzhou Jiangxi 341000, China
³ State Key Laboratory of Geomechanics and Geotechnical Engineering, Institute of Rock and Soil Mechanics, Chinese Academy of Sciences, Wuhan Hubei 430071, China

Received:2024-12-05 Revised:2025-02-15 Published:2025-05-28

摘要/Abstract

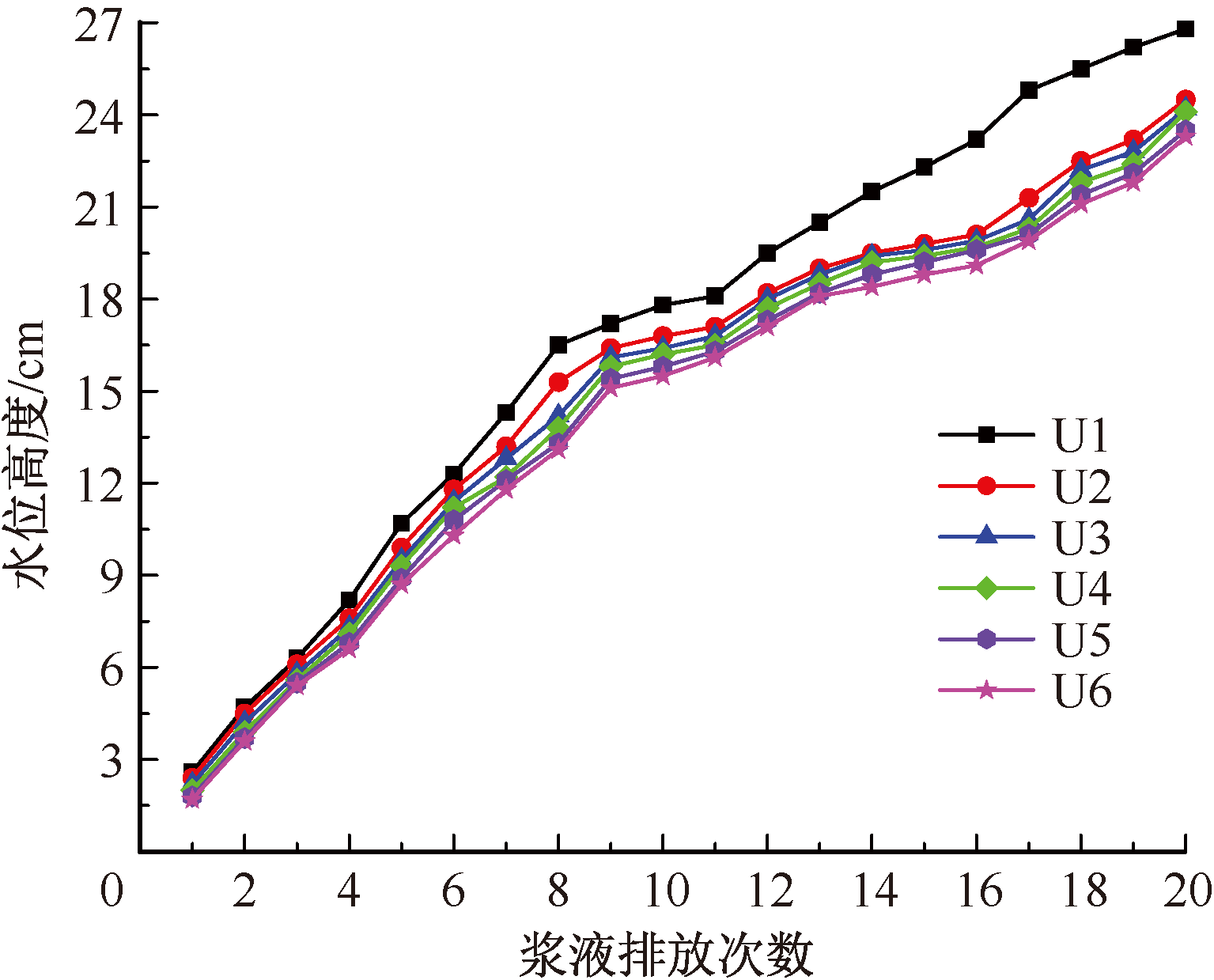

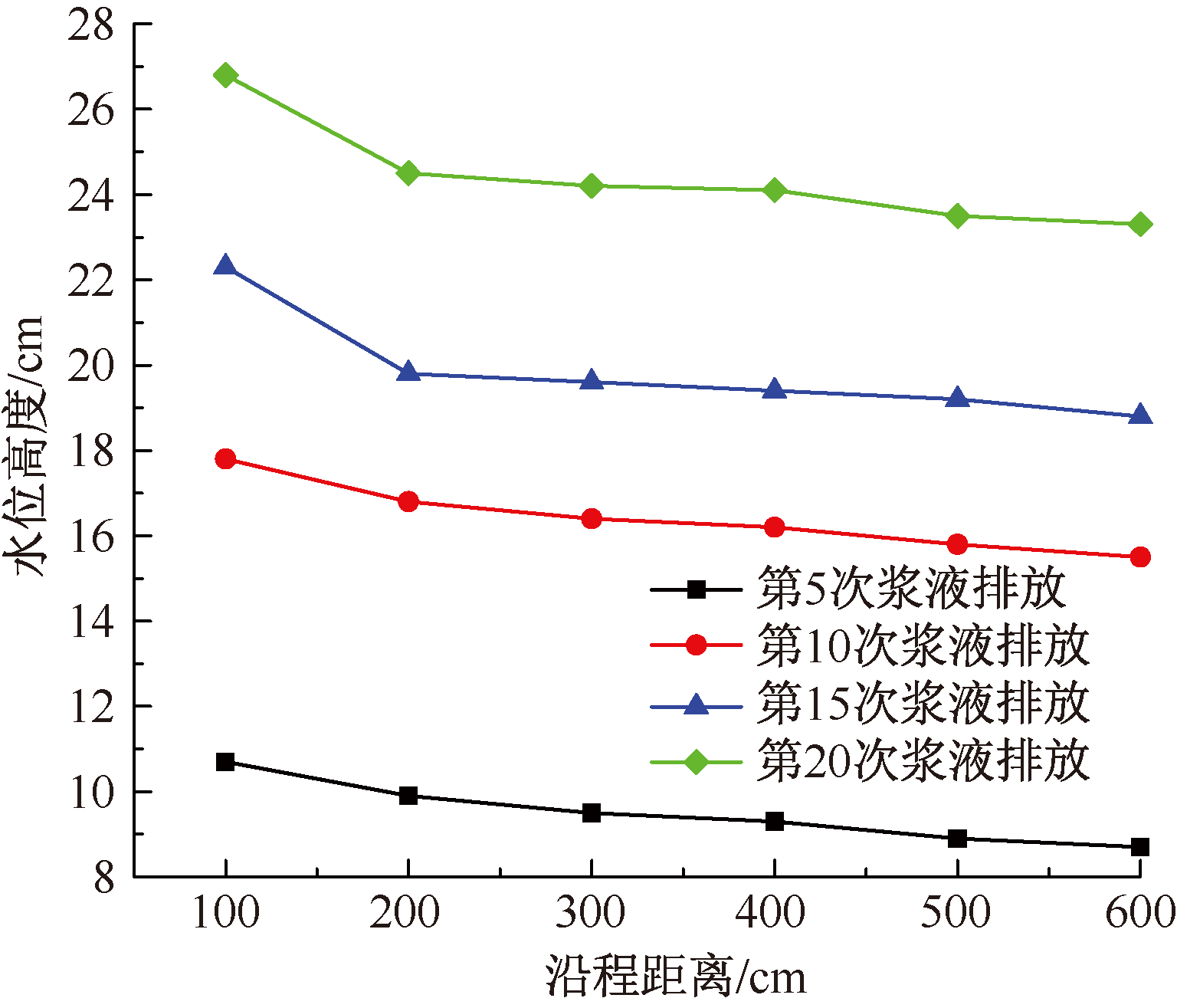

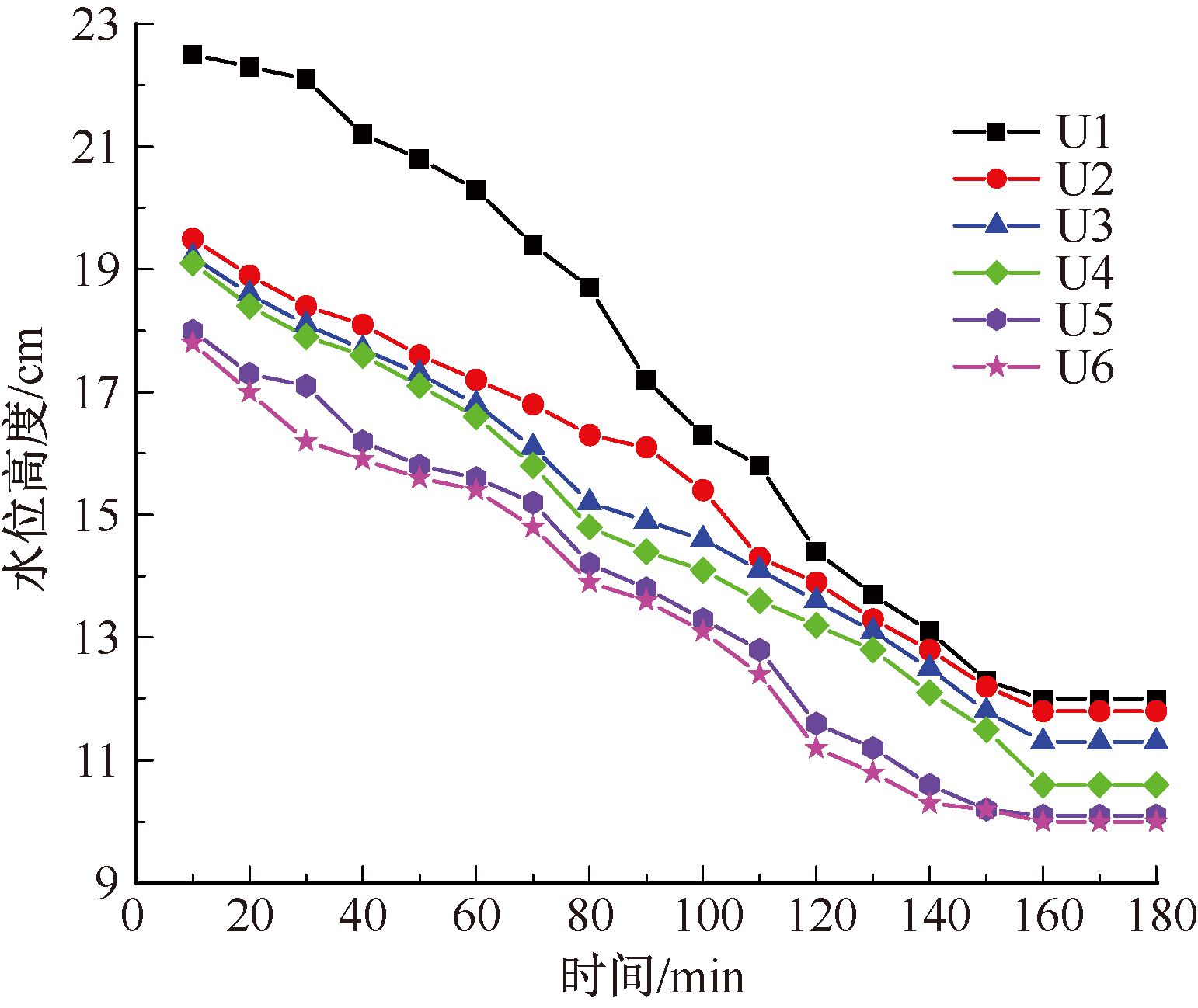

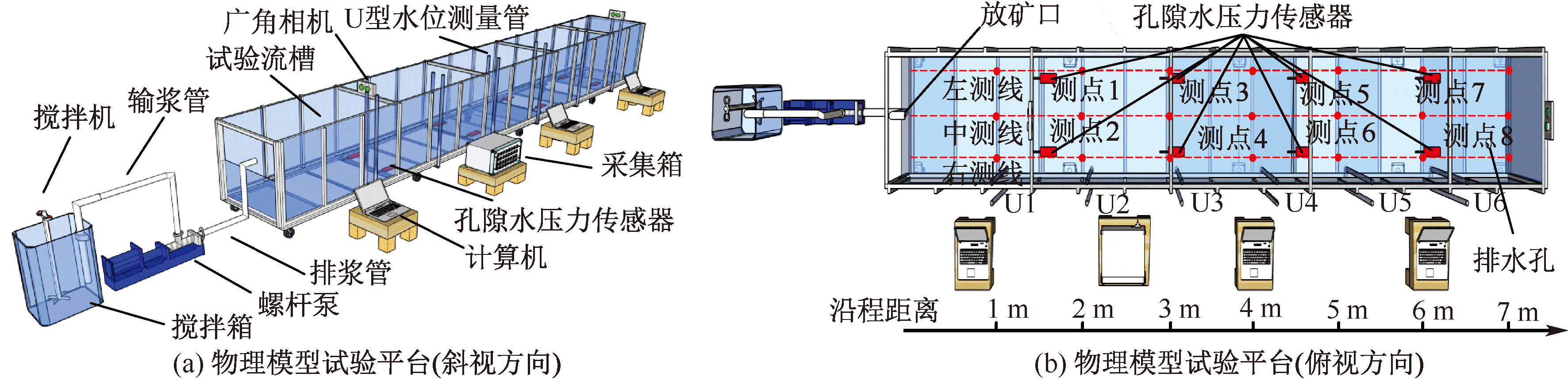

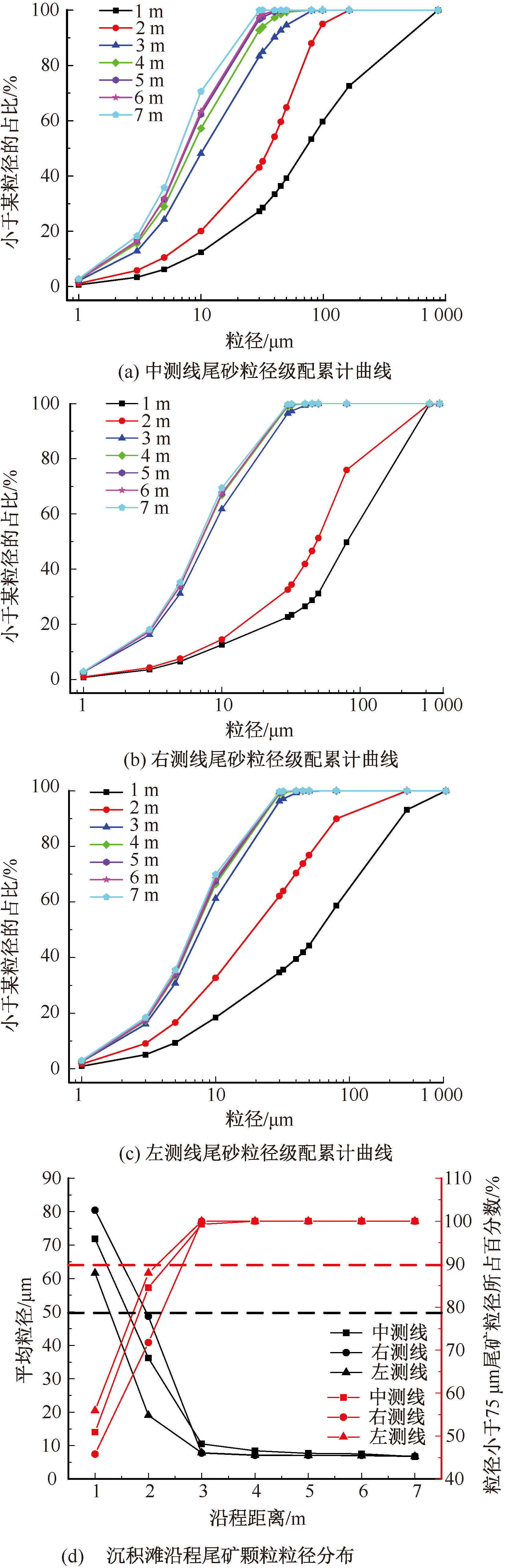

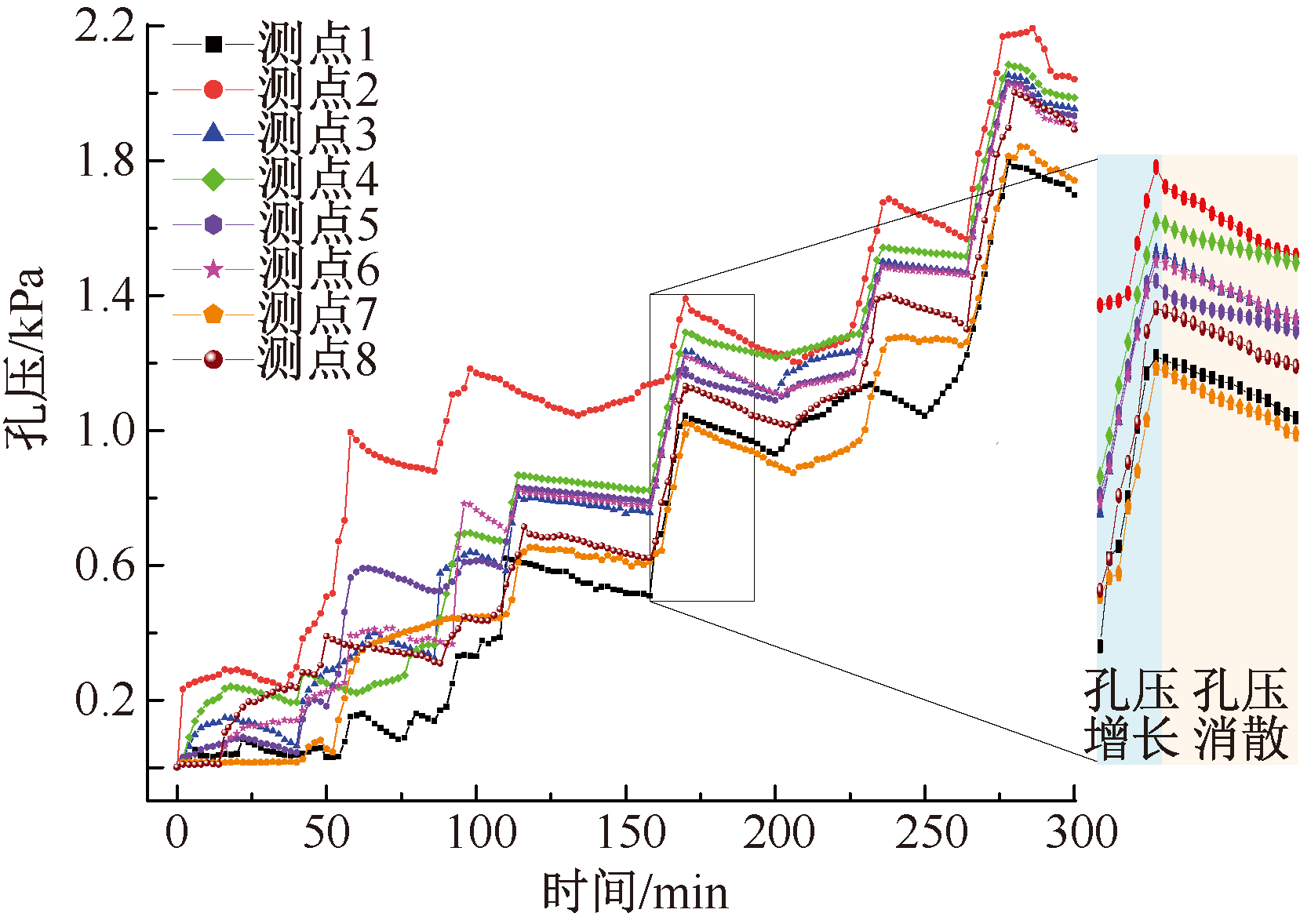

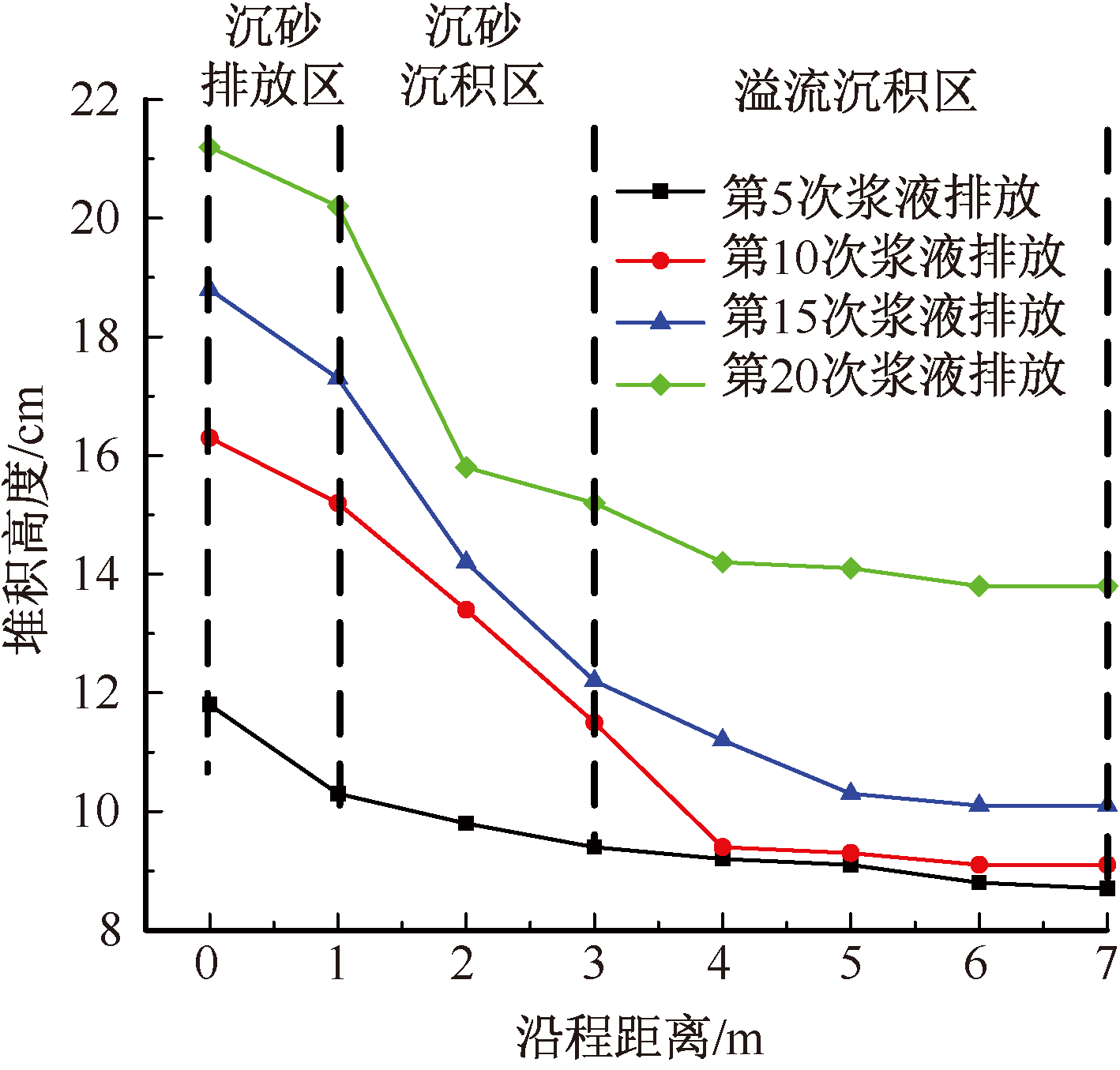

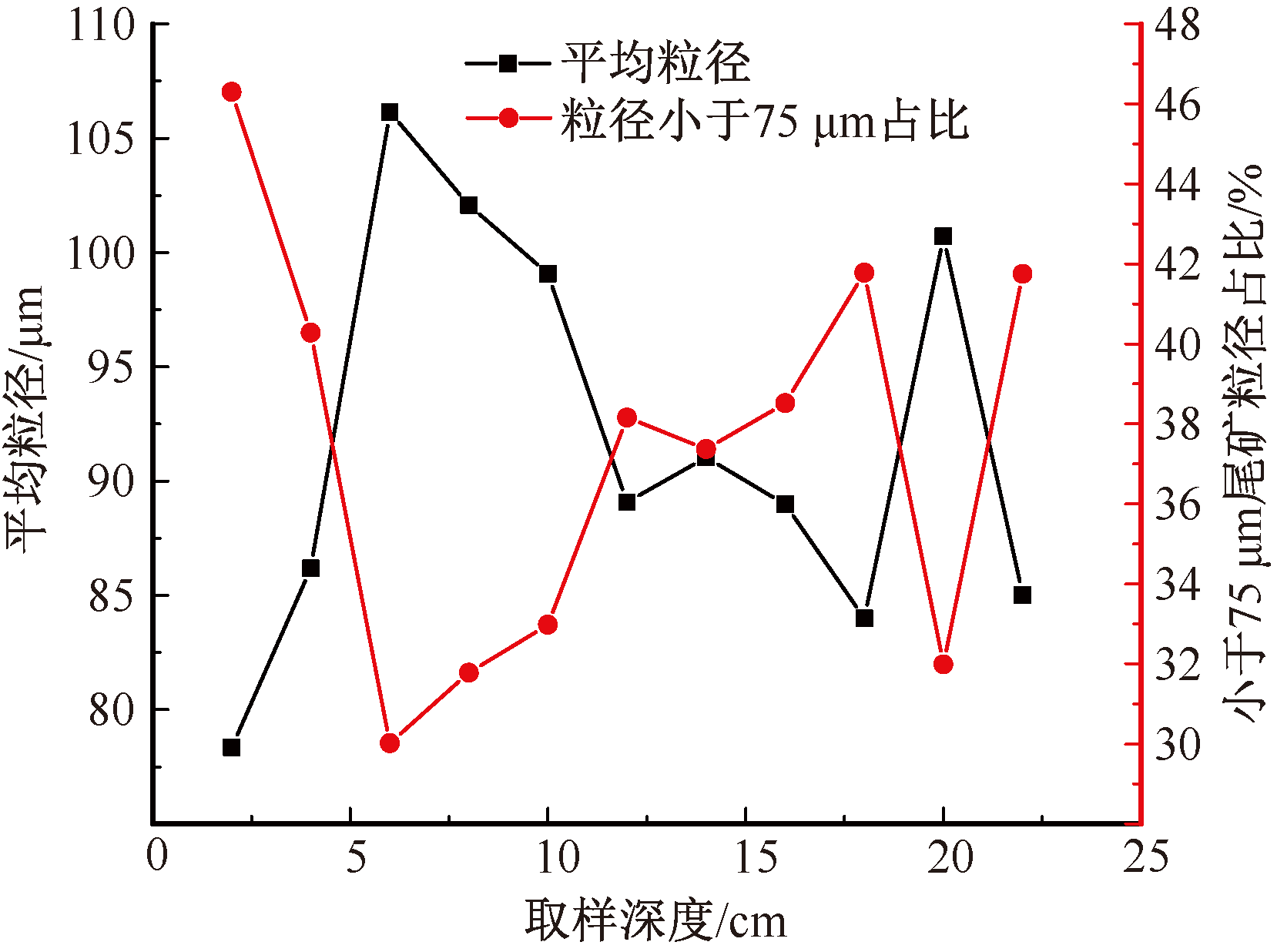

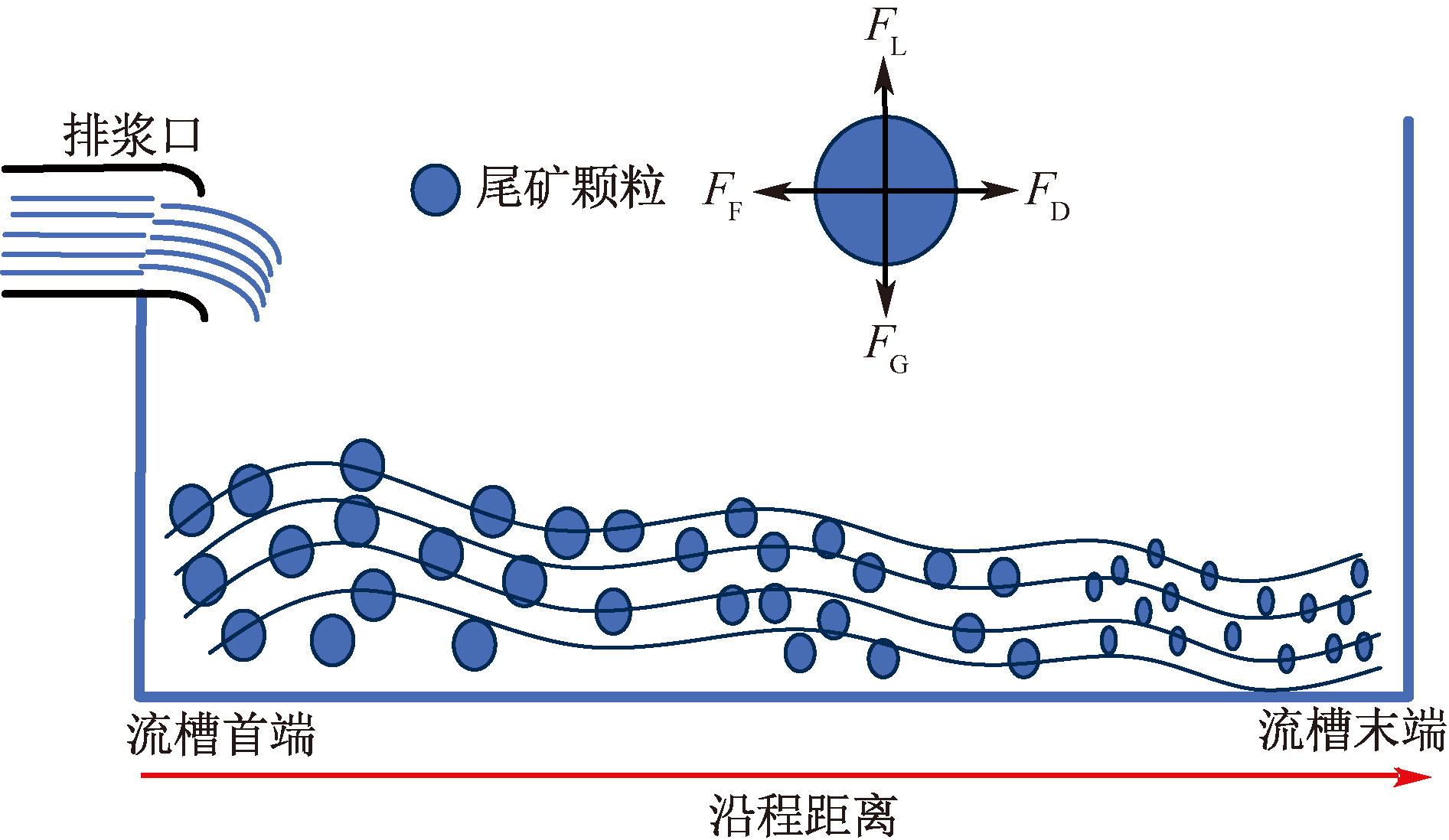

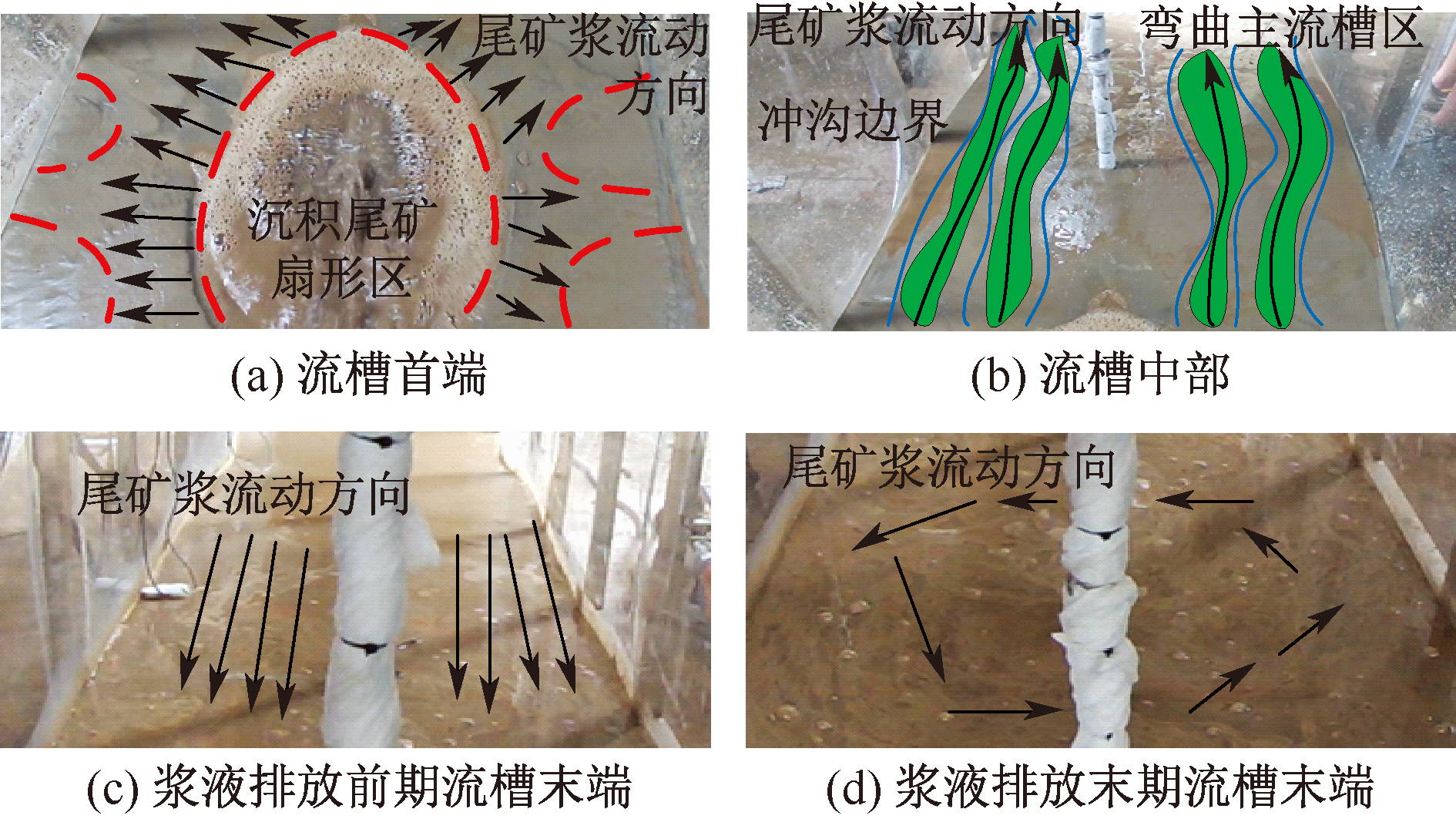

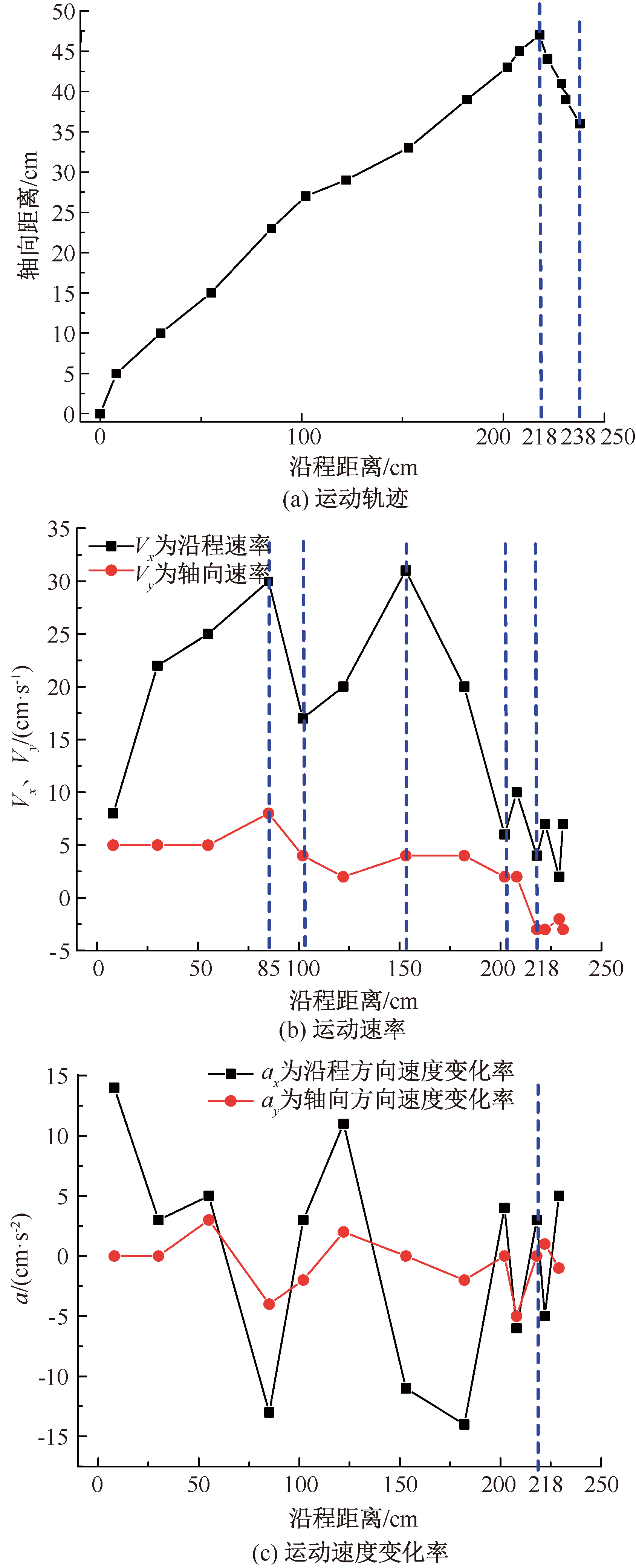

摘要： 为剖析尾矿坝堆积筑坝过程中尾矿沉积体赋存特征与浆液流动行为,采用流槽试验模型开展单管浆液排放条件下细粒尾矿堆积筑坝试验,研究细粒尾矿堆积过程中沉积滩坡度、尾矿颗粒粒径分布、水位高度和孔隙水压力的变化特性,分析尾矿浆流动、运动轨迹特征,并讨论尾矿沿程沉积细化机制。结果表明:沉积滩坡度随沿程距离的增加而减小;尾矿颗粒粒径随沿程距离的增加逐渐细化,随深度的增加粒径呈交错变化;尾矿坝水位高度随坝高的增高而增加,整体表现出前陡后缓;孔隙水压力在尾矿浆排放阶段上升,在尾矿浆停止排放间歇阶段消散;尾矿浆在流槽首端以扇形发散的方式流动,中部以不规则溪流的方式流动,末端尾矿浆先以层流方式流动后转变为无规则旋转流动;干滩面浆液运动速率波动较大,达到尾水面后浆液的运动趋于平稳,尾水面交界处前后浆液的运动特征差异性较大。

关键词: 细粒尾矿, 矿浆流动, 沉积滩坡度, 流槽, 尾矿坝, 孔隙水压力

Abstract:

To investigate the occurrence characteristics of the tailings deposit and slurry flow behavior during the damming process of tailings impoundments, the flume test model was used to carry out the fine-grained tailings accumulation damming test under single pipe slurry discharge conditions. The variation characteristics of beach slope, tailings particle size distribution, water level height and pore water pressure during the accumulation process of fine-grained tailings were studied. The tailings slurry flow and trajectory characteristics were analyzed, and the mechanism of tailings refinement along the deposition course was discussed. The results show that deposition slope decreased with the increase of the downstream distance. The particle size of tailings gradually becomes finer with increase of downstream distance, and the particle size is staggered with the increase of depth. The height of water level of tailings dam increases with the increase of height of dam, exhibiting a steep front slope and a gentle back slope overall. The pore water pressure rises during the discharge stage of tailings slurry and dissipates during the intermittent stage when tailings slurry stops discharging. The tailings slurry flows in a fan-shaped divergent pattern at the beginning of flume, in an irregular stream-like pattern in the middle section, and transitions from laminar flow to irregular rotational flow at the end. The slurry flow rate on dry beach surface fluctuates greatly, and slurry movement tends to be stable after reaching the tailings water surface. There is a significant difference in slurry movement characteristics before and after the interface between dry beach and tailings water.

Key words: fine-grained tailings, tailings pulp flow, deposition beach slope, flume, tailings dam, pore water pressure

中图分类号:

X936

陈青林, 包礼霖, 王晓军, 戴泽宇, 张超, 王光进. 细粒尾矿沉积特性与矿浆流动特征流槽模型试验[J]. 中国安全科学学报, 2025, 35(5): 135-144.

CHEN Qinglin, BAO Lilin, WANG Xiaojun, DAI Zeyu, ZHANG Chao, WANG Guangjin. Sedimentation law of fine tailings and characteristics of slurry flow by flume model test[J]. China Safety Science Journal, 2025, 35(5): 135-144.

图/表 12

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

参考文献 20

[1]	段志杰, 李全明, 赵学义, 等. 细粒级尾矿上游法筑坝放矿参数优选试验研究[J]. 岩土工程学报, 2022, 44(8): 1474-1482.
	DUAN Zhijie, LI Quanming, ZHAO Xueyi, et al. Experimental study on optimization of ore drawing parameters for upstream damming of fine-grained tailings[J]. Chinese Journal of Geotechnical Engineering, 2022, 44(8): 1474-1482.
[2]	李全明, 段志杰, 于玉贞, 等. 尾矿坝沉积结构特征与性能演化规律研究进展[J]. 中国安全生产科学技术, 2022, 18(2): 6-19, 2.
	LI Quanming, DUAN Zhijie, YU Yuzhen, et al. Research progress on deposition structure characteristics and performance evolution law of tailings dam[J]. Journal of Safety Science and Technology, 2022, 18(2): 6-19, 2.
[3]	PETTIBONE H C, KEALY C D. Engineering properties of mine tailings[J]. Journal of the Soil Mechanics and Foundations Division, 1971, 97(9): 1207-1225.
[4]	尹光志, 余果, 张东明, 等. 细粒尾矿堆积坝物理模型试验研究[J]. 矿业安全与环保, 2005, 31(5): 4-5, 89.
	YIN Guangzhi, YU Guo, ZHANG Dongming, et al. Physical modelling of fine-grained tailings impoundment dams[J]. Mining Safety and Environmental Protection, 2005, 31(5): 4-5, 89.
[5]	SHAO Longtan, CHEN Zhixiang, GUO Xiaoxia, et al. Hydraulic classification and sedimentation behaviors of iron tailings[J]. Bulletin of Engineering Geology and the Environment, 2021, 80(5): 3989-4000. doi: 10.1007/s10064-021-02129-1
[6]	梁冰, 吕志强, 金佳旭, 等. 排浆速度对尾矿沉积影响的模型试验研究[J]. 实验力学, 2017, 32(6): 880-887.
	LIANG Bing, LYU Zhiqiang, JIN Jiaxu, et al. Model experimental study of effect of slurry draining speed on tailings deposition[J]. Journal of Experimental Mechanics, 2017, 32(6): 880-887.
[7]	LEBITSA G, HEYMANN G, RUST E. Excess pore pressure generation during slurry deposition of gold tailings[J]. International Journal of Mining, Reclamation and Environment, 2021, 35(2): 95-114.
[8]	GUI Rong, HE Guicheng. The effects of internal erosion on the physical and mechanical properties of tailings under heavy rainfall infiltration[J]. Applied Sciences Basel, 2021, 11(20): DOI:10.3390/app11209496.
[9]	张东明, 郑彬彬, 尹光志, 等. 高浓缩分级尾矿上游法堆坝及模型试验研究[J]. 岩土力学, 2016, 37(7): 1832-1838, 1 867.
	ZHANG Dongming, ZHENG Binbin, YIN Guangzhi, et al. Study on upstream dam stacking and model test of highly concentrated graded tailings[J]. Rock and Soil Mechanics, 2016, 37(7): 1832-1838, 1 867.
[10]	TIAN Sen, ZHAO Ying, GONG Yuanheng, et al. Experimental study on tailings deposition distribution pattern and sedimentation characteristics[J]. ACS Omega, 2024, 9(17): 19 428-19 439.
[11]	郭晓霞, 陈之祥, 邵龙潭, 等. 细粒铁尾矿的沉积特性与基本物理力学性质试验研究[J]. 岩土工程学报, 2020, 42(7): 1220-1227.
	GUO Xiaoxia, CHEN Zhixiang, SHAO Longtan, et al. Experimental study on sedimentary behavior and basic physical mechanical properties of fine iron tailings[J]. Chinese Journal of Geotechnical Engineering, 2020, 42(7): 1220-1227.
[12]	金佳旭, 崔红志, 梁冰, 等. 地震作用下尾矿库溃坝过程模型试验及加固方案[J]. 中国安全科学学报, 2017, 27(2): 92-97. doi: 10.16265/j.cnki.issn1003-3033.2017.02.017
	JIN Jiaxu, CUI Hongzhi, LIANG Bing, et al. Model-based study on collapse of tailing sreservoir dam under earthquake action and reinforcement scheme[J]. China Safety Science Journal, 2017, 27(2): 92-97. doi: 10.16265/j.cnki.issn1003-3033.2017.02.017
[13]	杨俊杰. 相似理论与结构模型实验[M]. 武汉: 武汉理工大学出版社, 2005: 9-17.
[14]	凌贤长, 郭明珠, 王东升, 等. 液化场地桩基桥梁震害响应大型振动台模型试验研究[J]. 岩土力学, 2006, 27(1): 7-10.
	LING Xianchang, GUO Mingzhu, WANG Dongsheng, et al. Large-scale shaking table model test of seismic response of bridge of pile foundation in ground of liquefaction[J]. Rock and Soil Mechanics, 2006, 27(1):7-10.
[15]	HENRIQUEZ J, SIMMS P. Dynamic imaging and modeling of multilayer deposition of gold paste tailings[J]. Minerals Engineering, 2009, 22(2): 128-139.
[16]	KWAK M, JAMES D F, KLEIN K A. Flow behavior of tailings paste for surface disposal[J]. International Journal of Mineral Processing, 2005, 77(3): 139-153.
[17]	乔兰, 屈春来, 崔明. 细粒含量对尾矿工程性质影响分析[J]. 岩土力学, 2015, 36(4): 923-927, 945.
	QIAO Lan, QU Chunlai, CUI Ming. Effect of fines content on engineering characteristics of tailings[J]. Rock and Soil Mechanics, 2015, 36(4): 923-927, 945.
[18]	何文, 陈豪, 郑场松, 等. 尾矿渗透破坏及其导波监测试验研究[J]. 岩土力学, 2023, 44(2): 415-424.
	HE Wen, CHEN Hao, ZHENG Changsong, et al. Experimental research on seepage failure of tailings and its monitoring using guided waves[J]. Rock and Soil Mechanics, 2023, 44(2): 415-424.
[19]	王昆, 张俊阳, 杨修志, 等. 考虑精细地形的尾矿库溃坝外泄泥流运移规律研究[J]. 中国安全科学学报, 2022, 32(12): 95-101. doi: 10.16265/j.cnki.issn1003-3033.2022.12.1163
	WANG Kun, ZHANG Junyang, YANG Xiuzhi, et al. Research on migration law of tailings dam breach runout mud flow considering fine terrains[J]. China Safety Science Journal, 2022, 32(12): 95-101. doi: 10.16265/j.cnki.issn1003-3033.2022.12.1163
[20]	郑艳娜, 朱永英. 水力学[M]. 南京: 东南大学出版社, 2017: 64-79.
