废石胶结充填料浆流特性和管道输送研究

doi:10.16265/j.cnki.issn1003-3033.2025.S2.0023

摘要/Abstract

摘要：

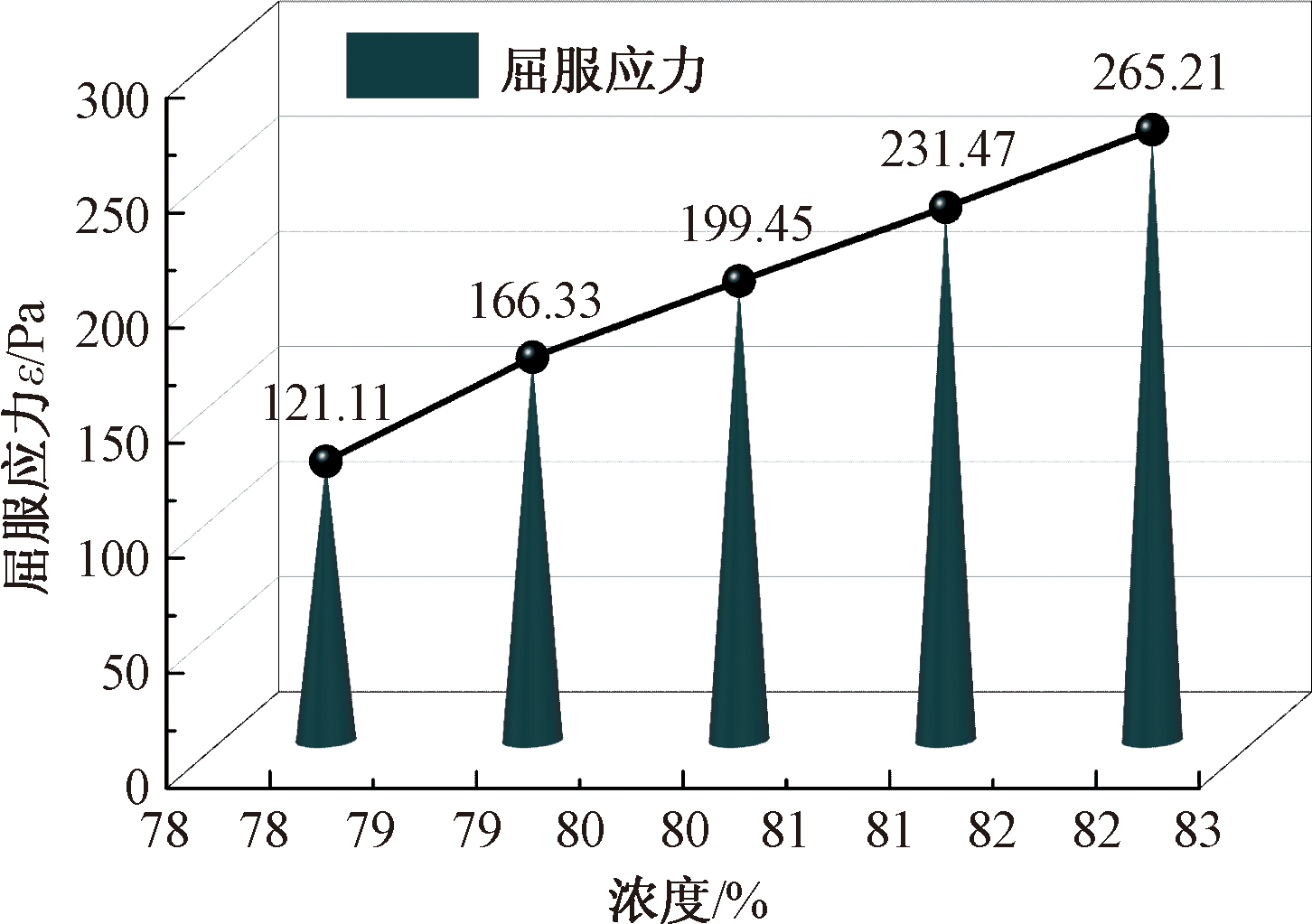

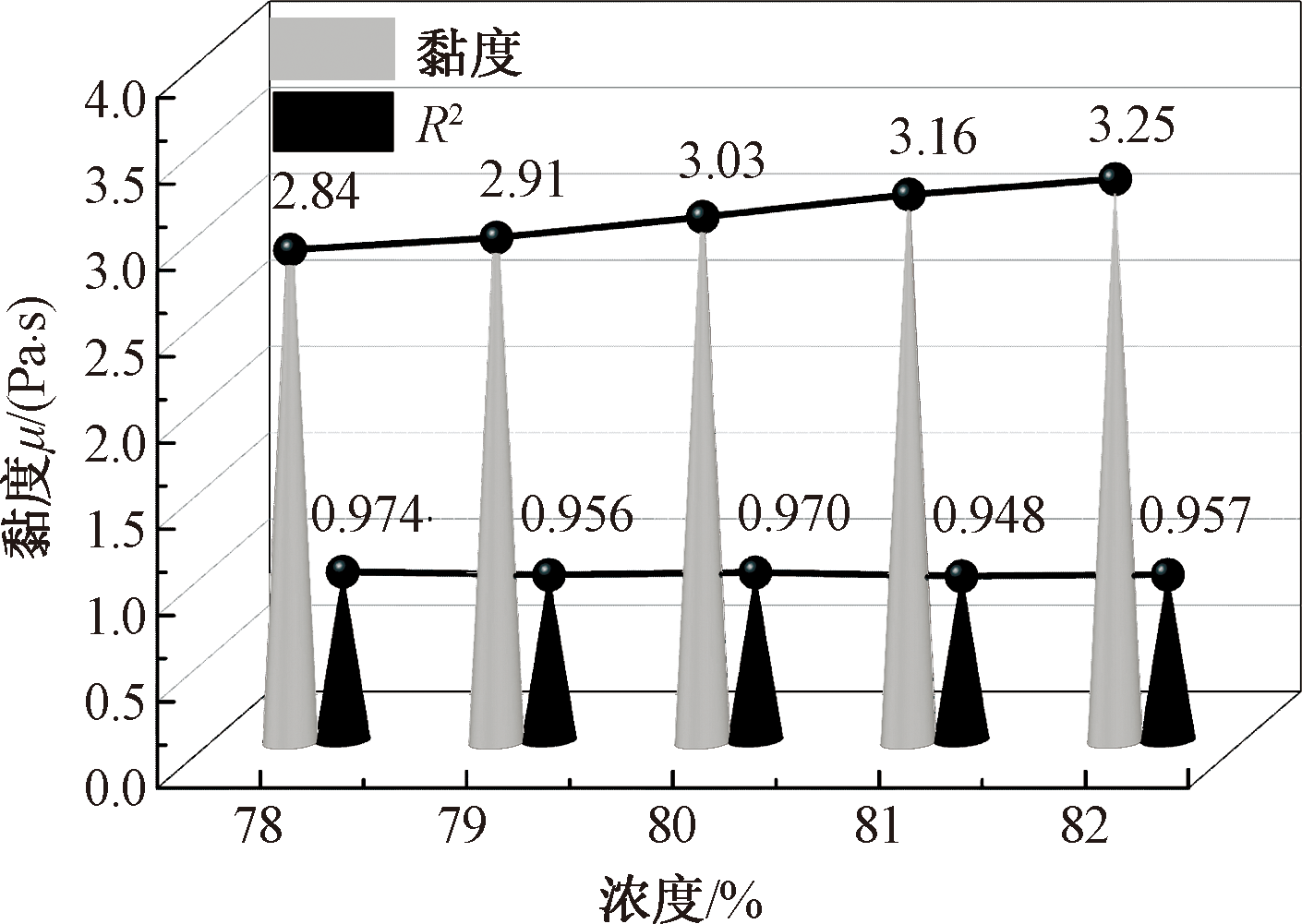

为优化矿山充填工艺、提升安全和控制成本,以矿山废石、水泥和水制备的充填料浆为研究对象,采用ICAR流变仪开展流变测试,系统分析废石颗粒级配、灰废比及料浆质量浓度对其流变性能的影响,并基于ANSYS-FLUENT软件进行数值模拟。结果表明:随废石粒径增大、灰废比减小或质量浓度提高,料浆的屈服应力和塑性黏度均显著增大;其中,浓度每提高1%,屈服应力约增加10%,黏度增长则呈现先缓后急的趋势。管道阻力损失随管径增大近似线性降低;竖直管道中料浆流速因重力持续加快,弯管段出现显著流速变化,水平段流速分布呈下高上低特征,整体最大值位于中心偏下区域。

关键词: 废石, 充填料浆, 流变特性, 管道输送, 数值模拟

Abstract:

To optimize the mine filling process and improve safety and control costs, the backfill slurry prepared from mine waste rock, cement, and water was taken as the research object. An ICAR rheometer was used to carry out rheological tests, and the effects of waste rock particle gradation, ash/waste ratio, and slurry mass concentration on rheological properties were analyzed. Then, a numerical simulation was performed based on ANSYS-FLUENT software. The results show that the yield stress and plastic viscosity of the slurry increase significantly with the increase of the waste rock particle size, the decrease of the ash/waste ratio, or the increase of the mass concentration. Among them, for every 1% increase of the concentration, the yield stress increases by about 10%, and the increase of the viscosity shows a slow and then rapid trend. The resistance loss of the pipeline approximately decreases linearly with the increase of the pipe diameter. The slurry flow rate in the vertical pipeline is accelerated continuously due to gravity. There is a significant change in flow rate in the elbow section, and the distribution of flow rate in the horizontal section is characterized by a feature: higher at the bottom and lower at the top. The overall maximum value is located in the center of the lower region.

Key words: waste rock, backfill slurry, rheological property, pipeline transportation, numerical simulation

中图分类号:

X936

李磊, 吴迪, 杨官鼎. 废石胶结充填料浆流特性和管道输送研究[J]. 中国安全科学学报, 2025, 35(S2): 29-35.

LI Lei, WU Di, YANG Guanding. Rheological properties and pipeline transportation of cemented waste rock backfill slurry[J]. China Safety Science Journal, 2025, 35(S2): 29-35.

图/表 18

表1

图1

表2

图2

表3

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

图15

参考文献 14

[1]	何玉珍, 王文杰, 陈仲杰. 基于G1-RF组合赋权云模型的下向分层开采充填体稳定性评价[J]. 中国安全科学学报, 2025, 35(4):165-172. doi: 10.16265/j.cnki.issn1003-3033.2025.04.0474
	HE Yuzhen, WANG Wenjie, CHEN Zhongjie. Downward layered mining based on G1-RF combined empowerment cloudmodel evaluation of filling stability[J]. China Safety Science Journal, 2025, 35(4): 165-172. doi: 10.16265/j.cnki.issn1003-3033.2025.04.0474
[2]	WU Di, LIU Liang, EROL Y, et al. Numerical prediction of strength and temperature changes within cemented paste backfill considering barricade stability[J]. Engineering Science and Technology, An International Journal, 2025, 62:DOI:10.1016/J.JESTCH.2025.101966.
[3]	WU Di, ZHAO Ping, CHENG Wenwen, et al. Effect of microwave on coupled rheological and mechanical properties of cemented tailings backfill[J]. Construction and Building Materials, 2024, 44:DOI:10.1016/J.CONBUILDMAT.2024.137558.
[4]	LI Cuiping, LI Xue, RUAN Zhuen, et al. Analysis of homogeneity and rheological properties of filling slurry during the mixing process through electrical resistance tomography[J]. Powder Technology, 2023, 428:DOI:10.1016/J.POWTEC.2023.118850.
[5]	尹超宇, 冯光明, 丁玉, 等. 超高水材料单浆流变特性研究[J]. 金属矿山, 2017(6):41-46.
	YIN Chaoyu, FENG Guangming, DING Yu, et al. Research on the rheological properties of ultra-high water material single paste[J]. Metal Mine, 2017(6):41-46.
[6]	ROSS G, DE K, PETER J S. The effect of temperature on the yield stress of mineral suspensions[J]. Journal of Colloid and Interface Science, 2008, 328(1):187-193. doi: 10.1016/j.jcis.2008.09.084
[7]	邹正勤, 高谦, 南世卿. 充填采矿用全尾砂胶结材料流变特性研究[J]. 金属矿山, 2012(12):132-135.
	ZOU Zhengqin, GAO Qian, NAN Shiqing. Study on the rheological properties of full tailings cementing materials for filling mining[J]. Metal Mine, 2012(12):132-135.
[8]	黄玉诚, 董羽, 许保国, 等. 似膏体管道输送弯管段浆体流动数值模拟研究[J]. 煤炭工程, 2014, 46(3):84-86. doi: 10.11799/ce201403026
	HUANG Yucheng, DONG Yu, XU Baoguo, et al. Numerical simulation study of slurry flow in a pipeline with a curved section resembling a paste-like body[J]. Coal Engineering, 2014, 46(3):84-86.
[9]	付宜风, 雷成旺, 张璇, 等. 基于FLUENT的管道内壁表面状态对流体摩擦阻力的影响研究[J]. 润滑与密封, 2014, 39(5):23-27,107.
	FU Yifeng, LEI Chengwang, ZHANG Xuan, et al. A study on the effect of the inner wall surface condition of pipes based on FLUENT on fluid friction resistance[J]. Lubrication and sealing, 2014, 39(5):23-27,107.
[10]	侯志明, 侯志超, 王新乔. 基于ANSYS的充填管道系统优化模拟[J]. 现代矿业, 2015, 31(12):194-197.
	HOU Zhiming, HOU Zhichao, WANG Xinqiao. Optimization simulation of the filling pipeline system based on ANSYS[J]. Modern Mining, 2015, 31(12):194-197.
[11]	陆伟, 罗瑞, 张青松, 等. 充填工作面异常气体对传感器交叉干扰的影响研究[J]. 中国安全科学学报, 2025, 35(2):40-48. doi: 10.16265/j.cnki.issn1003-3033.2025.02.1081
	LU Wei, LUO Rui, ZHANG Qingsong, et al. Study on the impact of abnormal gases in filling workfaces on sensor cross-interference[J]. China Safety Science Journal, 2025, 35(2):40-48. doi: 10.16265/j.cnki.issn1003-3033.2025.02.1081
[12]	郭利杰, 刘光生, 马青海, 等. 金属矿山充填采矿技术应用研究进展[J]. 煤炭学报, 2022, 47(12): 4 182-4 200.
	GUO Lijie, LIU Guangsheng, MA Qinghai, et al. Research progress on the application of filling mining technology in metal mines[J]. Journal of China Coal Society, 2022, 47(12): 4 182-4 200.
[13]	程海勇, 吴爱祥, 吴顺川, 等. 金属矿山固废充填研究现状与发展趋势[J]. 工程科学学报, 2022, 44(1):11-25.
	CHENG Haiyong, WU Aixiang, WU Shunchuan, et al. Current status and development trends of solid waste filling in metal mines[J]. Chinese Journal of Engineering, 2022, 44(1):11-25.
[14]	LIU Liang, WU Di, ZHENG Shilong, et al. Heat development in cemented tailings backfill modeled by a coupled electro-chemical-thermal model[J]. Thermal Science and Engineering Progress, 2025, 57:DOI:10.1016/J.TSEP.2024.103111.

影响因素	试验序号	废石粒径/ mm	灰废比 (水泥∶废石)	料浆质量浓度/%
废石粒径	A₁	-10	1/8	80
	A₂	-15
	A₃	-20
灰废比 (水泥∶废石)	B₁	-15	1/6	80
	B₂		1/7
	B₃		1/8
	B₄		1/9
	B₅		1/10
料浆质量浓度	C₁	-15	1/6	78
	C₂			79
	C₃			80
	C₄			81
	C₅			82
