堆积铝粉与水反应动力学试验研究

doi:10.16265/j.cnki.issn1003-3033.2026.01.1221

中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (1): 138-145.doi: 10.16265/j.cnki.issn1003-3033.2026.01.1221

堆积铝粉与水反应动力学试验研究

刘吉庆¹(), 庞磊¹^,²^,³^,^**(), 金龙哲¹^,²^,³, 钟圣俊⁴^,⁵, 苑春苗⁶, 王亚飞⁷

¹ 北京科技大学资源与安全工程学院,北京 100083
² 北京科技大学大安全科学研究院,北京 100083
³ 国家卫生健康委粉尘危害工程防护重点实验室,北京 100083
⁴ 东北大学冶金学院,辽宁沈阳 110819
⁵ 汇乐因斯福环保安全研究院(苏州)有限公司,江苏苏州 215000
⁶ 东北大学资源与土木工程学院,辽宁沈阳 110819
⁷ 北京市科学技术研究院,北京 100089

收稿日期:2025-09-14 修回日期:2025-11-20 出版日期:2026-01-28
通信作者:
** 庞磊(1982—),男,内蒙古乌兰浩特人,博士,教授,主要从事爆炸事故防治等方面的研究。E-mail: panglei0525@163.com。
作者简介:
刘吉庆 (1997—),男,河南开封人,博士研究生,主要研究方向为粉尘爆炸与事故防控。E-mail: liujq1025@163.com。
金龙哲, 教授。
钟圣俊, 副教授。
苑春苗, 教授。
王亚飞, 研究员。
基金资助:
国家重点研发计划课题项目(2023YFC3010601)

Experimental study on reaction kinetics of stacked aluminum powder with water

LIU Jiqing¹(), PANG Lei¹^,²^,³^,^**(), JIN Longzhe¹^,²^,³, ZHONG Shengjun⁴^,⁵, YUAN Chunmiao⁶, WANG Yafei⁷

¹ School of Resources and Safety Engineering, University of Science and Technology Beijing, Beijing 100083, China
² Research Institute of Macro-Safety Science, University of Science and Technology Beijing, Beijing 100083, China
³ NHC Key Laboratory for Engineering Control of Dust Hazard, Beijing 100083, China
⁴ School of Metallurgy, Northeastern University, Shenyang Liaoning 110819, China
⁵ Huile Insford Environmental and Safety Research Institute (Suzhou) Co., Ltd., Suzhou Jiangsu 215000, China
⁶ School of Resources and Civil Engineering, Northeastern University, Shenyang Liaoning 110819, China
⁷ Beijing Academy of Science and Technology, Beijing 100089, China

Received:2025-09-14 Revised:2025-11-20 Published:2026-01-28

摘要/Abstract

摘要：

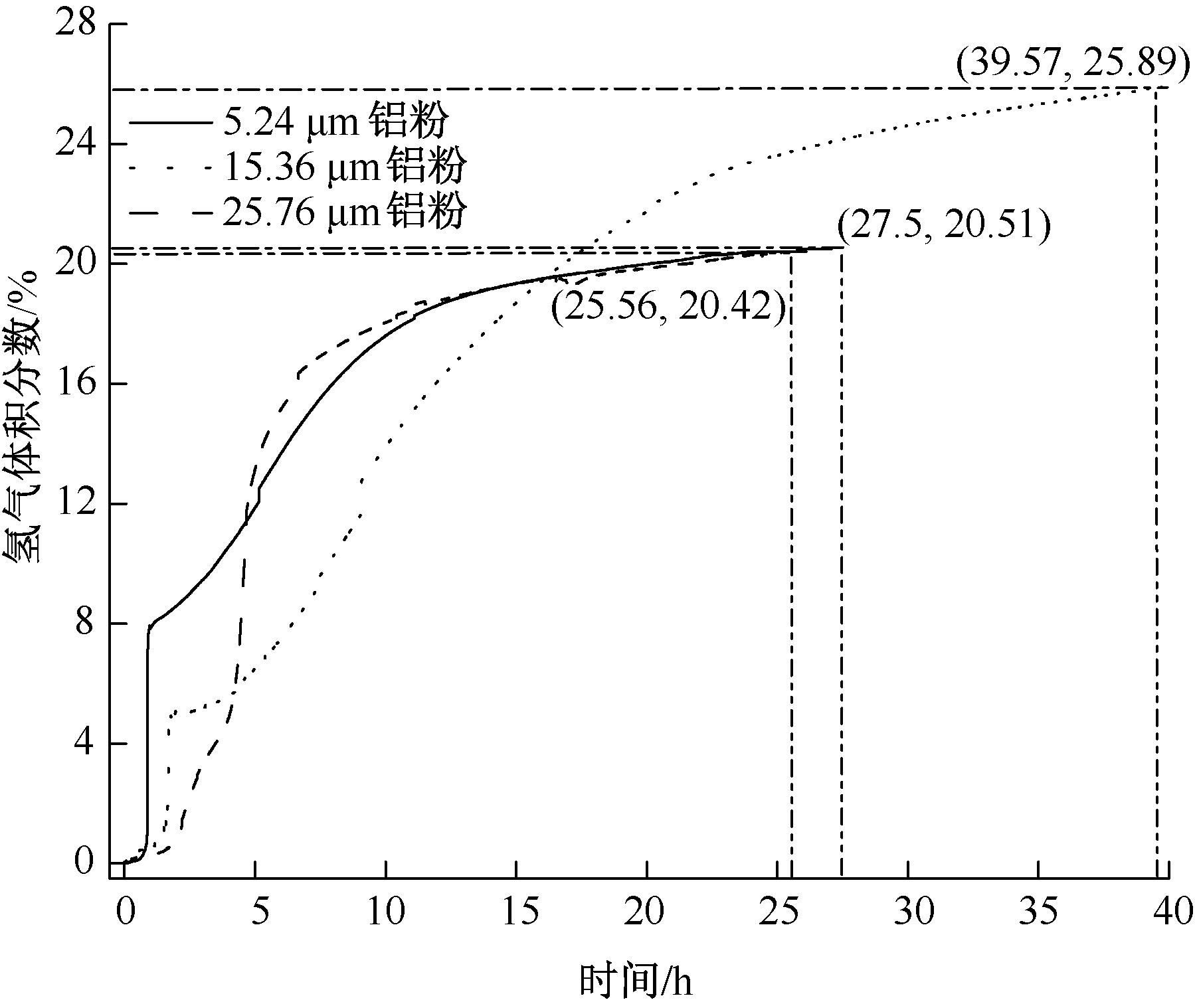

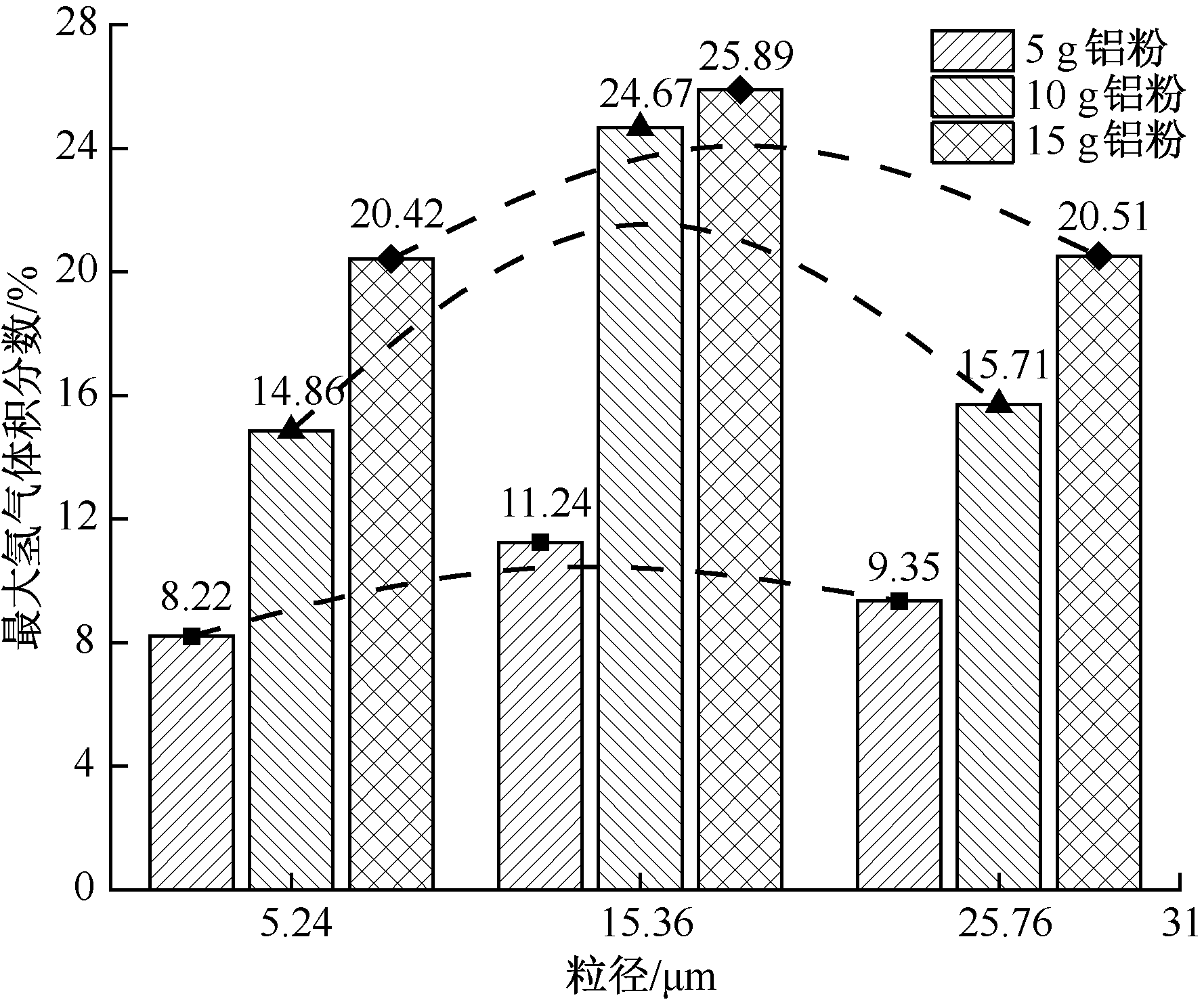

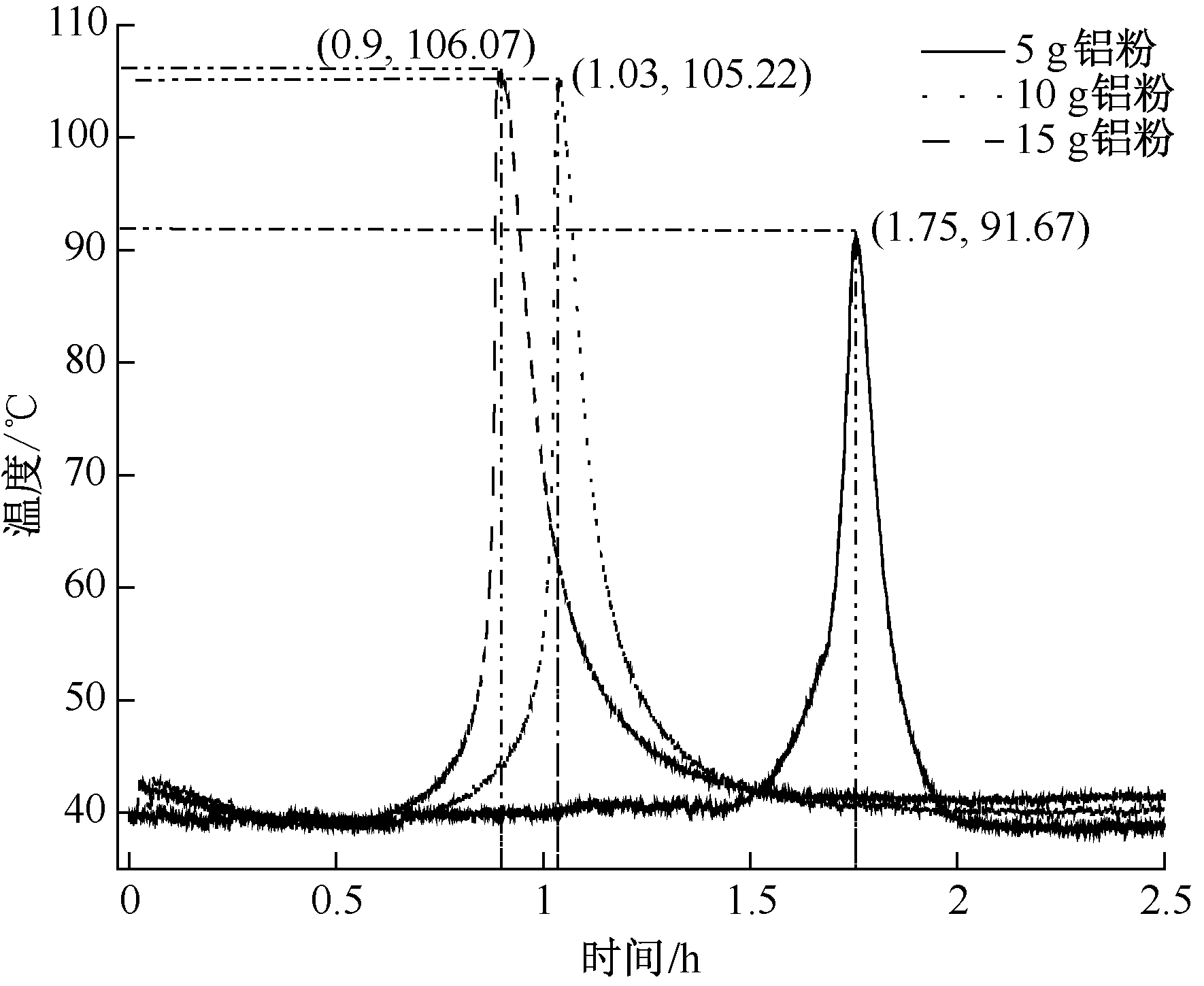

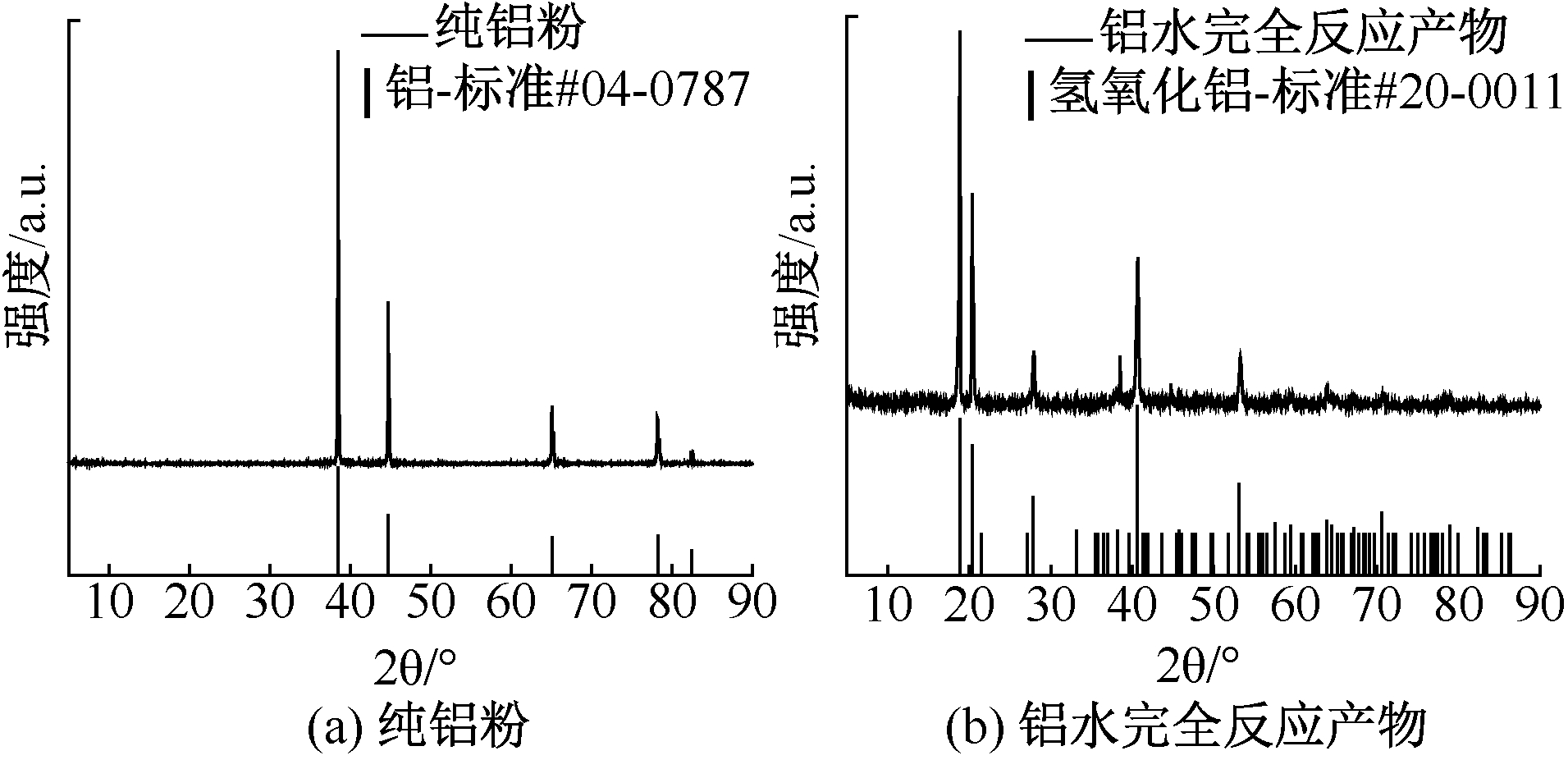

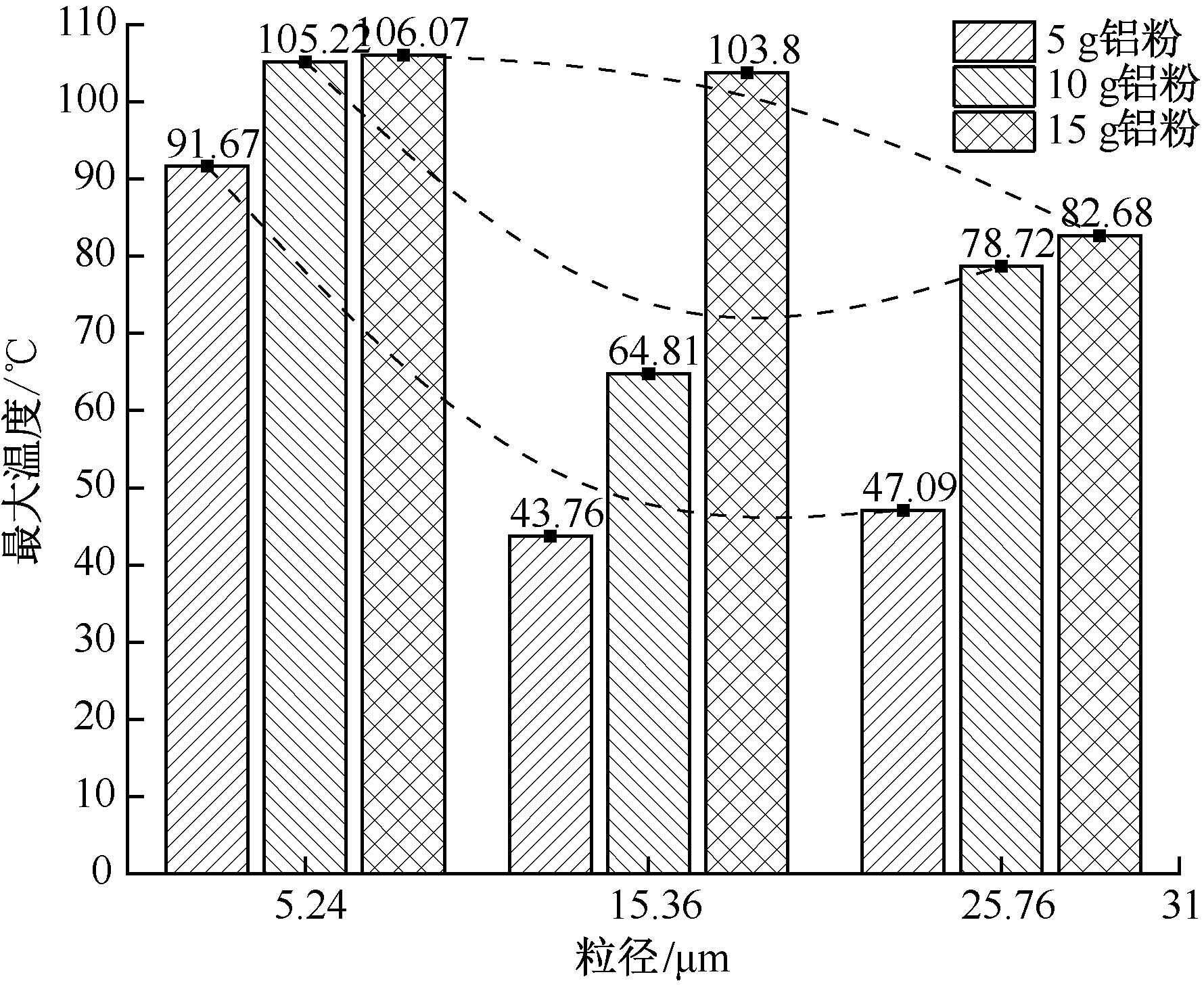

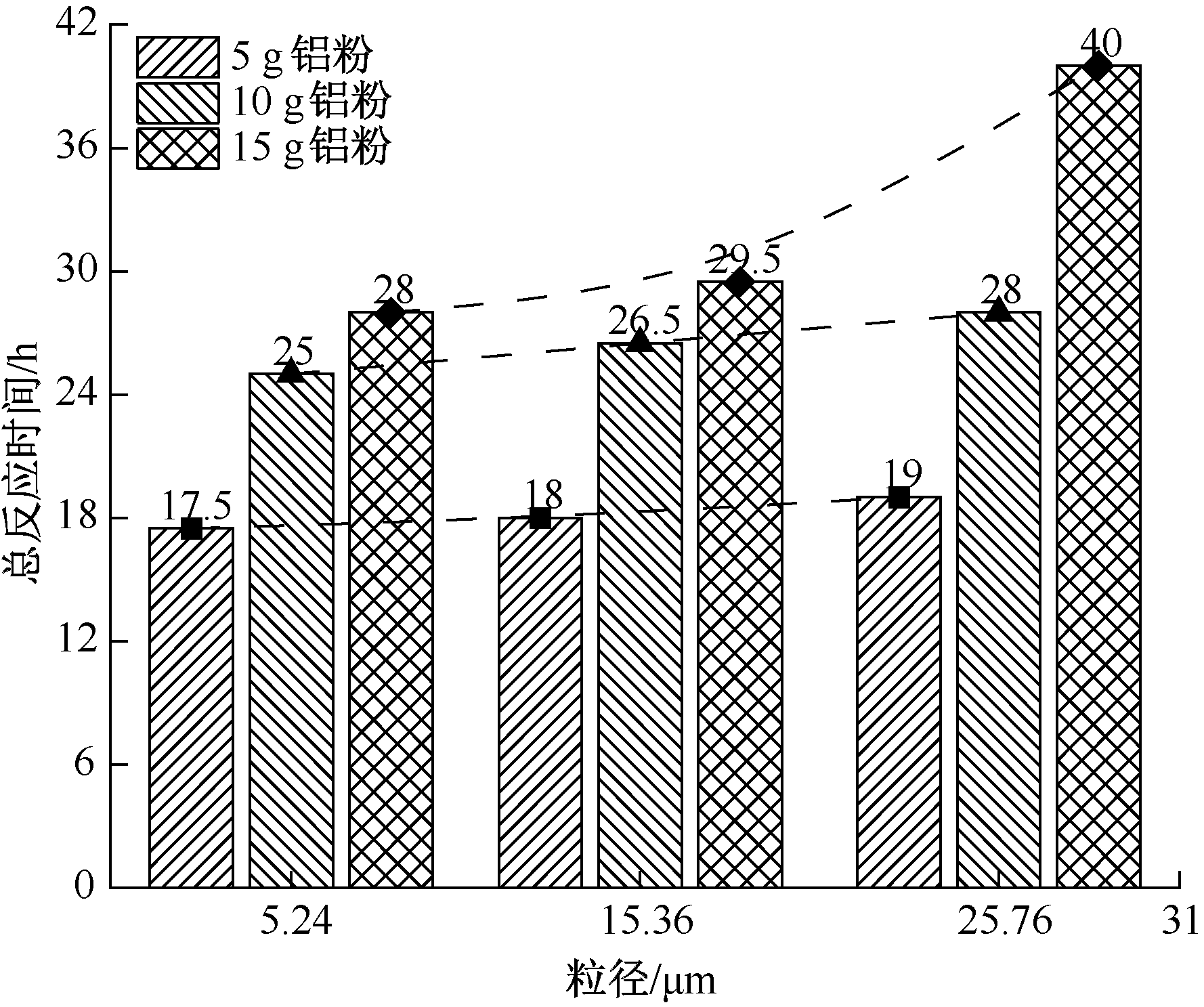

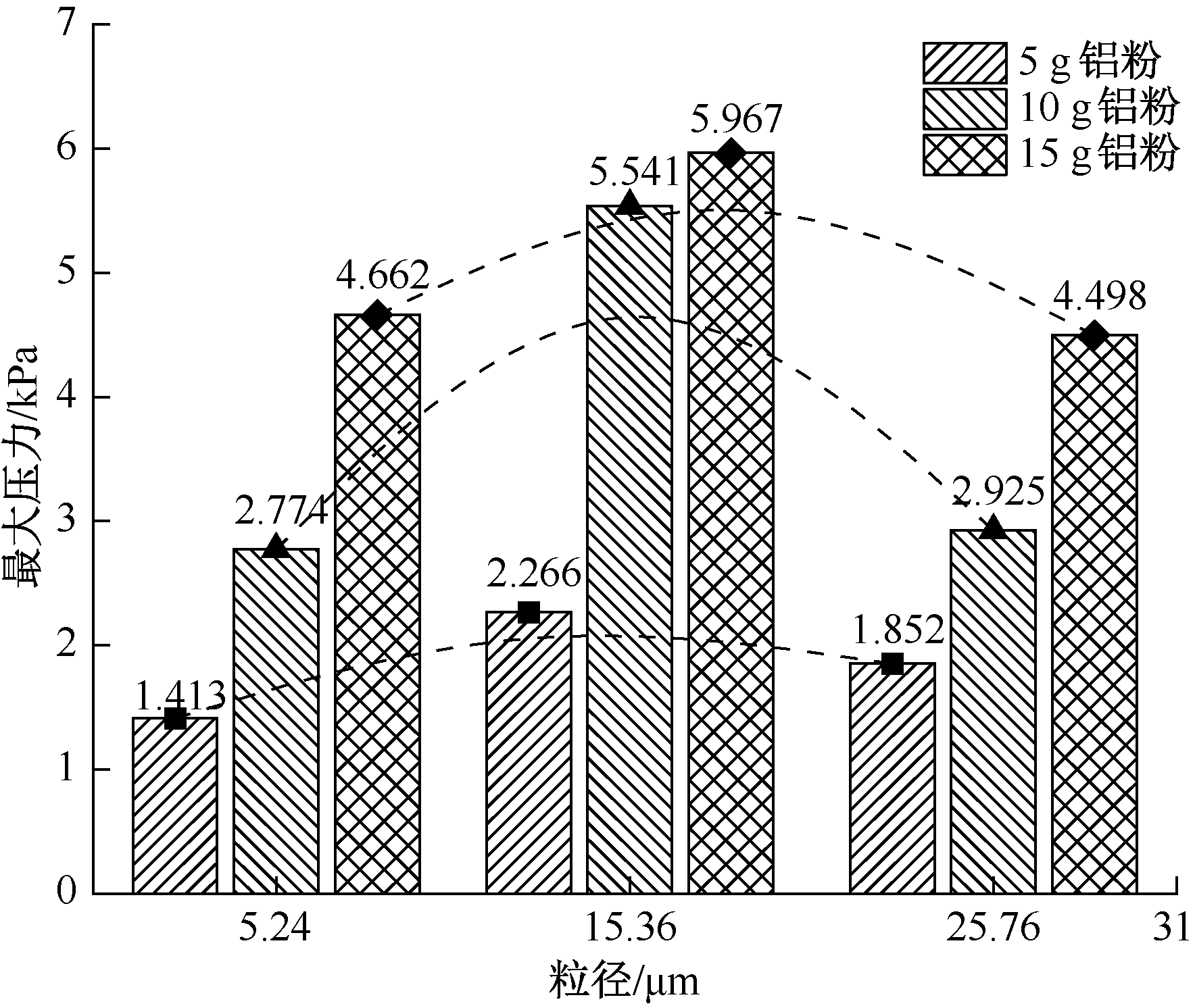

为推动金属粉尘防爆技术的优化升级和安全防控体系的建立,基于自主研发的堆积金属粉尘与水反应可视化试验平台,系统探究不同粒径和堆积质量条件下铝粉与过量水的反应动力学特性。通过定量表征粒径和堆积质量对最大温度、产气总量、最大氢气体积分数、最大压力、总时间等反应关键参数的影响,揭示铝-水反应的动力学机制。结果表明:固定粒径时,反应特性参数与堆积质量呈正相关;固定堆积质量时,最大温度随粒径增大呈“V”形变化(先降后升),产气量、氢气体积分数及压力呈倒“U”形变化(先增后减),而总反应时间随粒径增大单调递增。反应产物以Al(OH)₃和H₂为主,反应过程分为缓慢析氢、剧烈反应和衰减终止3阶段。

关键词: 堆积铝粉, 铝水反应, 反应动力学, 粒径, 堆积质量

Abstract:

In order to promote the optimization and upgrading of metal dust explosion-proof technology and establishment of a safety protection and control system, this study systematically investigated the reaction kinetics of aluminum powder with excess water under varying particle sizes and stacking masses, based on the self-developed visualization experimental platform for the reaction between stacked metal dust and water. Through quantitative characterization of the effects of particle size and stacking mass on key reaction parameters-including the maximum temperature, total gas production, maximum hydrogen concentration, maximum pressure, and total reaction time-the kinetic mechanism of the aluminum-water reaction was revealed. The results demonstrate that at a fixed particle size, all characteristic parameters exhibit positive correlations with increasing stacking mass. At a fixed stacking mass, the maximum temperature follows a V-shaped trend (decreasing then increasing) with increasing particle size, while gas production, hydrogen concentration, and pressure show inverted U-shaped trends (increasing then decreasing). Total reaction time increases monotonically with increasing particle sizes. The primary reaction products are Al(OH)₃ and H₂, and the reaction process comprises three distinct stages: slow hydrogen evolution, violent reaction, and attenuation and termination.

Key words: stacked aluminum powder, aluminum-water reaction, reaction kinetics, particle size, stacking mass

中图分类号:

刘吉庆, 庞磊, 金龙哲, 钟圣俊, 苑春苗, 王亚飞. 堆积铝粉与水反应动力学试验研究[J]. 中国安全科学学报, 2026, 36(1): 138-145.

LIU Jiqing, PANG Lei, JIN Longzhe, ZHONG Shengjun, YUAN Chunmiao, WANG Yafei. Experimental study on reaction kinetics of stacked aluminum powder with water[J]. China Safety Science Journal, 2026, 36(1): 138-145.

图/表 16

表1

图1

图2

表2

图3

图4

图5

图6

表3

图7

图8

图9

图10

图11

图12

图13

参考文献 15

[1]	丁东梅. 铝粉遇水反应热动力学行为研究[D]. 上海: 上海应用技术大学, 2020.
	DING Dongmei. Study on the thermodynamics of aluminum powder in water[D]. Shanghai: Shanghai Institute of Technology, 2020.
[2]	葛双优. 抛光铝粉热自燃机理研究[D]. 沈阳: 东北大学, 2015.
	GE Shuangyou. Study on the mechanism of auto ignition of aluminum dust from polishing process[D]. Shenyang: Northeastern University, 2015.
[3]	刘聪聪, 许开立, 王雪, 等. 铝合金加工废物遇湿产氢规律研究[J]. 消防科学与技术, 2023, 42(4): 495-498.
	LIU Congcong, XU Kaili, WANG Xue, et al. Study on hydrogen production law of aluminum alloy processing waste when wet[J]. Fire Science and Technology, 2023, 42(4): 495-498.
[4]	王鑫阳, 李刚. 水分促使抛光铝粉热自燃临界温度和诱导时间[J]. 东北大学学报:自然科学版, 2022, 43(10): 1492-1498.
	WANG Xinyang, LI Gang. Critical temperature and induction time of spontaneous combustion of polished Al powder induced by water[J]. Journal of Northeastern University: Natural Science, 2022, 43(10): 1492-1498.
[5]	王鑫阳, 崔铁军, 王子健. 微米级铝粉产氢动力学试验及微观形貌变化规律研究[J]. 有色金属:中英文, 2025, 15(3): 368-375.
	WANG Xinyang, CUI Tiejun, WANG Zijian. Experimental study on hydrogen production kinetics and microscopic morphology change of micron-sized aluminum powder[J]. Nonferrous Metals, 2025, 15(3): 368-375.
[6]	WANG Xinyang, LI Gang, ECKHOFF R K. Kinetics study of hydration reaction between aluminum powder and water based on an improved multi-stage shrinking core model[J]. International Journal of Hydrogen Energy, 2021, 46(67): 33 635-33 655.
[7]	NIE Hongqi, SCHOENITZ M, DREIZIN E L. Calorimetric investigation of the aluminum-water reaction[J]. International Journal of Hydrogen Energy, 2012, 37(15): 11 035-11 045.
[8]	庞磊, 李超, 钟圣俊, 等. 铝、镁及其合金粉遇湿反应动力学机理及产氢规律[J]. 北京理工大学学报, 2025, 45(11):1185-1193.
	PANG Lei, LI Chao, ZHONG Shengjun, et al. Reaction kinetics mechanism and hydrogen production law of aluminum, magnesium andalloy powders upon exposure to moisture[J]. Transactions of Beijing Institute of Technology, 2025, 45(11): 1185-1193.
[9]	PANG Lei, LI Chao, LIU Jiqing, et al. Study on the hydrogen production law and reaction kinetics mechanism of aluminum powder oxidation under different moisture content conditions[J]. International Journal of Hydrogen Energy, 2025, 100: 319-329. doi: 10.1016/j.ijhydene.2024.12.303
[10]	MAGUIRE J, WOODCOCK L V. Thermodynamics of tower-block infernos: effects of water on aluminum fires[J]. Entropy, 2019, 22(1): DOI:10.3390/e22010014.
[11]	NISHIWAKI Y, SATO Y. Exothermic reaction of fine and coarse magnesium powders with water[J]. Science and Technology of Energetic Materials, 2022, 83(1): 20-27.
[12]	SACELEANU F, VUONG T V, MASTER E R, et al. Tunable kinetics of nanoaluminum and microaluminum powders reacting with water to produce hydrogen[J]. International Journal of Energy Research, 2019, 43(13): 7384-7396.
[13]	王延瞳, 许开立, 李力, 等. 铝颗粒与水反应产氢影响因素及抑制[J]. 东北大学学报:自然科学版, 2018, 39(5): 731-735.
	WANG Yantong, XU Kaili, LI Li, et al. Influencing factors and inhibition of hydrogen produced by aluminum and water reaction[J]. Journal of Northeastern University: Natural Science, 2018, 39(5): 731-735.
[14]	邢婧, 毕跃, 崔瀚. 铝粉遇水燃烧爆炸危险性的实验研究[J]. 黑龙江科技大学学报, 2022, 32(2): 185-188.
	XING Jing, BI Yue, CUI Han. Experimental study on risk of combustion and explosion of aluminum powder in water[J]. Journal of Heilongjiang University of Science and Technology, 2022, 32(2): 185-188.
[15]	盖卫卓. 纯铝粉体与水反应产氢及其相关影响因素的研究[D]. 上海: 上海大学, 2014.
	GAI Weizhuo. Hydrogen-generation by the reaction of pure Al powder with water and the related influencing factors[D]. Shanghai: Shanghai University, 2014.

试验编号	铝粉粒径/μm	堆积质量/g	添加水量/g	环境温度/℃
A1	5.24	5	128	40
A2		10
A3		15
B1	15.36	5	128	40
B2		10
B3		15
C1	25.76	5	128	40
C2		10
C3		15

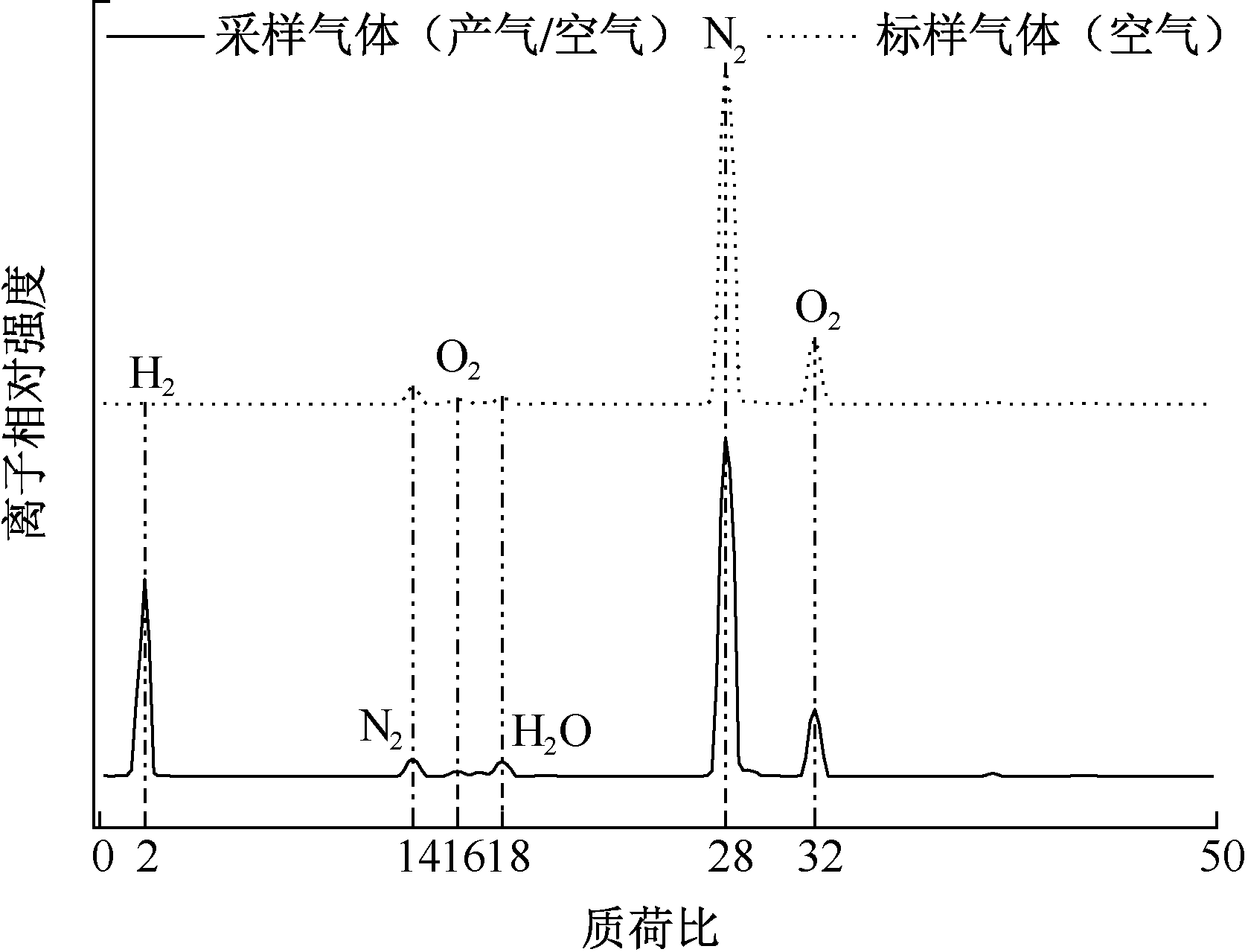

气体	H₂	N₂	O₂	H₂O
采样气体	30.5	55.95	11.2	2.36
标定空气	0.17	82.25	16.1	1.49

堆积铝粉与水反应动力学试验研究

Experimental study on reaction kinetics of stacked aluminum powder with water

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 16

参考文献 15

相关文章 15

编辑推荐

Metrics

本文评价

[1]	王文杰, 李绪萍, 任晓鹏, 张靖, 杜乙萱, 杨王贝. 碱性环境中不同粒径烟煤的氧化自燃特性研究[J]. 中国安全科学学报, 2025, 35(12): 119-128.
[2]	鹿立新, 杜志勇, 孙国思, 唐亚东, 杜勇志, 谢苗. 矿用洒水车降尘喷洒系统研究[J]. 中国安全科学学报, 2023, 33(S2): 152-157.
[3]	廖茂林, 江丙友, 张潇仪, 陶文翰, 计犇. 煤尘粒径对表面活性剂复配溶液润湿性的影响研究[J]. 中国安全科学学报, 2023, 33(3): 96-102.
[4]	吕鹏飞, 谷晓珂, 李公方, 赵静, 庞磊. 可燃粉尘热稳定性研究进展[J]. 中国安全科学学报, 2023, 33(12): 92-103.
[5]	刘清泉, 刘嫄嫄, 杜凯, 郑思文, 朱子斌. 煤粒筛分现象与粒度分布特性的试验研究[J]. 中国安全科学学报, 2022, 32(2): 130-138.
[6]	徐晶格, 欧盛南, 刘建国, 金龙哲, 王嘉莹. 阜山金矿进回风巷粉尘孔粒径分布及其分形特征[J]. 中国安全科学学报, 2022, 32(1): 118-126.
[7]	武立功, 肖利兴, 刘晓峰, 姚池, 姜清辉, 周创兵. 尾砂粒径对尾矿坝漫顶溃坝的影响[J]. 中国安全科学学报, 2020, 30(4): 160-165.
[8]	朱金佗, 王亮, 何新建, 吕成明, 张如雪, 蒋奇君. N95级个体防尘呼吸器仿真试验研究[J]. 中国安全科学学报, 2020, 30(12): 165-172.
[9]	吴鑫, 彭雅雯, 晏巧, 赵红霞, 王雪梅. 改进分水岭算法的煤岩孔隙重构及渗流模拟[J]. 中国安全科学学报, 2019, 29(9): 144-149.
[10]	陈海燕, 姚庆国, 张延松, 刘浩, 张兴旭. 微米级铝粉最低着火温度和爆炸特性试验研究[J]. 中国安全科学学报, 2019, 29(11): 96-102.
[11]	谢恬, 陈先锋, 张洪铭, 黄楚原, 唐文文, 周洪文. 玉米淀粉粒径对其粉尘云着火特性的影响[J]. 中国安全科学学报, 2018, 28(4): 53-58.
[12]	张晓明, 吴琦, 张河猛, 王永军, 佐佐木久郎. 粒径对褐煤自燃阶段临界温度影响的试验研究[J]. 中国安全科学学报, 2018, 28(4): 36-41.
[13]	范健强, 白建平, 赵一姝, 袁玮成, 王越, 李向富. 硫磺粉尘爆炸特性影响因素试验研究[J]. 中国安全科学学报, 2018, 28(2): 81-86.
[14]	周西华, 童谣, 宋东平, 白刚, 李昂. 基于响应曲面法的松散煤体导热系数测试与分析[J]. 中国安全科学学报, 2018, 28(10): 105-110.
[15]	张毅, 郭晨宁. 桦木木垛火羽流竖直方向烟颗粒形貌特征[J]. 中国安全科学学报, 2017, 27(9): 57-62.
