突发事件扰动下油气储备库安全韧性评估

doi:10.16265/j.cnki.issn1003-3033.2026.07.0688

摘要/Abstract

摘要：

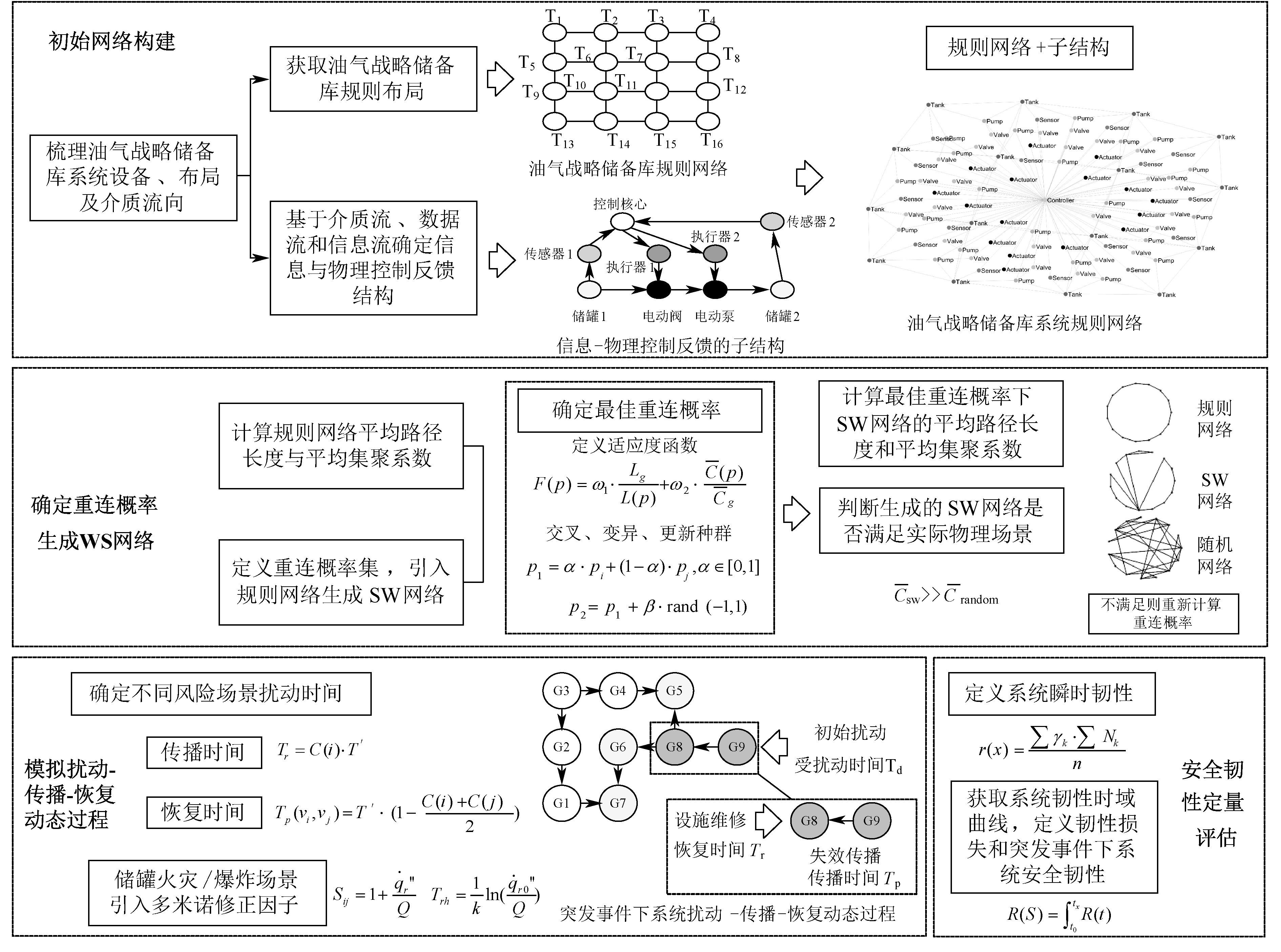

为保障我国油气战略储备安全,提出一种突发事件扰动下油气储备库安全韧性定量评估方法,围绕传统、战略与信息-物理跨域3类风险,开展系统失效演化动态模拟。考虑油气储备库系统的抗干扰和自恢复能力,定量描述系统安全韧性演化特征,评估不同突发事件下系统安全韧性。以某地上油气战略储备库为例,开展4类9种突发事件场景模拟。结果表明:同一突发事件下,不同直径、位置的储罐失效其事故演化特征与安全韧性值存在显著差异;信息-物理跨域风险突发事件呈现高传播、易阻断、快恢复的特点;战略安全风险突发事件破坏程度高,韧性水平低。该方法可清晰地量化不同突发事件对储备库系统动态影响,对比不同安全保障措施应用效果,从而针对性提出“事前-事中-事后”多维度安全韧性提升措施。

关键词: 突发事件, 油气储备库, 安全韧性, 小世界(SW)理论, 多米诺效应

Abstract:

To ensure the safety of national strategic oil and gas reserve depots, a quantitative assessment method for the safety resilience of oil and gas storage facilities under sudden event disturbances was proposed in this paper. Three types of risks, namely traditional risks, strategic security risks, and cyber-physical cross-domain risks, were adopted to simulate the dynamic evolution of system failures. The anti-interference and self-recovery capabilities of the oil and gas storage system were incorporated, and the evolution characteristics of system safety resilience were quantitatively described. The safety resilience of the system under different sudden events was then assessed. A above-ground oil and gas strategic reserve facility was taken as an example, and nine sudden event scenarios across four categories were simulated. The results show that, under the same sudden event, significant differences exist in the accident evolution characteristics and safety resilience values of storage tanks with different diameters and spatial locations. Cyber physical cross-domain sudden events feature fast spreading, easy containment and rapid system recovery, whereas strategic security sudden events lead to strong destructive effects and low resilience levels. The proposed method provides a clear quantitative description of the dynamic impacts of different sudden events on oil and gas storage systems. It also supports the comparison of different safety assurance measures and provides a basis for proposing targeted multidimensional safety resilience improvement measures from pre-event, during-event, and post-event perspectives.

Key words: emergency events, oil and gas reserve depots, safety resilience, small world(SW) theory, domino effect

中图分类号:

X937

肖尚蕊, 胡瑾秋, 张来斌. 突发事件扰动下油气储备库安全韧性评估[J]. 中国安全科学学报, 2026, 36(7): 216-224.

Xiao Shangrui, Hu Jinqiu, Zhang Laibin. Safety resilience assessment for oil and gas reserve depots under sudden event disturbances[J]. China Safety Science Journal, 2026, 36(7): 216-224.

图/表 8

图1

表1

表2

图2

表3

图3

表4

表5

参考文献 28

[1]	杨先明, 王巧然. 中国企业海外能源投资的区位导向:资源禀赋、发展水平抑或制度距离?[J]. 经济与管理研究, 2018, 39(6):122-134.
	Yang Xianming, Wang Qiaoran. Locational determinants of overseas energy investment of China's firms-resource endowment,development stage or institution distance?[J]. Research on Economics and Management, 2018, 39(6): 122-134.
[2]	Long Houyin, Wang Shitong, Wu Wei, et al. The economic influence of oil shortage and the optimal strategic petroleum reserve in China[J]. Energy Reports, 2022, 8: 9858-9870. doi: 10.1016/j.egyr.2022.07.169
[3]	李萌, 李雨珊, 潘家华, 等. 可再生能源、能源地缘政治风险与国家能源安全[J]. 中国人口·资源与环境, 2022, 32(11): 1-8.
	Li Meng, Li Yushan, Pan Jiahua, et al. Potential of renewable energy development and its geopolitical risk implications for China's energy security[J]. China Population, Resources and Environment, 2022, 32(11): 1-8.
[4]	魏彤彤, 钱新明, 郭子东. 储罐区自然灾害诱发工业灾害风险定量评估框架模型[J]. 中国安全生产科学技术, 2024, 20(10):29-35.
	Wei Tongtong, Qian Xinming, Guo Zidong. Framework model for quantitative risk assessment of industrial disaster induced by natural disaster in storage tank area[J]. Journal of Safety Science and Technology, 2024, 20(10): 29-35.
[5]	张来斌, 胡瑾秋, 肖尚蕊. 油气智慧管道“端+云+大数据”跨域“信息-物理”安全保障技术现状及发展趋势[J]. 安全与环境学报, 2023, 23(6):1825-1836.
	Zhang Laibin, Hu Jinqiu, Xiao Shangrui. Research status and development trends of "End & Cloud & Big Data" cross-domain security and safety guarantee technology for oil & gas intelligent pipelines system[J]. Journal of Safety and Environment, 2023, 23(6): 1825-1836.
[6]	Shen Zeya, Lang Jianlei, Li Mengzhen, et al. Impact of leakage location and downwind storage tank on the gas dispersion in a typical chemical tank storage area[J]. Journal of Loss Prevention in the Process Industries, 2023, 83: DOI:10.1016/j.jlp.2023.105093.
[7]	Hao Jiashun, Liu Lijuan, Long Zhaoyue, et al. Scenario deduction of Natech accident based on dynamic Bayesian network: a case study of landslide accident in a liquor storage tank area in Guizhou Province, China[J]. Journal of Loss Prevention in the Process Industries, 2023, 83: DOI:10.1016/j.jlp.2023.105067.
[8]	Chen Honghao, Chen Guohua, Xiong Caiyi, et al. An inherent safety assessment tool for storage tank farm layout planning based on dynamic propagation modeling simulation of fire domino effects[J]. Reliability Engineering & System Safety, 2025, 256: DOI:10.1016/j.ress.2024.110797.
[9]	Zhao Junru, Tian Jundong, Meng Fanxiang, et al. Safety assessment method for storage tank farm based on the combination of structure entropy weight method and cloud model[J]. Journal of Loss Prevention in the Process Industries, 2022,75:DOI:10.1016/j.jlp.2021.104709.
[10]	曾涛, 魏利军, 多英全, 等. 化工罐区多灾种耦合动态概率分析[J]. 消防科学与技术, 2025, 44(2):190-195,201.
	Zeng Tao, Wei Lijun, Duo Yingquan, et al. Dynamic probability analysis for coupled multi-hazard in chemical tank farm[J]. Fire Science and Technology, 2025, 44(2): 190-195, 201.
[11]	朱安峰, 范秀芳, 杜温瑞, 等. 韧性视角下应急避难场所防灾减灾能力综合评价:以温州市瓯海区为例[J]. 中国安全科学学报, 2024, 34(5):223-230. doi: 10.16265/j.cnki.issn1003-3033.2024.05.1763
	Zhu Anfeng, Fan Xiufang, Du Wenrui, et al. Comprehensive evaluation of disaster prevention and mitigation capacity of emergency shelters based on resilience perspective: a case study of Ouhai district in Wenzhou[J]. China Safety Science Journal, 2024, 34(5): 223-230. doi: 10.16265/j.cnki.issn1003-3033.2024.05.1763
[12]	任崇宝, 王成竹, 蓝麒, 等. 特种设备安全治理新模式:基于全生命周期系统韧性治理[J]. 中国安全科学学报, 2025, 35(09):8-19.
	Ren Chongbao, Wang Chengzhu, Lan Qi, et al. New mode of special equipment safety governance: system resilience governance in whole life cycle[J]. China Safety Science Journal, 2025, 35(9): 8-19.
[13]	Tan Xinxin, Xiao Shenbin, Yang Yu, et al. An agent-based resilience model of oil tank farms exposed to earthquakes[J]. Reliability Engineering & System Safety, 2024, 247: DOI:10.1016/j.ress.2024.110096.
[14]	向抒林, 陈炜, 程伟, 等. 石油化工储罐区巡检机器人研究现状与展望[J]. 石油化工腐蚀与防护, 2024, 41(6):1-8.
	Xiang Shulin, Chen Wei, Cheng Wei, et al. Research status and prospects of inspection robot for petrochemical tank areas[J]. Corrosion & Protection Industry, 2024, 41(6):1-8.
[15]	汤青慧, 刘硕, 张瑾. 基于WSR-可拓云理论的地铁车站火灾安全韧性评估[J]. 中国安全科学学报, 2025, 35(1):154-162. doi: 10.16265/j.cnki.issn1003-3033.2025.01.1377
	Tang Qinghui, Liu Shuo, Zhang Jin. Resilience assessment of fire safety in subway stations based on WSR-extension cloud theory[J]. China Safety Science Journal, 2025, 35(1):154-162. doi: 10.16265/j.cnki.issn1003-3033.2025.01.1377
[16]	陈超, 谭心鑫, 王迪, 等. 油库抗震韧性动态评估模型[J]. 中国安全科学学报, 2024, 34(4):87-92. doi: 10.16265/j.cnki.issn1003-3033.2024.04.1002
	Chen Chao, Tan Xinxin, Wang Di, et al. Dynamic assessment model for seismic resilience of oil depot[J]. China Safety Science Journal, 2024, 34(4): 87-92. doi: 10.16265/j.cnki.issn1003-3033.2024.04.1002
[17]	Filippini R, Silva A. A modeling framework for the resilience analysis of networked systems-of-systems based on functional dependencies[J]. Reliability Engineering & System Safety, 2014, 125: 82-91. doi: 10.1016/j.ress.2013.09.010
[18]	胡婕, 胡瑾秋, 胡靖, 等. 基于IRML-STAMP的舰船加油系统风险因素识别方法[J]. 安全与环境工程, 2024, 31(2):51-61,99.
	Hu Jie, Hu Jinqiu, Hu Jing, et al. Risk factor identification method of ship refueling system based on IRML-STAMP[J]. Safety and Environmental Engineering, 2024, 31(2): 51-61, 99.
[19]	徐康凯, 胡瑾秋, 董绍华, 等. 基于IRML网络模型的LNG卸料系统故障传播分析[J]. 中国安全生产科学技术, 2022, 18(4):5-11.
	Xu Kangkai, Hu Jinqiu, Dong Shaohua, et al. Failure propagation analysis of LNG unloading system based on IRML network[J]. Journal of Safety Science and Technology, 2022, 18(4): 5-11.
[20]	马曦, 张来斌, 胡瑾秋, 等. 基于IRML的油气加工系统多层次故障传播模型研究[J]. 石油学报(石油加工), 2015, 31(5):1193-1202.
	Ma Xi, Zhang Laibin, Hu Jinqiu, et al. Hierarchical fault propagation model for petroleum refining system based on IRML[J]. Acta Petrolei Sinica (Petroleum Processing), 2015, 31(5): 1193-1202.
[21]	Watts D, Strogatz S. Collective dynamics of 'small-world' networks[J]. Nature, 1998, 393(6684): 440-442. doi: 10.1038/30918
[22]	胡枫, 王凯军, 周丽娜, 等. 小世界超网络传播模型及实证分析[J]. 电子科技大学学报, 2023, 52(4):620-630.
	Hu Feng, Wang Kaijun, Zhou Li'na, et al. Propagation model and empirical analysis of small-world hypernetworks[J]. Journal of University of Electronic Science and Technology of China, 2023, 52(4): 620-630.
[23]	Gao Zhibin, Peng Siyuan, Song Zhongzhe, et al. Small-world topology and graph attention reinforcement learning for dynamic traffic optimization[J]. Engineering Applications of Artificial Intelligence, 2026, 167: DOI:10.1016/j.engappai.2026.113919.
[24]	Ou Yaodong, Zhou Jianfeng, Reniers G. Numerical simulation of domino effects of tank fires in terms of time to failure[J]. Process Safety and Environmental Protection, 2025, 202: DOI:10.1016/j.psep.2025.107751.
[25]	Campos J, Machado I, Bessani M. Multi-agent genetic algorithm for Bayesian networks structural learning[J]. Knowledge-Based Systems, 2025, 310: DOI:10.1016/j.knosys.2025.113025.
[26]	Bruneau M, Chang S E, Eguchi R T, et al. A framework to quantitatively assess and enhance the seismic resilience of communities[J]. Earthquake Spectra, 2003, 19(4): 733-752. doi: 10.1193/1.1623497
[27]	Yang Jianfeng, Zhang Bo, Chen Liangchao, et al. Improved solid radiation model for thermal response in large crude oil tanks[J]. Energy, 2023, 284: DOI:10.1016/j.energy.2023.128572.
[28]	Liu Qiang, Chen Zhili, Liu Hongtao, et al. CFD simulation of fire dike overtopping from catastrophic ruptured tank at oil depot[J]. Journal of Loss Prevention in the Process Industries, 2017, 49: 427-436. doi: 10.1016/j.jlp.2017.06.005

储罐类型	罐体	直径/m	Q/(kW/m²)
1	立式储罐	6	125
2	立式储罐	20	125
3	立式储罐	50	125
4	球罐	6	375

场景	储罐类型	初始扰动节点	扰动时间/h
1.1	1	中心储罐	1
1.2	1	顶点储罐	1
1.3	2	顶点储罐	1
1.4	4	顶点储罐	1
2.1	1	顶点储罐传感器	1
2.2	3	顶点储罐传感器	1
2.3	4	顶点储罐传感器	1
3.1	1	控制中心	1
4.1	1	顶点储罐、边储罐	3

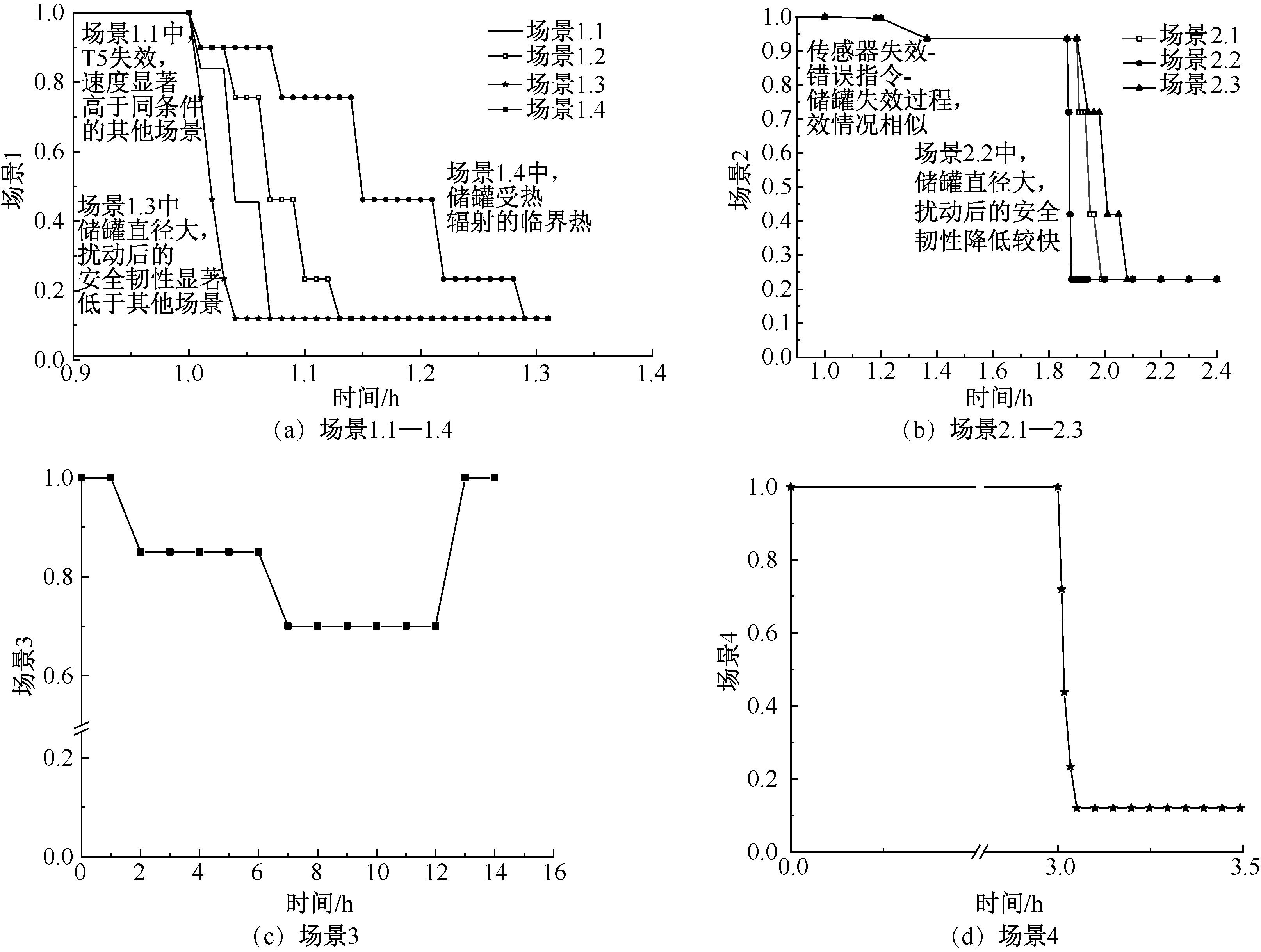

场景	安全韧性值	场景	安全韧性值
1.1	0.073	2.1	1.023
1.2	0.089	2.2	0.978
1.3	0.053	2.3	1.061
1.4	0.163	3.1	10.45
—	—	4.1	0.038

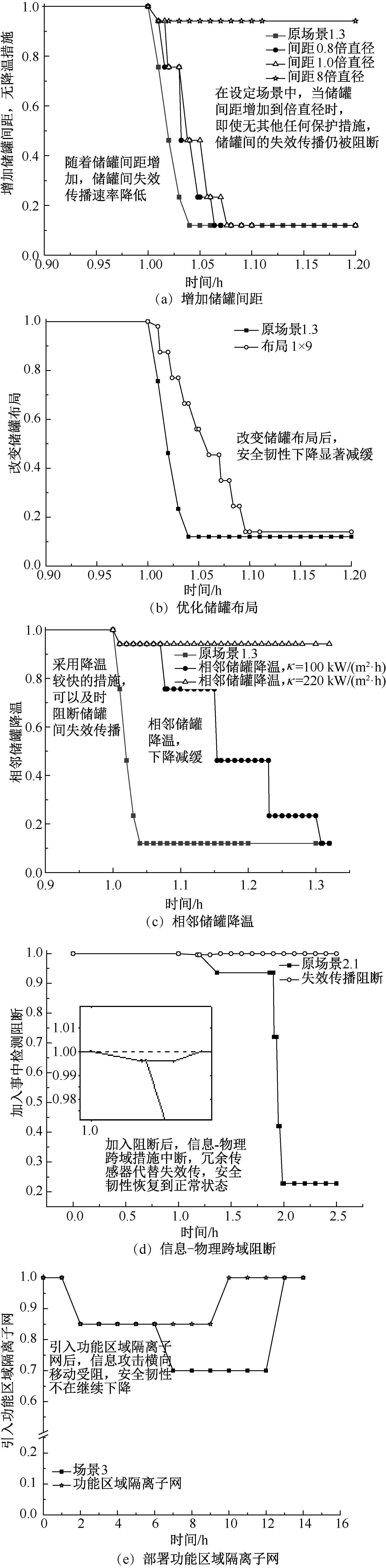

场景	安全保护措施	安全韧值
1.3	储罐间距增加为0.8λ	0.072
	储罐间距增加为λ	0.073
	储罐间距增加为8λ	0.302
	改变储罐布局为1×9	0.088
	相邻储罐长时间降温,κ取100 kW/(m²·h)	0.184
	相邻储罐长时间降温,κ取220 kW/(m²·h)	0.302
2.1	增加冗余传感器,信息失效传播阻断	1.499
3.1	引入功能区域隔离子网	11.8

方法	SW-IRML	指标体系	IRML
风险传播	√	×	√
经验依赖	×	√	√
信息-物理安全	√	×	×
多米诺效应	√	√	×
