存在逆行人员的疏散模型构建及稳定性分析

doi:10.16265/j.cnki.issn1003-3033.2023.09.2178

中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (9): 196-203.doi: 10.16265/j.cnki.issn1003-3033.2023.09.2178

存在逆行人员的疏散模型构建及稳定性分析

邓青¹^,²(), 周郑¹^,², 邓立³, 蒋慧灵¹^,⁴^,^**(), 周亮¹^,², 周正青¹^,²

¹ 北京科技大学大安全科学研究院,北京 100083
² 北京科技大学土木与资源工程学院,北京 100083
³ 中南建筑设计院股份有限公司,武汉湖北 430071
⁴ 北京科技大学金属冶炼重大事故防控技术支撑基地,北京 100083

收稿日期:2023-03-01 修回日期:2023-06-13 出版日期:2023-09-28
通讯作者:
**蒋慧灵(1975—),女,湖南祁阳人,硕士,教授,主要从事电气防火及火灾监控、智慧消防方面的研究。E-mail:87398930@qq.com。
作者简介:
邓青 (1990—),女,湖北孝感人,博士,副教授,主要从事智能疏散、大数据分析、公共安全等方面的研究。E-mail:dengqing0415@126.com。
邓立工程师
周亮副教授
周正青副教授
基金资助:
国家自然科学基金资助(72174099); 国家自然科学基金资助(72004113); 国家重点研发计划项目(2021YFC1523504); 国家应急管理部科技计划项目(2021XFCX25); 国家应急管理部科技计划项目(2022XFZD05); 河北省重点研发项目(22375419D)

Construction and stability analysis of an evacuation model for contrary movement personnel

DENG Qing¹^,²(), ZHOU Zheng¹^,², DENG Li³, JIANG Huiling¹^,⁴^,^**(), ZHOU Liang¹^,², ZHOU Zhengqing¹^,²

¹ Research Institute of Macro-Safety Science, University of Science and Technology Beijing, Beijing 100083, China
² School of Civil and Resource Engineering, University of Science and Technology Beijing, Beijing 100083, China
³ Central South Architectural Design Institute Co., Wuhan Hubei 430071, China
⁴ Technical Support Center for Prevention and Control of Disastrous Accidents in Metal Smelting, University of Science and Technology Beijing, Beijing 100083, China

Received:2023-03-01 Revised:2023-06-13 Published:2023-09-28

摘要/Abstract

摘要：

为探究疏散过程中人员行为冲突的演化过程,提高疏散效率,运用演化博弈理论,分析 2种典型存在逆行人员场景下的人员疏散行为演化过程,讨论人员密度、事件紧急程度以及个体心理收益对人员合作或竞争策略选择的影响;借助Matlab仿真工具,展示博弈参与者的动态演化过程及参数调整对于双方策略选择的影响。结果表明:在一定约束条件下,存在5个均衡点,分别为(1,0)、(0,1)、(1,1)、(0,0)和一个鞍点。针对不同类型的逆行人员,获得的收益比例不同,但参数对其行为演化的影响趋势是一致的。当正常疏散人员的心理收益、事故的危险程度、逆行人员的额外时间损失增大时,正常疏散人员倾向礼让的策略;当正常疏散人员争抢的成本和逆行人员争抢成功的收益减小时,逆行人员倾向于礼让的策略。

关键词: 逆行人员, 演化博弈, 稳定性分析, 疏散过程, 疏散效率

Abstract:

To accurately depict the evolution process of individual behavior conflicts during evacuations and improve evacuation efficiency, the evolutionary game theory was applied to analyze the evolution of evacuation behaviors in two typical scenarios involving contrary movement personnel. The impact of population density, level of emergency severity, and individual psychological gains on the choice of cooperative or competitive strategies by individuals was discussed. The dynamic evolution process of game players and the influence of parameter adjustment on the strategy selection of both sides could be demonstrated with the help of Matlab. The simulation results showed that under certain constraints, there were five equilibrium points which were (1,0), (0,1), (1,1), (0,0), and a saddle point. It is found that different types of retrograde pedestrians benefit from different proportions, but the influencing parameters of their behavior evolution have the same influence trend. When the psychological benefits of regular evacuees, the risk level of the accident, and the additional time loss of counterflow individuals increase, evacuees tend to adopt a yielding strategy. Conversely, when the cost of competition for regular evacuees and the rewards of successful competition for counterflow individuals decrease, the counterflow individuals tend to adopt a yielding strategy.

Key words: retrograde behavior, evolutionary game, stable analysis, pedestrian evacuation, evacuation efficiency

邓青, 周郑, 邓立, 蒋慧灵, 周亮, 周正青. 存在逆行人员的疏散模型构建及稳定性分析[J]. 中国安全科学学报, 2023, 33(9): 196-203.

DENG Qing, ZHOU Zheng, DENG Li, JIANG Huiling, ZHOU Liang, ZHOU Zhengqing. Construction and stability analysis of an evacuation model for contrary movement personnel[J]. China Safety Science Journal, 2023, 33(9): 196-203.

图/表 10

表1

表2

表3

博弈双方的局部稳定性分析

均衡点	特征值1	符号	特征值2	符号	局部稳定性
A	t+dp₂	+	t+dp₁+at₁	+	否
B	-t-dp₁-at₁	-	- $m + t - 3 d (c 2 - p 2) 5$	-	ESS
C	$2 d (c 1 - p 1) 5 - t$	+	$m - t + 3 d (c 2 - p 2) 5$	+	否
D	$t - 2 d (c 1 - p 1) 5$	-	-t-dp₂	-	ESS
E	M	+	-M	-	鞍点

表3

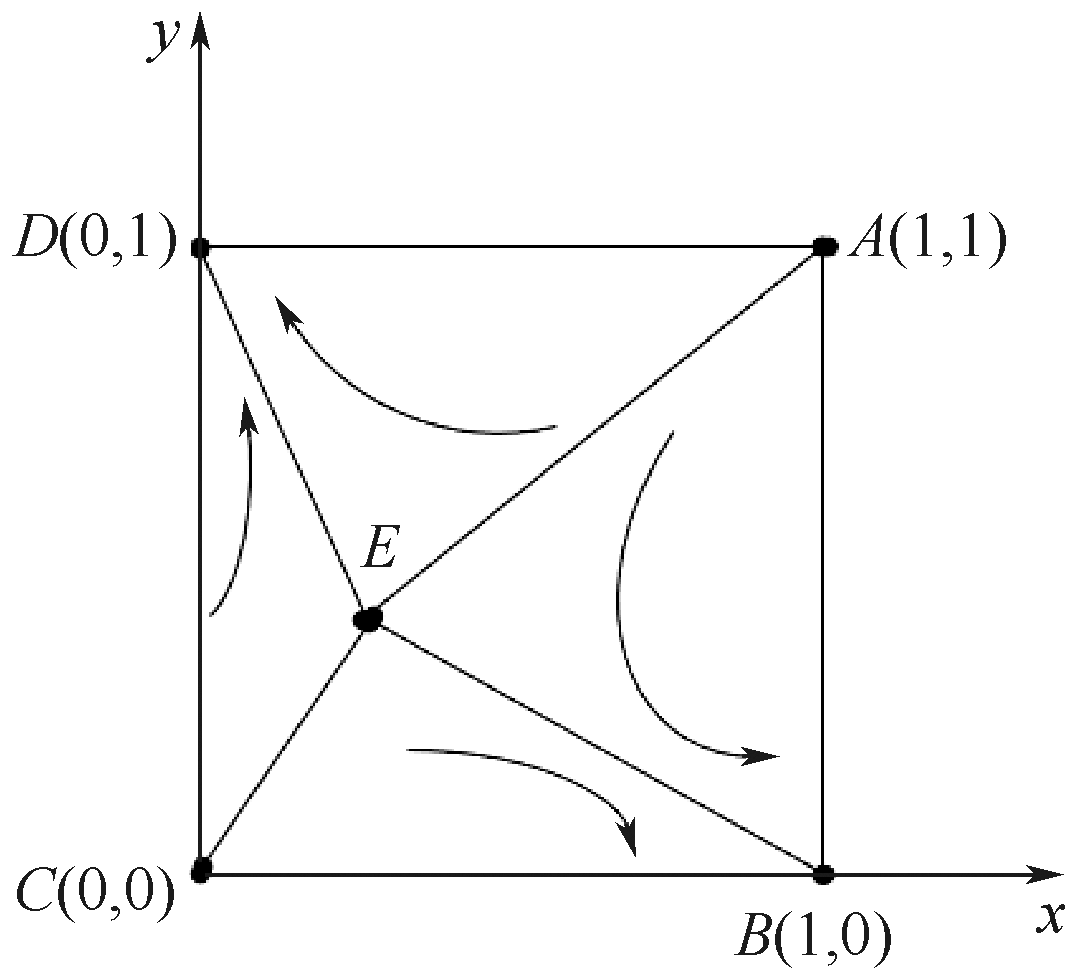

图1

表4

表5

博弈双方的局部稳定性分析

均衡点	特征值1	符号	特征值2	符号	局部稳定性
A	t+dp₂	+	t+dp₁+at₁	+	否
B	-t-dp₁-at₁	-	$- m + t - 3 d (c 2 - p 2) 10$	-	ESS
C	$7 d (c 1 - p 1) 10 - t$	+	$m - t + 3 d (c 2 - p 2) 10$	+	否
D	$t - 7 d (c 1 - p 1) 10$	-	-t-dp₂	-	ESS
E	M₁	+	-M₁	-	鞍点

表5

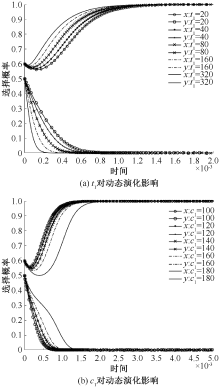

图2

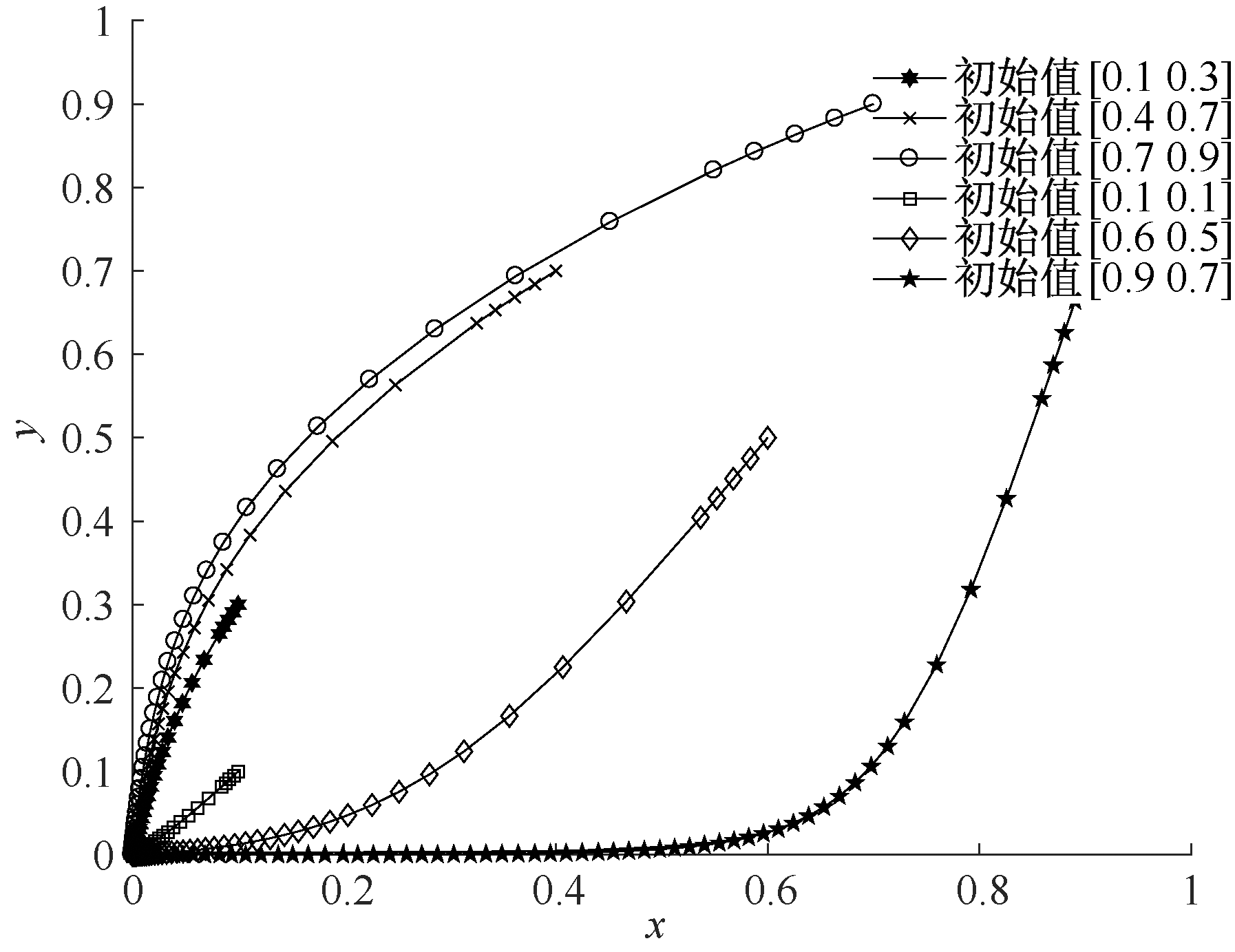

图3

图4

图5

参考文献 20

[1]	黄利华, 王亚飞, 马英楠, 等. 地铁站突发事件下乘客疏散行为认知特性研究[J]. 武汉理工大学学报:信息与管理工程版, 2021, 43(2):99-105.
	HUANG Lihua, WANG Yafei, MA Yingnan, et al. Research on the cognitive characteristics of passengers' evacuation behavior in subway station emergency[J]. Journal of Wuhan University of Technology: Information & Management Engineering, 2021, 43(2):99-105.
[2]	郑倩倩. 论城市公共安全风险评估机制的构建:基于上海外滩踩踏事件的分析[J]. 学理论, 2015(25):66-68.
	ZHENG Qianqian. Construction of mechanism of risk assessment on urban public safety: based on the analysis of the stampede at Shanghai's bund area[J]. Theory Research, 2015(25):66-68.
[3]	孔令争, 张蕊, 杨明航, 等. 地铁车站通道行人超越行为改进社会力模型[J]. 科学技术与工程, 2022, 22(9):3722-3726.
	KONG Lingzheng, ZHANG Rui, YANG Minghang, et al. Improved social force model of pedestrian overtaking behavior in subway station corridors[J]. Science Technology and Engineering, 2022, 22(9):3722-3726.
[4]	邢国新, 赵海龙, 任丹彤. 地铁车站安全疏散模型综述[J]. 安全与环境学报, 2023, 23(7):2417-2427.
	XING Guoxin, ZHAO Hailong, REN Dantong. Synthetic analysis of safe evacuation models for subway stations[J]. Journal of Safety and Environment, 2023, 23(7):2417-2427.
[5]	LO S M, HUANG H C, WANG P, et al. A game theory based exit selection model for evacuation[J]. Fire Safety Journal, 2006, 41(5):364-369. doi: 10.1016/j.firesaf.2006.02.003
[6]	GUO Yan, SONG Yan, CHEN Weiling. . Evolutionary game of emergency evacuation after an earthquake at a university: how to promote orderly evacuation[J]. IEEE Access, 2021, 9:2516-2534. doi: 10.1109/Access.6287639
[7]	GUAN Junbiao, WANG Kaihua. Towards pedestrian room evacuation with a spatial game[J]. Applied Mathematics and Computation, 2019, 347:492-501. doi: 10.1016/j.amc.2018.11.003
[8]	MA Yaping, LIU Xiaoying, HUO Feizhou, et al. Analysis of cooperation behaviors and crowd dynamics during pedestrian evacuation with group existence[J]. Sustainability, 2022, 14(9):1-19. doi: 10.3390/su14010001
[9]	刘根旺, 周颖, 张磊, 等. 基于博弈论的人员疏散演化研究[J]. 计算机工程与应用, 2020, 56(8):49-54. doi: 10.3778/j.issn.1002-8331.1905-0175
	LIU Genwang, ZHOU Ying, ZHANG Lei, et al. Research on pedestrian evacuation evolution based on game theory[J]. Computer Engineering and Applications, 2020, 56(8):49-54. doi: 10.3778/j.issn.1002-8331.1905-0175
[10]	FUKUI M, ISHIBASHI Y. Self-organized phase transitions in cellular automaton models for pedestrians[J]. Journal of the Physical Society of Japan, 1999, 68 (8):2861-2863. doi: 10.1143/JPSJ.68.2861
[11]	FUKUI M, ISHIBASHI Y. Jamming transition in cellular automaton models for pedestrians on passageway[J]. Journal of the Physical Society of Japan, 1999, 68 (11):3738-3739. doi: 10.1143/JPSJ.68.3738
[12]	YUE Hao, GUAN Hongzhi, ZHANG Juan, et al. Study on bi-direction pedestrian flow using cellular automata simulation[J]. Physica A: Statistical Mechanics and its Applications, 2010, 389(3):527-539. doi: 10.1016/j.physa.2009.09.035
[13]	SUN Yi. Simulations of bi-direction pedestrian flow using kinetic Monte Carlo methods[J]. Physica A: Statistical Mechanics and its Applications, 2019, 524:519-531. doi: 10.1016/j.physa.2019.04.081
[14]	YANAGISAWA D. Coordination game in bidirectional flow[J]. Collective Dynamics, 2016: DOI: 10.17815/CD.2016.8.
[15]	陈迅, 赖纯见. 区域房地产市场四方有限理性博弈研究[J]. 系统工程理论与实践, 2016, 36(4):857-874. doi: 10.12011/1000-6788(2016)04-0857-18
	CHEN Xun, LAI Chunjian. Research on the game of 4-player with bounded rationality in regional real estate market[J]. Systems Engineering-Theory & Practice, 2016, 36(4):857-874.
[16]	ZHENG Xiaoping, CHENG Yuan. Conflict game in evacuation process: a study combining Cellular Automata model[J]. Physica A: Statistical Mechanics and its Applications, 2011, 390(6):1042-1050. doi: 10.1016/j.physa.2010.12.007
[17]	SHI Dongmei, WANG Binghong. Evacuation of pedestrians from a single room by using snowdrift game theories[J]. Physical Review E, Statistical, Nonlinear, and Soft Matter Physics, 2013, 87(2): DOI: 10.1103/physreve.87.022802.
[18]	FRIEDMAN D. Evolutionary game in economics[J]. Econometrica, 1991, 59(3):637-666. doi: 10.2307/2938222
[19]	徐瑞华, 罗帆. 机场净空区无人机扰航监管演化博弈研究[J]. 中国安全科学学报, 2019, 29(5):25-30. doi: 10.16265/j.cnki.issn1003-3033.2019.05.005
	XU Ruihua, LUO Fan. Evolutionary game research of supervision on unmanned aerial vehicle interference with flights in airfield clearance area[J]. China Safety Science Journal, 2019, 29(5):25-30. doi: 10.16265/j.cnki.issn1003-3033.2019.05.005
[20]	曹策俊, 朱彦青, 张帆顺, 等. 考虑信任的公私合作监管演化博弈分析:以新冠病毒医疗垃圾管理为例[J]. 中国安全科学学报, 2021, 31(7):38-47. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.006
	CAO Cejun, ZHU Yanqing, ZHANG Fanshun, et al. Evolutionary game analysis of public-private cooperative supervision considering trust: taking medical waste management[J]. China Safety Science Journal, 2021, 31(7):38-47. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.006

疏散人员	逆行人员(抢险救灾人员)
疏散人员	避让y	争抢1-y
避让x	(-t, -t-at₁)	(m-t, dp₁)
争抢1-x	(dp₂, -t)	0.6d(p₂-c₂) 0.4d(p₁-c₁)

疏散人员	逆行人员(普通疏散人员)
疏散人员	避让	争抢
避让	(-t, -t-at₁)	(m-t, dp₁)
争抢	(dp₂, -t)	0.3d(p₂-c₂) 0.7d(p₁-c₁)

参数	偏导数	对 S₂的影响
c₁	<0	-
c₂	>0	+
m	>0	+
t	/	/
t₁	>0	+
d	/	/
p₁	>0	+
p₂	<0	-
a	>0	+
