管制扇区运行稳度K-means聚类与分析

doi:10.16265/j.cnki.issn1003-3033.2024.07.0197

摘要/Abstract

摘要：

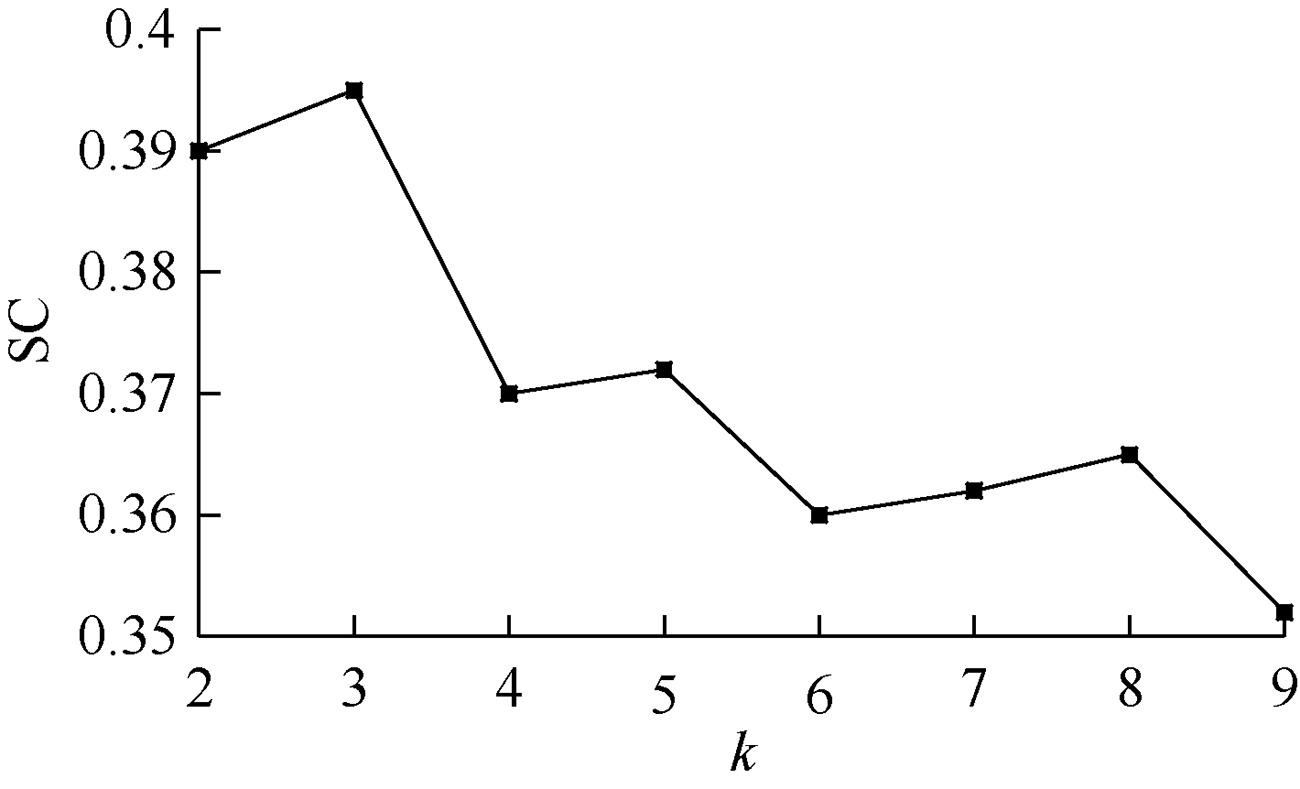

为更好地分析管制扇区运行存在的稳定亚安全状态和不稳定亚安全状态,使用K-means算法划分超容比(ECR)、滞留度和飞行姿态混合比3个管制扇区运行稳度评价指标聚类,确定管制扇区运行稳度最佳等级划分;聚类分析单一指标,获得各等级对应的指标阈值,结合熵权法计算的指标权重,遵循隶属度最大原则,获取各时间段的管制扇区运行稳度等级,构建管制扇区运行稳度综合评价模型;选取厦门01号扇区的实际飞行数据,从稳度和趋度2个角度更加全面地分析管制扇区运行态势。结果表明:管制扇区运行稳度等级划分为3类时效果最好;稳度受空中交通流和管制状况的影响会随时间而变化,尤其7:30—9:15和20:00—21:00这2 个时间段管制扇区运行稳度的变化最为明显,需引起管制员高度重视,提高空域运行安全。

关键词: 管制扇区, 运行稳度, 趋度, K-means聚类, 综合评价

Abstract:

In order to better analyze the stable sub-safety state and unstable sub-safety state existing in control sector operation, K-means algorithm was used to cluster three control sector operation stability evaluation indicators of excess-capacity ratio(ECR), retention degree and flight attitude mixing ratio so that the optimal classification of the operation stability of control sector was determined. The index threshold corresponding to each level was obtained by clustering analysis of a single index. Combined with the index weight calculated by the entropy weight method, the operational stability level of the control sector in each time period was obtained according to the principle of maximum membership degree. Then, the comprehensive evaluation model of control sector operation stability was constructed. The actual flight data of Xiamen No.01 sector was selected to more comprehensively analyze operation situation of control sector from the perspectives of stability and trend. The results show that the best effect is obtained when the control sector operation stability level is divided into three categories. The stability varies with time due to the influences of air traffic flow and control conditions, especially in the two time periods of 7: 30-9: 15 and 20: 00-21: 00, when the change of stability is most obvious. The controllers need to pay great attention to improving the safety of airspace operations.

Key words: control sector, operation stability, trend, K-means clustering, comprehensive evaluation

中图分类号:

X949

岳仁田, 杨果果. 管制扇区运行稳度K-means聚类与分析[J]. 中国安全科学学报, 2024, 34(7): 98-104.

YUE Rentian, YANG Guoguo. K-means clustering and analysis of operation stability for control sector[J]. China Safety Science Journal, 2024, 34(7): 98-104.

图/表 8

图1

表1

图2

表2

图3

图4

表3

图5

参考文献 17

[1]	岳仁田, 韩蒙. 基于四诊法的管制席安全运行状态诊断[J]. 中国安全科学学报, 2021, 31(9):52-59. doi: 10.16265/j.cnki.issn1003-3033.2021.09.008
	YUE Rentian, HAN Meng. Diagnosis of safety operation state for ATC position based on four diagnostic methods[J]. China Safety Science Journal, 2021, 31(9): 52-59. doi: 10.16265/j.cnki.issn1003-3033.2021.09.008
[2]	岳仁田, 韩娜. 基于灰色聚类的管制扇区运行健康识别方法[J]. 科学技术与工程, 2020, 20(16):6697-6702.
	YUE Rentian, HAN Na. Health identification of sector control operation based on gray clustering method[J]. Science Technology and Engineering, 2020, 20(16):6697-6702.
[3]	杨庆芳, 马明辉, 杨聚芬, 等. 高速公路交通流运行稳定性分析[J]. 吉林大学学报:工学版, 2014, 44(6):1596-1603.
	YANG Qingfang, MA Minghui, YANG Jufen, et al. Analysis of traffic flow stability of expressway[J]. Journal of Jilin University:Engineering Edition, 2014, 44 (6): 1596-1603.
[4]	杜婧. 航线网络稳定性分析与控制问题研究[D]. 南京: 南京航空航天大学, 2016.
	DU Jing. Study on the stability analysis and control of route network[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2016.
[5]	刘星良, 单珏, 刘唐志, 等. 基于交通流稳定性系数的高速公路交通事故实时风险预测[J]. 交通信息与安全, 2022, 40(4):71-81.
	LIU Xingliang, SHAN Jue, LIU Tangzhi, et al. Real-time risk prediction of freeway traffic accidents based on traffic flow stability coefficient[J]. Traffic Information and Safety, 2022, 40 (4): 71-81.
[6]	宋成举, 张夏杰, 程国柱. ICV跟驰模型优化及稳定性分析[J/OL]. 武汉理工大学学报:交通科学与工程版:1-11[2024-03-24]. http://kns.cnki.net/kcms/detail/42.1824.U.20230704.1442.080.html.
	SONG Chengju, ZHANG Xiajie, CHENG Guozhu. ICV car-following model optimization and stability analysis[J/OL]. Journal of Wuhan University of Technology:Traffic Science and Engineering Edition:1-11[2024-03-24]. http://kns.cnki.net/kcms/detail/42.1824.U.20230704.1442.080.html.
[7]	佟瑞鹏, 胡向阳, 王乐瑶, 等. 风险动物园(Ⅳ):基于复杂系统思维的风险隐喻事件识别与评估[J]. 中国安全科学学报, 2024, 34(2):53-59. doi: 10.16265/j.cnki.issn1003-3033.2024.02.1724
	TONG Ruipeng, HU Xiangyang, WANG Leyao, et al. Risk zoo (IV): risk metaphor event identification evaluation based on complex system thinking[J]. China Safety Science Journal, 2024, 34(2):53-59. doi: 10.16265/j.cnki.issn1003-3033.2024.02.1724
[8]	ZHANG Honghai, JIANG Chengpeng, YANG Lei. Forecasting traffic congestion status in terminal areas based on support vector machine[J]. Advances in Mechanical Engineering, 2016, 8(9):1-11.
[9]	袁立罡, 胡明华, 李杰. 基于中介理论与交通特性的终端区态势评价[J]. 航空计算技术, 2016, 46(4):18-23.
	YUAN Ligang, HU Minghua, LI Jie. Situation assessment of terminal area based on intermediary theory and traffic characteristics[J]. Aviation Computing Technology, 2016, 46(4): 18-23.
[10]	李桂毅, 胡明华, 张洪海. 基于FCM-SVM方法的时空航路网交通状态识别研究[J]. 武汉理工大学学报, 2018, 42(4): 569-573,578.
	LI Guiyi, HU Minghua, ZHANG Honghai. Research on traffic state recognition of space-time route network based on FCM-SVM method[J]. Journal of Wuhan University of Technology, 2018, 42 (4): 569-573,578.
[11]	董京霖. 基于ADS-B数据的终端区交通态势分析[D]. 天津: 中国民航大学, 2020.
	DONG Jinglin. Traffic situation analysis of terminal area based on ADS-B data[D]. Tianjin:Civil Aviation University of China, 2020.
[12]	徐聪. 多终端区交通态势识别与预测方法研究[D]. 成都: 四川大学, 2021.
	XU Cong. Research on traffic situation identification and prediction methods in multi-terminal areas[D]. Chengdu: Sichuan University, 2021.
[13]	隋东, 李倩. 空域运行态势评价指标体系优化研究[J]. 安全与环境学报, 2023, 23(2):351-358.
	SUI Dong, LI Qian. Research on the optimization of airspace operation situation evaluation index system[J]. Journal of Safety and Environment, 2023, 23(2): 351-358.
[14]	LIU Fei, LI Jiawei, WEN Xiangxi, et al. Situation assessment of air traffic based on complex network theory and ensemble learning[J]. Applied Sciences, 2023, 13(21):DOI: 10.3390/APP132111957.
[15]	崔铁军, 李莎莎. 基于SRKDA的系统故障演化过程分解方法研究[J]. 中国安全生产科学技术, 2024, 20(3):196-202.
	CUI Tiejun, LI Shasha. Research on decomposition method of system fault evolution process based on SRKDA[J]. Journal of Safety Science and Technology, 2024, 20(3):196-202.
[16]	王兴隆, 陈仔燕, 刘岩. 基于组合赋权法的空管监视信息质量评估[J]. 中国安全科学学报, 2022, 32(1):41-50. doi: 10.16265/j.cnki.issn1003-3033.2022.01.006
	WANG Xinglong, CHEN Ziyan, LIU Yan. Research on monitoring information quality of ATC based on combination weighting[J]. China Safety Science Journal, 2022, 32(1): 41-50. doi: 10.16265/j.cnki.issn1003-3033.2022.01.006
[17]	吴维, 罗欣然, 魏明. 基于SD模型的跑道侵入风控网络脆弱性分析[J]. 中国安全科学学报, 2021, 31(4):41-48. doi: 10.16265/j.cnki.issn1003-3033.2021.04.006
	WU Wei, LUO Xinran, WEI Ming. Vulnerability assessment of runway intrusion risk control network based on SD model[J]. China Safety Science Journal, 2021, 31(4): 41-48. doi: 10.16265/j.cnki.issn1003-3033.2021.04.006

序列号	ECR	R	M
1	0	0.857	0
2	0.286	0.195	0.200
3	0.095	0.571	0.163
4	0.381	0.619	0.446
5	0.714	0.626	0.760
6	0.857	0.371	0.795
︙	︙	︙	︙
28	0.714	0.371	0.727
29	0.857	0.482	0.864
30	0.571	0.122	0.551
︙	︙	︙	︙
61	0.286	0.195	0.262
62	0.571	0.429	0.614
63	0.476	0.200	0.431
64	0.238	0.673	0.226

指标/等级	3	2	1
ECR	[0,0.357]	(0.357,0.643]	(0.643,1]
R	[0,0.292]	(0.292,0.595]	(0.595,1]
M	[0,0.403]	(0.403,0.636]	(0.636,1]

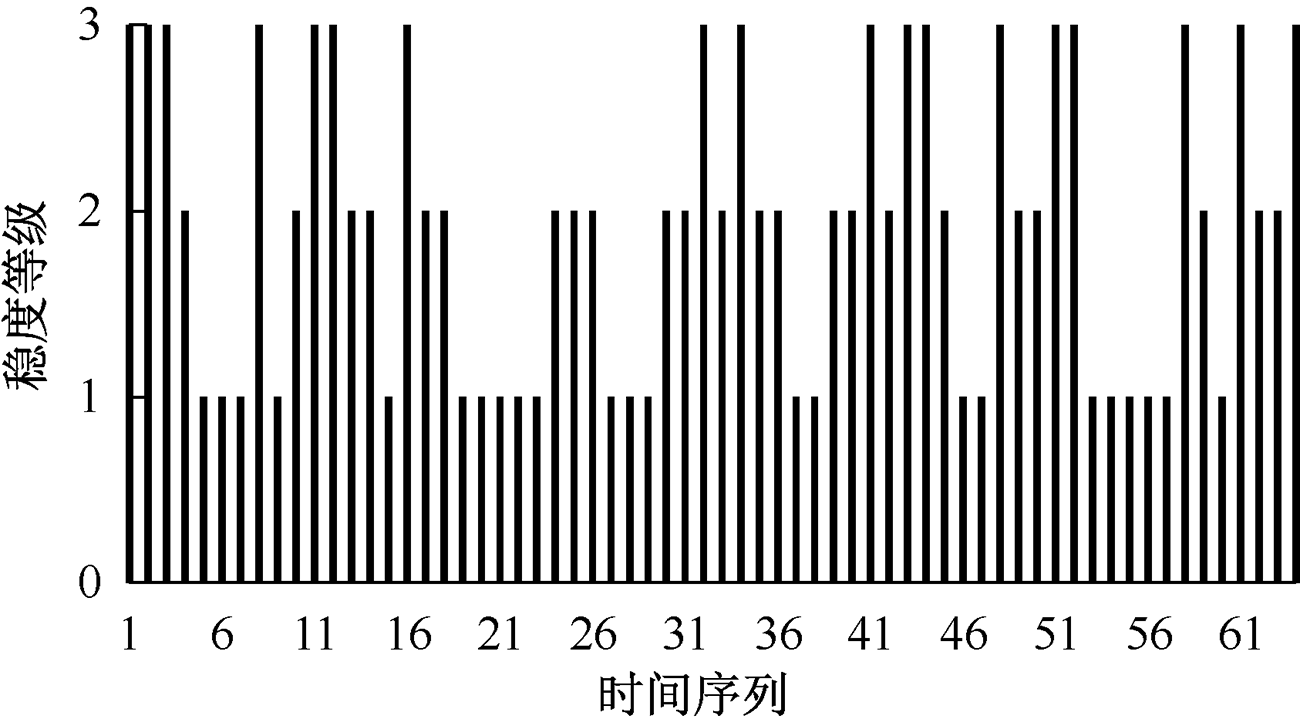

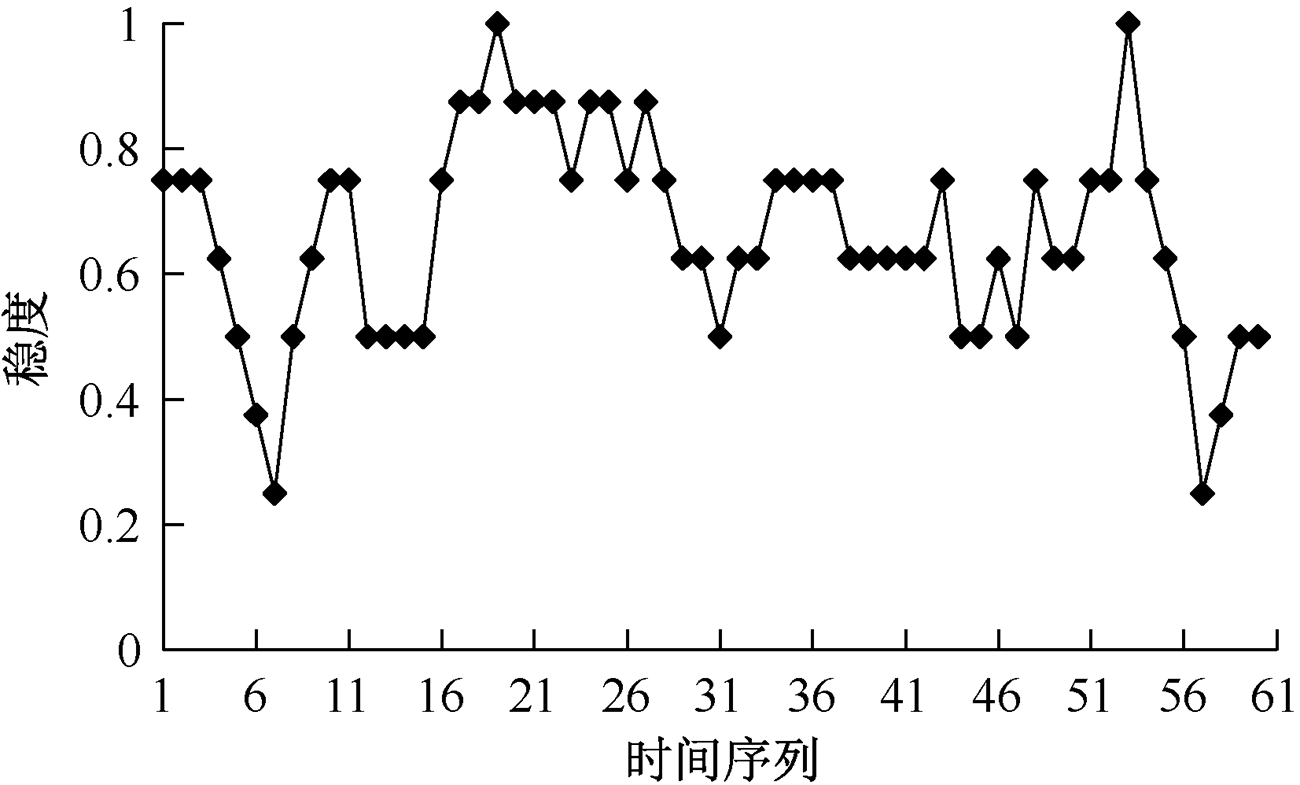

时间序列	稳度	趋度	时间序列	稳度	趋度
1	0.75	0	31	0.5	0.125
2	0.75	0	32	0.625	0
3	0.75	-0.125	33	0.625	0.125
4	0.625	-0.125	34	0.75	0
5	0.5	-0.125	35	0.75	0
6	0.375	-0.125	36	0.75	0
7	0.25	0.25	37	0.75	-0.125
8	0.5	0.125	38	0.625	0
9	0.675	0.125	39	0.625	0
10	0.75	0	40	0.625	0
11	0.75	-0.25	41	0.625	0
12	0.5	0	42	0.625	0.125
13	0.5	0	43	0.75	-0.25
14	0.5	0	44	0.5	0
15	0.5	0.25	45	0.5	0.125
16	0.75	0.125	46	0.625	-0.125
17	0.875	0	47	0.5	0.25
18	0.875	0.125	48	0.75	-0.125
19	1	-0.125	49	0.625	0
20	0.875	0	50	0.625	0.125
21	0.875	0	51	0.75	0
22	0.875	-0.125	52	0.75	0.25
23	0.75	0.125	53	1	-0.25
24	0.875	0	54	0.75	-0.125
25	0.875	-0.125	55	0.625	-0.125
26	0.75	0.125	56	0.5	-0.25
27	0.875	-0.125	57	0.25	0.125
28	0.75	-0.125	58	0.375	0.125
29	0.625	0	59	0.5	0
30	0.625	-0.125	60	0.5	0
