孤岛工作面覆岩结构演化及区段煤柱稳定性

doi:10.16265/j.cnki.issn1003-3033.2024.11.0682

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (11): 108-118.doi: 10.16265/j.cnki.issn1003-3033.2024.11.0682

孤岛工作面覆岩结构演化及区段煤柱稳定性

王虹玉¹^,²(), 程志恒³, 王朋³^,^**(), 陈亮³, 曲晓明⁴, 郭凯⁵

¹ 中国矿业大学(北京) 应急管理与安全工程学院,北京 100083
² 华北科技学院文法学院,河北廊坊 065201
³ 华北科技学院矿山安全学院,河北廊坊 065201
⁴ 中煤科工集团沈阳研究院有限公司,辽宁沈阳 113122
⁵ 北京科技大学土木与资源工程学院,北京 100083

收稿日期:2024-05-14 修回日期:2024-08-29 出版日期:2024-11-28
通信作者:
** 王朋(1998—),男,贵州毕节人,硕士研究生,主要方向为煤矿灾害防控。E-mail:706849319@qq.com。
作者简介:
王虹玉 (1982—),女,江西婺源人,博士研究生,副教授,主要研究方向为安全管理与技术、安全生产法等。E-mail:whyu@ncist.edu.cn。
程志恒, 副研究员
陈亮, 副研究员
曲晓明, 高级工程师
基金资助:
国家自然科学基金面上项目(52074120); 国家自然科学基金青年基金(52204133); 国家自然科学基金青年基金(52104131)

Evolution of overburden structure and stability of coal pillars in isolated island working face

WANG Hongyu¹^,²(), CHENG Zhiheng³, WANG Peng³^,^**(), CHEN Liang³, QU Xiaoming⁴, GUO Kai⁵

¹ School of Emergency Management and Safety Engineering, China University of Mining and Technology (Beijing), Beijing 100083, China
² School of Grammar and Law, North China Institute of Science and Technology, Langfang Hebei 065201, China
³ School of Mine Safety, North China Institute of Science and Technology, Langfang Hebei 065201, China
⁴ China Coal Science and Technology Group Shenyang Research Institute Co., Ltd., Shenyang Liaoning 113122,China
⁵ School of Civil and Resources Engineering,University of Science and Technology Beijing,Beijing 100083,China

Received:2024-05-14 Revised:2024-08-29 Published:2024-11-28

摘要/Abstract

摘要：

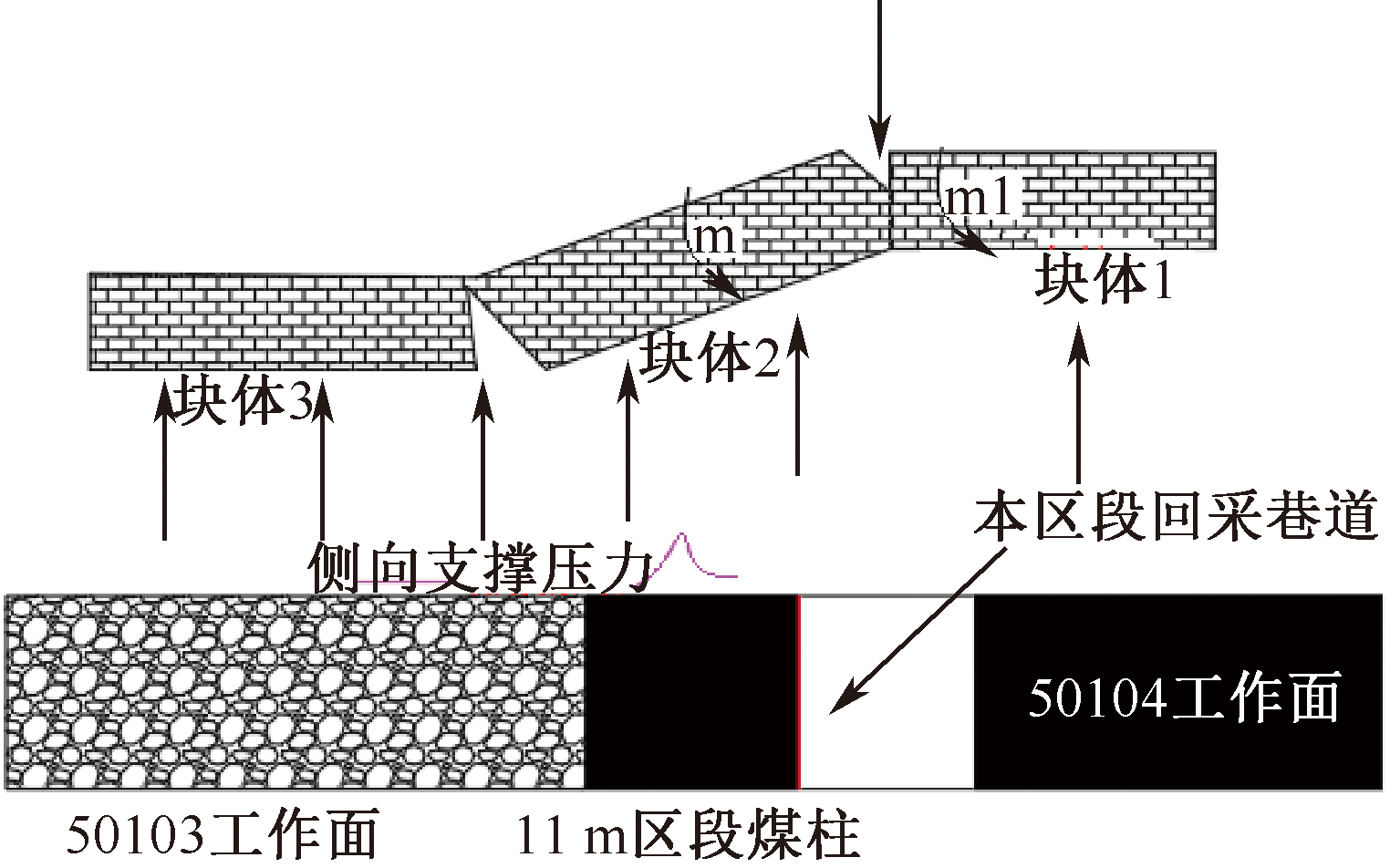

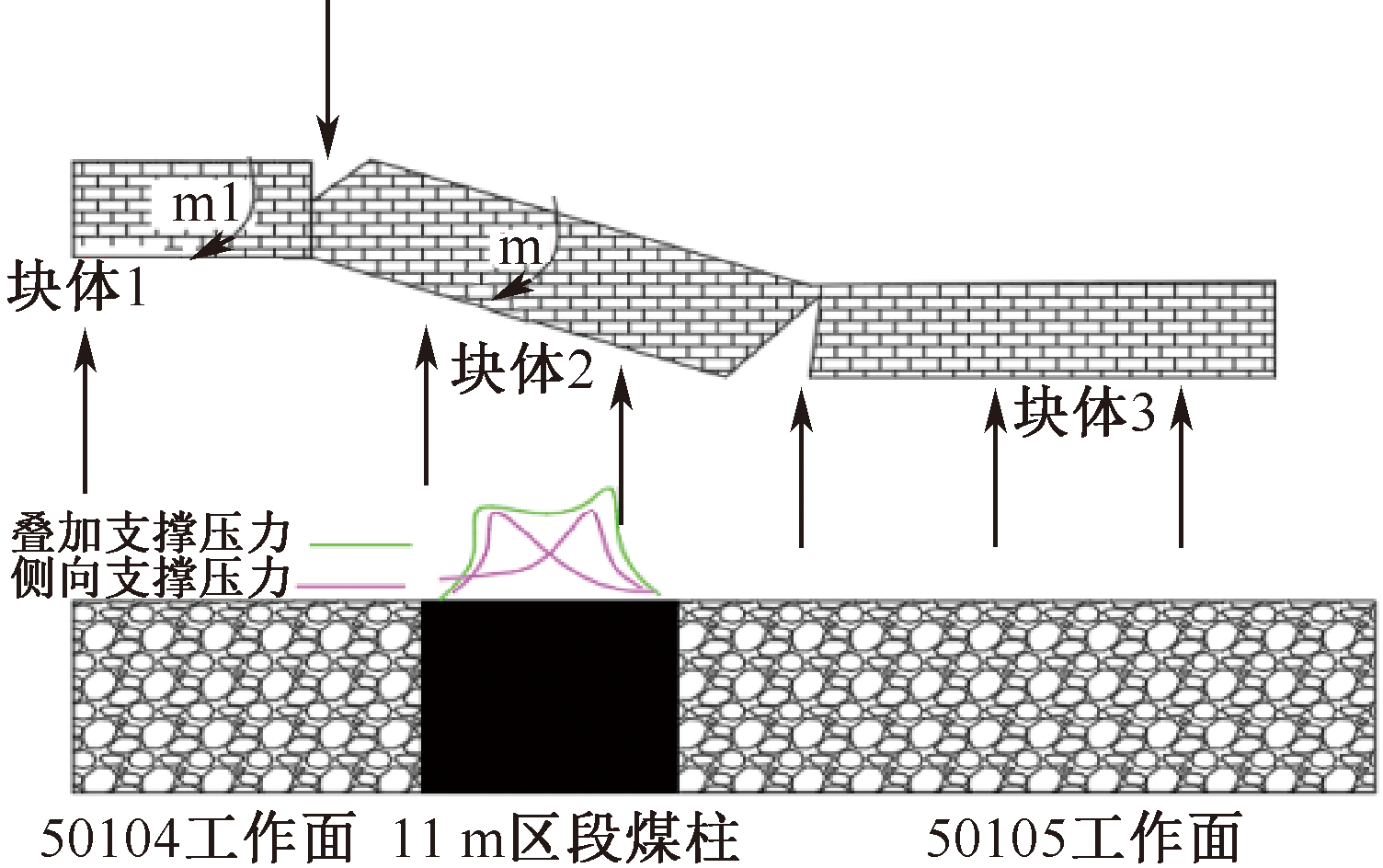

为探究浅埋煤层孤岛工作面开采时覆岩结构演化及区段煤柱稳定性,以泰华煤矿50104工作面为工程背景,采用理论分析、数值模拟、现场实测相结合的研究手段,分析其两侧区段煤柱承载能力及区段煤柱覆岩结构演化特征;并利用FLAC^3D数值软件,模拟塑性区分布情况以及采动应力演化特征。结果表明:50104工作面推进过程中,东西两侧区段煤柱塑性破坏滞后于工作面推进过程,位于工作面后方采空区处的区段煤柱处于塑性破坏状态,而位于工作面煤壁前方的煤柱存在稳定的弹性区,整体保持稳定,且两侧区段煤柱应力分布呈现相同特征,2条11 m煤柱高应力集中区域保持对称,均位于工作面后方;工作面区段煤柱高应力破坏区域发展速度滞后于工作面推进速度,工作面前方区段煤柱中心区域平均应力值从3.35 MPa增加至3.54 MPa,但始终未超过理论计算得到的煤柱承载强度值;通过分析50104工作面的矿压监测数据,得出实测初撑力均值为 3932.4 kN,占液压支架额定初撑力的55%;平均最大工作阻力5 812.3kN,占额定工作阻力的61.2%;加权平均阻力均值为4 836.6kN/架,占额定工作阻力的50.9%;最大来压6 013 kN,支架应力约2.35 MPa,证明11 m煤柱稳定,位于工作面煤壁前方区段煤柱的整体稳定性较好。

关键词: 孤岛工作面, 覆岩结构, 区段煤柱, 浅埋煤层, 煤柱稳定性, 数值模拟

Abstract:

To investigate the evolution of overburden structure and the stability of district coal pillars during the mining of shallow-buried coal seam island faces, a study was conducted with the 50104 working face of Taihua coal mine as the engineering background. The research employed a combination of theoretical analysis, numerical simulation, and on-site measurement to analyze the load-bearing capacity of the district coal pillars and the characteristics of overburden structure evolution on both sides. The FLAC^3D numerical software was utilized to simulate the distribution of plastic zones and the evolution of mining-induced stress. The results indicate that during the advancement of the 50104 working face, the plastic destruction of the district coal pillars on both sides lagged behind the progress of the working face. The district coal pillars located in the goaf area behind the working face were in a state of plastic destruction, while those in front of the working face coal wall maintained a stable elastic zone, overall remaining stable. Throughout the working face advancement, the stress distribution of the district coal pillars on both sides exhibited the same characteristics, with two 11 m coal pillars showing symmetric high-stress concentration areas, both located behind the working face. The development speed of the high-stress destruction area of the district coal pillars lagged behind the advancement speed of the working face. The average stress value in the central area of the district coal pillars in front of the working face increased from 3.35 MPa to 3.54 MPa, but it never exceeded the coal pillar bearing capacity value calculated theoretically. Analysis of the mine pressure monitoring data from the 50104 working face revealed that the average initial support force was 3 932.4 kN, accounting for 55% of the rated initial support force of hydraulic support. The average maximum working resistance was 5 812.3 kN, representing 61.2% of the rated working resistance. The weighted average resistance was 4 836.6 kN per support, which is 50.9% of the rated working resistance. The maximum pressure was 6 013 kN, with a support stress of about 2.35 MPa, proving the stability of 11 m coal pillars and indicating that the overall stability of the district coal pillars in front of the working face coal wall is relatively good.

Key words: island working face, overlying rock structure, section coal pillar, pillar stability, shallow coal seam, numerical simulation

中图分类号:

X936

王虹玉, 程志恒, 王朋, 陈亮, 曲晓明, 郭凯. 孤岛工作面覆岩结构演化及区段煤柱稳定性[J]. 中国安全科学学报, 2024, 34(11): 108-118.

WANG Hongyu, CHENG Zhiheng, WANG Peng, CHEN Liang, QU Xiaoming, GUO Kai. Evolution of overburden structure and stability of coal pillars in isolated island working face[J]. China Safety Science Journal, 2024, 34(11): 108-118.

图/表 15

图1

图2

图3

图4

图5

图6

图7

图8

表1

图9

图10

图11

图12

表2

50104工作面基本顶来压判据

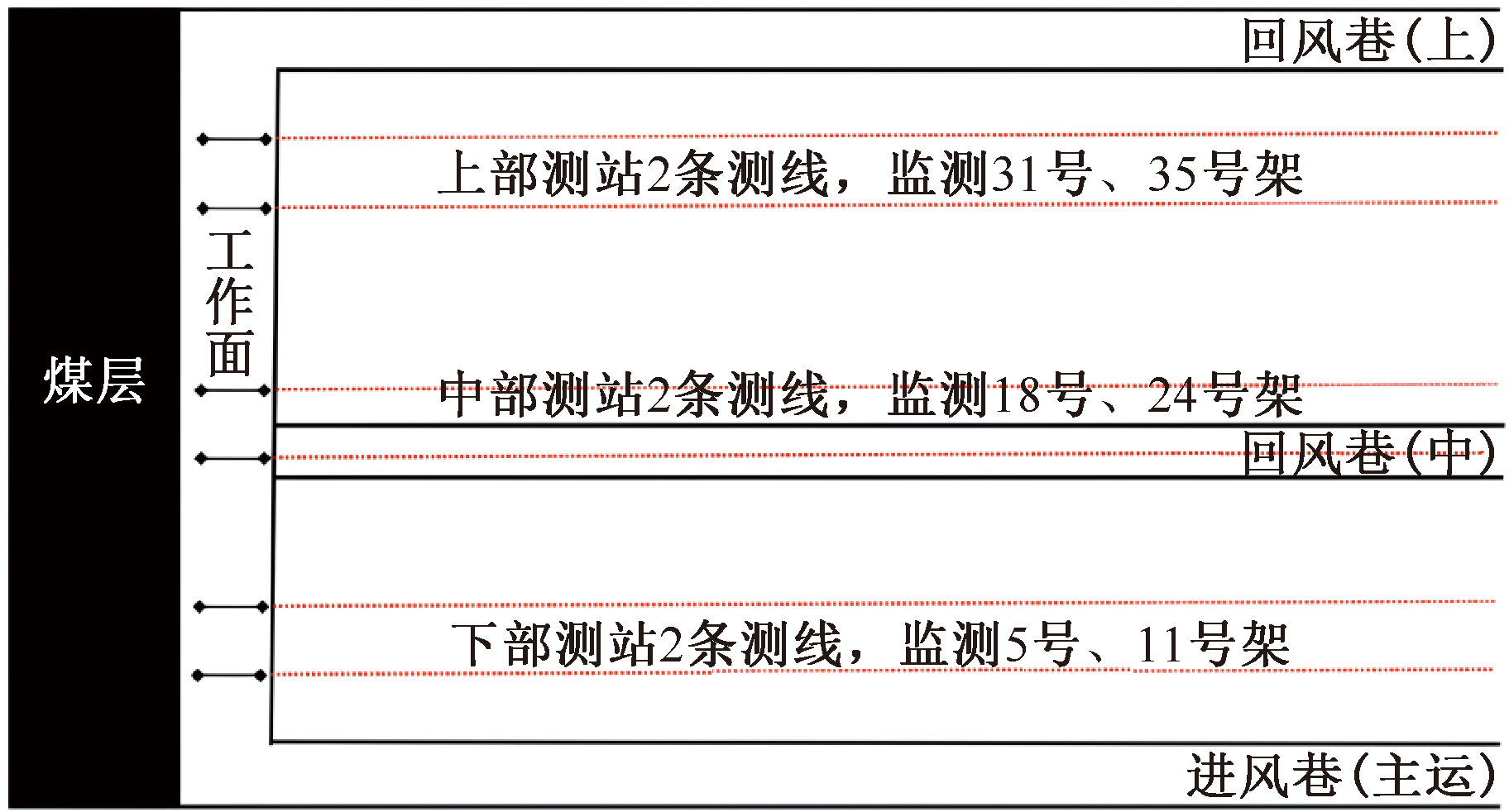

测站	支架	初撑力/kN			最大工作阻力/kN			加权平均工作阻力/kN
测站	支架	平均值 $P - 0$	均方差 S_po	判据 p'₀= $P - 0$ +S_p₀	平均值 $P - m$	均方差 $S p m$	判据 p'_m= $P - m$ + $S p m$	平均值 $P - t$	均方差 $S p t$	判据 p'_t= $P - t$ + $S p t$
上部测站	31号	4 594.7	872	5 466.7	5 920.8	423	6 343.8	5 275.8	589	5 864.8
上部测站	35号	3 611.5	729.5	4 341	5 870.1	748	6 618.1	4 941.1	939.7	5 880.8
中部测站	18号	4 718.1	716.7	5 434.8	5 808.9	436	6 244.9	4 888.9	765	5 653.8
中部测站	24号	3 824.7	1 166.2	4 990.9	5 409	1 046.3	6 455.3	4 027.3	1 173.5	5 200.8
下部测站	5号	3 468.9	628.1	4 097	5 851.7	750.5	6 602.2	4 795.6	789.2	5 584.8
下部测站	11号	3 376.5	703.8	4 080.3	6 013	496.2	6 509.2	5 090.8	930.8	6 021.6

表2

图13

参考文献 20

[1]	张修峰, 陈洋. 煤柱型冲击地压类型、发生机理与防治对策研究[J]. 煤炭科学技术, 2023, 51(10):1-11.
	ZHANG Xiufeng, CHEN Yang. Research on the type and occurrence mechanism and prevention of coal pillar rockbursts[J]. Coal Science and Technology, 2023, 51(10):1-11.
[2]	李广贺, 呼子桓, 王东, 等. 露天矿端帮开采支撑煤柱失稳判据研究[J]. 中国安全科学学报, 2023, 33(9):122-128. doi: 10.16265/j.cnki.issn1003-3033.2023.09.0454
	LI Guanghe, HU Zihuan, WANG Dong, et al. Study on instability criterion of rib pillars in open-pit during highwal mining[J]. China Safety Science Journal, 2023, 33(9):122-128. doi: 10.16265/j.cnki.issn1003-3033.2023.09.0454
[3]	刘宏军. 深部构造区域厚煤层工作面冲击地压防治技术[J]. 煤炭科学技术, 2016, 44(2):109-113.
	LIU Hongjun. Mine pressure bump prevention technology of coal mining face in thick seam of mine deep structure area[J]. Coal Science and Technology, 2016, 44(2):109-113.
[4]	邢世坤, 李辉, 冯少华. 深部孤岛充填工作面沿空掘巷围岩偏应力演化与控制[J]. 河南理工大学学报:自然科学版, 2024, 43(4):39-47.
	XING Shikun, LI Hui, FENG Shaohua. Evolution and control of deviatoric stress in surrounding rock of gob-side entry in deepisland filling face[J]. Journal of Henan Polytechnic University:Natural Science 2024, 43(4):39-47.
[5]	郭欢欢, 胡家喻, 邱黎明. 突出煤层孤岛工作面多场演化规律及瓦斯灾害防治技术[J]. 西安科技大学学报, 2022, 42(2):227-236.
	GUO Huanhuan, HU Jiayu, QIU Liming. Overburden behavour change and gas control of isolated working face of outburst coal seam[J]. Journal of Xi'an University of Science and Technology, 2022, 42(2):227-236.
[6]	陈晓祥, 王雷超, 付东辉. 孤岛工作面动压回采巷道平移变形力学机制及控制技术研究[J]. 采矿与安全工程学报, 2015, 32(4):552-558.
	CHEN Xiaoxiang, WANG Leichao, FU Donghui. A study on inward movement deformation mechanism and control technology of dynamic pressure gateway of island mining face[J]. Journal of Mining & Safety Engineering, 2015, 32(4):552-558.
[7]	杨光宇, 姜福兴, 李琳, 等. 煤矿冲击地压危险性的工程判据研究[J]. 采矿与安全工程学报, 2018, 35(6):1 200-1 207,1 216.
	YANG Guangyu, JIANG Fuxing, LI Lin, et al. Engineering criterion study on coal mining rock burst hazard[J]. Journal of Mining & Safety Engineering, 2018, 35(6):1 200-1 207,1 216.
[8]	谢广祥, 杨科, 刘全明. 综放面倾向煤柱支承压力分布规律研究[J]. 岩石力学与工程学报, 2006, 25(3):545-549.
	XIE Guangxiang, YANG Ke, LIU Quanming. Tudy on distribution laws of stress in inclined coal pillar for fully-mechanized top-coal caving face[J]. Chinese Journal of Rock Mechanics and Engineering, 2006, 25(3):545-549.
[9]	葛海军, 冯志忠, 李彩云. 浅埋深孤岛工作面下行开采过上覆遗留煤柱强矿压特征及防治技术[J]. 煤炭科学技术, 2022, 50(增1):36-41.
	GE Haijun, FENG Zhizhong, LI Caiyun. Strong ground pressure characteristics and prevention technology when shallow buried island working face goes down through overlying residual coal pillar[J]. Coal Science and Technology, 2022, 50(S1):36-41.
[10]	朱广安, 窦林名, 王红胜, 等. 临断层孤岛面冲击危险与断层滑移数值反演:以朝阳煤矿3108工作面为例[J]. 煤炭学报, 2020, 45(2):533-541.
	ZHU Guang'an, DOU Linming, WANG Hongsheng, et al. Back analysis of rock burst risk and fault slip due to mining in the island panel along fault:a case study of island panel 3108 in Chaoyang coal mine[J]. Journal of China Coal Society, 2020, 45(2):533-541.
[11]	程利兴, 姜鹏飞, 杨建威, 等. 深井孤岛工作面巷道围岩采动应力分区演化特征[J]. 岩土力学, 2020, 41(12):4 078-4 086.
	CHENG Lixing, JIANG Pengfei, YANG Jianwei, et al. Evolution characteristics of mining-induced stress partition of roadway surrounding rock on working face of deep island[J]. Rock and Soil Mechanics, 2020, 41(12):4 078-4 086.
[12]	范志忠, 付书俊, 潘黎明. 深部超长孤岛工作面覆岩垮落结构特征研究[J]. 煤炭工程, 2020, 52(2):86-90.
	FAN Zhizhong, FU Shujun, PAN Liming. Study on caving structure characteristics of overlying strata in deep super long island working face[J]. Coal Engineering, 2020, 52(2):86-90.
[13]	周贤, 马建, 辛崇伟, 等. 孤岛工作面巷道围岩变形特征及修复加固技术研究[J]. 煤炭工程, 2022, 54(9):35-40.
	ZHOU Xian, MA Jian, XIN Chongwei, et al. Deformation characteristics of surrounding rock in isolated working face and its repair and reinforcement technology[J]. Coal Engineering, 2022, 54(9):35-40.
[14]	董文卓, 陈理强, 王文杰, 等. 上覆不规则煤柱孤岛工作面冲击地压弱结构法防治技术[J]. 矿业安全与环保, 2024, 51(2):40-45,52.
	DONG Wenzhuo, CHEN Liqiang, WANG Wenjie, et al. Prevention technology of weak structure against rock burst in island working face of overlying irregular coal pillar[J]. Mining Safety & Environmental Protection, 2024, 51(2):40-45,52.
[15]	李润芝. 动压影响孤岛工作面巷道围岩“卸-支平衡”协同控制技术[J]. 煤矿安全, 2024, 55(3):199-208.
	LI Runzhi. Research on collaborative control technology of "unloading and support balance" for surrounding rock of isolated roadway under the influence of dynamic pressure[J]. Safety in Coal Mines, 2024, 55(3):199-208.
[16]	朱斯陶, 姜福兴, 刘金海, 等. 我国煤矿整体失稳型冲击地压类型、发生机理及防治[J]. 煤炭学报, 2020, 45(11):3 667-3 677.
	ZHU Sitao, JIANG Fuxing, LIU Jinhai, et al. Types,occurcenec mechanism and prevention of overall istability induced rockbursts in China coal mines[J]. Journal of China Coal Society, 2020, 45(11): 3 667-3 677.
[17]	张杰, 白文勇, 王斌, 等. 浅埋煤层孤岛工作面区段煤柱宽度优化[J]. 西安科技大学学报, 2021, 41(6):988-996.
	ZHANG Jie, BAI Wenyong, WANG Bin, et al. Width optimization of section coal pillar in the island working face of shallow coal seam[J]. Journal of Xi'an University of Science and Technology, 2021, 41(6):988-996.
[18]	张宇, 李炜博, 杨少雄. 浅埋煤层孤岛工作面合理区段煤柱宽度研究[J]. 山东煤炭科技, 2021, 39(12):15-17.
	ZHANG Yu, LI Weibo, YANG Shaoxiong. Study on reasonable coal pillar width of isolated island working face in shallow coal seam[J]. Shandong Coal Technology, 2021, 39(12):15-17.
[19]	张杰, 陈诚, 张建辰, 等. 浅埋厚层间距煤层过上覆采空区煤柱矿压显现机理研究[J]. 煤矿安全, 2020, 51(12):63-68.
	ZHANG Jie, CHEN Cheng, ZHANG Jianchen, et al. Study on developing mechanism of coal pillar pressure of shallow coal seams with thick seam spacing passing through overlying goaf[J]. Safety in Coal Mines, 2020, 51(12):63-68.
[20]	张金贵, 浦仕江, 闫亚楠, 等. 切顶卸压对重复扰动条件下的煤柱稳定性影响分析[J]. 煤炭工程, 2021, 53(2):48-53.
	ZHANG Jingui, PU Shijiang, YAN Ya'nan, et al. Influence of roof cutting pressure releasing on coal pillar stability under secondary disturbance[J]. Coal Engineering, 2021, 53(2):48-53.

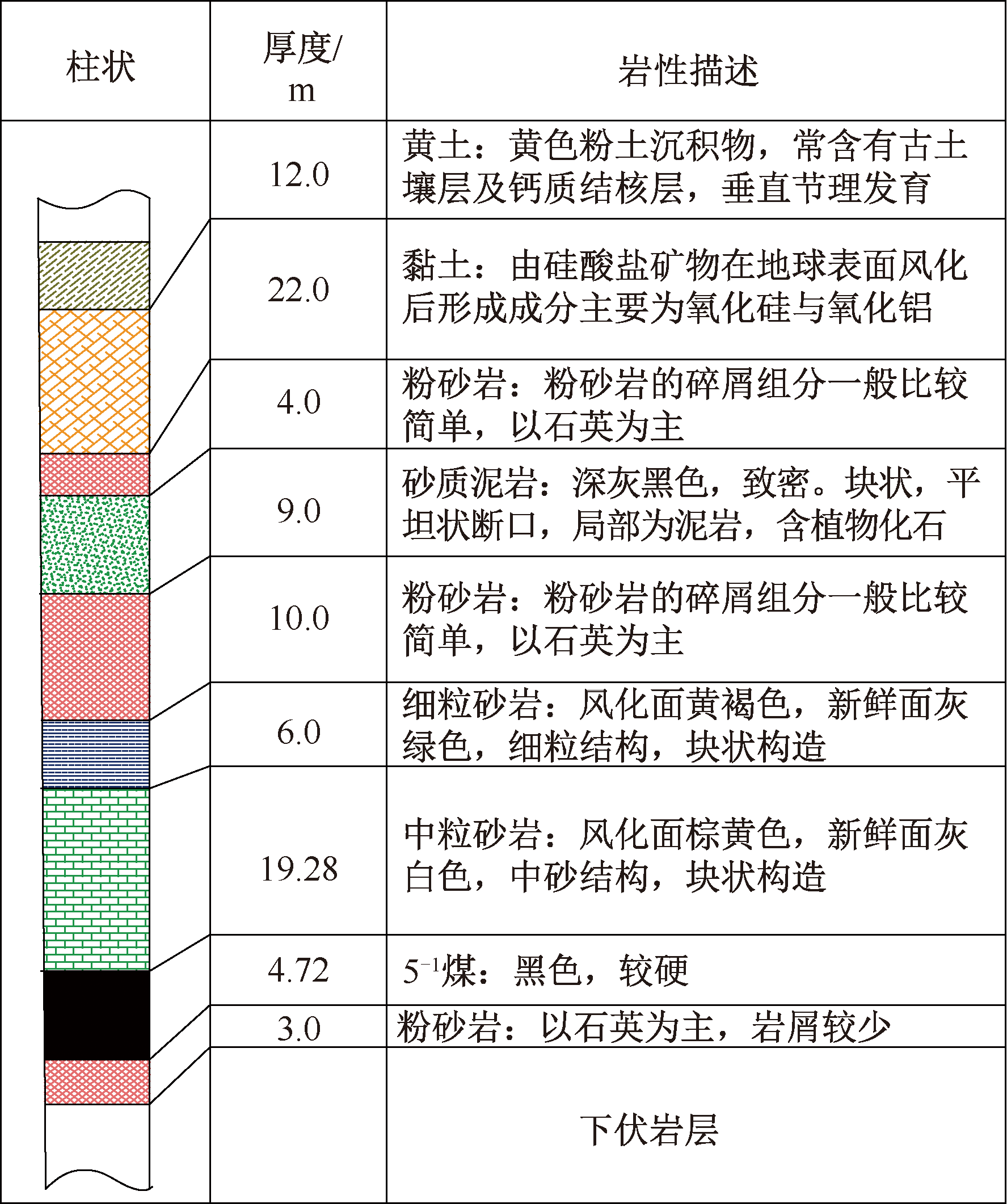

序号	岩石名称	层厚/m	密度/(kg·m^-3)	内摩擦角/(°)	黏聚力/MPa	抗拉强度/MPa	弹性模量/GPa
1	黄土	12.00	1 700	18	0.1	0.2	1.2
2	黏土	22.00	1 800	22	0.15	0.5	1.4
3	粉砂岩	4.00	2 350	25	2.75	1.51	19.5
5	砂质泥岩	9.00	2 280	36	2.16	0.75	5.42
6	粉砂岩	10.00	2 350	25	2.75	1.51	19.5
7	细粒砂岩	6.00	2 870	42	3.42	1.29	33.1
8	中粒砂岩	19.28	2 550	37	4.0	1.20	5.99
9	5^-1煤	4.72	1 450	34	1.25	0.19	5.3
10	粉砂岩	3.00	2 350	25	2.75	1.51	19.5
