啊啊啊TBM法施工排水廊道混合式通风粉尘运移特征

doi:10.16265/j.cnki.issn1003-3033.2024.S1.0029

摘要/Abstract

摘要：

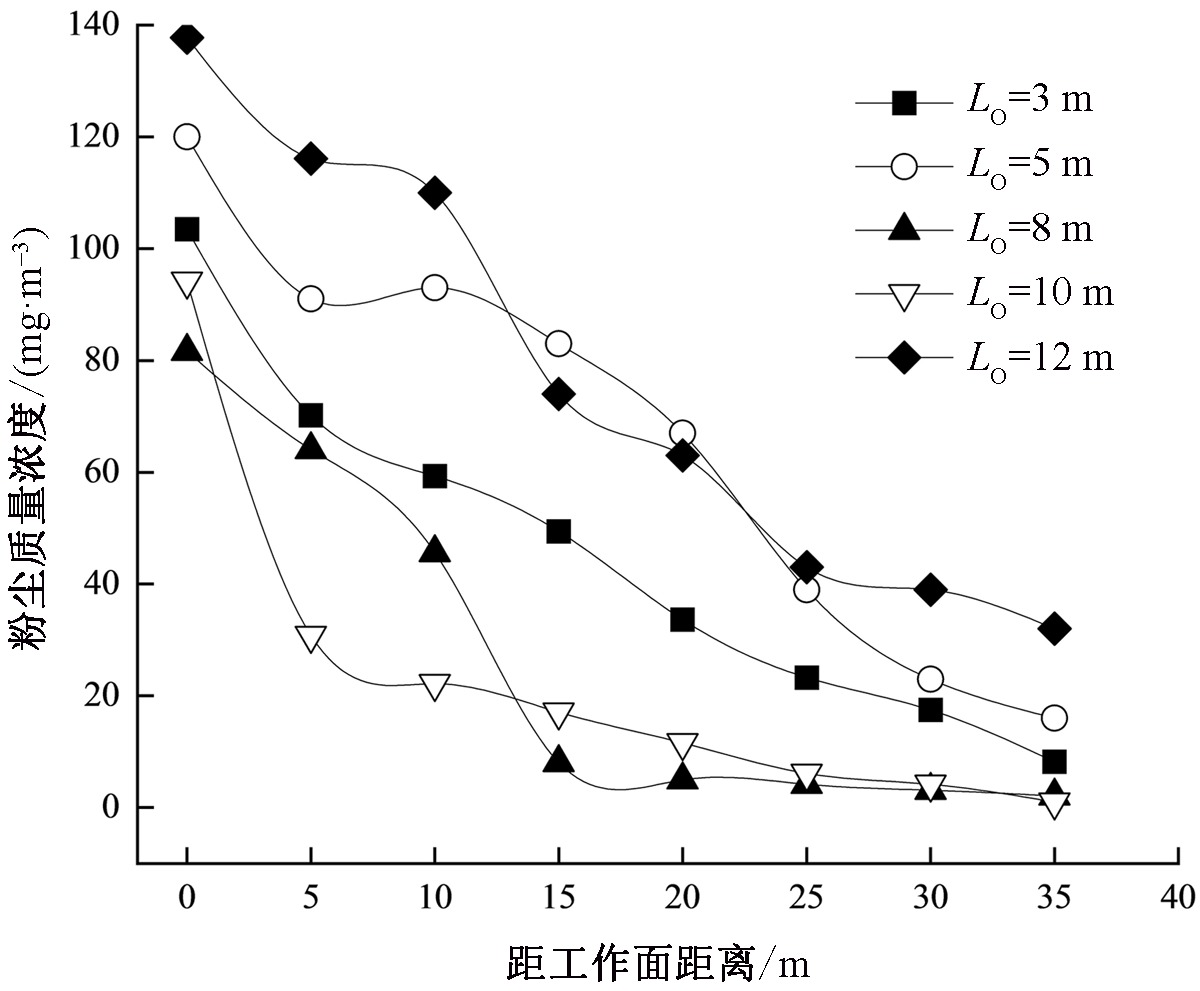

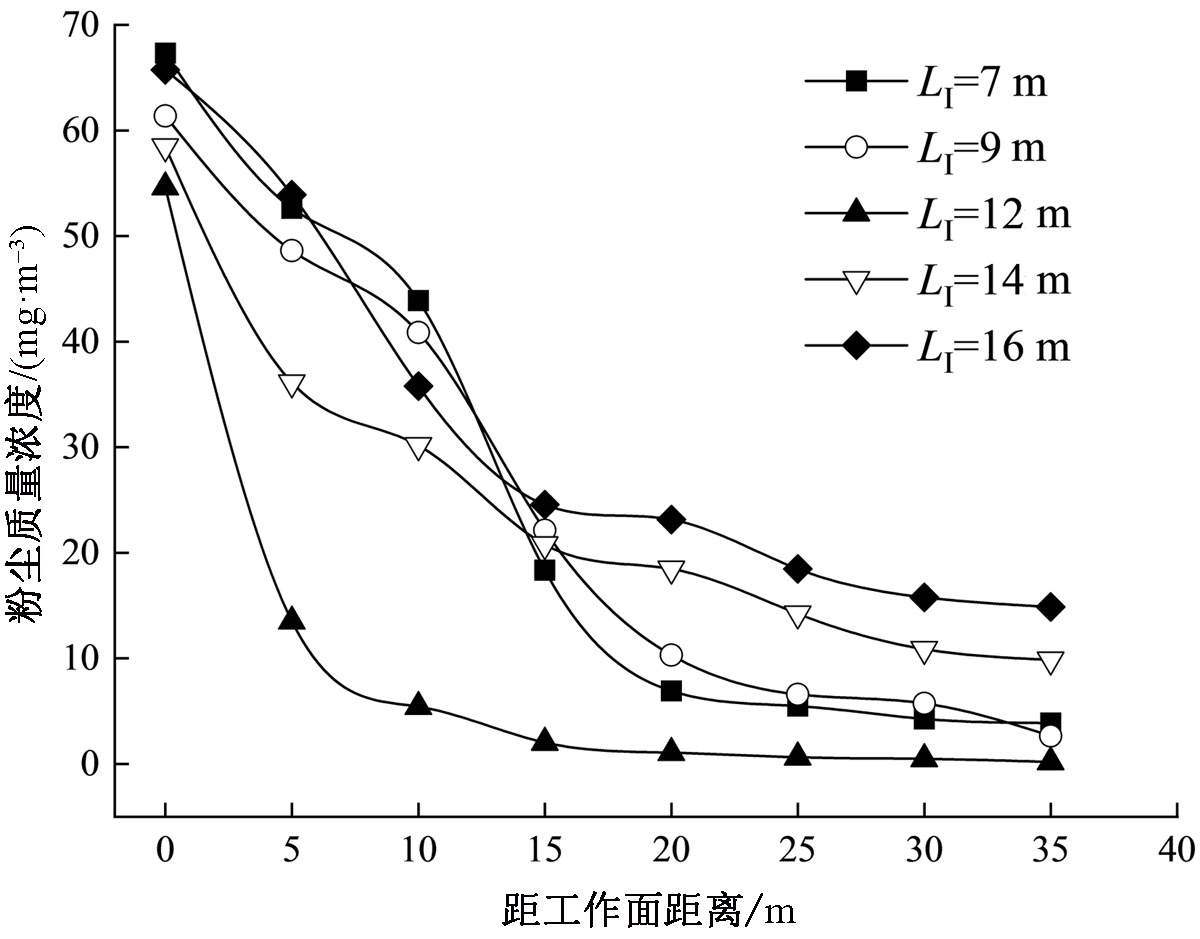

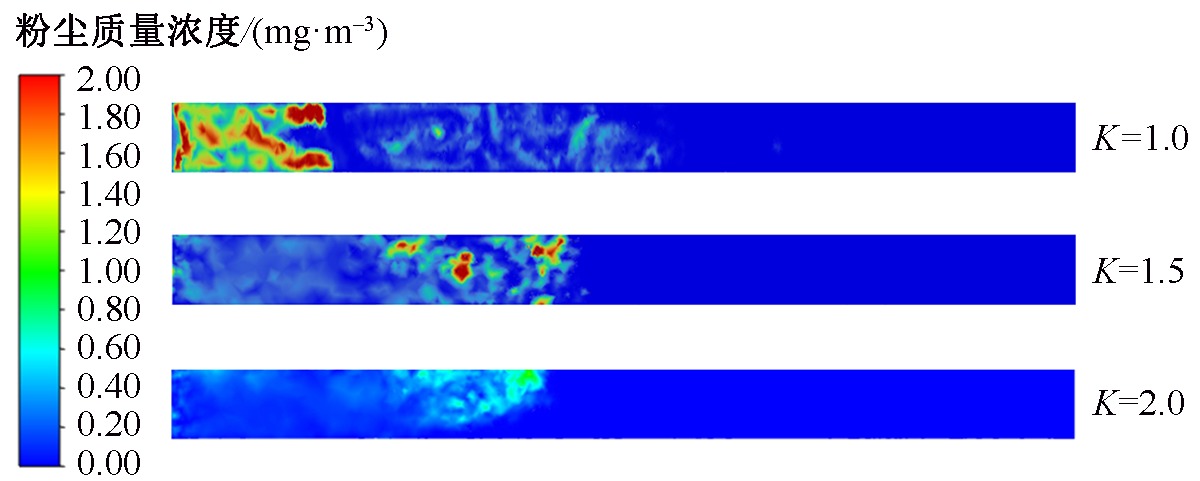

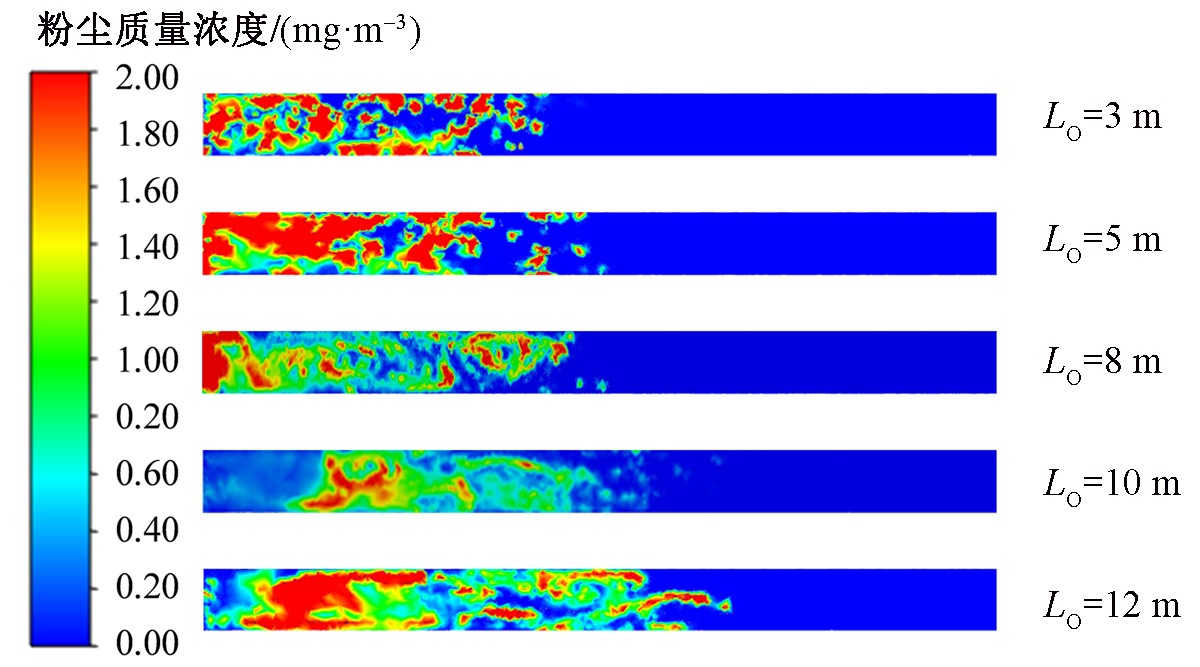

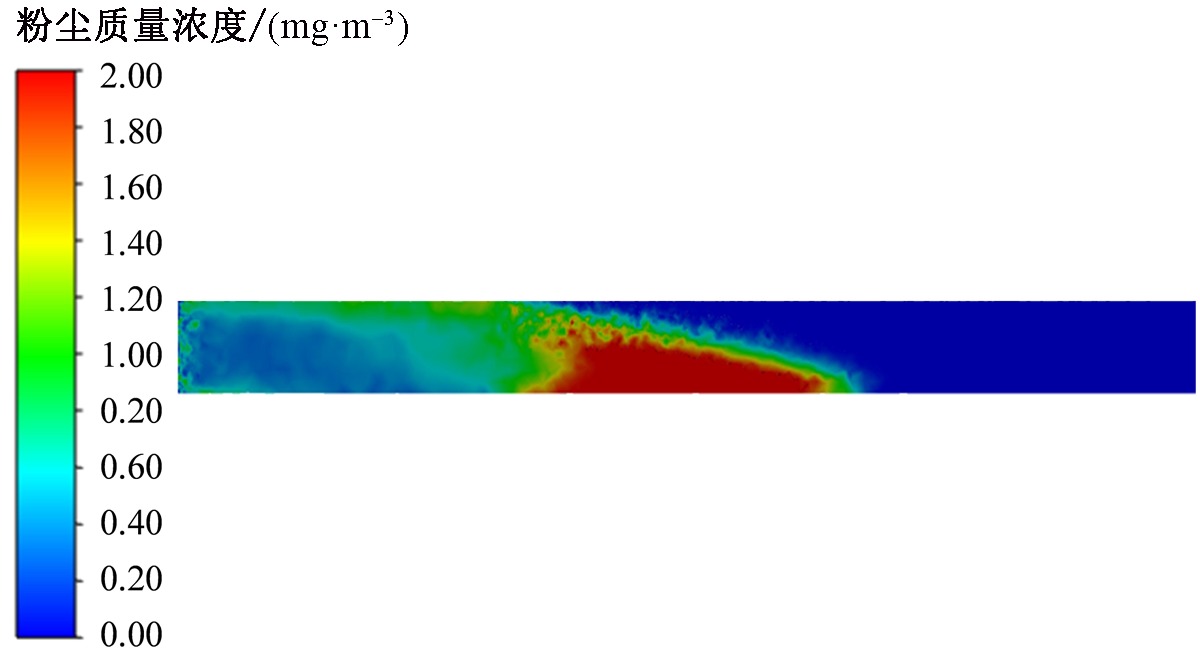

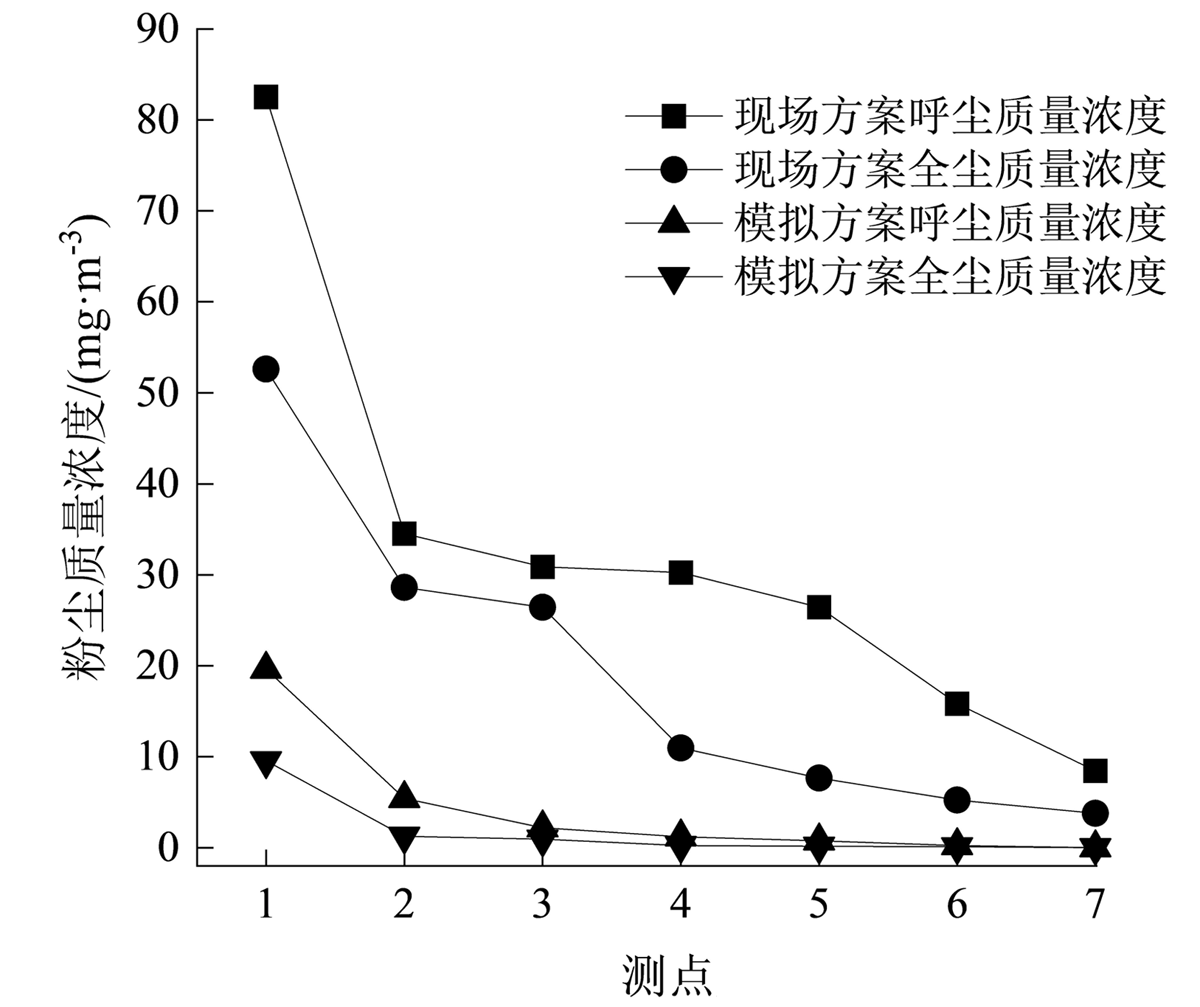

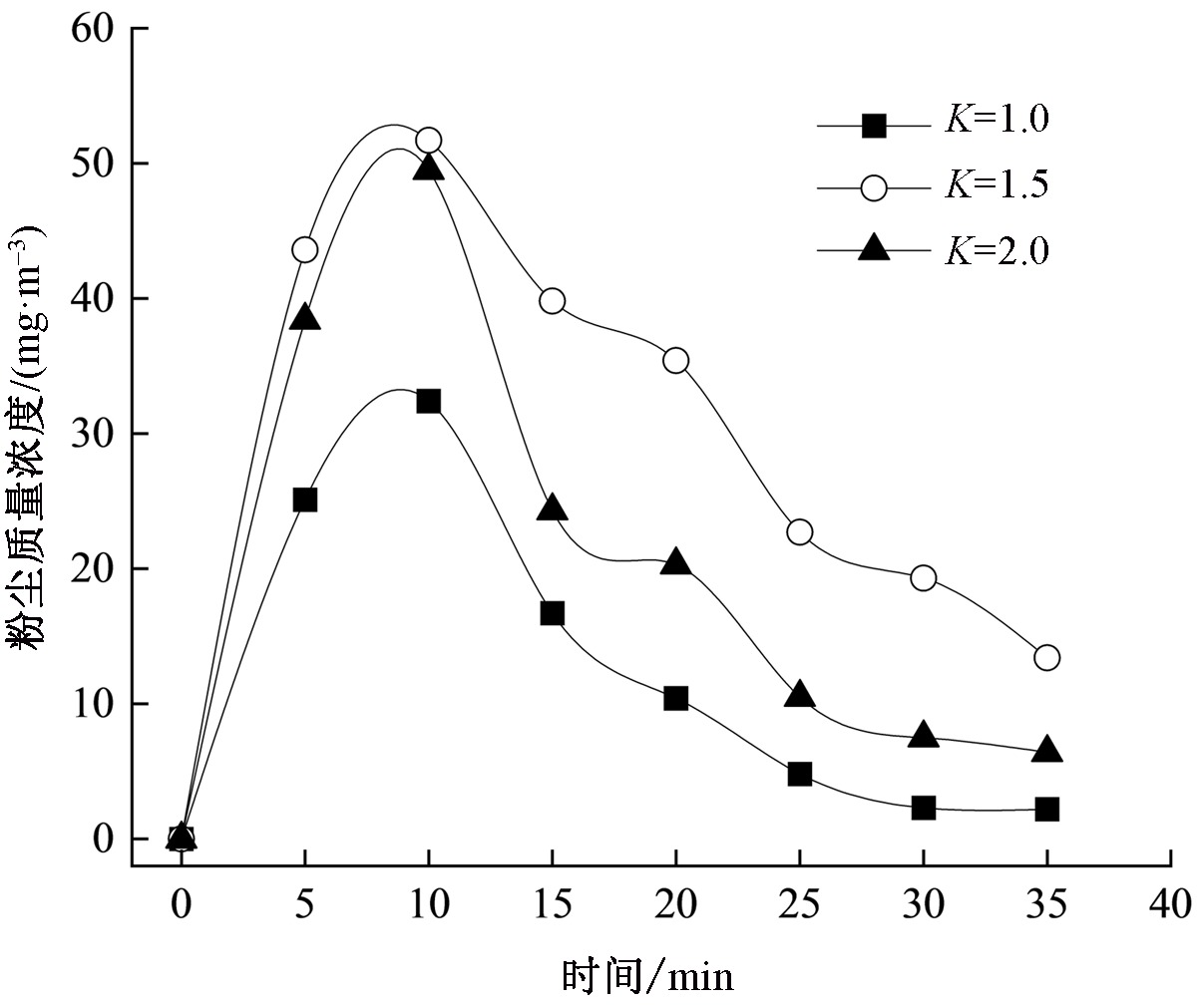

为解决排水廊道全断面硬岩隧道掘进机法(TBM)施工过程中粉尘聚集严重,通风除尘效果不显著等问题,以浙江缙云抽水蓄能电站排水廊道施工工程为依托,首先,建立排水廊道三维模型并进行网格划分,通过混合式通风方式,利用数值模拟软件Fluent研究风流和粉尘的运移特征;然后,以除尘风筒、通风风筒距工作面的距离以及双风筒风速抽压比3种通风参数为变量,分别探究上述3种参数对除尘效果的影响,优选出3种通风参数值;最后,取3个优选值作为优选方案进行现场实测,验证该方案除尘效果。结果表明:隧道风流呈现射流区、涡流区以及回流区等不同区域;考虑节能而采用压入式通风(单通风风筒)方式时,粉尘扩散严重;随着除尘风筒和通风风筒距工作面距离的增大,粉尘质量浓度呈现先降低后增长的趋势,且当各自的距离分别为10 和12 m时,除尘效果较为良好;抽压比为2时,除尘效果进一步得到改善,与原有通风方案进行比较,优选方案实现了95%以上的平均降尘率,且工作人员集中区域粉尘质量浓度降至2 mg/m³以下,符合相关标准。

关键词: 隧道掘进机法(TBM), 排水廊道, 混合式通风, 粉尘, 数值模拟

Abstract:

In order to solve the problems of serious dust accumulation and insignificant effect of ventilation and dust removal during the construction by full-section hard rock TBM method in the drainage corridor, the construction project of the drainage corridor of Jinyun Pumped Storage Power Station in Zhejiang Province was studied. Firstly, a three-dimensional model of the drainage corridor was established and meshed. Through mixed ventilation, the numerical simulation software Fluent was used to study the migration characteristics of airflow and dust. Then, by taking the three ventilation parameters of the distance between the dust removal air duct and the tunnel face, the distance between the ventilation air duct and the tunnel face, and the wind speed and pumping pressure ratio of the double duct as variables, the influence of the three parameters on the dust removal effect was explored respectively, and the three ventilation parameters were optimized. Finally, three preferred values were taken as the preferred scheme for field measurement to verify the dust removal effect of the scheme. The results show that the tunnel airflow presents different regions such as the jet zone, vortex zone, and recirculation zone. Dust diffusion is serious when forced ventilation (single ventilation duct) is adopted for energy saving. With the increase in the distance between the dust removal air duct and the ventilation air duct from the tunnel face, the dust mass concentration decreases first and then increases, and when the respective distances are 10 m and 12 m, the dust removal effect is better. When the pumping pressure ratio is 2, the dust removal effect is further improved. Compared with the original ventilation scheme, the optimized scheme achieves an average dust reduction rate of more than 95%, and the dust mass concentration in the staff concentration area is reduced to less than 2 mg/m³, which meets the relevant standards.

Key words: tunnel boring machine (TBM) method, drainage corridor, mixed ventilation, dust, numerical simulation

中图分类号:

X936

何少云, 刘孝轩, 吴小林, 王付利, 唐骁. 啊啊啊TBM法施工排水廊道混合式通风粉尘运移特征[J]. 中国安全科学学报, 2024, 34(S1): 72-78.

HE Shaoyun, LIU Xiaoxuan, WU Xiaolin, WANG Fuli, TANG Xiao. Dust migration characteristics of mixed ventilation in drainage corridor constructed by TBM method[J]. China Safety Science Journal, 2024, 34(S1): 72-78.

图/表 15

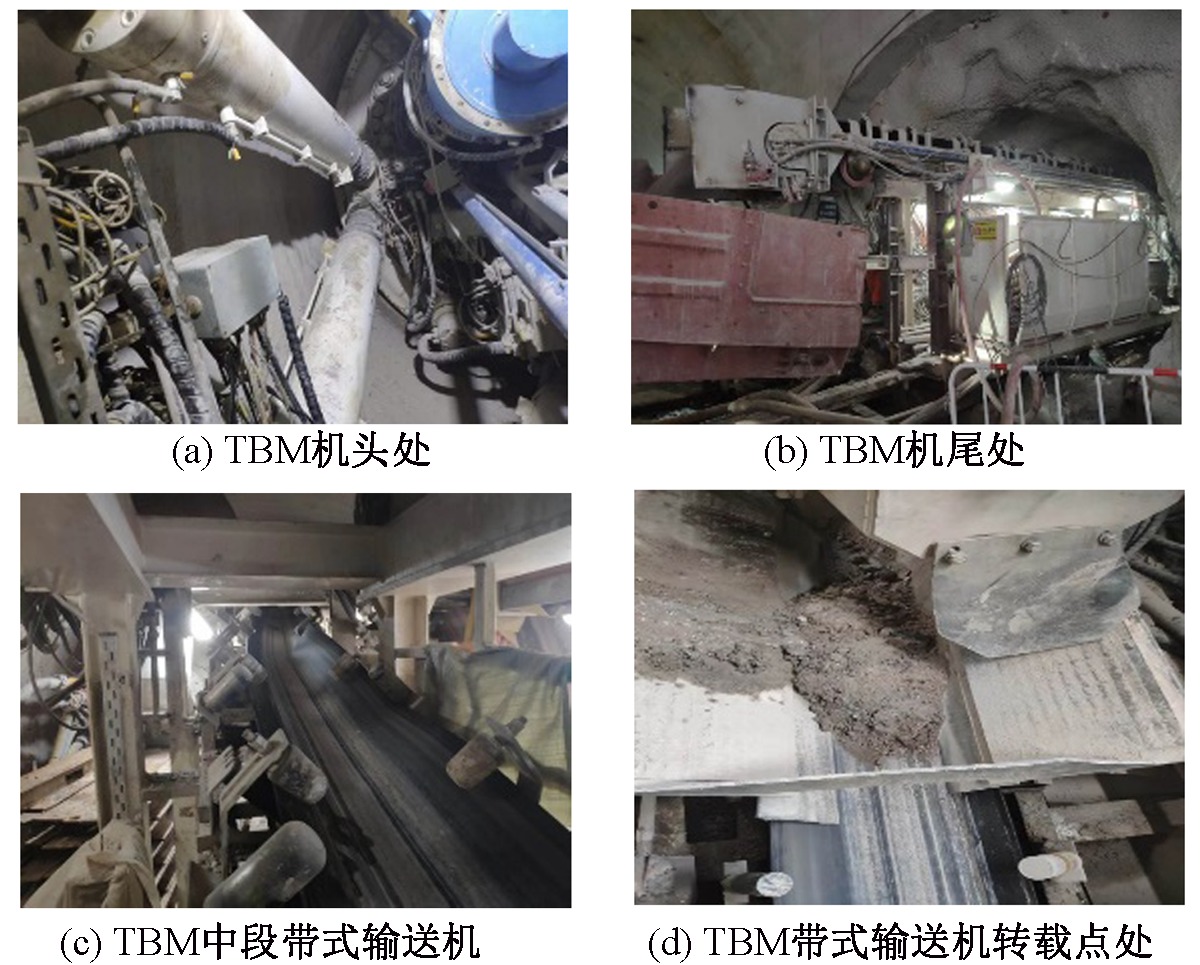

图1

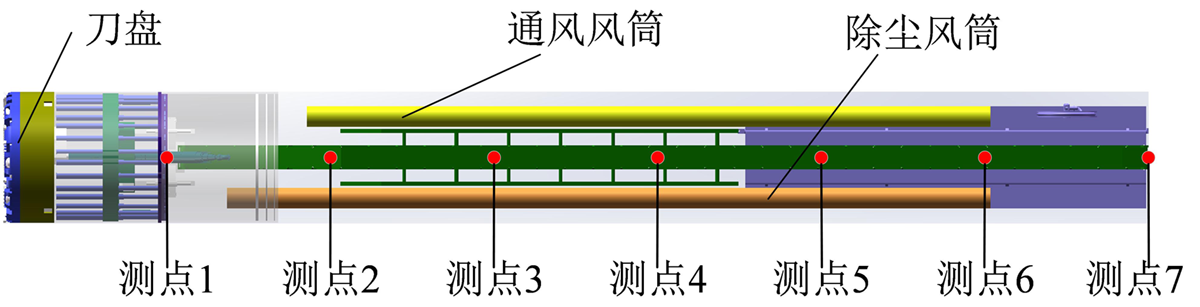

图2

表1

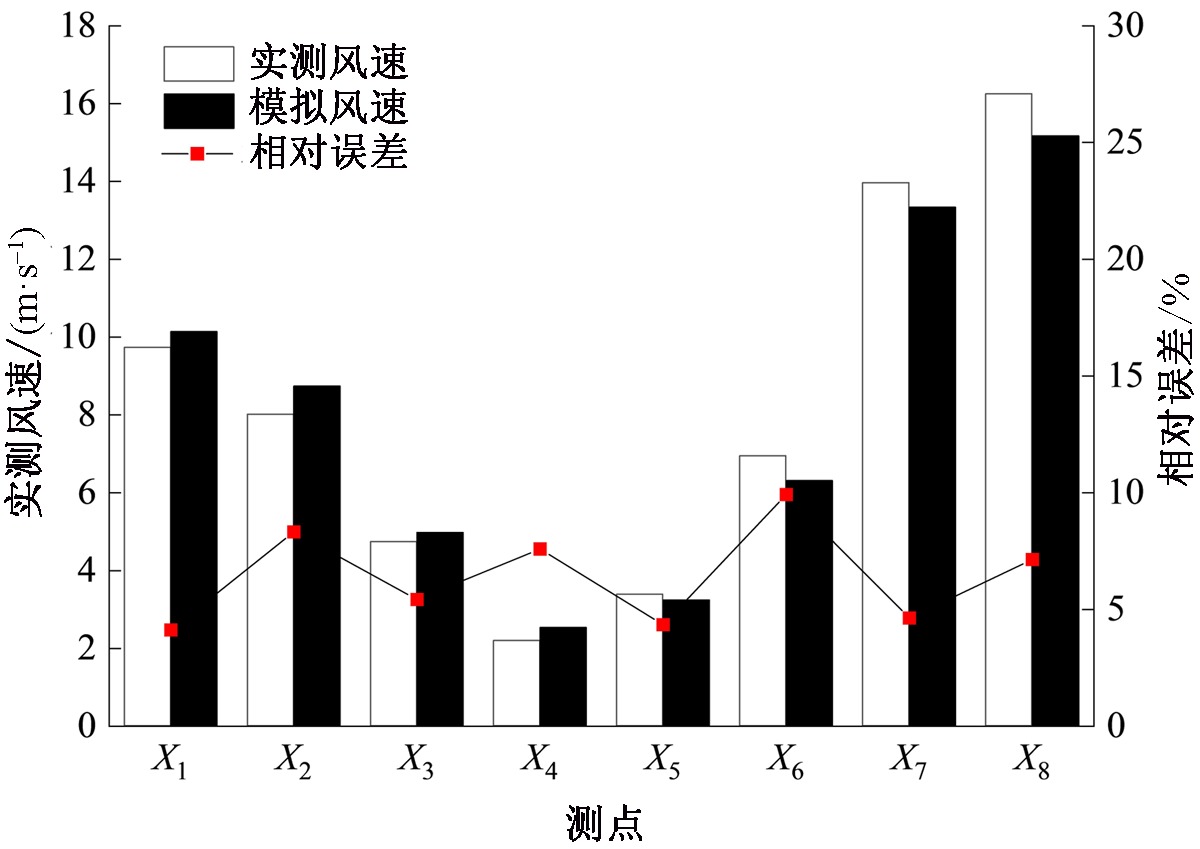

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

图13

图14

参考文献 19

[1]	张博庭. 如何兑现减排承诺:我国首次实现碳达峰的启示[J]. 水电与新能源, 2021, 35(3):1-6.
	ZHANG Boting. How to fulfill the carbon emission reduction commitment:enlightenment of the first carbon emission peaking in China[J]. Hydropower and New Energy, 2021, 35(3):1-6.
[2]	彭才德. “十三五”水电发展及展望[J]. 中国电力企业管理, 2019(4):34-36.
	PENG Caide. Development and prospect of hydropower in the 13th Five-Year plan[J]. China Power Enterprise Management, 2019(4):34-36.
[3]	路振刚, 王建华, 朱安平, 等. 适用于超小转弯半径的紧凑型TBM设计关键技术研究及应用:以山东文登抽水蓄能电站排水廊道隧洞工程为例[J]. 隧道建设:中英文, 2021, 41(6):1047-1 057.
	LU Zhengang, WANG Jianhua, ZHU Anping, et al. Design and application of a compact TBM for an ultrasmall turning radius: a case study on a drainage gallery tunnel project of Wendeng pumped storage power station in Shandong, China[J]. Tunnel Construction, 2021, 41(6):1047-1 057.
[4]	李宗平, 王帅帅, 毛锦波, 等. 天山胜利隧道施工关键技术创新与应用[J]. 现代隧道技术, 2024, 61(2):241-253,271.
	LI Zongping, WANG Shuaishuai, MAO Jinbo, et al. Key technological innovation and application in the construction of tianshan shengli tunnel[J]. Modern Tunnelling Technology, 2024, 61(2):241-253,271.
[5]	LIU Qiang, NIE Wen, HUA Yun, et al. Long-duct forced and short-duct exhaust ventilation system in tunnels formation and dust control analysis of pressure ventilation air curtain[J]. Process Safety and Environmental Protection, 2019,132:367-377.
[6]	王晓玲, 禹旺, 刘长欣, 等. 考虑围岩传热的深埋引水隧洞TBM施工通风模拟[J]. 水力发电学报, 2019, 38(10):1-13.
	WANG Xiaoling, YU Wang, LIU Changxin, et al. TBM construction ventilation simulation for deep buried headrace tunnels considering heat transfer in surrounding rock[J]. Journal of Hydroelectric Power, 2019, 38(10):1-13.
[7]	WANG Hao, NIE Wen, CHENG Weimin, et al. Effects of air volume ratio parameters on air curtain dust suppression in a rock tunnel's fully-mechanized working face[J]. Advanced Powder Technology, 2018, 29(2):230-244.
[8]	赵宁雨, 吕陈伏, 陈弘杨, 等. 高海拔长大隧道压入式施工通风的合理长度研究[J]. 重庆交通大学学报: 自然科学版, 2020, 39(3):94-99.
	ZHAO Ningyu, LYU Chenfu, CHEN Hongyang, et al. Optimal length of forced ventilation in construction of long tunnel at high altitude[J]. Journal of Chongqing Jiaotong University:Science Edition, 2020, 39(3):94-99.
[9]	龚晓燕, 童丹丹, 樊江江, 等. 综掘面风流调控下粉尘双目标优化研究[J]. 中国安全科学学报, 2022, 32(4):44-50. doi: 10.16265/j.cnki.issn1003-3033.2022.04.007
	GONG Xiaoyan, TONG Dandan, FAN Jiangjiang, et al. Study on dual-objective optimization of dust under airflow regulationin fully mechanized faces[J]. China Safety Science Journal, 2022, 32(4):44-50. doi: 10.16265/j.cnki.issn1003-3033.2022.04.007
[10]	TORANO J, MENENDEZ M, et al. Auxiliary ventilationin mining roadways driven with roadheaders:validated CFD model-ling of dust behaviour[J]. Tunnelling and Underground Space Tech-nology, 2011, 26(1):201-210.
[11]	蒋仲安, 杨斌, 张国梁, 等. 高原矿井掘进工作面截割粉尘污染效应及通风控尘参数分析[J]. 煤炭学报, 2021, 46(7): 2 146-2 157.
	JIANG Zhongan, YANG Bin, ZHANG Guoliang, et al. Analysis of dust pollution effect of cutting dust and ventilation control parameters at the heading face in plateau mines[J]. Journal of China Coal Society, 2021, 46(7): 2 146-2 157.
[12]	荆德吉, 魏德宁, 马明星, 等. 胶带运输巷粉尘运移及气动喷雾降尘技术[J]. 中国安全科学学报, 2021, 31(11):93-99. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.013
	JING Deji, WEI Dening, MA Mingxing, et al. Study on dust movement in belt transportation roadway and pneumatic spray dust control technology[J]. China Safety Science Journal, 2021, 31(11):93-99. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.013
[13]	VREMAN B, GEURTS J B, DEEN G N, et al. Two and four way coupled euler-lagrangian large-eddy simulation of turbulent particle-laden channel flow[J]. Flow, Turbulence and Combustion, 2008, 82(1):47-71.
[14]	朵生君. 中天山隧道TBM长距离施工通风方案研究[J]. 隧道建设, 2013, 33(5):419-422.
	DUO Shengjun. Case study on long-distance ventilation of Zhongtianshan tunnel driven by TBM[J]. Tunnel Construction, 2013, 33(5):419-422.
[15]	LIU Qiang, NIE Wen, HUA Yun, et al. Study on airflow migration and rock dust pollution behavior in TBM construction tunnel[J]. Arabian Journal for Science and Engineering, 2020(45):1-17.
[16]	LIU Ning, CHEN Kun, JIANG Piao, et al. Research on dust migration law and dust reduction efficiency in the operation process of tunnel boring machine[J]. KSCE Journal of Civil Engineering, 2022, 26(3): 1 419-1 427.
[17]	徐海. 敞开式TBM施工隧道粉尘扩散及除尘系统研究[J]. 中国安全生产科学技术, 2019, 15(6):179-185.
	XU Hai. Study on dust diffusion and dust removal system of open-type TBM construction tunne[J]. Journal of Safety Science and Technology, 2019, 15(6):179-185.
[18]	CHAKROUN W, ALOTAIBI S, HABCHI C, et al. Comparison of removal effectiveness of mixed versus displacement ventilation during vacuuming session[J]. Building and Environment, 2019,155:118-126.
[19]	ZHOU Binghua, XUE Yiguo, LI Mingtian, et al. Longitudinal jet ventilation calculation and application of long highway tunnel[J]. Journal of Engineering, Design and Technology, 2018, 16(2):256-269.

粉尘喷射选项及参数	设置状态或参数值
粉尘类型	SiO₂
密度/(kg·m^-3)	2 320
喷射类型	面喷射
质量流率/(kg·s^-1)	0.000 8
平均粒径/m	1×10^-6
