钻爆法施工深埋隧道喷雾降尘数值模拟研究

doi:10.16265/j.cnki.issn1003-3033.2024.11.1591

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (11): 66-72.doi: 10.16265/j.cnki.issn1003-3033.2024.11.1591

钻爆法施工深埋隧道喷雾降尘数值模拟研究

周玉竹¹^,²(), 魏丁一³^,^**(), 曹伟杰³, 卢增雄³, 林明磊¹, 杜小坤²

¹ 北京科技大学土木与资源工程学院,北京 100083
² 四川铸创安全科技有限公司,四川成都 610040
³ 河南工程学院资源与安全工程学院,河南郑州 451191

收稿日期:2024-07-12 修回日期:2024-09-14 出版日期:2024-11-28
通信作者:
** 魏丁一(1991—),男,河南禹州人,博士,讲师,主要从事职业健康安全方面的研究。E-mail:weidy103@126.com。
作者简介:
周玉竹 (1983—),女,四川绵竹人,博士研究生,正高级工程师,主要研究方向为职业健康安全。E-mail:93317462@qq.com。
杜小坤, 工程师。
基金资助:
国家卫生健康委粉尘危害工程防护重点实验室开放课题(KLECDH20230201); 河南省高等学校重点科研项目(23B440005); 河南工程学院博士培育基金(D2022021)

Numerical simulation study of affecting spraying and dust reduction in deeply buried tunnels constructed by drill-and-blast method

ZHOU Yuzhu¹^,²(), WEI Dingyi³^,^**(), CAO Weijie³, LU Zengxiong³, LIN Minglei¹, DU Xiaokun²

¹ School of Civil and Resource Engineering, University of Science and Technology Beijing, Beijing 100083, China
² Sichuan Zhuchuang Safety Technology Co., Ltd., Chengdu Sichuan 610040,China
³ School of Resource and Safety Engineering, Henan University of Engineering, Zhengzhou Henan 451191, China

Received:2024-07-12 Revised:2024-09-14 Published:2024-11-28

摘要/Abstract

摘要：

我国隧道建设工程发展迅猛,钻爆法施工隧道粉尘危害严重,为提高钻爆法施工隧道喷雾降尘效果,运用数值模拟方法,采用ANSYS软件建立隧道模型,研究不同围岩温度、喷射水流速度及喷嘴直径等因素条件下深埋隧道内粉尘质量浓度分布变化特征。结果表明:随着围岩温度的升高,粉尘运动更加剧烈,对降尘效率影响越大,雾滴对粉尘的捕捉效果随围岩温度的升高而逐渐降低;随着喷射水流速度的增大,喷射管道内水压增大,雾滴对粉尘捕捉效果越好;降尘效率随喷嘴直径的增大而降低,喷嘴直径过大时雾滴对颗粒物的捕捉能力会减弱,当喷嘴直径较小时会提高降尘效率,但喷嘴直径过小时,过多的飞溅水雾反而影响降尘效率。

关键词: 钻爆法施工, 深埋隧道, 喷雾降尘, 数值模拟, 围岩温度, 喷射水流速度, 喷嘴直径

Abstract:

Tunnel construction projects in China have developed rapidly, and significant dust hazards are associated with drilling and blasting construction. To improve the effectiveness of spraying to reduce dust in tunnels, this article uses digital simulation and a tunnel model was created using ANSYS. The variations in dust mass concentration distribution under different conditions, such as surrounding rock temperature, jet velocity, and nozzle diameter, were investigated in the study. The results show that as the surrounding rock temperature increases, dust movement becomes more intense, which significantly affects dust reduction efficiency. The dust capture effect of atomized water droplets decreases with the increase in surrounding rock temperature. With the increase of water jet velocity, the water pressure in the jet pipe increases, improving the dust capture effect of the droplets. Dust reduction efficiency decreases with increasing nozzle diameter. When the nozzle diameter is too large, the ability of water mist to capture particles weakens. Conversely, a smaller nozzle diameter improves dust reduction efficiency. However, if the nozzle diameter is too small, too much splash water spray rather than affect the efficiency of the dust.

Key words: drilling and blasting construction, deep buried tunnels, spraying to reduce dust, numerical simulation, surrounding rock temperature, jet velocity, nozzle diameter

中图分类号:

X964工业防尘

周玉竹, 魏丁一, 曹伟杰, 卢增雄, 林明磊, 杜小坤. 钻爆法施工深埋隧道喷雾降尘数值模拟研究[J]. 中国安全科学学报, 2024, 34(11): 66-72.

ZHOU Yuzhu, WEI Dingyi, CAO Weijie, LU Zengxiong, LIN Minglei, DU Xiaokun. Numerical simulation study of affecting spraying and dust reduction in deeply buried tunnels constructed by drill-and-blast method[J]. China Safety Science Journal, 2024, 34(11): 66-72.

图/表 10

图1

图2

表1

表2

表3

表4

图3

图4

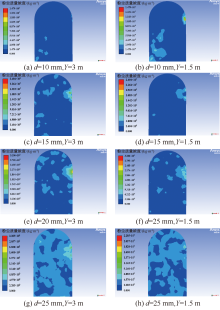

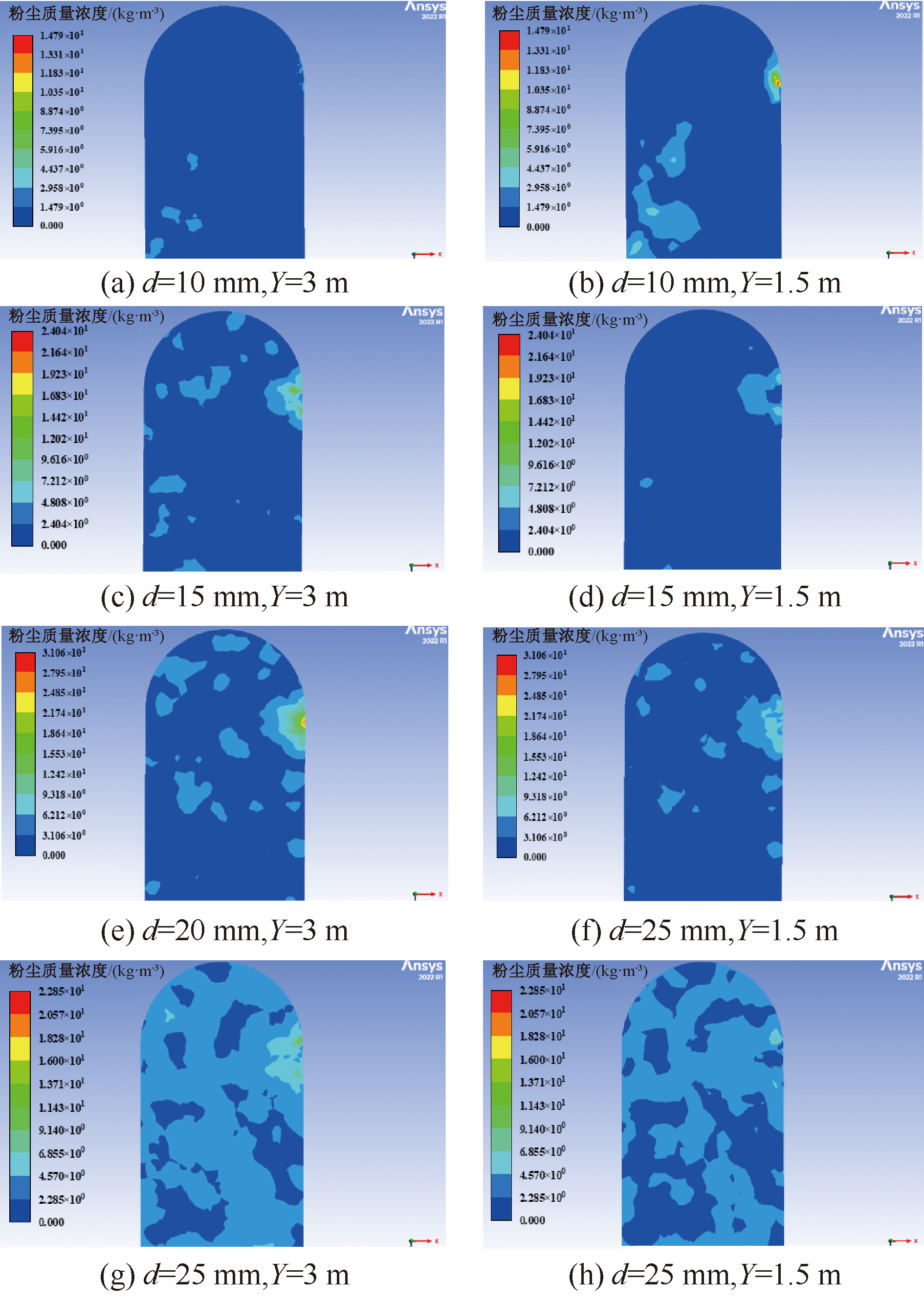

图5

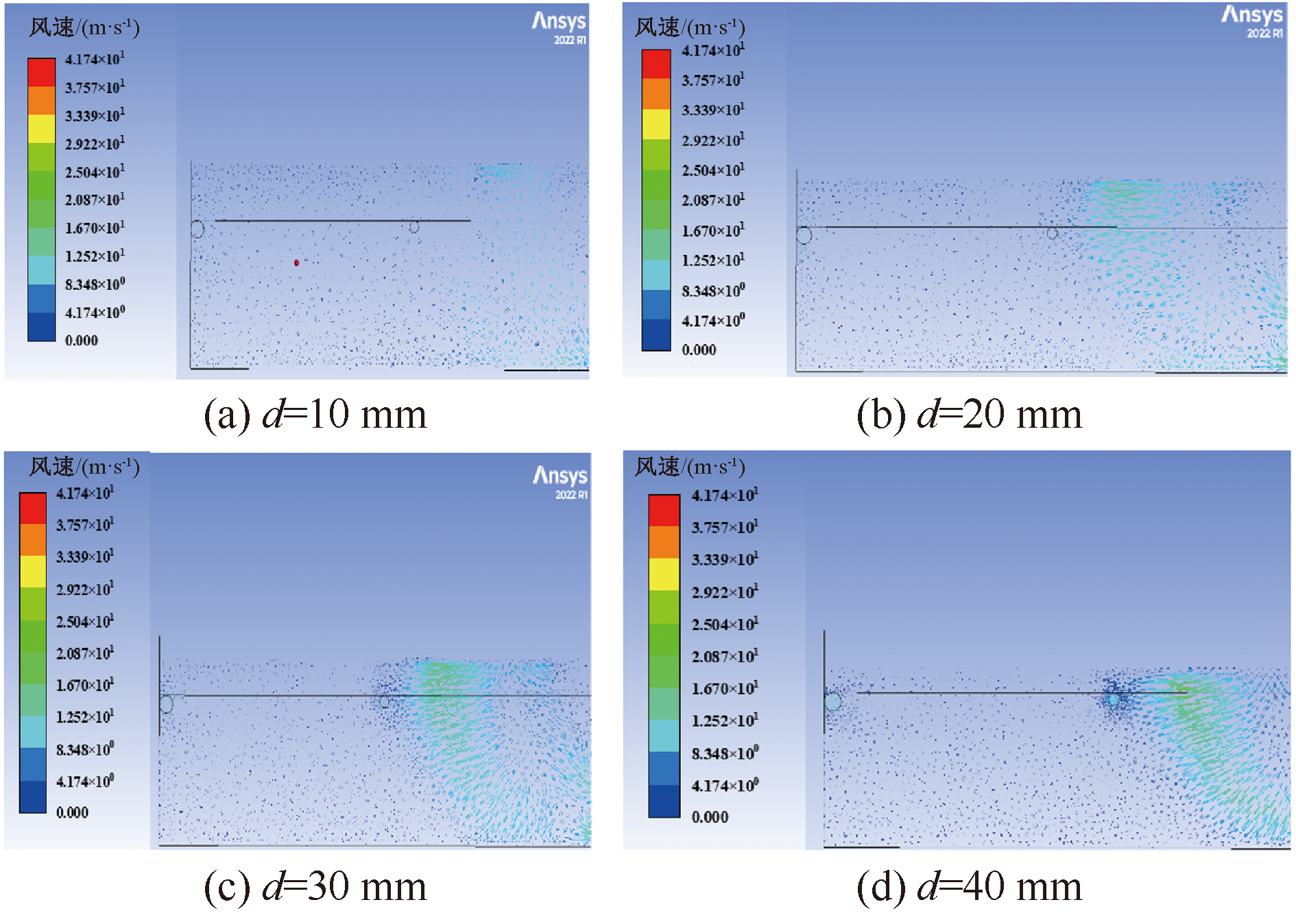

图6

参考文献 17

[1]	DU Bo, LI Yanhe, CHEN Xingming, et al. Optimization of paste backfilling material ratios for long-distance transportation[J]. Engineering Letters, 2024, 32(3): 595-600.
[2]	郭敬中, 金龙哲, 李刚, 等. 金属矿山爆破微细粉尘云雾除尘机理及试验研究[J]. 金属矿山, 2020 (7): 193-198.
	GUO Jingzhong, JIN Longzhe, LI Gang, et al. Study on dust removal mechanism and test of cloud fog in metal mine blasting[J]. Metal Mine, 2020 (7): 193-198.
[3]	李刚, 李胜, 张伟军, 等. 我国金属矿山采-装-运过程中粉尘职业危害防控技术进展与展望[J]. 金属矿山, 2024(5): 41-54.
	LI Gang, LI Sheng, ZHANG Weijun, et al. Advancements and future prospects of dust control technology for occupational hazards in metal mining,loading and transportation in China[J]. Metal Mine, 2024(5): 41-54.
[4]	杨华, 齐世康, 田亮, 等. 基于欧拉-拉格朗日方法的喷雾除尘效率影响因素数值模拟[J]. 矿业安全与环保, 2023, 50(1): 42-46.
	YANG Hua, QI Shikang, TIAN Liang, et al. Numerical simulation of influencing factors of spray dust removal efficiency based on Euler-Lagrangian method[J]. Mining Safety & Environmental Protection, 2023, 50(1): 42-46.
[5]	杨华, 祁娜, 张晓宇, 等. 一种细水雾喷雾除尘装置除尘性能影响因素数值模拟[J]. 安全与环境学报, 2023, 23(9): 3 195-3 203.
	YANG Hua, QI Na, ZHANG Xiaoyu, et al. Numerical simulation of influence factors of dust removal performance of a fine water spray dust removal device[J]. Journal of Safety and Environment, 2023, 23(9): 3 195-3 203.
[6]	CHEN Xi, CHEN Yihan, GE Shaocheng, et al. Investigation on optimal selection of multi-nozzle spray dust suppression parameters for air-operated spraying system[J]. Chemical Engineering Research and Design, 2023, 198: 431-443.
[7]	赵亦男, 刘邱祖, 刘燕萍. 基于CFD的煤矿降尘用微振荡腔高效雾化喷嘴参数分析[J]. 煤矿机械, 2020, 41(6):75-78.
	ZHAO Yinan, LIU Qiuzu, LIU Yanping. Parameter analysis of high efficiency atomizing nozzle with micro-oscillation cavity for coal mine dustfall based on CFD[J]. Coal Mine Machinery, 2020, 41(6):75-78.
[8]	XU Changwei, NIE Wen, PENG Huitian, et al. Numerical simulation of the dynamic wetting of coal dust by spray droplets[J]. Energy, 2023, 270:DOI:10.1016/J.ENERGY.2023.126667.
[9]	ZHANG Shaobo, NIE Wen, GUO Cheng, et al. Optimization of spray dust suppression device in return air tunnel of a coal mine based on CFD technology[J]. Building and Environment, 2021, 203(8):DOI:10.1016/J.BUILDENV.2021.108059.
[10]	XU Changwei, NIE Wen, PENG Huitian, et al. Numerical simulation study on atomization rule and dust removal effect of surface-active dust suppressants[J]. Environmental Science and Pollution Research International, 2023, 30 (25): 66730-66744. doi: 10.1007/s11356-023-26712-z pmid: 37186188
[11]	BAO Qiu, NIE Wen, NIU Wenjin, et al. Molecular simulation and wetting study on the mechanism and capability of hydrophilic surfactants used as spray dust suppressants for dust reduction in coal mines[J]. Sustainable Chemistry and Pharmacy, 2023, 36(6):DOI:10.1016/J.SCP.2023.101253.
[12]	荆德吉, 王志恒, 葛少成, 等. 超细螺旋雾化喷头降尘技术及其应用[J]. 中国安全科学学报, 2022, 32 (11): 82-89. doi: 10.16265/j.cnki.issn1003-3033.2022.11.2718
	JING Deji, WANG Zhiheng, GE Shaocheng, et al. Ultrafine spiral atomized nozzle dust technology and its application[J]. China Safety Science Journal, 2022, 32 (11): 82-89. doi: 10.16265/j.cnki.issn1003-3033.2022.11.2718
[13]	JING Deji, MA Mingxing, GE Shaocheng, et al. Study on the dust migration law and a spray dust suppression scheme in transportation roadway[J]. Environmental Science and Pollution Research International, 2023, 30 (21): 59 316-59 326.
[14]	荆德吉, 魏德宁, 马明星, 等. 胶带运输巷粉尘运移及气动喷雾降尘技术[J]. 中国安全科学学报, 2021, 31 (11): 93-99. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.013
	JING Deji, WEI Dening, MA Mingxing, et al. Study on dust movement in belt transportation roadway and pneumatic spray dust control technology[J]. China Safety Science Journal, 2021, 31 (11): 93-99. doi: 10.16265/j.cnki.issn 1003-3033.2021.11.013
[15]	ZHAO Bo, XIAO Peng, LI Shugang, et al. Study on the influence pattern and efficiency enhanced mechanism of acoustic-chemical spray dust reduction[J]. The Science of the Total Environment, 2023, 900:DOI:10.1016/J.SCITOTENV.2023.165913.
[16]	HOU Jun, LI Shihang, HU Shuda, et al. Research and application of self-powered induction spray dust removal system for long-distance belt conveying in underground coal mines[J]. Process Safety and Environmental Protection, 2023, 176: 131-139.
[17]	徐则民, 黄润秋, 王士天. 隧道的埋深划分[J]. 中国地质灾害与防治学报, 2000, 11(4):5-10.
	XU Zemin, HUANG Runqiu, WANG Shitian. Tunnel classifying in light of depth[J]. The Chinese Journal of Geological Hazard and Control, 2000, 11(4): 5-10.

计算模型	模型设定
求解器	基于压力
能量方程	打开
湍流模型	k-ε模型
DPM	打开

DPM	模型设定
DPM迭代间隔	20
最大步数	50 000
虚拟质量力	打开
压力梯度力	打开
喷射源类型	面源
粒子类型	惰性
材料	灰质
质量流率/(kg·s^-1)	5.71
阻力特征	球形颗粒

边界条件	参数设定
水力直径/m	2.84
湍流强度/%	10
出口边界类型	流出
DPM条件	逃逸/反弹
壁面	无滑移

钻爆法施工深埋隧道喷雾降尘数值模拟研究

Numerical simulation study of affecting spraying and dust reduction in deeply buried tunnels constructed by drill-and-blast method

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 10

参考文献 17

相关文章 15

编辑推荐

Metrics

本文评价

工况	围岩温度t/ ℃	喷射水流速度 v/(m·s^-1)	喷嘴直径d/ mm
1	20	10	10
2	20	20	15
3	20	30	20
4	20	40	25
5	25	10	15
6	25	20	10
7	25	30	25
8	25	40	20
9	30	10	20
10	30	20	25
11	30	30	10
12	30	40	15

[1]	尚存久, 杨腾龙, 张有刚, 王帅锋. 浅埋深易自燃煤层沿空留巷采空区自燃三带分布特征[J]. 中国安全科学学报, 2024, 34(S1): 185-190.
[2]	何少云, 刘孝轩, 吴小林, 王付利, 唐骁. 啊啊啊TBM法施工排水廊道混合式通风粉尘运移特征[J]. 中国安全科学学报, 2024, 34(S1): 72-78.
[3]	翟越, 雷尚学, 王轶宏, 王奥晨, 谢梓涵, 贾宇. 基于数字孪生的老旧建筑结构安全性定量预测方法[J]. 中国安全科学学报, 2024, 34(9): 69-77.
[4]	关文玲, 金美华, 董呈杰. 形状系数对20 L球内铝粉分散特性的影响研究[J]. 中国安全科学学报, 2024, 34(8): 120-127.
[5]	张美长, 祁云, 汪伟, 梁然, 刘蓉蒸, 白晨浩. 特厚煤层分层开采的自燃危险区域演化特征[J]. 中国安全科学学报, 2024, 34(8): 147-154.
[6]	杜锋, 王凯, 孙加智, 邓云, 丰程涛, 谢陈孝先. 单轴压缩下不同倾角煤岩组合体力学特性及破坏特征[J]. 中国安全科学学报, 2024, 34(6): 136-145.
[7]	张颖, 黄国洪, 龙雨娇. 高层建筑不同外保温立面结构火蔓延模拟研究[J]. 中国安全科学学报, 2024, 34(5): 122-128.
[8]	刘恩斌, 李茜, 寇博, 姜军, 李党建. 页岩气分离器阀套式排污阀冲蚀特性研究[J]. 中国安全科学学报, 2024, 34(5): 52-60.
[9]	何文, 卢博凯, 石文芳, 祝思雨, 刘金朋. 超声空化效应对细粒尾矿的增渗作用[J]. 中国安全科学学报, 2024, 34(5): 91-100.
[10]	夏勇, 安瑞楠, 张伟锋, 张超, 何坤, 林鹏. 高海拔长大水工隧洞群挡烟垂壁控烟机制[J]. 中国安全科学学报, 2024, 34(4): 58-66.
[11]	彭善碧, 罗雪. 埋地掺氢天然气管道泄漏扩散数值模拟研究[J]. 中国安全科学学报, 2024, 34(3): 63-69.
[12]	游波, 崔大雄, 刘何清, 鲁义, 杨芯宇. 不同隔热材料下的深井巷道隔热降温模拟研究[J]. 中国安全科学学报, 2024, 34(2): 153-160.
[13]	段继超, 宗琦, 汪海波, 王浩. 起爆顺序对台阶岩石破碎块度及爆破振动影响研究[J]. 中国安全科学学报, 2024, 34(2): 192-199.
[14]	王虹玉, 程志恒, 王朋, 陈亮, 曲晓明, 郭凯. 孤岛工作面覆岩结构演化及区段煤柱稳定性[J]. 中国安全科学学报, 2024, 34(11): 108-118.
[15]	崔大雄, 游波, 高科, 杨明, 韩巧云, 陈元森. 铺设隔热层对巷道降温效果的影响分析[J]. 中国安全科学学报, 2024, 34(11): 153-162.

工况	围岩温度t/ ℃	喷射水流速度 v/(m·s^-1)	喷嘴直径d/ mm
1	20	10	10
2	20	20	15
3	20	30	20
4	20	40	25
5	25	10	15
6	25	20	10
7	25	30	25
8	25	40	20
9	30	10	20
10	30	20	25
11	30	30	10
12	30	40	15

工况	围岩温度t/ ℃	喷射水流速度 v/(m·s^-1)	喷嘴直径d/ mm
1	20	10	10
2	20	20	15
3	20	30	20
4	20	40	25
5	25	10	15
6	25	20	10
7	25	30	25
8	25	40	20
9	30	10	20
10	30	20	25
11	30	30	10
12	30	40	15
