螯合剂和表面活性剂注液工艺对煤体润湿性能的影响

doi:10.16265/j.cnki.issn1003-3033.2025.05.1287

摘要/Abstract

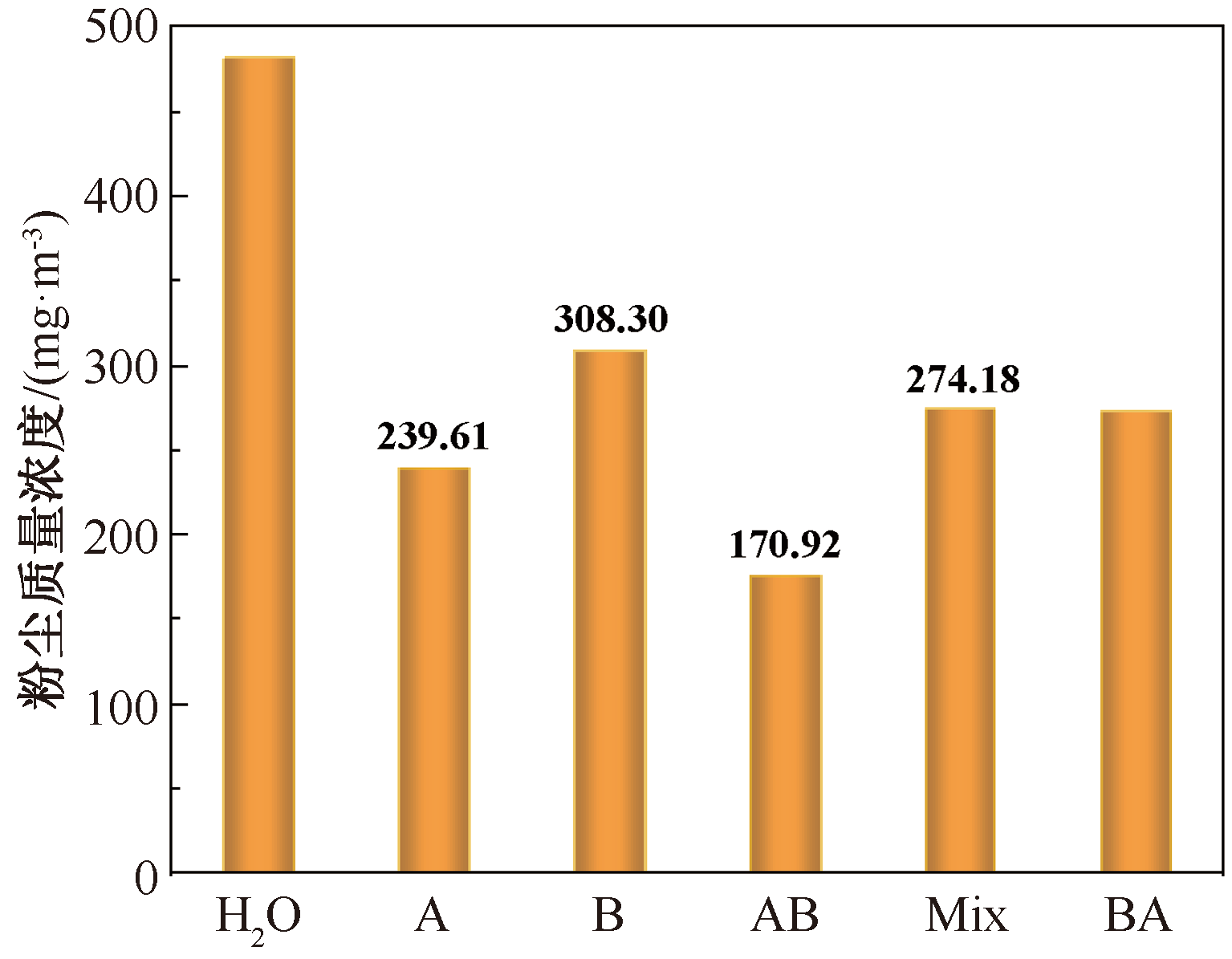

摘要： 为解决煤体中的混杂重金属物质阻碍抑尘溶液渗入煤体孔裂隙导致煤体润湿效果减弱的问题,试验研究螯合剂和表面活性剂的协同作用对煤体润湿性能的影响。首先,基于注水试验平台和截割产尘模拟试验平台设计6种注液方式,试验确定表面活性剂和螯合剂之间的拮抗作用;然后,通过截割试验和表面润湿性分析研究6种注液方式对煤样产尘特性及增润效果的影响;最后,利用喷雾降尘测试不同注液方式增润煤粉的被沉降效率。结果表明:先注入螯合剂后再注入表面活性剂处理的煤样,截割产尘质量浓度相对最低,仅为170.93 mg/m³,较之纯水组的截割产尘质量浓度(481.33 mg/m³)降低了64.49%;同时,先注入螯合剂后注入表面活性剂的注液方式对煤体润湿性能的提升效果相对最好,浸润沉降煤粉速度相对最快;此外,经该方式处理的煤样喷雾抑尘试验的降尘效率为91.2%。先注入螯合剂溶液分解煤裂隙中的重金属,可以提高溶液在煤体中的流动性,随后注入表面活性剂溶液会进一步提升煤的润湿性能。

关键词: 螯合剂, 表面活性剂, 注液工艺, 润湿性能, 煤层注水, 降尘

Abstract:

In order to solve the problem of mixed heavy metal substances in coal hindering the infiltration of dust suppression solution into coal pores and cracks, resulting in a weakened wetting effect of coal, experiments were conducted to explore the synergistic effect of chelating agents and surfactants on coal wettability. Firstly, based on the water injection test platform and the dust cutting simulation test platform, six injection methods were designed to experimentally determine the antagonistic effect between surfactants and chelating agents. Then, the effects of six injection methods on the dust production characteristics and wetting effect of coal samples were studied through cutting tests and surface wettability analysis. Finally, spray dust suppression was conducted to test the settling efficiency of pulverized coal enhanced by different injection methods. The results show that the coal sample treated by first injecting the chelating agent followed by the surfactant exhibits the lowest dust production concentration, at only 170.93 mg/m³, which is 64.49% lower than the 481.33 mg/m³ in the pure water group. Furthermore, the sequential injection protocol employing prior a chelating agent infusion followed by a surfactant delivery exhibits the most significant improvement in coal wettability, with the fastest rate of wetting-induced sedimentation of coal dust. In addition, the coal samples treated by the above method achieve a dust suppression efficiency of 91.2% in in spray dust suppression tests. Through molecular simulation and theoretical analysis, injecting a chelating agent solution to decompose heavy metals in coal fractures can improve the fluidity of the solution in coal. Subsequently, injecting a surfactant solution further enhances the wettability of coal.

Key words: chelating agent, surfactant, liquid injection process, wettability, coal seam water injection, dust reduction

中图分类号:

林汉毅, 江丙友, 王一凡, 王浩宇, 余昌飞. 螯合剂和表面活性剂注液工艺对煤体润湿性能的影响[J]. 中国安全科学学报, 2025, 35(5): 169-177.

LIN Hanyi, JIANG Bingyou, WANG Yifan, WANG Haoyu, YU Changfei. Influence of chelating agent and surfactant processing on wettability properties of coal[J]. China Safety Science Journal, 2025, 35(5): 169-177.

图/表 15

图1

图2

图3

图4

图5

图6

图7

图8

图9

图10

图11

图12

表1

表2

图13

参考文献 24

[1]	周宏伟, 刘泽霖, 孙晓彤, 等. 深部煤体注水过程中渗流通道演化特征[J]. 煤炭学报, 2021, 46(3): 867-875.
	ZHOU Hongwei, LIU Zelin, SUN Xiaotong, et al. Evolution characteristics of seepage channel during water infusion in deep coal samples[J]. Journal of China Coal Society, 2021, 46(3): 867-875.
[2]	翁安琦, 袁树杰, 王晓楠, 等. 煤层注水降尘中表面活性剂复配应用研究[J]. 中国安全科学学报, 2020, 30(10): 90-95. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.013
	WENG Anqi, YUAN Shujie, WANG Xiaonan, et al. Study on application of surfactant compound in coal seamwater injection for dust reduction[J]. China Safety Science Journal, 2020, 30(10): 90-95. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.013
[3]	高建良, 关孟瑶, 张琛, 等. 高阶煤润湿过程中水分运移的低场核磁共振试验[J]. 中国安全科学学报, 2023, 33(10): 46-52. doi: 10.16265/j.cnki.issn1003-3033.2023.10.0009
	GAO Jianliang, GUAN Mengyao, ZHANG Chen, et al. Low-field nuclear magnetic resonance tests characterizing moisture transport during wetting of high-rank coal[J]. China Safety Science Journal, 2023, 33(10): 46-52. doi: 10.16265/j.cnki.issn1003-3033.2023.10.0009
[4]	李懿, 陆伟, 李金亮, 等. 煤层注射成胶型抑尘剂影响因素及抑尘效果研究[J]. 中国安全科学学报, 2024, 34(3): 171-178. doi: 10.16265/j.cnki.issn1003-3033.2024.03.1751
	LI Yi, LU Wei, LI Jinliang, et al. Study on influencing factors and dust suppression effect of coal seam injection gum-forming dust suppressant[J]. China Safety Science Journal, 2024, 34(3): 171-178. doi: 10.16265/j.cnki.issn1003-3033.2024.03.1751
[5]	YU Changfei, JIANG Bingyou, YUAN Liang, et al. Inhibiting effect investigation of ammonium dihydrogen phosphate on oxidative pyrolysis characteristics of bituminous coal[J]. Fuel, 2023, 333:DOI: 10.1016/j.fuel.2022.126352.
[6]	XIE Hongchao, NI Guanhua, LI Shang, et al. The influence of surfactant on pore fractal characteristics of composite acidized coal[J]. Fuel, 2019, 253: 741-753. doi: 10.1016/j.fuel.2019.05.073
[7]	NI Guanhua, XIE Hongchao, LI Shang, et al. The effect of anionic surfactant (SDS) on pore-fracture evolution of acidified coal and its significance for coalbed methane extraction[J]. Advanced Powder Technology, 2019, 30(5): 940-951. doi: 10.1016/j.apt.2019.02.008
[8]	HAN Weibo, ZHOU Gang, ZHANG Qingtao, et al. Experimental study on modification of physicochemical characteristics of acidified coal by surfactants and ionic liquids[J]. Fuel, 2020, 266: DOI: 10.1016/j.fuel.2019.116966.
[9]	WANG Cunmin, ZHOU Gang, JIANG Wenjing, et al. Preparation and performance analysis of bisamido-based cationic surfactant fracturing fluid for coal seam water injection[J]. Journal of Molecular Liquids 2021, 332: DOI: 10.1016/j.molliq.2021.115806.
[10]	YAN Song, HUANG Qiming, QIN Cunli, et al. Experimental study of wetting-seepage effect of microemulsion for the coal seam water injection[J]. Journal of Molecular Liquids, 2021,336: DOI: 10.1016/j.molliq.2021.116361.
[11]	KAURIN A, GLUHAR S, TILIKJ N, et al. Soil washing with biodegradable chelating agents and EDTA: effect on soil properties and plant growth[J]. Chemosphere, 2020, 260: DOI: 10.1016/j.chemosphere.2020.127673.
[12]	GLUHAR S, KAURIN A, LESTAN D. Soil washing with biodegradable chelating agents and EDTA: technological feasibility, remediation efficiency and environmental sustainability[J]. Chemosphere, 2020, 257: DOI: 10.1016/j.chemosphere.2020.127226.
[13]	CHEN Shuya, XIE Kunzhi, SHI Yanping, et al. Chelasting agent-introduced unconventional compound acid for enhancing coal permeability[J]. Journal of Petroleum Science and Engineering, 2021, 199: DOI: 10.1016/j.petrol.2020.108270.
[14]	NI Guanhua, SUN Qian, XUN Meng, et al. Effect of NaCl-SDS compound solution on the wettability and functional groups of coal[J]. Fuel, 2019, 257: DOI: 10.1016/j.fuel.2019.116077.
[15]	REN Bo, YUAN Liang, ZHOU Gang, et al. Effectiveness of coal mine dust control: a new technique for preparation and efficacy of self-adaptive microcapsule suppressant[J]. International Journal of Mining Science and Technology, 2022, 32(6): 1181-1196.
[16]	SHI Guoqing, HAN Cong, WANG Yanming, et al. Experimental study on synergistic wetting of a coal dust with dust suppressant compounded with noncationic surfactants and its mechanism analysis[J]. Powder Technology, 2019, 356: 1077-1086. doi: 10.1016/j.powtec.2019.09.040
[17]	ZHAO Zidong, CHANG Ping, XU Guang, et al. Comparison of the coal dust suppression performance of surfactants using static test and dynamic test[J]. Journal of Cleaner Production, 2021, 328: DOI: 10.1016/j.jclepro.2021.129633.
[18]	LIU Zhen, ZHU Muyao, YANG He, et al. Study on the influence of new compound reagents on the functional groups and wettability of coal[J]. Fuel, 2021, 302: DOI: 10.1016/j.fuel.2021.121113.
[19]	ZOU Quanle, ZHANG Tiancheng, MA Tengfei, et al. Effect of water-based SiO₂ nanofluid on surface wettability of raw coal[J]. Energy, 2022, 254: DOI: 10.1016/j.energy.2022.124228.
[20]	WANG Xiaohan, JIANG Bingyou, YUAN Liang, et al. Study on coupling chelating agent and surfactant to enhance coal wettability: experimental and theoretical discussion[J]. Fuel, 2023, 342: DOI: 10.1016/j.fuel.2023.127861.
[21]	SHI Guoqing, QI Jiamin, WANG Yanming, et al. Synergistic influence of noncationic surfactants on the wettability and functional groups of coal[J]. Powder Technology, 2021, 385: 92-105. doi: 10.1016/j.powtec.2021.02.056
[22]	RAMIREZ-LEAL R, CRUZ-CAMPAS M, ESTUARDO-MORENO H. Characterization of PM₁₀ particles by SEM-EDS[J]. Microscopy and Microanalysis, 2018, 24(S1): 1070-1071.
[23]	XU Lianman, WEI Hao, KANG Xinyue, et al. Study on the change law of physical and mechanical properties and wetting mechanism of coal body under the synergistic effect of chelation-adsorption[J]. Energy Sources, Part A: Recovery, Utilization, and Environmental Effects, 2022, 44(2): 4481-4493.
[24]	ANGGARA F, SASAKI K, SUGAI Y. Mineral dissolution/precipitation during co₂ injection into coal reservoir: a laboratory study[J]. Energy Procedia, 2013, 37: 6722-6729.

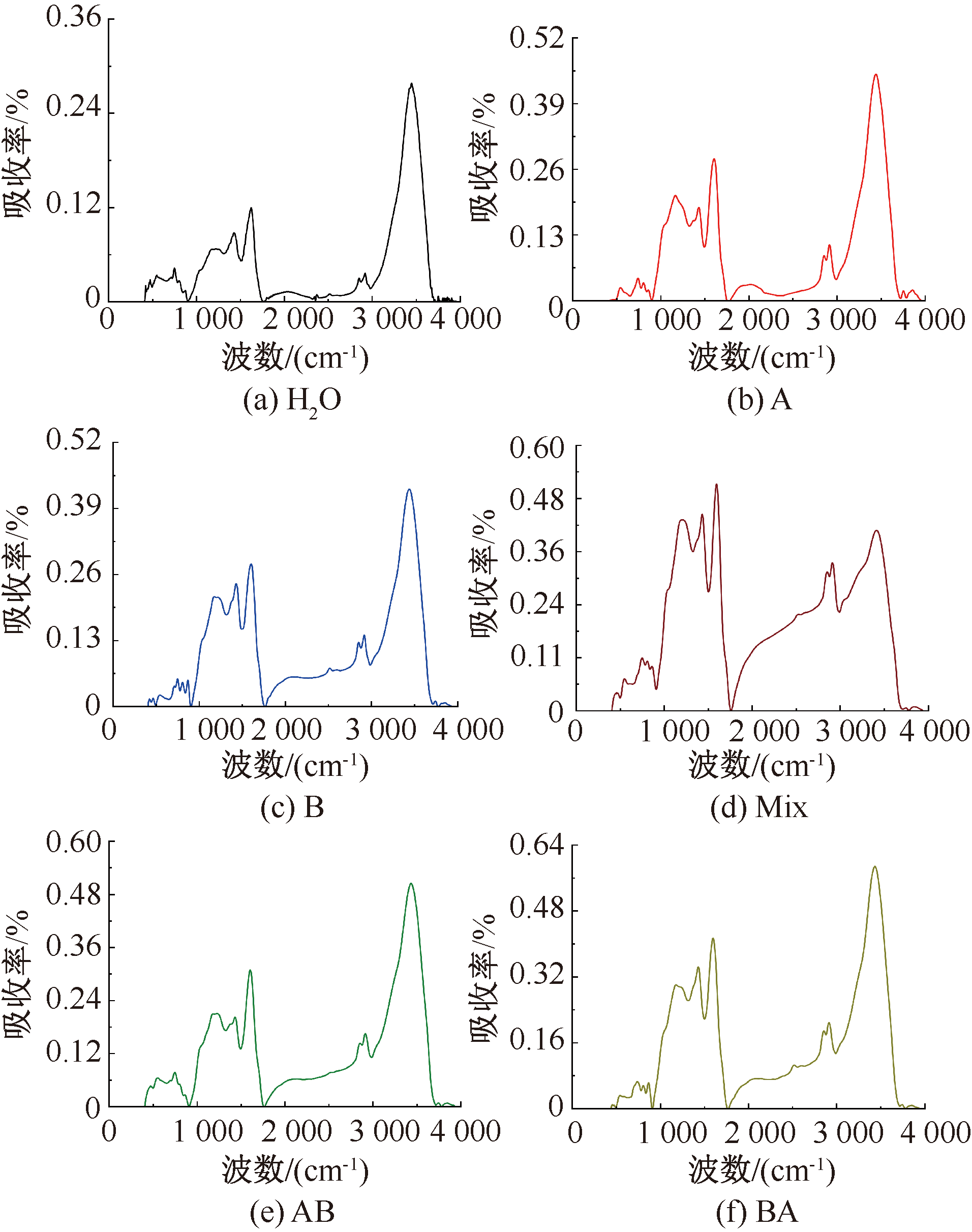

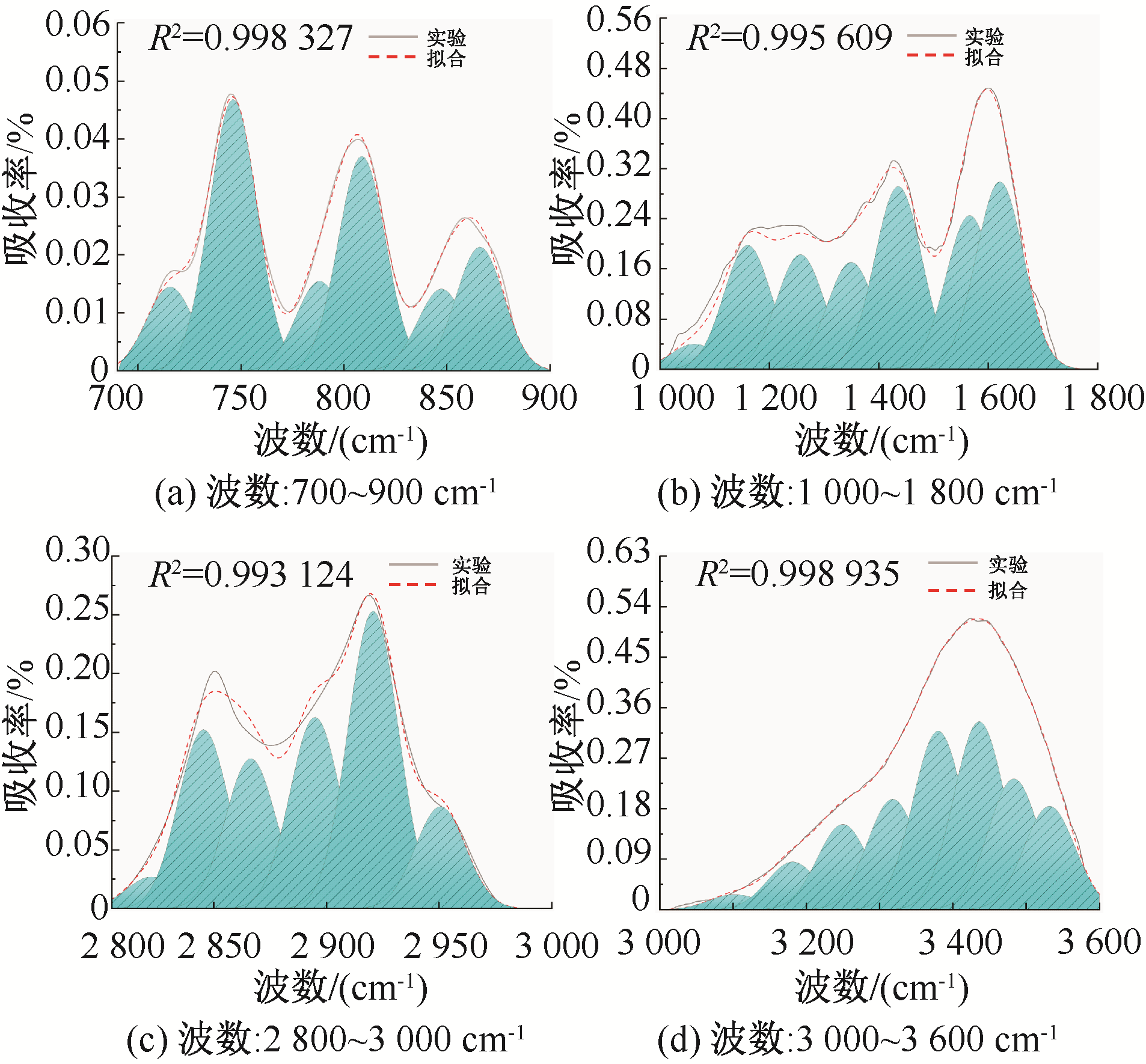

波段区域	I	II	III	IV
H₂O	6.08	50.29	5.74	37.89
A	2.05	55.92	3.04	38.99
B	2.54	51.06	3.32	40.08
Mix	5.56	63.26	5.07	26.11
AB	1.92	68.63	2.55	26.90
BA	2.85	47.23	3.09	46.83

试验组	喷雾前质量浓度/ (mg·m^-3)	喷雾后质量浓度/ (mg·m^-3)	降尘效率/%
H₂O	475.42	245.26	48.41
A	231.36	41.58	82.03
B	303.82	82.73	72.77
Mix	268.05	71.00	73.51
AB	170.93	15.04	91.20
BA	267.40	53.12	80.78
