非均匀渗透率对滤袋表面过滤风速分布的影响研究

doi:10.16265/j.cnki.issn1003-3033.2025.07.1188

中国安全科学学报 ›› 2025, Vol. 35 ›› Issue (7): 91-97.doi: 10.16265/j.cnki.issn1003-3033.2025.07.1188

非均匀渗透率对滤袋表面过滤风速分布的影响研究

杨宏刚¹^,²^,³(), 李奥²^,³, 曹莹雪¹^,²^,³, 孟晓静¹^,²^,³, 王金宵²^,³

¹ 绿色建筑全国重点实验室/西安建筑科技大学, 陕西西安 710055
² 西安建筑科技大学资源工程学院, 陕西西安 710055
³ 西安市工业职业危害评价与防治技术重点实验室, 陕西西安 710055

收稿日期:2025-02-10 修回日期:2025-04-20 出版日期:2025-07-28
作者简介:

杨宏刚 (1981—),男,陕西岐山人,博士,副教授,主要从事职业危害(粉尘)防治理论与技术研究。E-mail: yanghonggang@xauat.edu.cn。
曹莹雪副教授
孟晓静教授
基金资助:
绿色建筑全国重点实验室自主研究课题基金资助(LSZZ-Y202418)

Study on influence of non-uniform permeability on filtration velocity distribution of filter bag surface

YANG Honggang¹^,²^,³(), LI Ao²^,³, CAO Yingxue¹^,²^,³, MENG Xiaojing¹^,²^,³, WANG Jinxiao²^,³

¹ State Key Laboratory of Green Building, Xi'an University of Architecture & Technology, Xi'an Shaanxi 710055, China
² School of Resource Engineering, Xi'an University of Architecture and Technology, Xi'an Shaanxi 710055, China
³ Xi'an Key Laboratory of Occupational Hazard Assessment and Prevention Technology, Xi'an Shaanxi 710055, China

Received:2025-02-10 Revised:2025-04-20 Published:2025-07-28

摘要/Abstract

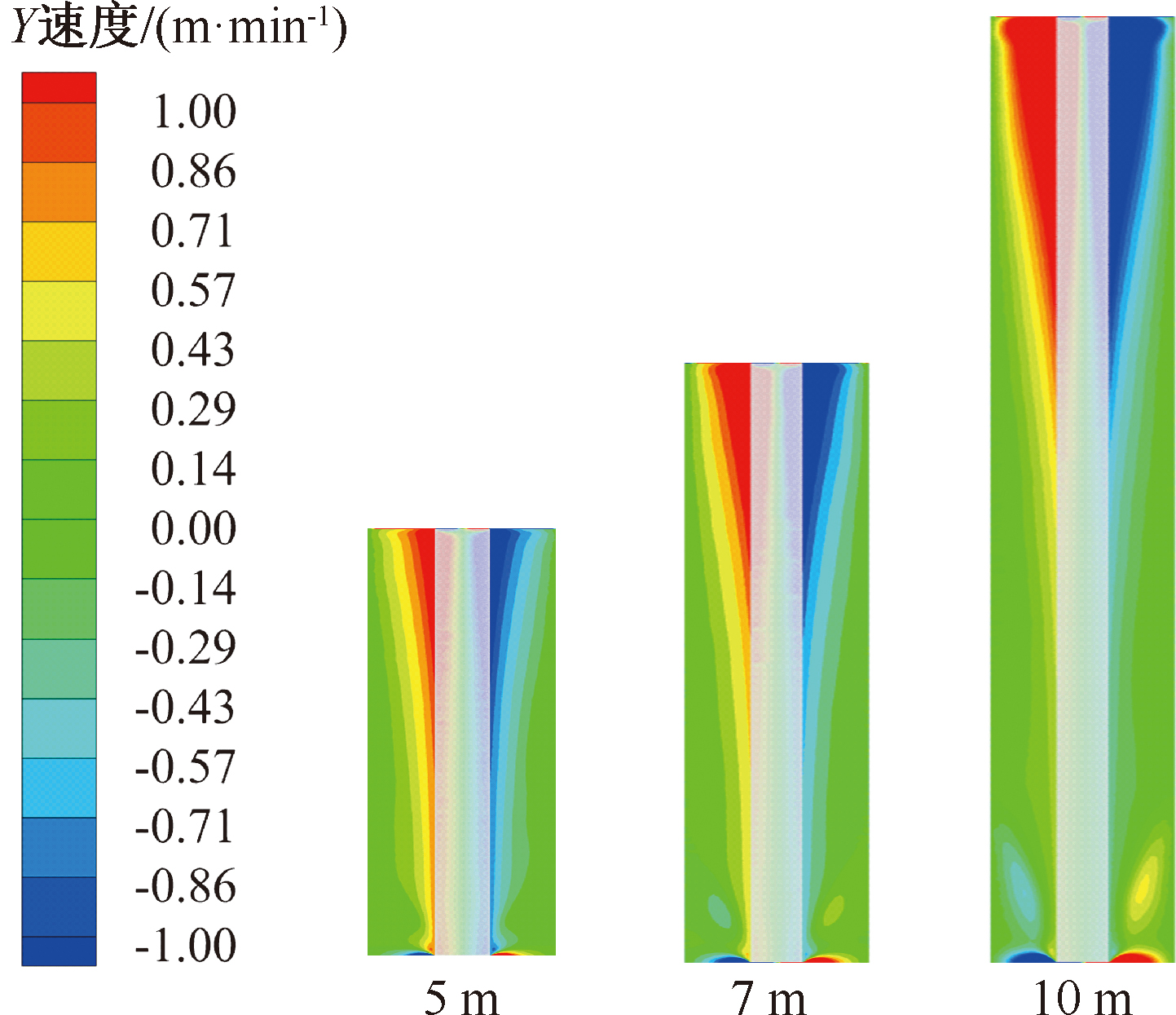

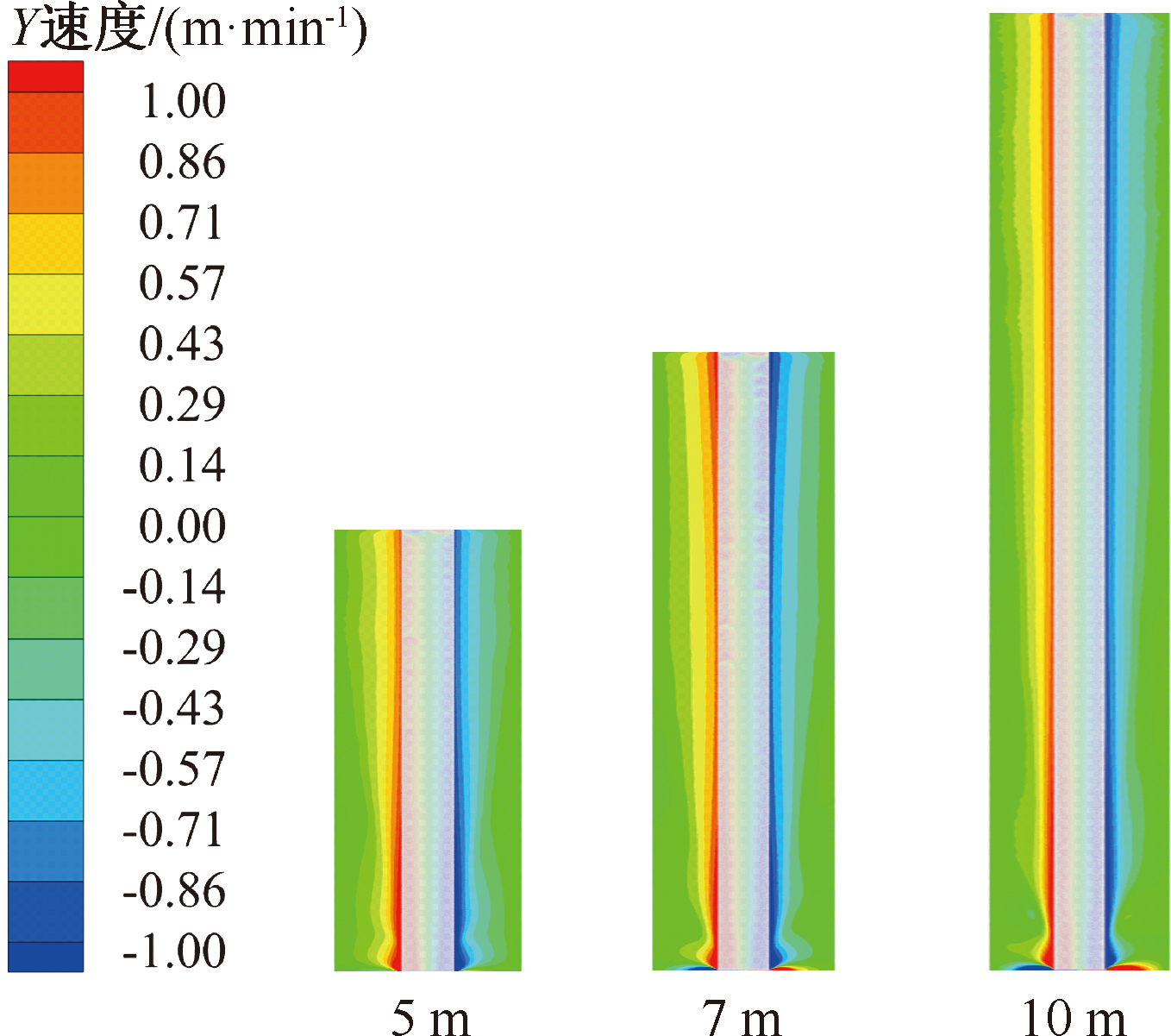

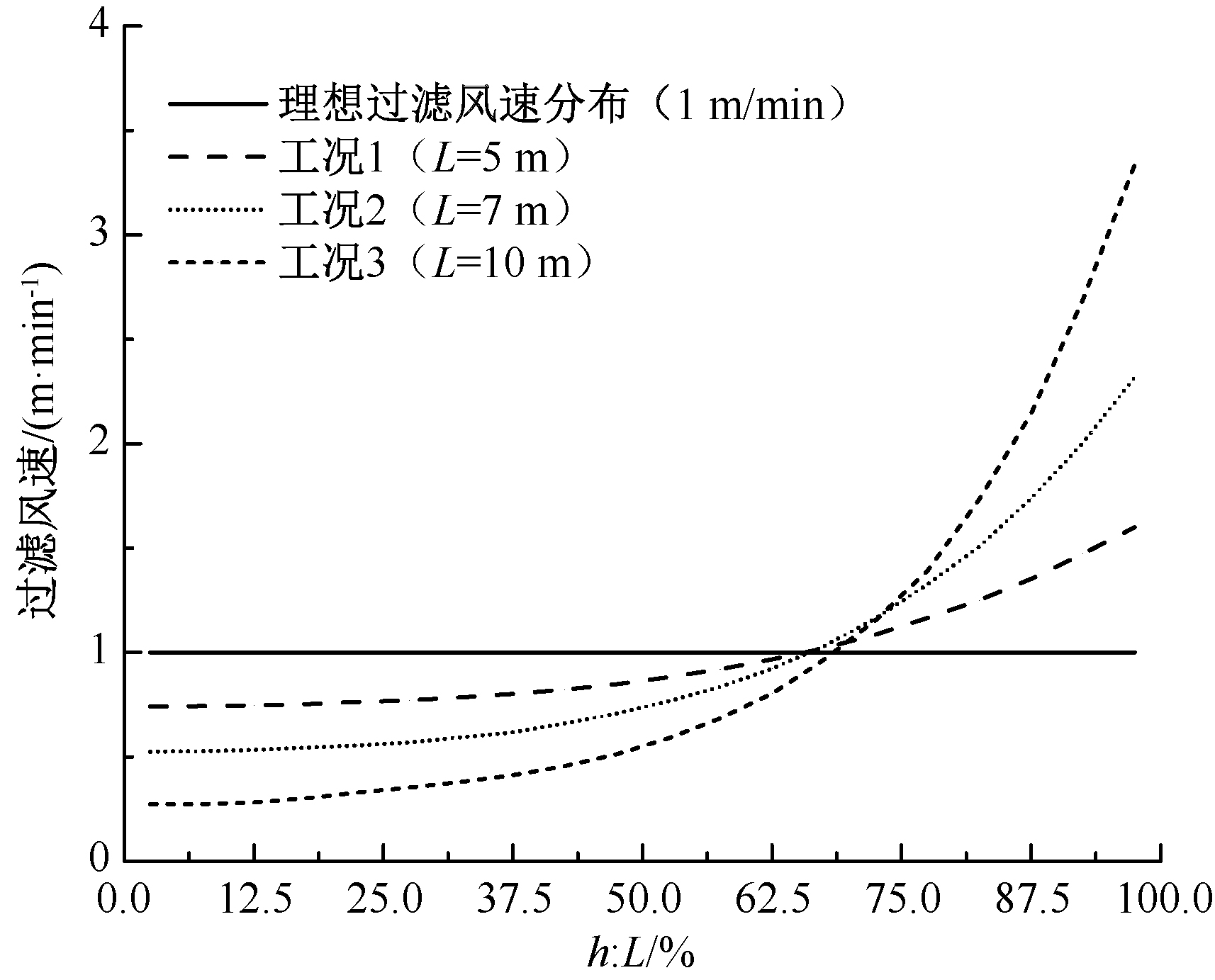

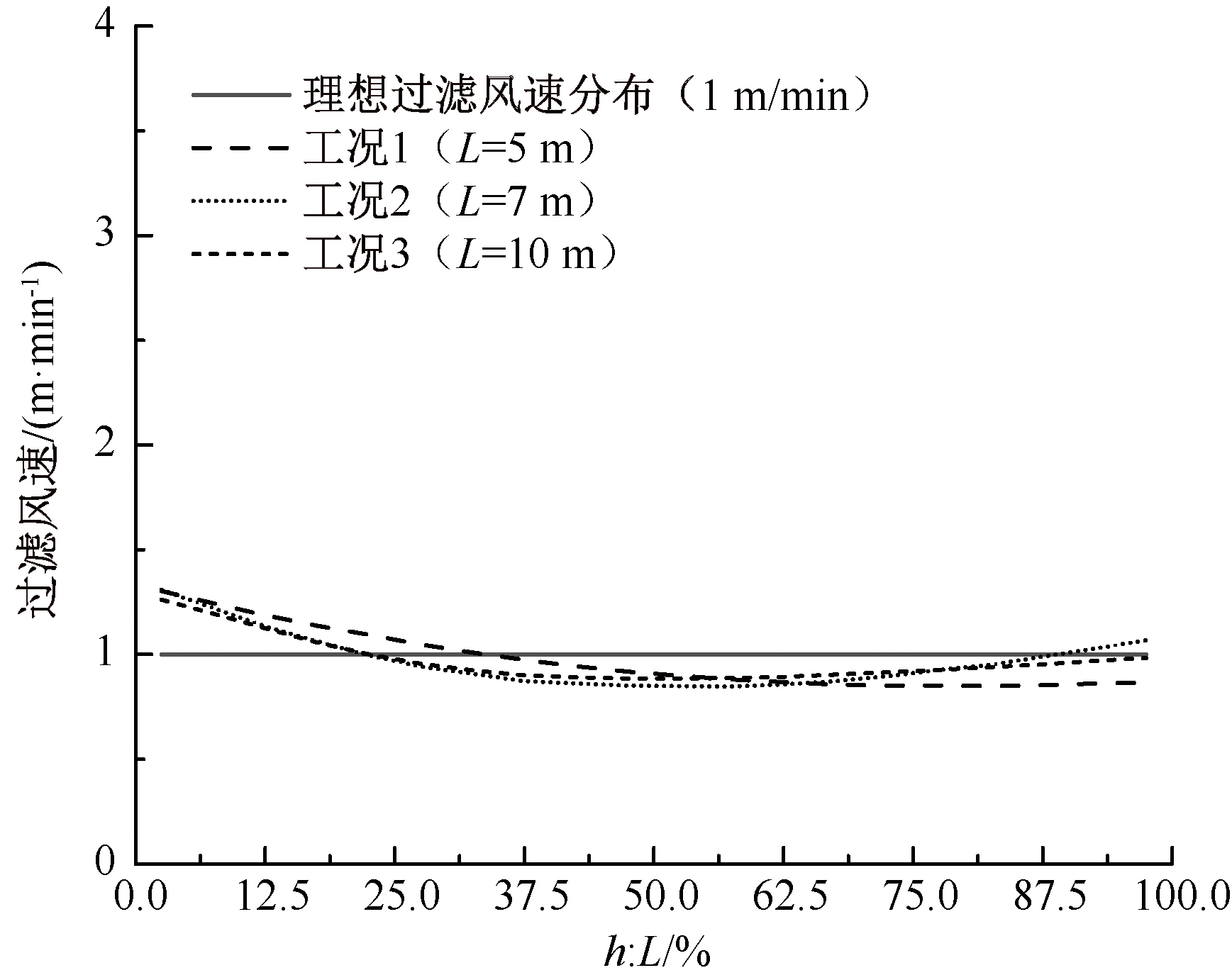

摘要： 为解决袋式除尘器滤袋表面过滤风速分布不均匀的问题,提出一种新的非均匀渗透率滤袋设计方法,利用Fluent软件和用户自定义函数(UDF),模拟在设计过滤风速(1.0 m/min)条件下,非均匀渗透率对滤袋表面过滤风速分布的影响。结果表明:均匀渗透率滤袋的过滤风速沿滤袋轴向自底部向上逐渐增加,且过滤风速分布均匀性随滤袋长度的增加而降低;通过优化长度为5、7、10 m 等3种不同滤袋的渗透率,滤袋表面过滤风速的最大值分别从1.60、2.32和3.34 m/min降至1.30、1.31和1.38 m/min,并显著提升了滤袋表面过滤风速分布的均匀性指数,且指数分别从0.736、0.459、0.210提升至0.854、0.868、0.892。

关键词: 袋式除尘器, 滤袋表面, 过滤风速, 非均匀渗透率, 均匀性指数

Abstract:

In order to address the issue of uneven filtration velocity distribution on the filter bag surface in a baghouse dust collector, a new design method for filter bags with non-uniform permeability was proposed. Using Fluent software and User-Defined Function (UDF), the impact of non-uniform permeability on the filtration velocity distribution across the bag surface was simulated under the design filtration velocity condition (1.0 m/min). The results indicate that the filtration velocity of uniformly permeable filter bags gradually increases along the axis of the bag from bottom to top, and the uniformity of filtration velocity distribution decreases with the increase in bag length. By optimizing the permeability of filter bags with different lengths of 5, 7 and 10 m, the maximum filtration velocity on the surface of filter bags is reduced from 1.60, 2.32 and 3.34 m/min to 1.30, 1.31 and 1.38 m/min, respectively. Moreover, the uniformity index of filtration velocity distribution on the surface of the filter bag is significantly improved, from 0.736, 0.459, 0.210 to 0.854, 0.868, 0.892, respectively.

Key words: baghouse dust collector, filter bag surface, filtration velocity, non-uniform permeability, uniformity index

中图分类号:

X964工业防尘

杨宏刚, 李奥, 曹莹雪, 孟晓静, 王金宵. 非均匀渗透率对滤袋表面过滤风速分布的影响研究[J]. 中国安全科学学报, 2025, 35(7): 91-97.

YANG Honggang, LI Ao, CAO Yingxue, MENG Xiaojing, WANG Jinxiao. Study on influence of non-uniform permeability on filtration velocity distribution of filter bag surface[J]. China Safety Science Journal, 2025, 35(7): 91-97.

图/表 10

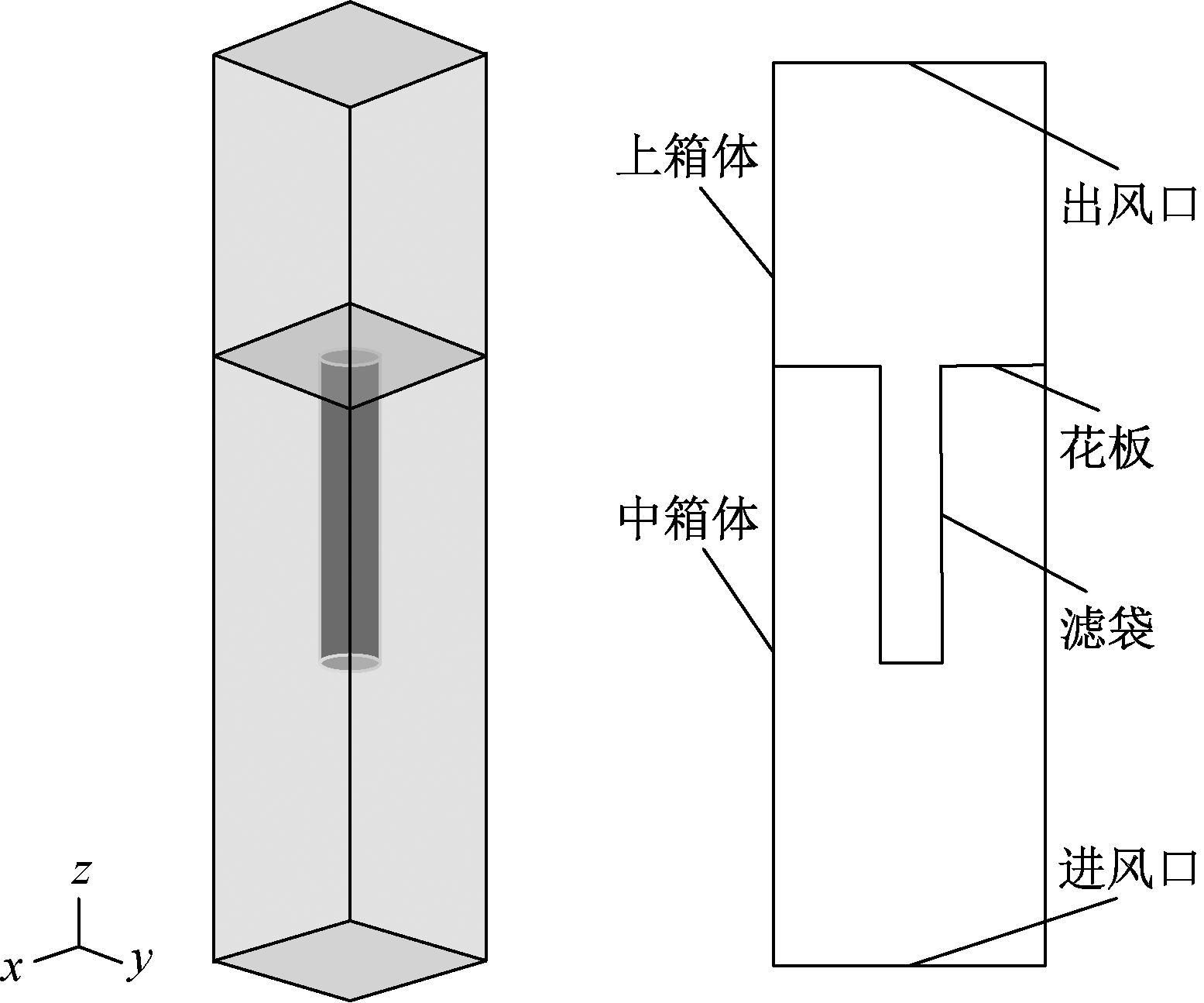

图1

表1

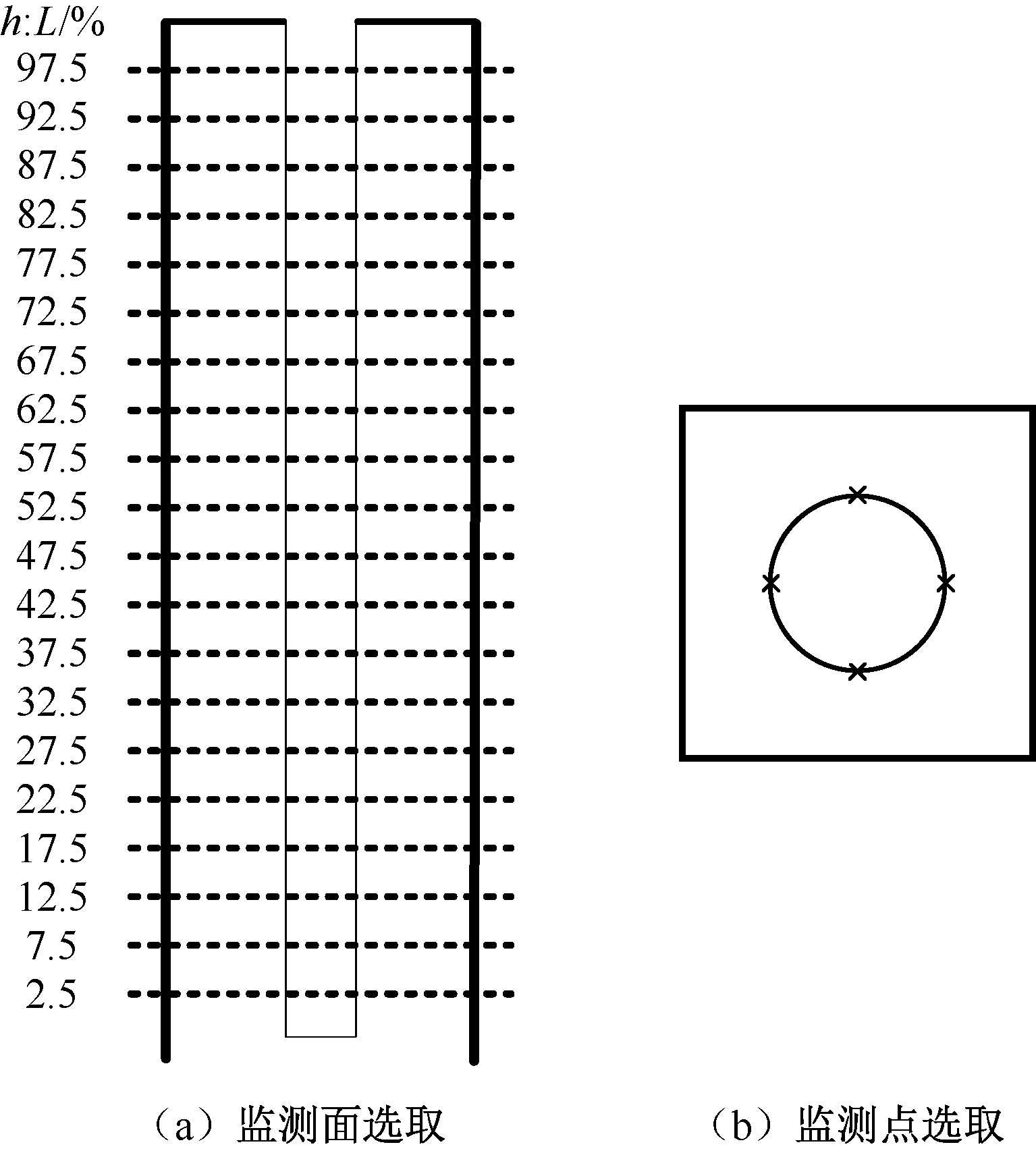

图3

表2

图4

图5

表3

图6

图7

表4

参考文献 17

[1]	刘学军, 姚群, 陈志炜, 等. 2023年除尘行业评述及发展展望[J]. 中国环保产业, 2024(5):17-22.
	LIU Xuejun, YAO Qun, CHEN Zhiwei, et al. Review and development prospects of dust removal industry in 2023[J]. China Environmental Protection Industry, 2024(5):17-22.
[2]	易玉枚, 李显杰, 廖可兵, 等. 滤料脉冲喷吹清灰效果评价指标的试验研究[J]. 中国安全科学学报, 2014, 24(7):135-139.
	YI Yumei, LI Xianjie, LIAO Kebing, et al. Research on cleaning effect evaluation index for pulse-jet cleanable fabric filter[J]. China Safety Science Journal, 2014, 24(7):135-139.
[3]	乐文毅, 段超龙, 谢冬明. 组合袋式除尘器的内部流场模拟[J]. 环境工程, 2020, 38(5):120-125,95.
	LE Wenyi, DUAN Chaolong, XIE Dongming. Simulation of interior flow field in the composite bag filter[J]. Environmental Engineering, 2020, 38(5):120-125,95.
[4]	张珈旗, 董忠红. 基于流场特性数值模拟的袋式除尘器关键结构设计研究综述[J]. 中国环境科学, 2022, 42(6):2530-2540.
	ZHANG Jiaqi, DONG Zhonghong. Review on key structure design of bag filter based on numerical simulation of flow field characteristics[J]. China Environmental Science, 2022, 42(6):2530-2540.
[5]	林秀丽, 胡晓峰, 闫彩莲, 等. 基于调整局部滤袋渗透率的袋式除尘器流量分配方法[J]. 煤炭学报, 2024, 49(7):3007-3016.
	LIN Xiuli, HU Xiaofeng, YAN Cailian, et al. Flow distribution method of bag filter based on adjustment of local filter bags permeability[J]. Journal of Coal Science, 2024, 49(7):3007-3016.
[6]	吕娟, 颜翠平, 袁彩云, 等. 喷吹压力与喷吹距离对长滤袋清灰效果的研究[J]. 安全与环境学报, 2016, 16(3):285-288.
	LYU Juan, YAN Cuiping, YUAN Caiyun, et al. Effect of the pulse pressure and the jet distance on the cleaning performance of the long pulse-jet filter bag[J]. Journal of Safety and Environmental Science, 2016, 16(3):285-288.
[7]	张景霞, 沈恒根, 方爱民, 等. 袋式除尘器气流组织的数值模拟分析[J]. 中国环保产业, 2007(12):27-29.
	ZHANG Jingxia, SHEN Henggen, FANG Aimin, et al. Numerical simulation on air distribution in bag-filter[J]. China Environmental Protection Industry, 2007(12):27-29.
[8]	PARK S, JOE Y H, SHIM J, et al. Non-uniform filtration velocity of process gas passing through a long bag filter[J]. Journal of Hazardous Materials, 2019, 365:440-447.
[9]	颜翠平, 李世龙, 毛文浩, 等. 金属滤袋除尘器流场特征研究和优化[J]. 金属矿山, 2023(7):142-152.
	YAN Cuiping, LI Shilong, MAO Wenhao, et al. Study on flow field characteristics and optimization of metal fiber filter[J]. Metal Mine, 2023(7):142-152.
[10]	董阳昊, 梁珍, 沈恒根. 上进风内滤式袋式除尘器的流场优化分析[J]. 东华大学学报:自然科学版, 2021, 47(3):112-119.
	DONG Yanghao, LIANG Zhen, SHEN Henggen. Flow field optimization analysis of bag filter with upper air inlet and internal filtration[J]. Journal of Donghua University:Natural Science, 2021, 47(3):112-119.
[11]	THÉRON F, JOUBERT A, LE COQ L. Numerical and experimental investigations of the influence of the pleat geometry on the pressure drop and velocity field of a pleated fibrous filter[J]. Separation and Purification Technology, 2017, 182:69-77.
[12]	鲁进利, 何杰, 庄乾双, 等. 基于CFD的双褶数滤袋阻力特性的数值模拟[J]. 中国粉体技术, 2022, 28(3):59-67.
	LU Jinli, HE Jie, ZHUANG Qianshuang, et al. Numerical simulation of resistance characteristics of double pleated filter bag based on CFD[J]. China Powder Technology, 2022, 28(3):59-67.
[13]	杨宏刚, 李津瑾, 曹莹雪, 等. 超长滤袋局部加密对滤袋表面过滤风速分布的影响[J]. 安全与环境学报, 2024, 24(7):2641-2647.
	YANG Honggang, LI Jinjin, CAO Yingxue, et al. Effect of local densification of ultra-long filter bags on the distribution of filtration velocity on the surface of filter bags[J]. Journal of Safety and Environmental Science, 2024, 24(7):2641-2647.
[14]	FENG Xinyue, GENG Fan, TENG Haixu, et al. Dust dispersion during the pulse-jet cleaning process with the diffuser effect of the cartridge filter[J]. Environmental Science and Pollution Research, 2023, 30(14):41 486-41 504.
[15]	任美桃, 王怡, 杨宏刚, 等. 基于气流均匀分配的下进风袋式除尘器灰斗结构优化[J]. 过程工程学报, 2017, 17(6):1156-1162.
	REN Meitao, WANG Yi, YANG Honggang, et al. Structural optimization for hopper of bottom inlet bag filter based on airflow uniform distribution[J]. Journal of Process Engineering, 2017, 17(6):1156-1162.
[16]	闫彩莲, 林秀丽, 胡隆基, 等. 圆筒和褶皱滤袋过滤风速分布的数值模拟分析[J]. 环境工程, 2024, 42(3):225-232.
	YAN Cailian, LIN Xiuli, HU Longji, et al. Numerical simulation analysis of filtration velocity distribution of cylindrical and pleated filter bags[J]. Environmental Engineering, 2024, 42(3):225-232.
[17]	邢志祥, 赵垒, 欧红香, 等. 基于FLUENT平台的LPG储罐热响应源项设计[J]. 中国安全科学学报, 2014, 24(2):41-46.
	XING Zhixiang, ZHAO Lei, OU Hongxiang, et al. Source item design and verification for thermal response of LPG storage tank based on FLUENT simulation[J]. China Safety Science Journal, 2014, 24(2):41-46.

工况	3 m(Case1)		10 m(Case3)		12 m(Case5)		15 m(Case7)
来源	PARK等^[8]	本文	PARK等^[8]	本文	PARK等^[8]	本文	PARK等^[8]	本文
试验值/Pa	24.0	—	90.0	—	140.0	—	150.0	—
模拟值/Pa	22.3	22.9	83.7	94.6	147.5	138.1	162.0	164.7
相对误差/%	7.08	4.58	7.00	5.11	5.36	1.36	8.00	9.80

工况序号	L/m	v₀/ (m·min^-1)	过滤面积/ m²	过滤风量/ (m³·s^-1)	入口速度/ (m·s^-1)	α/m²
1	5	1	2.45	0.040 8	0.13	4.30×10^-11
2	5	1	2.45	0.040 8	0.13	式(9)
3	7	1	3.43	0.057 2	0.18	4.30×10^-11
4	7	1	3.43	0.057 2	0.18	式(10)
5	10	1	4.90	0.081 6	0.26	4.30×10^-11
6	10	1	4.90	0.081 6	0.26	式(11)

非均匀渗透率对滤袋表面过滤风速分布的影响研究

Study on influence of non-uniform permeability on filtration velocity distribution of filter bag surface

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 10

参考文献 17

相关文章 13

编辑推荐

Metrics

本文评价

[1]	郝腾腾, 许开立, 王浩杰, 倪辰阳, 史继航. 香樟叶提取物对铝锌废尘湿式除尘产氢的抑制影响研究[J]. 中国安全科学学报, 2025, 35(7): 159-166.
[2]	林汉毅, 江丙友, 王一凡, 王浩宇, 余昌飞. 螯合剂和表面活性剂注液工艺对煤体润湿性能的影响[J]. 中国安全科学学报, 2025, 35(5): 169-177.
[3]	田卫, 马睿浩, 关小杰, 高明哲, 谭啸. 旧工业建筑再生施工粉尘运移特性数值模拟研究[J]. 中国安全科学学报, 2025, 35(1): 231-238.
[4]	吴宗之, 周玉竹, 魏丁一, 曹伟杰, 马文谨, 余杰. 基于气-固两相流的深埋隧道烟尘运移特征[J]. 中国安全科学学报, 2024, 34(11): 213-219.
[5]	张天, 穆新升, 陶爽, 郭雨浩, 沈祉伏, 陈星宇. 新型超音速气动雾化喷嘴雾化特性及降尘性能[J]. 中国安全科学学报, 2024, 34(11): 239-246.
[6]	周玉竹, 魏丁一, 曹伟杰, 卢增雄, 林明磊, 杜小坤. 钻爆法施工深埋隧道喷雾降尘数值模拟研究[J]. 中国安全科学学报, 2024, 34(11): 66-72.
[7]	侯羽澳, 王强, 柳青, 林雅敏, 张少锋. 基于偏离度-FCE的袋式除尘系统实时定量风险评价[J]. 中国安全科学学报, 2024, 34(10): 30-38.
[8]	唐晓骞, 王韬, 朱俊鹏. 矿用抑尘剂种类及其性能研究进展[J]. 中国安全科学学报, 2023, 33(S2): 145-151.
[9]	鹿立新, 杜志勇, 孙国思, 唐亚东, 杜勇志, 谢苗. 矿用洒水车降尘喷洒系统研究[J]. 中国安全科学学报, 2023, 33(S2): 152-157.
[10]	海素峰, 于景斌, 李金辉, 滕春阳, 谢苗, 苗茺. 矿山智能加水站四自由度机械臂运动特性研究[J]. 中国安全科学学报, 2023, 33(S2): 158-163.
[11]	于景斌, 荣宝, 赵子未, 包玮玮, 史印方. 基于Fluent的智能矿用洒水车喷洒系统特性分析[J]. 中国安全科学学报, 2023, 33(S2): 164-169.
[12]	李全生, 颜杰, 王斌, 张禹. 哈尔乌素露天煤矿爆堆粉尘润湿性及其影响因素[J]. 中国安全科学学报, 2023, 33(S2): 7-12.
[13]	王桂林, 赵长海, 宋德林. 基于提高环境安全的露天矿空气污染影响因素研究[J]. 中国安全科学学报, 2023, 33(S2): 77-84.

L/ m	未调整α前的φ	调整α 后的φ	φ变化率/%
5	0.736	0.854	16.0
7	0.459	0.868	89.1
10	0.210	0.892	324.8
