深水隔水管多功能悬挂系统及海试效果评估

doi:10.16265/j.cnki.issn1003-3033.2026.01.0195

中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (1): 97-103.doi: 10.16265/j.cnki.issn1003-3033.2026.01.0195

深水隔水管多功能悬挂系统及海试效果评估

盛磊祥¹^,²(), 殷志明², 李彦伟³, 刘秀全³, 王金龙², 郭卫华⁴

¹ 海洋石油高效开发研究中心, 北京 102209
² 中海油研究总院有限公司钻采研究院,北京 100028
³ 中国石油大学(华东) 机电工程学院, 山东青岛 266580
⁴ 中海油田服务股份有限公司钻井事业部, 河北三河 065201

收稿日期:2025-08-20 修回日期:2025-11-05 出版日期:2026-01-28
作者简介:
盛磊祥 (1981—),男,山东招远人,硕士,高级工程师,主要从事深水油气田开发与钻完井技术方面的研究。E-mail:shenglx@cnooc.com.cn。
殷志明, 教授级高级工程师。
刘秀全, 教授。
王金龙, 高级工程师。
郭卫华, 高级工程师。
基金资助:
国家科技重大专项项目(2025ZD1403202); 中国海油综合科研项目(KJGJ-2023-0002); 国家科技部重点研发计划项目(2022YFC2806500)

Multifunctional suspension system for deepwater drilling riser and evaluation of its application in sea trial

SHENG Leixiang¹^,²(), YIN Zhiming², LI Yanwei³, LIU Xiuquan³, WANG Jinlong², GUO Weihua⁴

¹ Offshore Oil Efficient Development Research Center, Beijing 102209, China
² Drilling & Production Research Department, CNOOC Research Institute Co., Ltd., Beijing 100028, China
³ School of Mechanical and Electrical Engineering, China University of Petroleum (East China), Qingdao Shandong 266580, China
⁴ Drilling Department, China Oilfield Services Limited, Sanhe Hebei 065201, China

Received:2025-08-20 Revised:2025-11-05 Published:2026-01-28

摘要/Abstract

摘要：

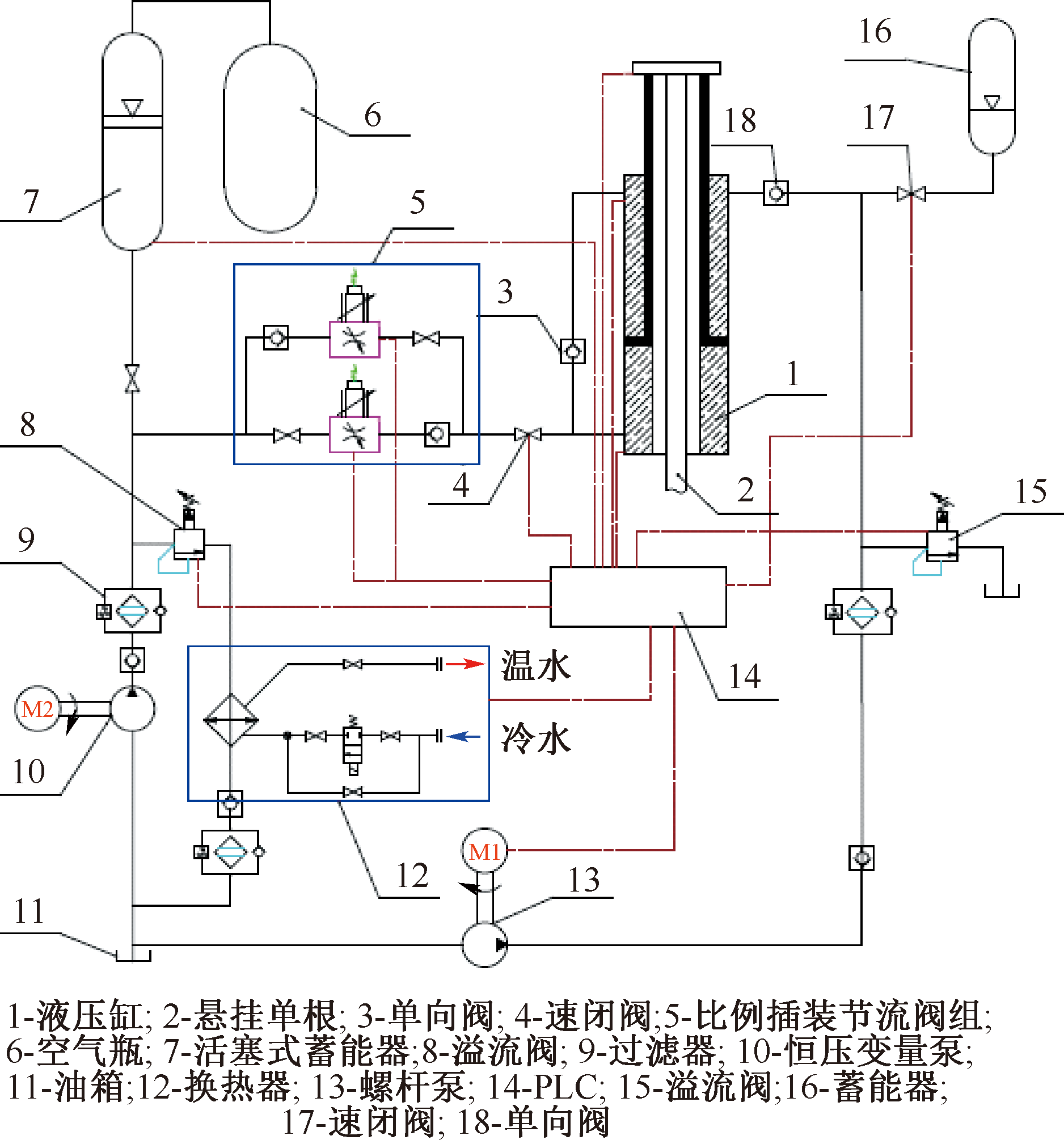

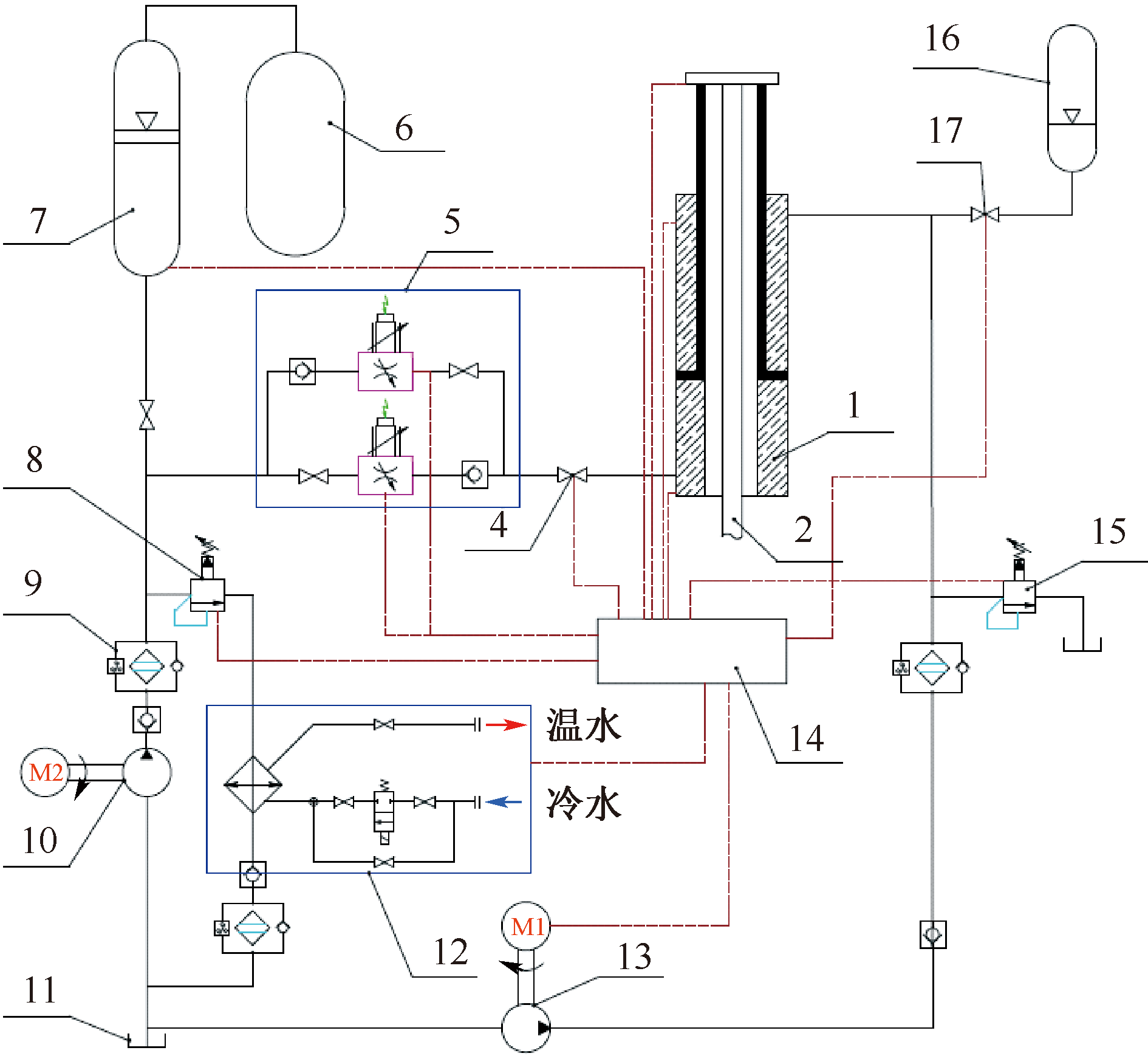

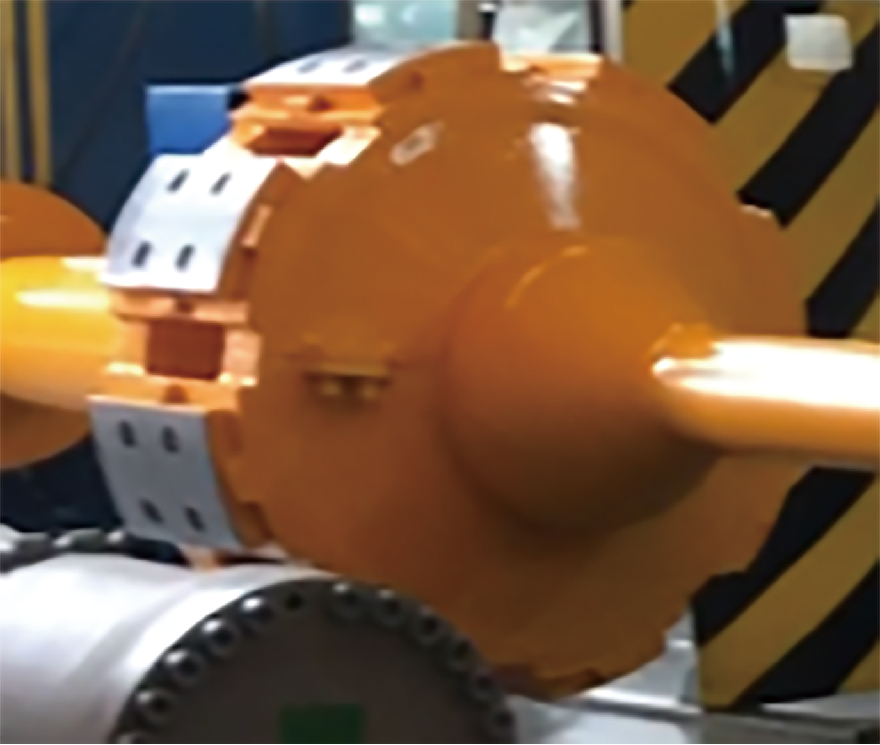

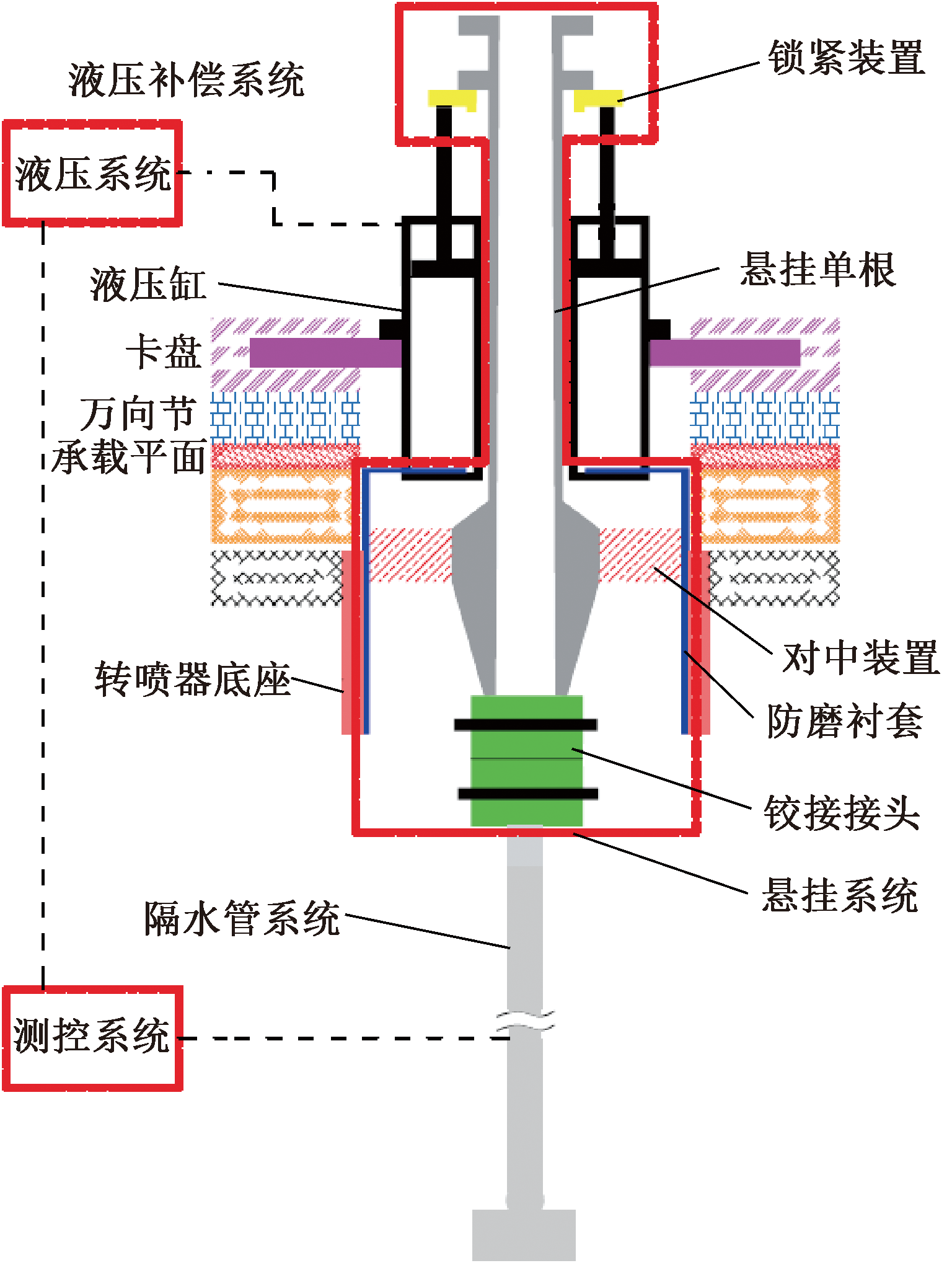

为降低深水钻井隔水管在恶劣海况下的动态载荷,提升深水钻井隔水管对复杂海况的适应能力,提出一种包含悬挂、液压补偿和测控的深水隔水管多功能悬挂系统,以应对南海台风等恶劣海况条件下悬挂隔水管的安全风险。通过特制的悬挂单根承载隔水管系统,并借助扶正器和铰接接头缓解隔水管顶部的弯曲载荷;研制液压补偿系统,采用差动节流补偿、被动非节流补偿和节流屏蔽3种工作模式,以满足避台风、井间移位等作业需求;测控系统实时监测和预警,调控中空式液压缸的伸缩运动,实时补偿隔水管系统动载。该系统在南海完成海试应用,应用效果评估表明:隔水管多功能悬挂系统能够显著降低隔水管顶部应力和动态载荷,尤其是差动节流补偿与被动非节流补偿模式;海试期间应用该系统,钻井船悬挂隔水管顺流和逆流的航速均提升至1.0 km,显著提高了作业效率。

关键词: 深水隔水管, 多功能悬挂系统, 补偿模式, 测控系统, 对中装置

Abstract:

In order to reduce the dynamic loads on risers under harsh sea conditions and enhance their adaptability to complex marine environments, a multifunctional suspension system for deepwater riser was proposed, which included a suspension system, a hydraulic compensation system, and a measurement and control system, in order to ensure the safety of the suspended riser under severe sea conditions such as typhoons in the South China Sea. In addition, the system can also be applied to transit with a suspended riser between wells, which can significantly reduce the load of the suspension riser. The suspension system suspends a single bearing riser system, and relieves the stress concentration on the top of the riser by means of a centralizer and a hinge joint; the hydraulic compensation system adopts three working modes of differential throttling compensation, passive non-throttling compensation and throttling shielding to meet the requirements of platform avoidance and inter-well transit. The measurement and control system monitors and warns in real time, regulates and controls the telescopic movement of the hollow hydraulic cylinder, and realizes the real-time compensation of the dynamic load of the riser system. The system has undergone sea trial applications, the results show that the proposed multi-function suspension system can significantly reduce the riser top stress and dynamic load amplitude, especially in the differential throttle compensation and passive non-throttle compensation modes. At the same time, the downstream and upstream speeds of the platform are increased to 1.0 knots, which significantly improves the operation efficiency. The system helps to overcome the challenge of traditional suspension mode, provides a safe and efficient solution for deepwater drilling riser operations, and reduces the disaster risk of suspension riser under extreme sea conditions such as typhoons.

Key words: deepwater riser, multifunctional suspension system, compensation mode, measurement and control system, centralizer devise

中图分类号:

X937

盛磊祥, 殷志明, 李彦伟, 刘秀全, 王金龙, 郭卫华. 深水隔水管多功能悬挂系统及海试效果评估[J]. 中国安全科学学报, 2026, 36(1): 97-103.

SHENG Leixiang, YIN Zhiming, LI Yanwei, LIU Xiuquan, WANG Jinlong, GUO Weihua. Multifunctional suspension system for deepwater drilling riser and evaluation of its application in sea trial[J]. China Safety Science Journal, 2026, 36(1): 97-103.

图/表 11

图1

图2

图3

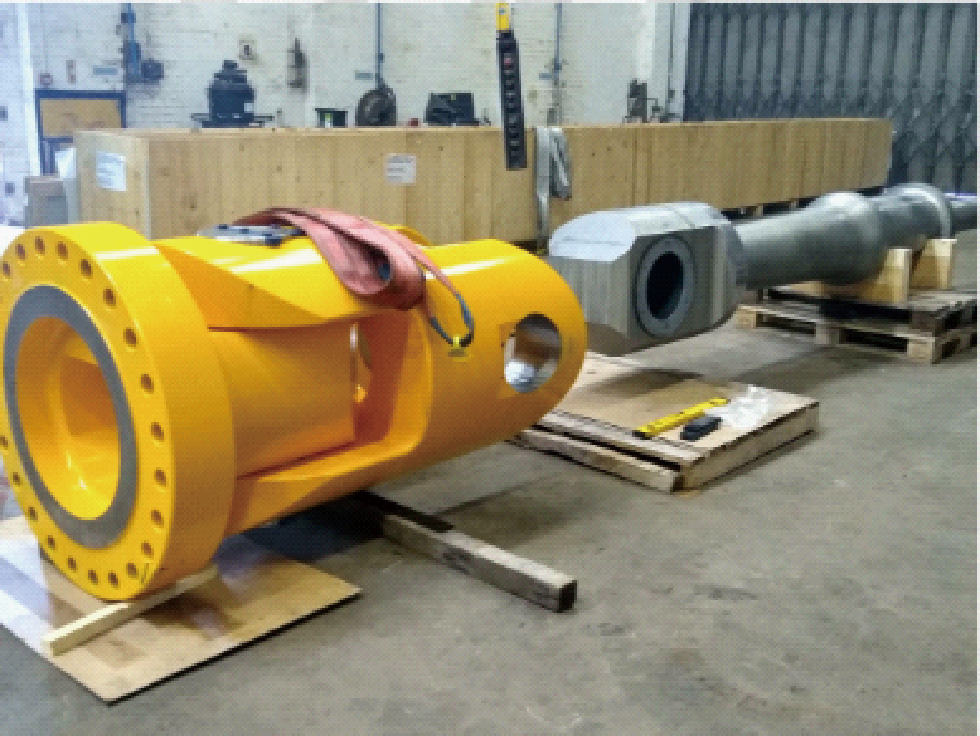

图4

图5

图6

图7

图8

表1

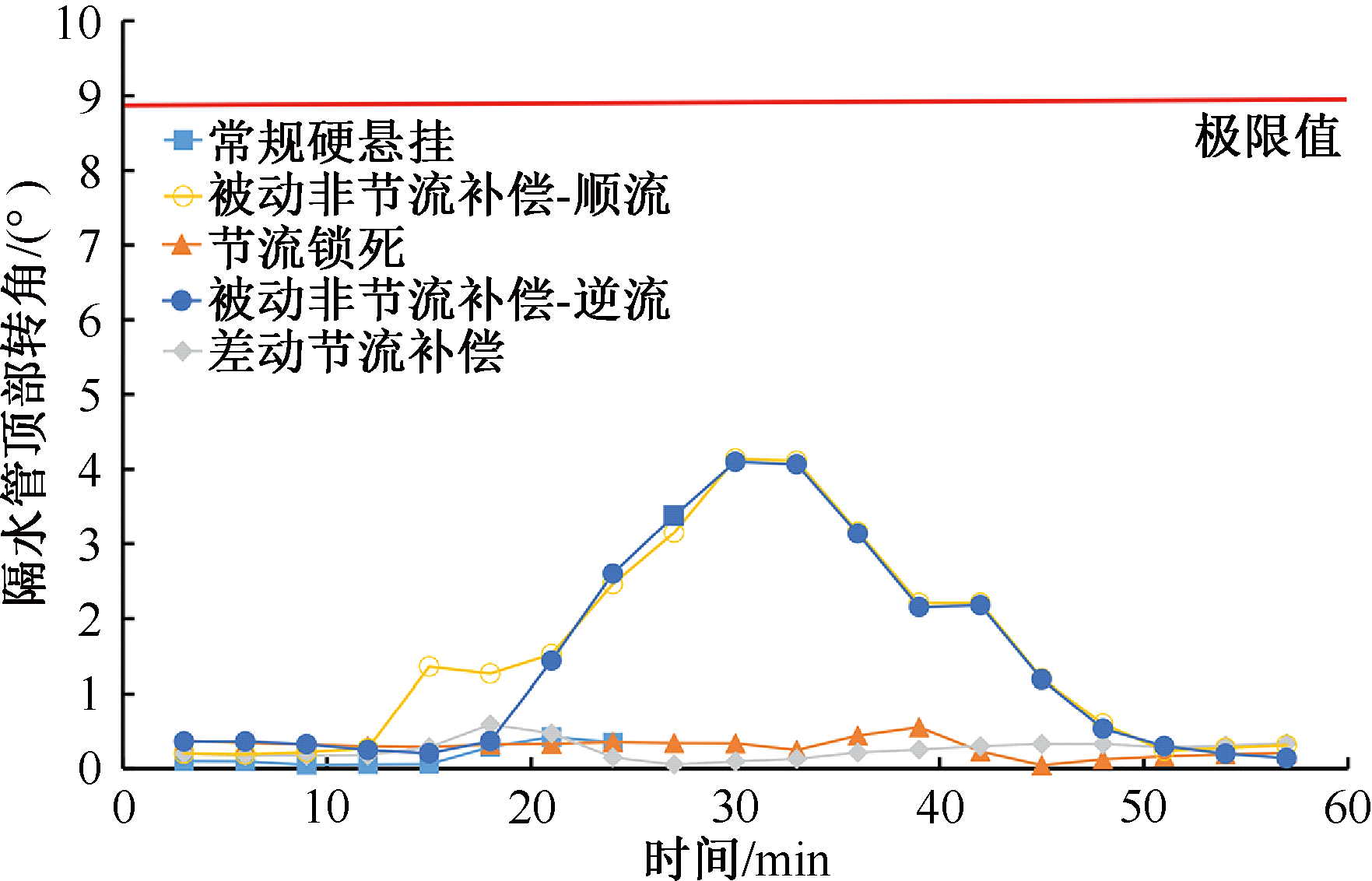

图9

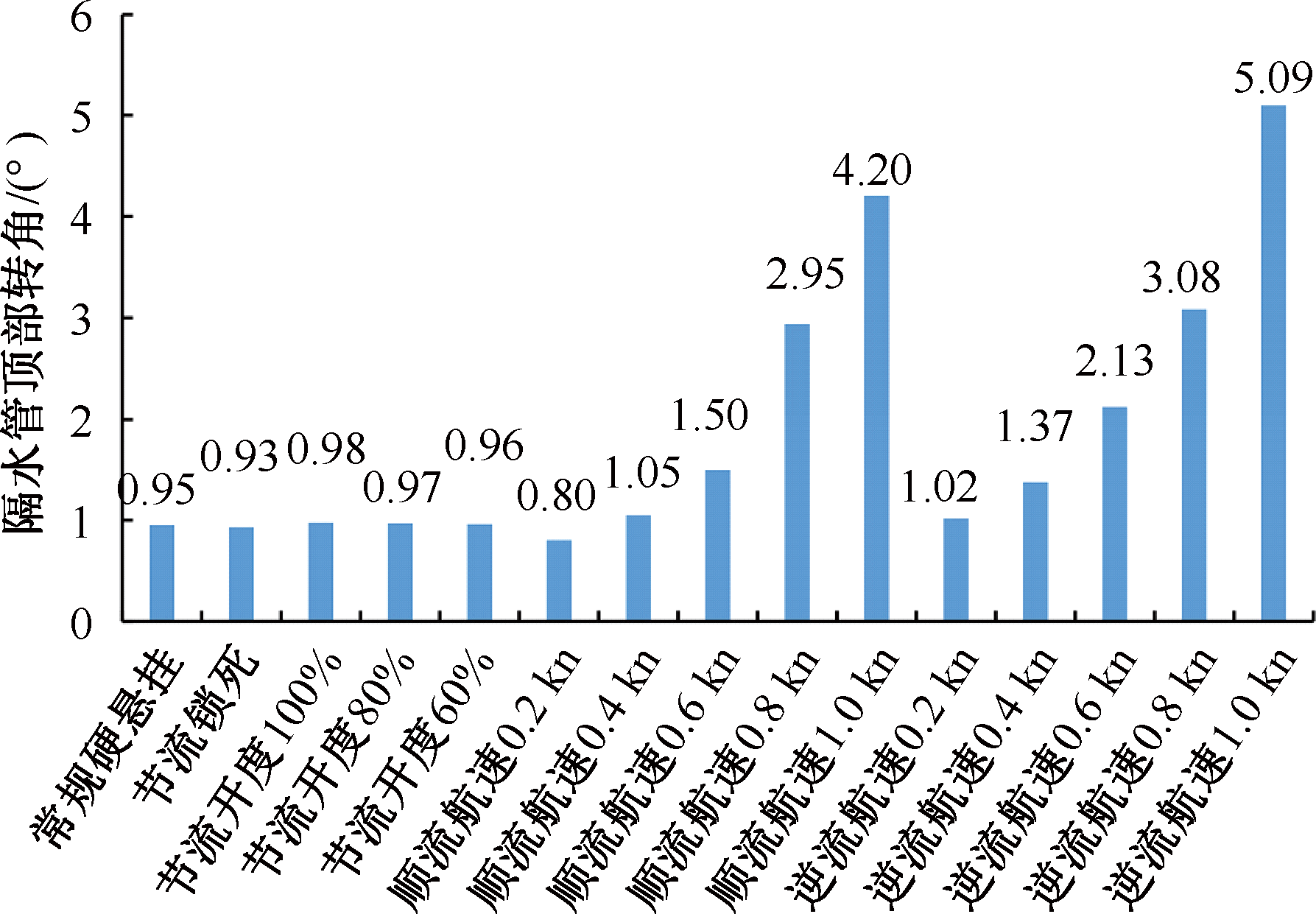

图10

参考文献 12

[1]	谢彬, 曾恒一. 我国海洋深水油气田开发工程技术研究进展[J]. 中国海上油气, 2021, 33(1): 166-176.
	XIE Bin, ZENG Hengyi. Research progress on engineering technology for the development of offshore deepwater oil and gas fields in China[J]. China Offshore Oil and Gas, 2021, 33(1): 166-176.
[2]	俞进. 海上作业安全管理数字化实施方案[J]. 中国安全科学学报, 2023, 33(12): 16-22. doi: 10.16265/j.cnki.issn1003-3033.2023.12.0282
	YU Jin. Solution of digital transformation for offshore work safety management[J]. China Safety Science Journal, 2023, 33(12): 16-22. doi: 10.16265/j.cnki.issn1003-3033.2023.12.0282
[3]	王秋惠, 云婷. 基于CTA的海上应急伤员处置舱作业安全设计[J]. 中国安全科学学报, 2025, 35(10): 198-204. doi: 10.16265/j.cnki.issn1003-3033.2025.10.1197
	WANG Qiuhui, YUN Ting. Safety design for maritime emergency casualty disposal cabin based on CTA[J]. China Safety Science Journal, 2025, 35(10): 198-204. doi: 10.16265/j.cnki.issn1003-3033.2025.10.1197
[4]	周建良, 许亮斌. 深水钻井隔水管关键技术研究进展[J]. 中国海上油气, 2018, 30(4): 135-143.
	ZHOU Jianliang, XU Liangbin. Research progress on key technologies of risers in deepwater drilling[J]. China Offshore Oil and Gas, 2018, 30(4): 135-143.
[5]	盛磊祥, 许亮斌, 刘健, 等. 新型深水钻井隔水管悬挂系统设计[J]. 海洋工程, 2019, 37(5): 99-106.
	SHENG Leixiang, XU Liangbin, LIU Jian, et al. Design of riser suspension system for new deepwater drilling[J]. Ocean Engineering, 2019, 37(5): 99-106.
[6]	鞠少栋, 畅元江, 陈国明, 等. 深水钻井隔水管悬挂窗口确定方法[J]. 石油学报, 2012, 33(1): 133-136. doi: 10.7623/syxb201201019
	JU Shaodong, CHANG Yuanjiang, CHEN Guoming, et al. Method for determining the suspension window of the riser in deepwater drilling[J]. Acta Petrolei Sinica, 2012, 33(1): 133-136.
[7]	盛磊祥, 王荣耀, 许亮斌, 等. 台风应急期间深水钻井隔水管悬挂撤离安全分析[J]. 石油钻探技术, 2015, 43(4): 25-29.
	SHENG Leixiang, WANG Rongyao, XU Liangbin, et al. Safety analysis of suspension evacuation of riser in deepwater drilling during typhoon emergency[J]. Petroleum Drilling Techniques, 2015, 43(4): 25-29.
[8]	许亮斌, 周建良, 王荣耀, 等. 南海深水钻井平台悬挂隔水管撤离防台分析[J]. 中国海上油气, 2015, 27(3): 101-107.
	XU Liangbin, ZHOU Jianliang, WANG Rongyao, et al. Analysis of evacuation of suspended Riser from deepwaterdrilling platform in the South China Sea[J]. China Offshore Oil and Gas, 2015, 27(3): 101-107.
[9]	王金龙, 陈景皓, 盛磊祥, 等. 深水钻井隔水管极端环境下悬挂响应特征验证分析[J]. 舰船科学技术, 2025, 47(6):106-110.
	WANG Jinlong, CHEN Jinghao, SHENG Leixiang, et al. Verification and analysis of hang-off response characteristics for deepwater drilling riser in extreme environment[J]. Ship Science and Technology, 2025, 47(6): 106-110.
[10]	朱高庚, 陈国明, 刘康. 深水钻井隔水管下放作业可靠性智能评估方法[J]. 船舶力学, 2025, 29(1): 125-135.
	ZHU Gaogeng, CHEN Guoming, LIU Kang. Intelligent assessment method of reliability for deepwater riser deployment[J]. Journal of Ship Mechanics. 2025, 29(1): 125-135.
[11]	ZHANG Nan, CHANG Yuanjiang, XU Lei, et al. An improved coupled model for axial dynamic analysis of deepwater drilling risers under a soft hang-off mode[J]. Journal of Ship Mechanics, 2024, 19(6): 740-755.
[12]	ZHANG Shaozeng, JIN Xueyi, LIU Hongbo, et al. Applicability evaluation of deepwater drilling risers in hang-off mode during well shif[C]. ISOPE 2025, 2025: 1633-1638.

模式	节流屏蔽模式	差动节流补偿模式			被动非节流补偿模式
		比例插装节流阀组的阀口开度/%			顺流航速/kn					逆流航速/kn
		100	80	60	0.2	0.4	0.6	0.8	1.0	0.2	0.4	0.6	0.8	1.0
动载补偿率/%	93.34	95.46	94.17	94.25	96.33	96.14	96.67	95.91	96.17	96.37	96.21	96.45	96.51	96.01
