中国安全科学学报 ›› 2026, Vol. 36 ›› Issue (8): 243-250.doi: 10.16265/j.cnki.issn1003-3033.2026.08.1447

• 防灾减灾技术与工程 • 上一篇    下一篇

基于对称交互熵的地质灾害风险评估

于忠海1,2(), 王璐1,2, 刘茜1, 闫立波1, 方强3, 段龙妹1,2,**()

  1. 1 济南市勘察测绘研究院, 山东 济南 250101
    2 山东省数据开放创新应用实验室(时空信息数据开放技术创新), 山东 济南 250101
    3 北京国测星绘信息技术有限公司, 北京 100130
  • 收稿日期:2026-03-14 修回日期:2026-06-12 出版日期:2026-08-28
  • 通信作者:
    **段龙妹(1989—),女,山东济南人,硕士,高级工程师,主要从事地理信息系统设计等方面的工作。E-mail:
  • 作者简介:

    于忠海 (1986—),男,山东桓台人,博士,正高级工程师,主要从事城市级时空信息挖掘及应用方面的工作。E-mail:

  • 基金资助:
    国家重点研发计划项目(2023YFB3907600); 山东省自然科学基金资助(ZR2024QD123)

Geological disaster risk assessment based on SCE

Yu Zhonghai1,2(), Wang Lu1,2, Liu Qian1, Yan Libo1, Fang Qiang3, Duan Longmei1,2,**()

  1. 1 Ji'nan Geotechnical Investigation and Surveying Research Institute, Ji'nan Shandong 250101, China
    2 Shandong Data Open Innovative Application Laboratory(Technological Innovation of Spatio-temporal Information Open), Ji'nan Shandong 250101, China
    3 Beijing Sat Image Information Technology Co., Ltd., Beijing 100130, China
  • Received:2026-03-14 Revised:2026-06-12 Published:2026-08-28

摘要:

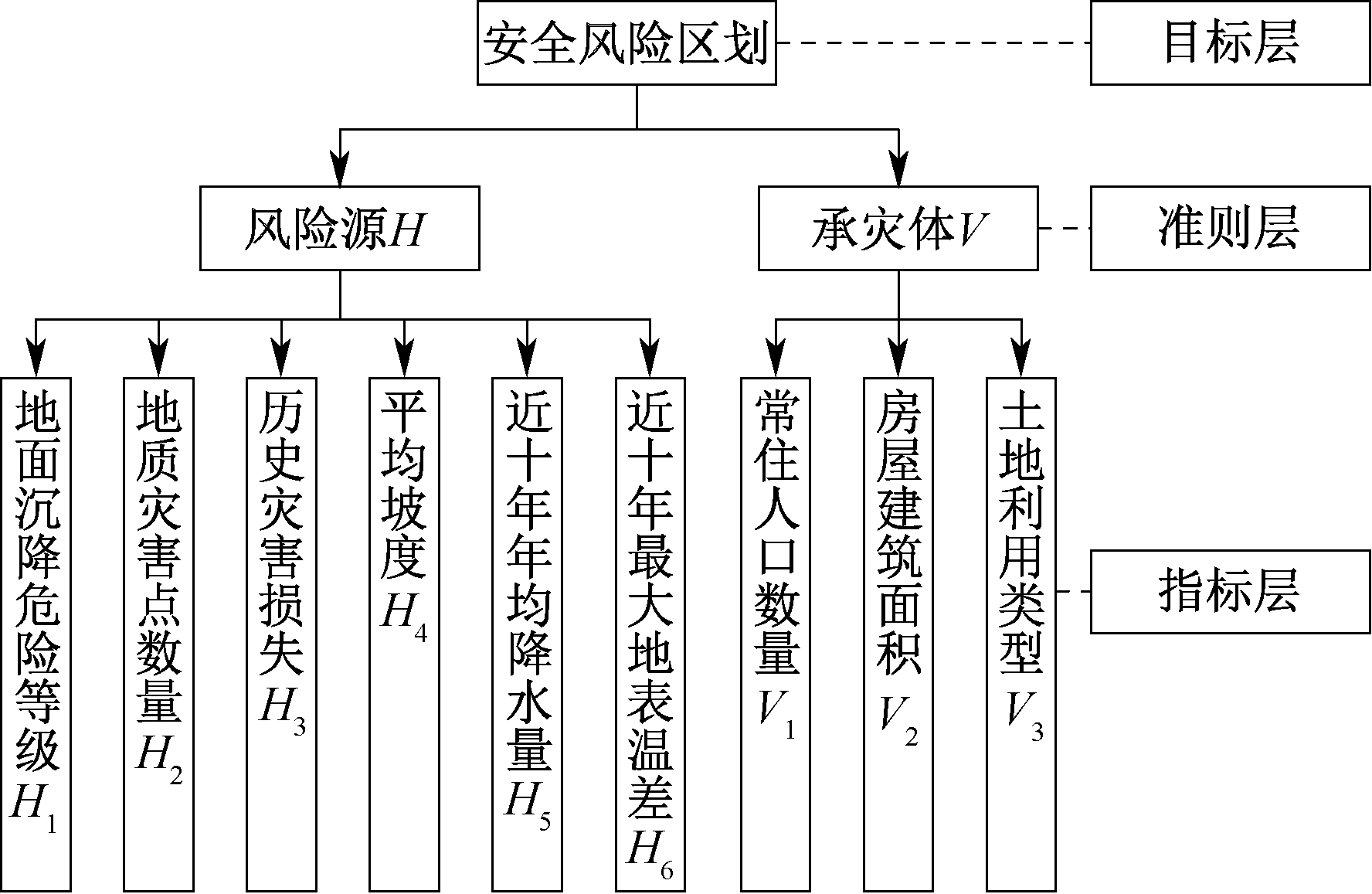

为精准识别济南市南部2 630 km2丘陵山地地质灾害风险分布,支撑区域精细化防灾减灾,提出一种融合多源数据的村居尺度评估方法。首先,基于国产陆探一号(Lutan-1)L波段合成孔径雷达(SAR)数据,利用短基线集干涉测量(SBAS-InSAR)技术获取地表形变场;然后,综合地质灾害、社会经济、地形地貌、气象等多源信息,构建“风险源-承灾体”风险评估指标体系;最后,采用级差最大化组合法对层次分析法(AHP)与熵权法(EWM)进行主客观组合赋权,并引入对称交互熵(SCE)多属性决策模型构建风险评估方法。结果表明:研究区1 095个村居中存在163个高风险村居,主要集中分布于章丘区与莱芜区;地表最大沉降速率、地质灾害点数量和常住人口数量是影响研究区地质灾害风险的3个主要因子。针对高风险村居,建议优先加强露天矿山安全生产监管、自建房隐患排查整治、山体修复、内涝防治及地质灾害监测预警。

关键词: 对称交互熵(SCE), 地质灾害, 风险评估, 级差最大化组合赋权, 地面沉降

Abstract:

To accurately identify the distribution of geological disaster risk in the 2 630 km2 hilly and mountainous areas of southern Jinan City and to support refined regional disaster prevention and mitigation, a multi-source-data-integrated assessment method at the village and community was proposed. First, surface deformation field was obtained from L-band Synthetic Aperture Radar (SAR) data acquired by the domestic Lutan-1 satellite using the Small Baseline Subset Interferometric Synthetic Aperture Radar (SBAS-InSAR) technique. Then an assessment index system of “hazard source-exposed elements” was constructed by integrating multi-source information, including geological hazards, socio-economic data, topography, and meteorological factors. Finally, the level difference maximization combination method was employed to integrate the Analytic Hierarchy Process (AHP) and the Entropy Weight Method(EWM) for determining subjective and objective combination weights. Subsequently, a risk assessment model was constructed by introducing SCE multi-attribute decision-making model. The results show that 163 high-risk villages and communities are identified among the 1095 villages and communities in the study area, primarily concentrated in Zhangqiu District and Laiwu District. The maximum surface subsidence rate, the number of geological hazard sites, and the resident population are the three main factors affecting geological disaster risk in the study area. For high-risk villages and communities, priority should be given to strengthen safety-production supervision of open-pit mines, hazard inspection and rectification for self-built houses, hillside restoration, waterlogging prevention and control, and geological disaster monitoring and early warning.

Key words: symmetric cross entropy(SCE), geological disaster, safety risk assessment, level difference maximization combined weighting, ground subsidence

中图分类号:
