台风特征参数对灾害链概率计算的影响分析*

doi:10.16265/j.cnki.issn1003-3033.2022.08.0852

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (8): 168-175.doi: 10.16265/j.cnki.issn1003-3033.2022.08.0852

台风特征参数对灾害链概率计算的影响分析*

余强¹(), 黄逸橙², 沙策³

¹ 浙江安防职业技术学院办公室,浙江温州 325035
² 浙江安防职业技术学院发展规划处, 浙江温州 325035
³ 浙江安防职业技术学院应急技术学院,浙江温州 325035

收稿日期:2022-02-27 修回日期:2022-06-16 出版日期:2022-09-05 发布日期:2023-02-28
作者简介:
余强 (1983—),男,湖北黄冈人,硕士,助理研究员,主要从事高等教育、灾害预防理论建模、路线选择以及应急管理等方面的研究。E-mail: yuqiang_02@163.com。
黄逸橙,助理研究员。
沙策,讲师。

Influence analysis on typhoon characteristic parameters on probability calculation of disaster chain

YU Qiang¹(), HUANG Yicheng², SHA Ce³

¹ College Office, Zhejiang College of Security Technology, Wenzhou Zhejiang 325035, China
² Development Planning Office, Zhejiang College of Security Technology, Wenzhou Zhejiang 325035, China
³ School of Emergency Technology, Zhejiang College of Security Technology, Wenzhou Zhejiang 325035, China

Received:2022-02-27 Revised:2022-06-16 Online:2022-09-05 Published:2023-02-28

摘要/Abstract

摘要：

为精准预测台风特征参数对灾害链内各灾害的影响概率,从台风灾害链的构建入手,运用非平衡样本处理算法,结合事故树理论,构建台风灾害链概率计算模型,采用深度学习算法对不同灾害之间的影响进行加权,利用关系矩阵得出不同灾害之间的影响概率,并由计算模型得出具体灾害出现的概率。结果表明:台风特征参数的变化会带来灾害链中原生灾害以及次生灾害计算概率值的变化;台风风力等级越高,对原生灾害概率的影响往往越大于对次级灾害概率的影响;台风轨迹变化主要影响灾害出现的种类,计算结果显示,台风路径越朝向内陆地区则灾害出现的种类就越多;台风叠加数量的增多会显著增加模型计算灾害概率的迭代步数。

关键词: 台风特征参数, 灾害链, 概率计算, 原生灾害, 次生灾害

Abstract:

In order to accurately predict impact probability of typhoon characteristic parameters on each disaster in the disaster chain, a probability calculation model of the chain was constructed by using unbalanced sample processing algorithm and accident tree theory. Then, impact between different disasters was weighted, and impact probability between them was obtained by utilizing relationship matrix. Finally, occurrence probability of specific disasters was derived based on calculation model. The results show that changes in typhoon characteristic parameters will lead to changes in calculated probability of primary and secondary disasters in the chain. The higher the wind scale of typhoon is, the greater impact on primary disaster probability will be than on that of secondary ones. Moreover, changes of typhoon track mainly affect types of disasters, and according calculation results, the more typhoon track faces inland area, the more kinds of disasters will appear. The increase in number of typhoons will significantly increase the model's iteration steps to calculate disaster probability

Key words: typhoon characteristic parameter, disaster chain, probability calculation, primary disaster, secondary disaster

余强, 黄逸橙, 沙策. 台风特征参数对灾害链概率计算的影响分析*[J]. 中国安全科学学报, 2022, 32(8): 168-175.

YU Qiang, HUANG Yicheng, SHA Ce. Influence analysis on typhoon characteristic parameters on probability calculation of disaster chain[J]. China Safety Science Journal, 2022, 32(8): 168-175.

图/表 8

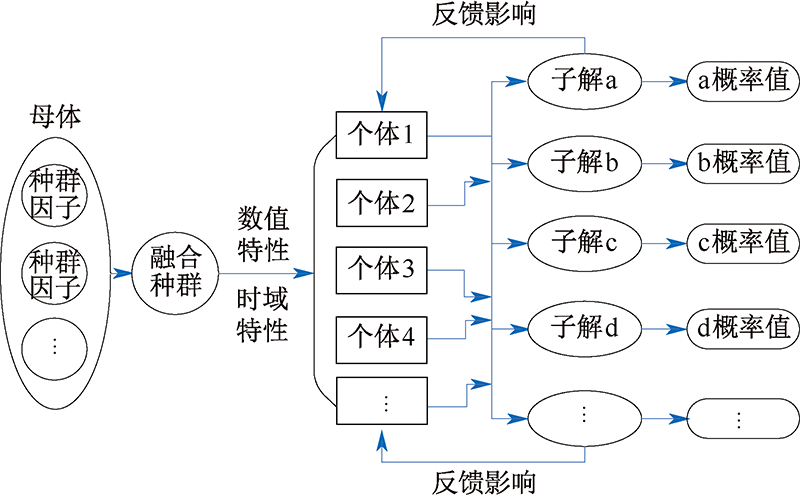

图1

图2

表1

图3

图4

图5

图6

图7

参考文献 17

[1]	郭增建, 秦保燕. 灾害物理学简论[J]. 灾害学, 1987(2):25-33.
	GUO Zengjian, QIN Baoyan. Brief discussion on disaster physics[J]. Journal of Catastrophology, 1987(2):25-33.
[2]	陈联寿, 孟智勇. 我国热带气旋研究十年进展[J]. 大气科学, 2001, 25(3):420-431.
	CHEN Lianshou, MENG Zhiyong. An overview on tropical cyclone research progress in China during the past ten years[J]. Chinese Journal of Atmospheric Sciences, 2001, 25(3):420-431.
[3]	丁燕, 史培军. 台风灾害的模糊风险评估模型[J]. 自然灾害学报, 2002, 11(1):34-43.
	DING Yan, SHI Peijun. Fuzzy risk assessment of typhoon hazard[J]. Journal of Natural Disasters, 2002, 11(1):34-43.
[4]	李英, 陈联寿, 张胜军. 登陆我国热带气旋的统计特征[J]. 热带气象学报, 2004, 20(1):14-23.
	LI Ying, CHEN Lianshou, ZHANG Shengjun. Statistical characteristics of tropical cyclone making landfalls on China[J]. Journal of Tropical Meteorology, 2004, 20(1):14-23.
[5]	龚晓峰. 台风灾害链分析及其对城市生命线系统脆弱性影响的研究[D]. 重庆: 重庆大学, 2020.
	GONG Xiaofeng. Study on disaster chain of typhoon and its impact on urban lifeline system vulnerability[D]. Chongqing: Chongqing University, 2020.
[6]	吴文菁, 陈佳颖, 叶润宇, 等. 台风灾害下海岸带城市社会-生态系统脆弱性评估:大数据视角[J]. 生态学报, 2019, 39(19):7079-7086.
	WU Wenjing, CHEN Jiaying, YE Runyu, et al. Vulnerability assessment of urban socio-ecological systems in coastal zones under the influence of typhoons: big data perspective[J]. Acta Ecologica Sinica, 2019, 39(19):7079-7086.
[7]	韦聪, 鲍献文, 丁扬, 等. "纳沙"台风引起北部湾沿岸风暴射流及其机制[J]. 中国海洋大学学报:自然科学版, 2022, 52(3):28-39.
	WEI Cong, BAO Xianwen, DING Yang, et al. Mechanism of typhoon-driven storm jet driven by typhoon Nesat in the gulf of beibu[J]. Periodical of Ocean University of China, 2022, 52(3):28-39.
[8]	陈涛, 董林, 罗玲, 等. 台风利奇马登陆期间的对流结构特征及对强降雨影响[J]. 气象, 2021, 47(12):1433-1443.
	CHEN Tao, DONG Lin, LUO Ling, et al. Convection structure and impact on severe precipitation during landing of typhoon lekima[J]. Meteorological Monthly, 2021, 47(12):1433-1443.
[9]	叶金玉. 基于多维矩阵的台风灾害链综合风险评估模型及其信息图谱表达[D]. 福州: 福建师范大学, 2015.
	YE Jinyu. Typhoon disaster chains integrated risk assessment model and information tupu based on multi-dimensional matrix[D]. Fuzhou: Fujian Normal University, 2015.
[10]	王然, 连芳, 余瀚, 等. 基于孕灾环境的全球台风灾害链分类与区域特征分析[J]. 地理研究, 2016, 35(5):836-850. doi: 10.11821/dlyj201605003
	WANG Ran, LIAN Fang, YU Han, et al. Classification and regional features analysis of global typhoon disaster chains based on hazard-formative environment[J]. Geographical Research, 2016, 35(5):836-850. doi: 10.11821/dlyj201605003
[11]	贾梦姝, 张宇, 潘婷婷, 等. 面向互联网信息抽取的海洋环境灾害链本体构建:以台风灾害为例[J]. 地球信息科学学报, 2020, 22(12):2289-2303. doi: 10.12082/dqxxkx.2020.190765
	JIA Mengshu, ZHANG Yu, PAN Tingting, et al. Ontology modeling of marine environmental disaster chain for Internet information extraction: a case study on typhoon disaster[J]. Journal of Geo-Information Science, 2020, 22(12):2289-2303.
[12]	夏宇, 张涵斌, 陈静, 等. 地形高度依赖水平局地化尺度方案在台风数值模拟中的应用试验[J]. 大气科学学报, 2022, 45(2):257-267.
	XIA Yu, ZHANG Hanbin, CHEN Jing, et al. Application experiment of ensemble variational hybrid data assimilation method with topography height dependent horizontal localization scale scheme in typhoons[J]. Transactions of Atmospheric Sciences, 2022, 45(2):257-267.
[13]	WANG Zekai, DING Tao, JIA Wenhao, et al. Muti-stage stochastic programming for resilient integrated electricity and natural gas distribution systems against typhoon natural disaster attacks[J]. Renewable and Sustainable Energy Reviews, 2022, 159:254-266.
[14]	MA Shanshan, CHEN Bokan, WANG Zhaoyu. Resilience enhancement strategy for distribution system under extreme weather events[J]. IEEE Transactions on Smart Grid, 2018, 9(2):1422-1451.
[15]	CHEN Bo, XU Zhixin, YA Hanzheng, et al. Impact of the water input from the eastern Qiongzhou Strait to the Beibu Gulf on Guangxi coastal circulation[J]. Acta Oceanologica Sinnica, 2019, 38(9):1-11.
[16]	郝婧, 刘强. 基于SSA-ELM模型的台风风暴潮灾害损失预评估[J]. 海洋科学, 2022, 46(2):55-63.
	HAO Jing, LIU Qiang. Pre-assessment of typhoon storm surge disaster loss based on the SSA-ELM model[J]. Marine Sciences, 2022, 46(2):55-63.
[17]	杨舒楠, 曹勇, 陈涛, 等. 台风苏迪罗登陆次日分散性暴雨成因及预报着眼点[J]. 气象, 2019, 45(1):38-49.
	YANG Shu'nan, CAO Yong, CHEN Tao, et al. Causes and focus points of forecasting the scattered rainstorm of typhoon Soudelor on day 2 after landing[J]. Meterological Monthly, 2019, 45(1):38-49.

模型参数名称	参数意义	参数初始化值
台风风力	登陆时的风力值(级别)	1~20
台风路径	台风风向与内陆深入方向之间的切角	0~90°
台风数量	登陆时台风数量	1~5
