CA model considering environmental familiarity and evacuation strategy

doi:10.16265/j.cnki.issn1003-3033.2022.09.1735

Abstract

Abstract:

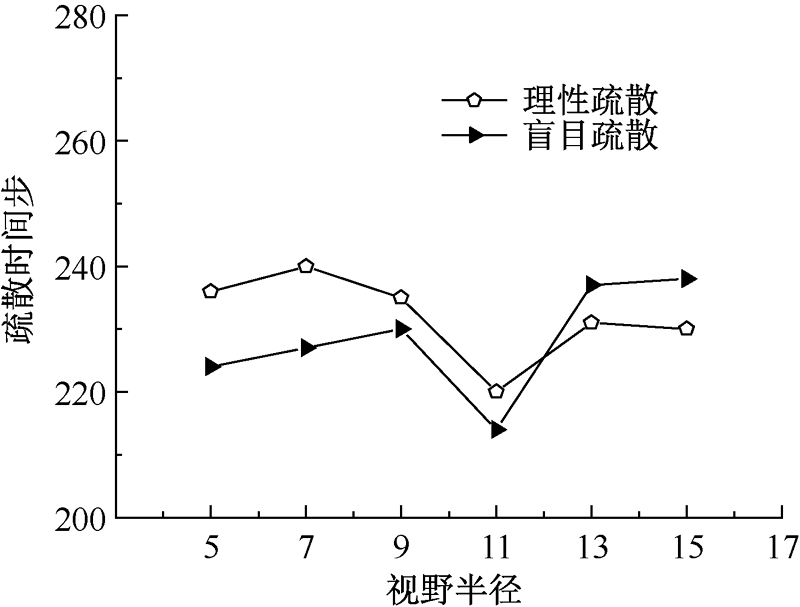

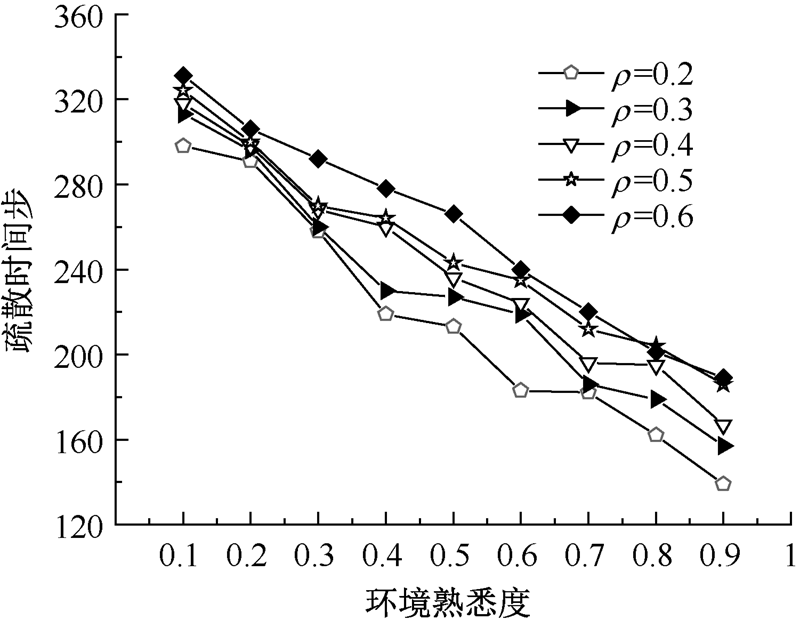

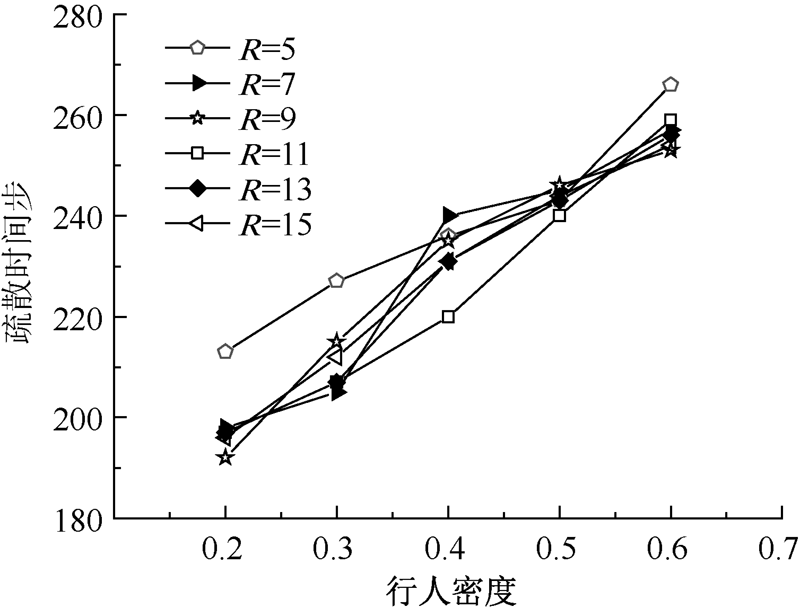

In order to clarify the influence of environmental familiarity and evacuation strategy on pedestrian evacuation process, CA model considering environmental familiarity and evacuation strategy was established by introducing pedestrian transformation rules into the static field model. The model divides pedestrians into familiar environment and unfamiliar environment, and considers the influence of environmental familiarity on evacuation process. Then, two evacuation strategies and pedestrian transformation rules are simulated to discuss the effects of blind evacuation, rational evacuation and changing the probability of pedestrian transformation on evacuation under different visibility. The results show that environmental familiarity affects evacuation efficiency, and environmental familiarity is proportional to evacuation efficiency. When the pedestrian density is small, the visibility has a great influence, the best visibility is 11(4.4 m). If the visibility is greater than 11(4.4 m), rational evacuation should be selected. If the environmental familiarity is constant, the increase of conversion probability will reduce the evacuation time, and the optimal conversion parameter is 0.01.

Key words: environmental familiarity, evacuation strategy, pedestrian transformation rule, cellular automata(CA), pedestrian evacuation

HUO Feizhou, LI Ying, MA Yaping, TU Wenhao, LIU Chang, YAN Yan. CA model considering environmental familiarity and evacuation strategy[J]. China Safety Science Journal, 2022, 32(9): 94-99.

Figures/Tables 7

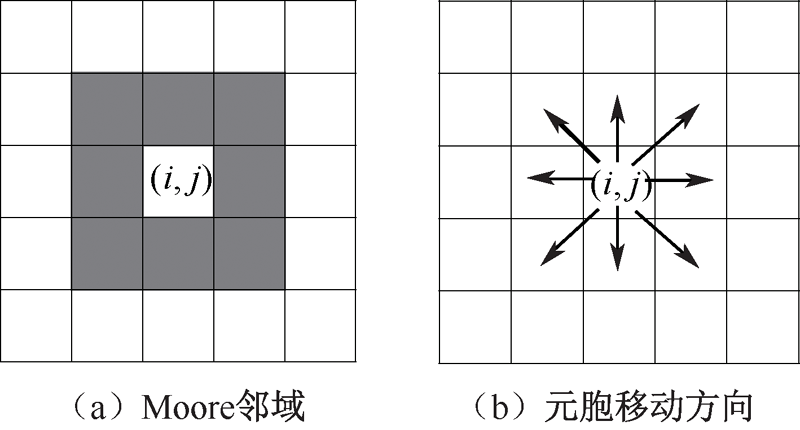

Fig.1

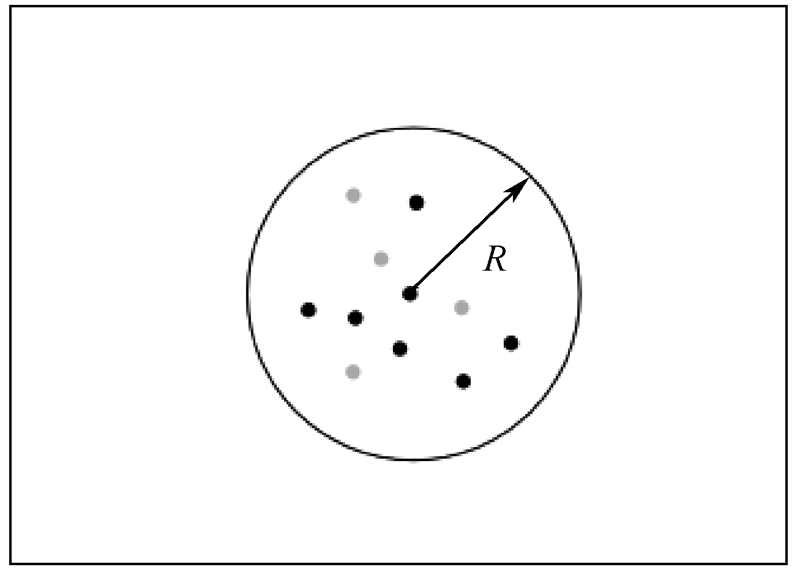

Fig.2

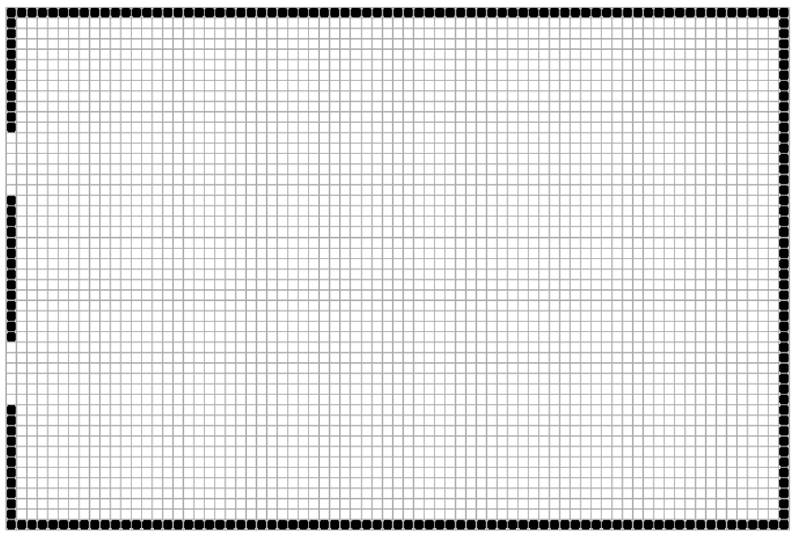

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

References 13

[1]	HELBING D, MOLNÁR P. Social force model for pedestrian dynamics[J]. Physical Review. E, 1995, 51(5):4282-4286. pmid: 9963139
[2]	VARAS A, CORNEJO M D, MAINEMER D, et al. Cellular automaton model for evacuation process with obstacles[J]. Physica A: Statistical Mechanics and its Applications, 2007, 382(2): 631-642. doi: 10.1016/j.physa.2007.04.006
[3]	王宗直, 路堃, 陈涛, 等. 基于格子气模型的北京地铁站内人流移动分析[J]. 中国安全生产科学技术, 2018, 14(5):31-35.
	WANG Zongzhi, LU Kun, CHEN Tao, et al. Analysis on pedestrian flow movement in a subway station of Beijing based on lattice gas model[J]. Journal of Safety Science and Technology, 2018, 14(5):31-35.
[4]	夏子潮, 王京齐, 李营. 基于高离散度表现排斥和摩擦作用的人员疏散模型[J]. 消防科学与技术, 2018, 37(6):764-767.
	XIA Zichao, WANG Jingqi, LI Ying. Evacuation model based on high dispersion for performance of repulsion and friction[J]. Fire Science and Technology, 2018, 37(6):764-767.
[5]	高凤强, 颜逾越, 许策, 等. 一种考虑引导作用的行人疏散元胞自动机模型[J]. 交通运输系统工程与信息, 2016, 16(6):60-66.
	GAO Fengqiang, YAN Yuyue, XU Ce, et al. A new cellular automata model for pedestrian evacuation considering guiding effects[J]. Journal of Transportation Systems Engineering and Information Technology, 2016, 16(6):60-66.
[6]	宋英华, 涂文豪, 霍非舟, 等. 考虑跨越障碍物行为的元胞自动机模型[J]. 中国安全科学学报, 2020, 30(4):74-79. doi: 10.16265/j.cnki.issn1003-3033.2020.04.012
	SONG Yinghua, TU Wenhao, HUO Feizhou, et al. Cellular automation model of pedestrian evacuation considering obstacle crossing behaviors[J]. China Safety Science Journal, 2020, 30(4):74-79. doi: 10.16265/j.cnki.issn1003-3033.2020.04.012
[7]	LI Zhihong, XU Wangtu. Pedestrian evacuation within limited-space buildings based on different exit design scheme[J]. Safety Science, 2020,124:DOI: 10.1016/j.ssci.2019.104575. doi: 10.1016/j.ssci.2019.104575
[8]	杨灿, 陈群, 陈璐. 考虑在能见度受限下行人跟随行为特性的建模与模拟[J]. 物理学报, 2019, 68(24): 87-101.
	YANG Can, CHEN Qun, CHEN Lu. Modeling and simulation of following behaviors of pedestrians under limited visibilitys[J]. Acta Physica Sinica, 2019, 68(24):87-101.
[9]	陈海涛, 张立红, 杨鹏, 等. 视野受限时行人疏散模型分析与仿真研究[J]. 复杂系统与复杂性科学, 2014, 11(3):19-25.
	CHEN Haitao, ZHANG Lihong, YANG Peng, et al. Studies on Pedestrian evacuation model and simulation for limited visibility[J]. Complex Systems and Complexity Science, 2014, 11(3): 19-25.
[10]	宋英华, 涂文豪, 霍非舟, 等. 考虑环境熟悉度与引导的人员疏散元胞自动机模型研究[J]. 中国安全生产科学技术, 2020, 16(12):56-60.
	SONG Yinghua, TU Wenhao, HUO Feizhou, et al. Study on cellular automata model of pedestrian evacuation considering environmental familiarity and guidance[J]. Journal of Safety Science and Technology, 2020, 16(12):56-60.
[11]	李阳, 陈建忠, 张倩, 等. 考虑环境熟悉度的行人疏散模型研究[J]. 中国安全科学学报, 2016, 26(4):168-174.
	LI Yang, CHEN Jianzhong, ZHANG Qian, et al. Study of pedestrian evacuation model considering familiarity with environment[J]. China Safety Science Journal, 2016, 26(4):168-174.
[12]	郭海湘, 曾杨, 陈卫明. 基于社会力模型的多出口室内应急疏散仿真研究[J]. 系统仿真学报, 2021, 33(3):721-731. doi: 10.16182/j.issn1004731x.joss.19-0611
	GUO Haixiang, ZENG Yang, CHEN Weiming. Research on indoor emergency evacuation simulation of multi-exit based on social force model[J]. Journal of System Simulation, 2021, 33(3):721-731. doi: 10.16182/j.issn1004731x.joss.19-0611
[13]	叶俊, 韩雪峰, 王梦琳, 等. 高层建筑火灾初期人员疏散策略的优化分析[J]. 安全与环境学报, 2015, 15(5):179-183.
	YE Jun, HAN Xuefeng, WANG Menglin, et al. Analysis of the optimized strategies for prompt evacuation during the early stage of high-rise building fires[J]. Journal of Safety and Environment, 2015, 15(5):179-183.
