Safety evaluation of metro station construction in confined space under 500 kV high-voltage lines

doi:10.16265/j.cnki.issn1003-3033.2025.04.1008

Abstract

Abstract:

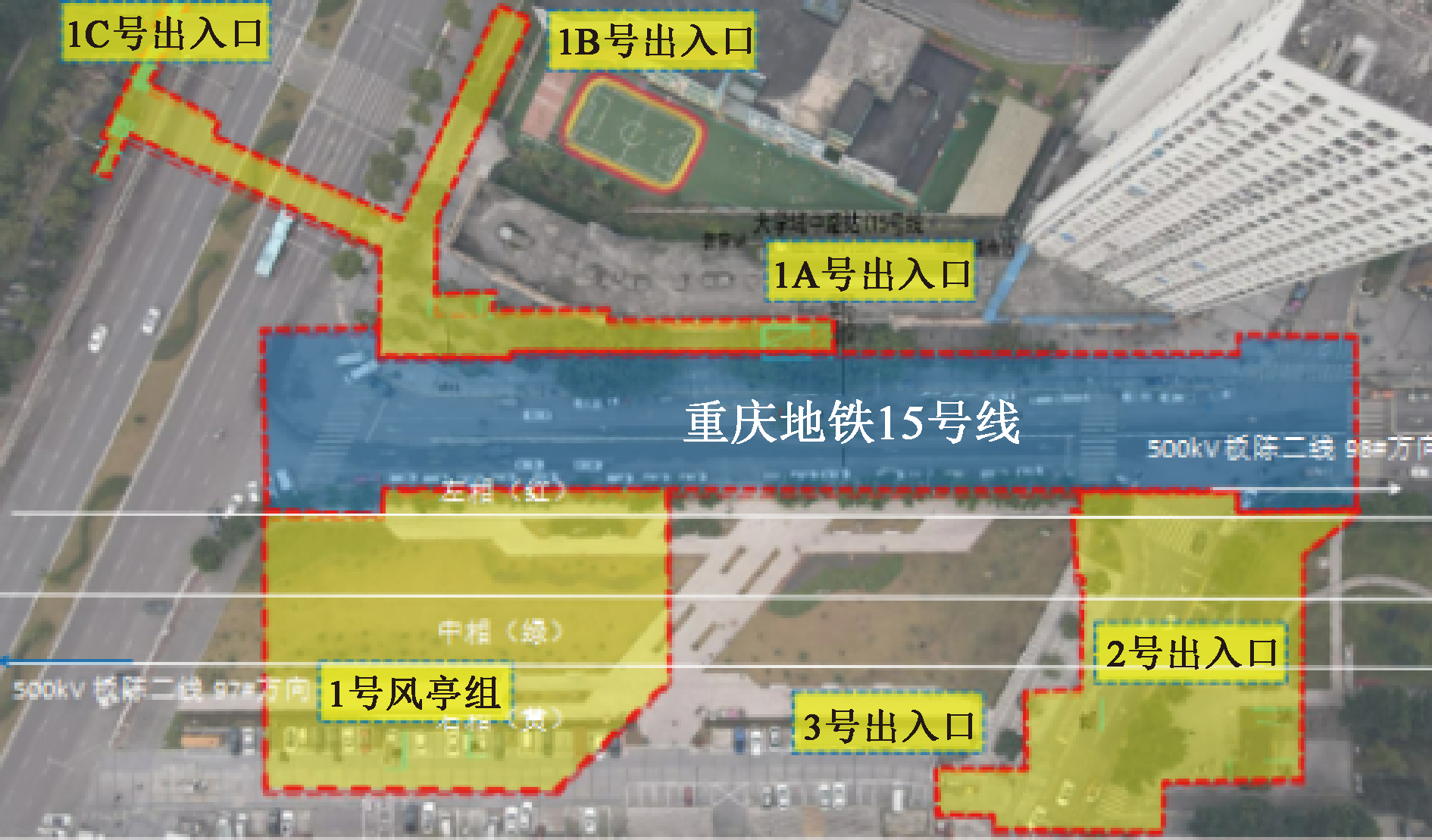

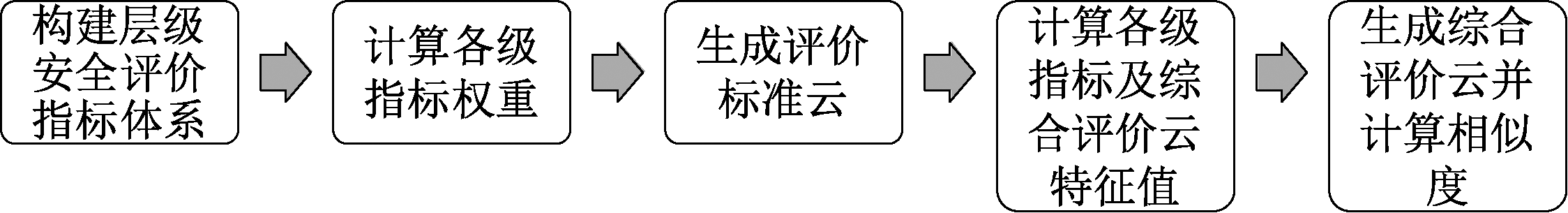

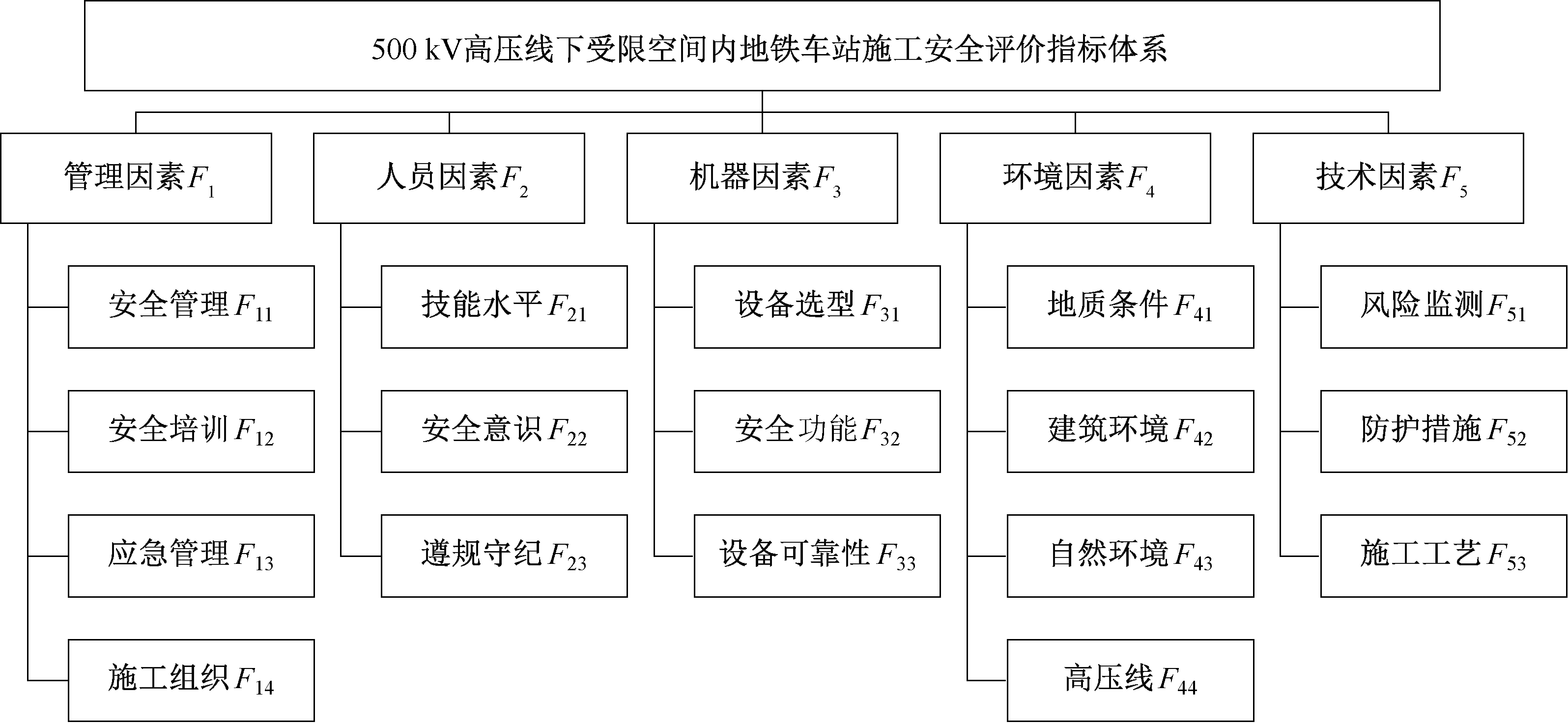

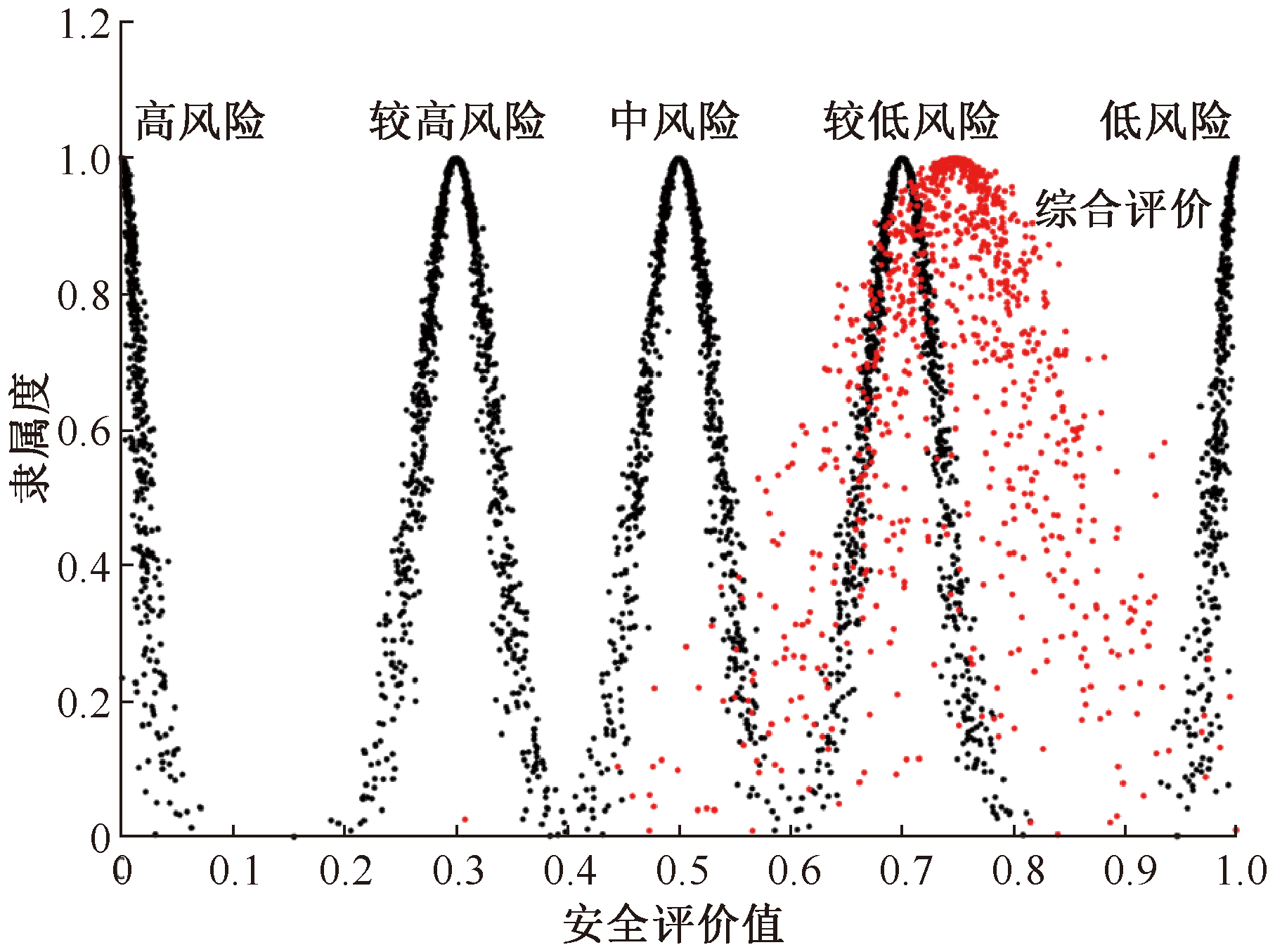

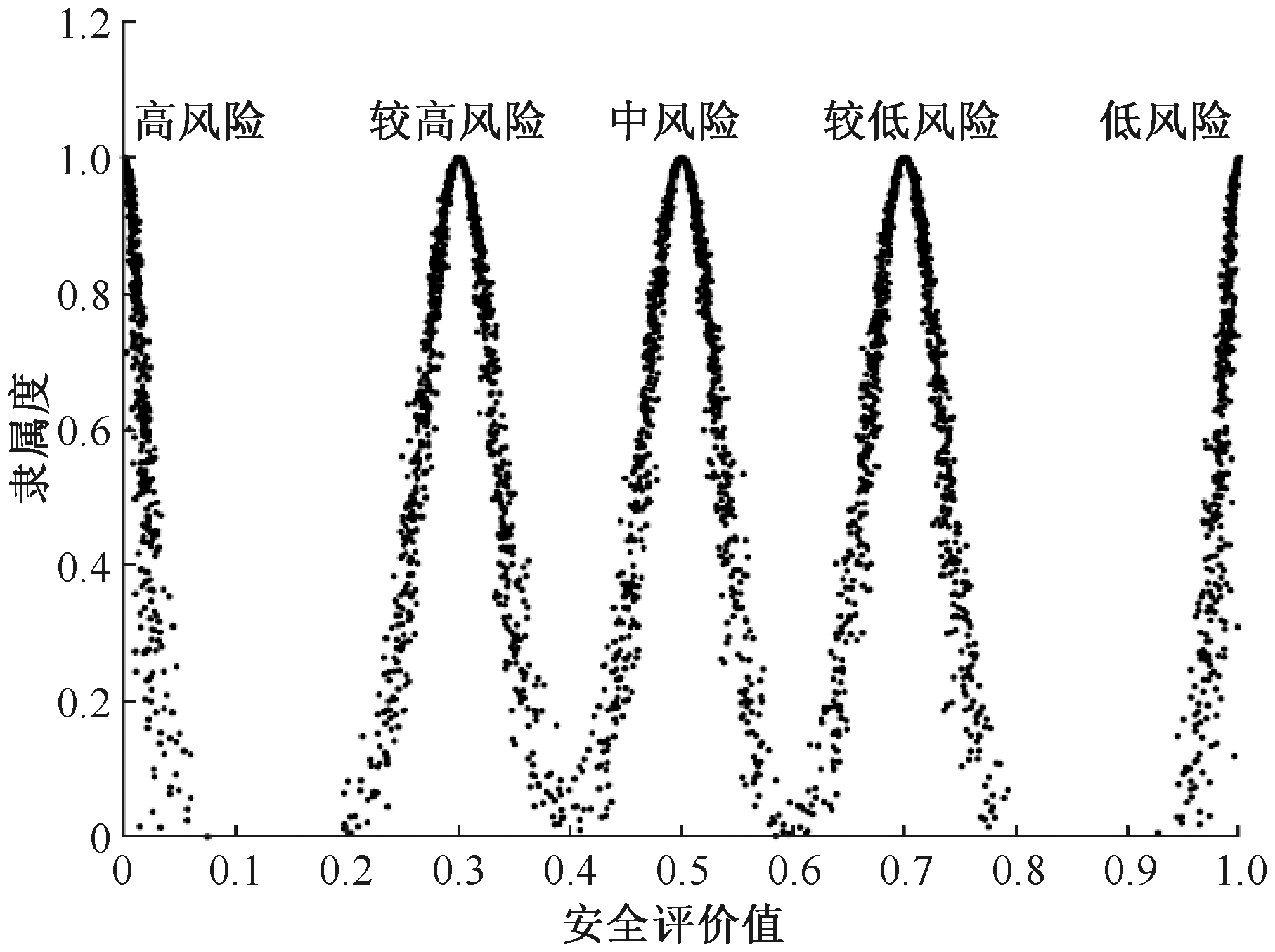

In order to effectively identify construction risks and prevent safety accidents, this study investigated the safety evaluation method for metro station construction in confined space under 500 kV high-voltage lines. First, a safety evaluation index system for metro station construction under high-voltage lines was established by integrating AHP and 3MET(Management,Man,Machine,Environment,Technology) method. Then, the weights of indicators were calculated using the IOWA operator, and the cloud model was applied to determine evaluation standard clouds and cloud characteristic values, thereby deriving the comprehensive safety evaluation grade. Finally, the proposed method was validated through a case of the University Town Central Road Station on Chongqing Metro Line 15, with corresponding mitigation measures proposed for high-risk indicators. The results demonstrate that the evaluation model accurately identifies high-risk sources in metro station construction under high-voltage lines, with the safety evaluation grade classified as lower risk, consistent with on-site conditions. Key considerations for safety measures include the electromagnetic field effects of high-voltage lines, risk monitoring and protection, mechanical equipment selection and its safety functions. The application of multi-dimensional layered protective structures could effectively mitigate construction risks under high-voltage environments.

Key words: 500 kV high-voltage lines, confined space, metro station, construction safety evaluation, cloud model, induced ordered weighted average (IOWA) operator, analytic hierarchy process (AHP)

CLC Number:

X948

LI Yanjun, XIA Huahua, YAN Hongshuai, LIU Kewei, SONG Ruitao. Safety evaluation of metro station construction in confined space under 500 kV high-voltage lines[J]. China Safety Science Journal, 2025, 35(4): 204-210.

Figures/Tables 8

Fig.1

Fig.2

Fig.3

Table 1

Fig.4

Fig.5

Table 2

Fig.6

References 13

[1]	张栋, 庄其建, 赖理文. 基于AHP和熵权法的地铁车站深基坑施工安全评价[J]. 现代交通技术, 2016, 13(3): 80-85.
	ZHANG Dong, ZHUANG Qijian, LAI Liwen. Safety evaluation for deep foundation pit construction in metro station based on AHP-entropy method[J]. Modern Transportation Technology, 2016, 13(3): 80-85.
[2]	张振中. 基于改进AHP-熵值法的地铁车站深基坑施工风险评估[J]. 现代隧道技术, 2022, 59(增2): 13-21.
	ZHANG Zhenzhong. Risk assessment of deep foundation pit construction in metro stations based on improved AHP and entropy value algorithm[J]. Modern Tunnelling Technology, 2022, 59 (S2): 13-21.
[3]	陈楠. 基于IOWA算子的地铁车站深基坑施工安全综合评价[J]. 隧道建设:中英文, 2020, 40(2): 202-208.
	CHEN Nan. Comprehensive evaluation of construction safety of deep foundation pit of metro station based on IOWA operator[J]. Tunnel Construction, 2020, 40(2): 202-208.
[4]	姚睿, 姚博, 黄聿恒, 等. 110 kV高压电缆下方地下连续墙工程施工关键技术研究:以杭州地铁7号线江东三路停车场Ⅰ标段为例[J]. 中国建材科技, 2021, 30(5): 168-170.
	YAO Rui, YAO Bo, HUANG Yuheng, et al. Research on key construction techniques of diaphragm wall underneath 110 kV high voltage cable:taking section Ⅰ of Jiangdong 3rd road parking lot of Hangzhou metro line 7 as an example[J]. China Building Materials Science & Technology, 2021, 30(5): 168-170.
[5]	李晓亮. 220 kV高压线下地铁车站施工技术及安全性控制分析[J]. 北方建筑, 2023, 8(4): 73-76.
	LI Xiaoliang. Analysis on construction technology and safety control of subway stations under 220 kV high voltage line[J]. Northern Architecture, 2023, 8(4): 73-76.
[6]	晋云雷. 既有220 kV高压线下地铁车站深基坑施工技术研究[J]. 低碳世界, 2022, 12(5): 163-165.
[7]	包世波, 杜明阳, 魏传光. 基于500 kV超高压线受限空间地铁明挖车站施工关键技术及风险控制[J]. 建筑机械, 2024(5):127-130, 136.
	BAO Shibo, DU Mingyang, WEI Chuanguang. Key technologies and risk control for the construction of open cut subway stations in confined space based on 500 kV ultra-high voltage lines[J]. Construction Machinery, 2024(5):127-130, 136.
[8]	宋博. DEA-BP神经网络下地铁车站深基坑施工安全评价[J]. 中国安全科学学报, 2019, 29(5): 91-96. doi: 10.16265/j.cnki.issn1003-3033.2019.05.016
	SONG Bo. Safety evaluation for deep foundation pit construction in metro station based on DEA-BP neural network[J]. China Safety Science Journal, 2019, 29(5): 91-96. doi: 10.16265/j.cnki.issn1003-3033.2019.05.016
[9]	刘健, 刘思峰. 属性值为区间数的多属性决策对象排序研究[J]. 中国管理科学, 2010, 18(3): 90-94.
	LIU Jian, LIU Sifeng. Research on the ranking of multiple decision object for attribute value within interval numbers[J]. Chinese Journal of Management Science, 2010, 18 (3): 90-94.
[10]	郭茜. 基于云模型的京津冀物流一体化指标权重研究[J]. 云南财经大学学报, 2018, 34(6): 96-104.
	GUO Qian. Research on the index weight of logistics integration in Beijing-Tianjin-Hebei region based on cloud models[J]. Journal of Yunnan University of Finance and Economics, 2018, 34(6): 96-104.
[11]	罗振华, 郭俊涛, 韩建强. 基于云模型的装配式地铁车站施工安全风险评价[J]. 中国安全科学学报, 2023, 33(6): 88-95. doi: 10.16265/j.cnki.issn1003-3033.2023.06.0860
	LUO Zhenhua, GUO Juntao, HAN Jianqiang. Construction safety risk assessment of prefabricated subway station based on cloud model[J]. China Safety Science Journal, 2023, 33(6): 88-95. doi: 10.16265/j.cnki.issn1003-3033.2023.06.0860
[12]	李长明, 赵开功, 张晓蕾, 等. 煤矿智能化项目风险评价云模型及其应用[J]. 中国安全科学学报, 2024, 34(5):168-174. doi: 10.16265/j.cnki.issn1003-3033.2024.05.1680
	LI Changming, ZHAO Kaigong, ZHANG Xiaolei, et al. Cloud model for risk evaluation of coal mine intelligent projects and its application[J]. China Safety Science Journal, 2024, 34(5): 168-174. doi: 10.16265/j.cnki.issn1003-3033.2024.05.1680
[13]	GB 50545—2010, 110 kV-750 kV架空输电线路设计规范[S].
	GB 50545-2010, Code for design of 110 kV-750 kV overhead transmission line[S].

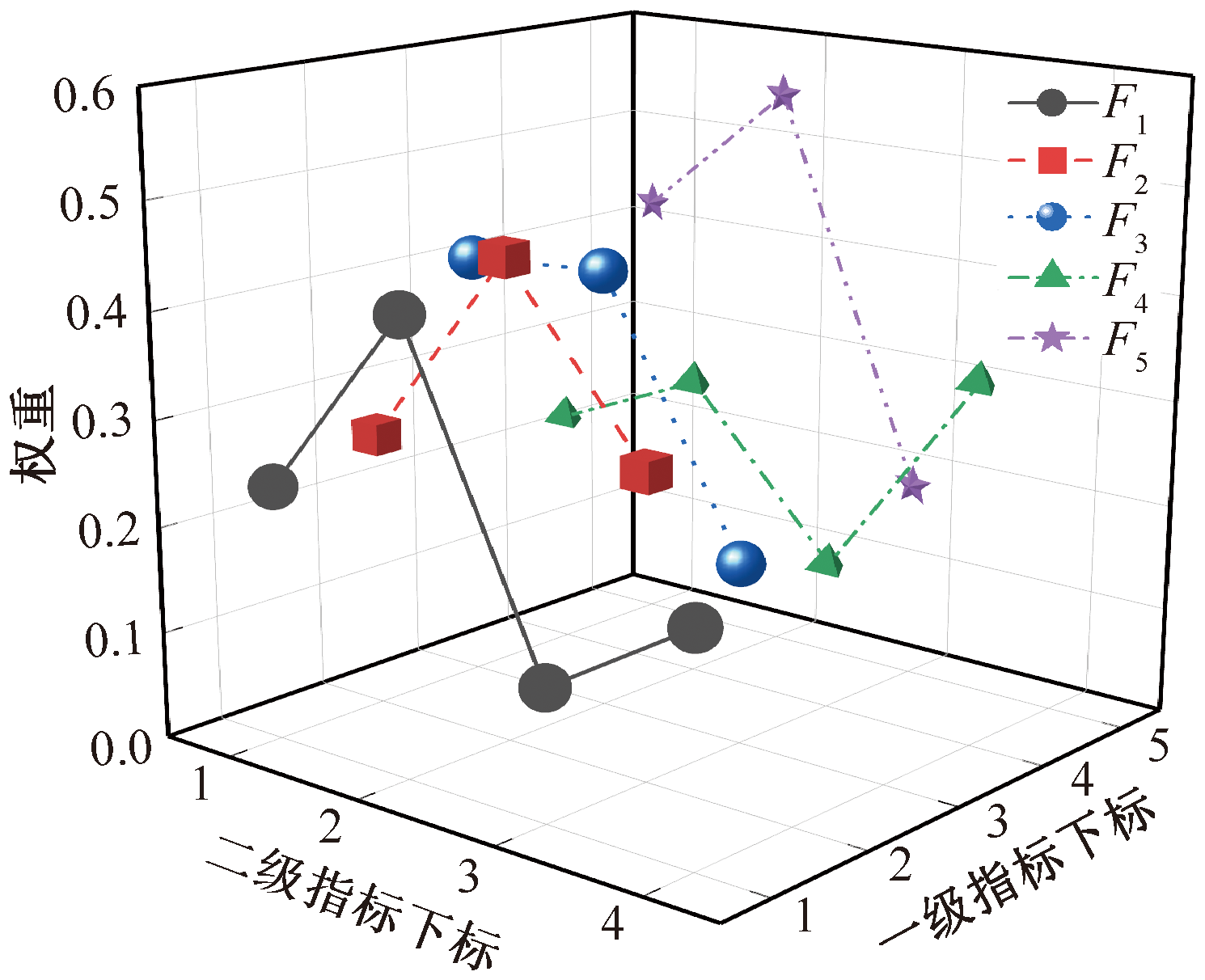

二级指标	专家1	专家2	专家3	专家4	专家5	E_x	E_n	H_e	权重
F₁₁	[0.7,0.8]	[0.7,0.74]	[0.72,0.76]	[0.62,0.7]	[0.7,0.9]	0.734	0.044 1	0.025 2	0.240
F₁₂	[0.6,0.7]	[0.6,0.66]	[0.63,0.69]	[0.64,0.7]	[0.6,0.8]	0.664	0.026 1	0.007 1	0.423
F₁₃	[0.5,0.7]	[0.55,0.61]	[0.5,0.7]	[0.54,0.6]	[0.6,0.8]	0.612	0.044 1	0.024 0	0.124
F₁₄	[0.7,0.8]	[0.75,0.79]	[0.6,0.8]	[0.7,0.8]	[0.8,1.0]	0.774	0.063 2	0.040 5	0.213
F₂₁	[0.6,0.7]	[0.7,0.72]	[0.6,0.66]	[0.6,0.8]	[0.7,0.9]	0.698	0.058 2	0.031 4	0.262
F₂₂	[0.5,0.6]	[0.6,0.62]	[0.5,0.58]	[0.5,0.7]	[0.6,0.7]	0.590	0.045 1	0.003 8	0.452
F₂₃	[0.6,0.7]	[0.6,0.8]	[0.5,0.7]	[0.5,0.6]	[0.6,0.64]	0.624	0.051 1	0.022 7	0.286
F₃₁	[0.8,0.9]	[0.8,1.0]	[0.86,0.9]	[0.7,0.8]	[0.9,1.0]	0.866	0.066 2	0.033 9	0.409
F₃₂	[0.7,0.9]	[0.9,1.0]	[0.78,0.8]	[0.8,0.9]	[0.8,0.9]	0.848	0.053 1	0.034 6	0.419
F₃₃	[0.7,0.9]	[0.9,1.0]	[0.7,0.8]	[0.8,0.9]	[0.8,1.0]	0.850	0.075 2	0.024 4	0.172
F₄₁	[0.6,0.8]	[0.7,0.9]	[0.6,0.7]	[0.7,0.8]	[0.8,1.0]	0.760	0.090 2	0.033 3	0.228
F₄₂	[0.3,0.5]	[0.4,0.6]	[0.3,0.5]	[0.4,0.5]	[0.5,0.6]	0.460	0.065 2	0.001 6	0.289
F₄₃	[0.5,0.7]	[0.4,0.6]	[0.5,0.7]	[0.6,0.7]	[0.7,0.8]	0.620	0.080 2	0.042 6	0.414
F₄₄	[0.3,0.4]	[0.3,0.5]	[0.2,0.4]	[0.3,0.4]	[0.3,0.5]	0.360	0.040 1	0.011 9	0.342
F₅₁	[0.4,0.6]	[0.5,0.7]	[0.4,0.6]	[0.5,0.7]	[0.7,0.9]	0.600	0.100 3	0.070 3	0.424
F₅₂	[0.6,0.8]	[0.6,0.8]	[0.6,0.7]	[0.5,0.7]	[0.8,0.9]	0.700	0.075 2	0.055 6	0.549
F₅₃	[0.7,0.8]	[0.6,0.8]	[0.7,0.74]	[0.7,0.9]	[0.8,1.0]	0.774	0.076 2	0.023 9	0.189

一级指标	E_x	E_n	H_e	权重
F₁	0.698	0.043 0	0.020 6	0.109
F₂	0.628	0.050 5	0.016 4	0.117
F₃	0.856	0.062 8	0.032 6	0.229
F₄	0.686	0.079 4	0.029 8	0.255
F₅	0.785	0.092 0	0.064 9	0.290
