Analysis of drivers' visual characteristics under different driving conditions in high-density interchange of freeway

doi:10.16265/j.cnki.issn1003-3033.2025.11.1391

Abstract

Abstract:

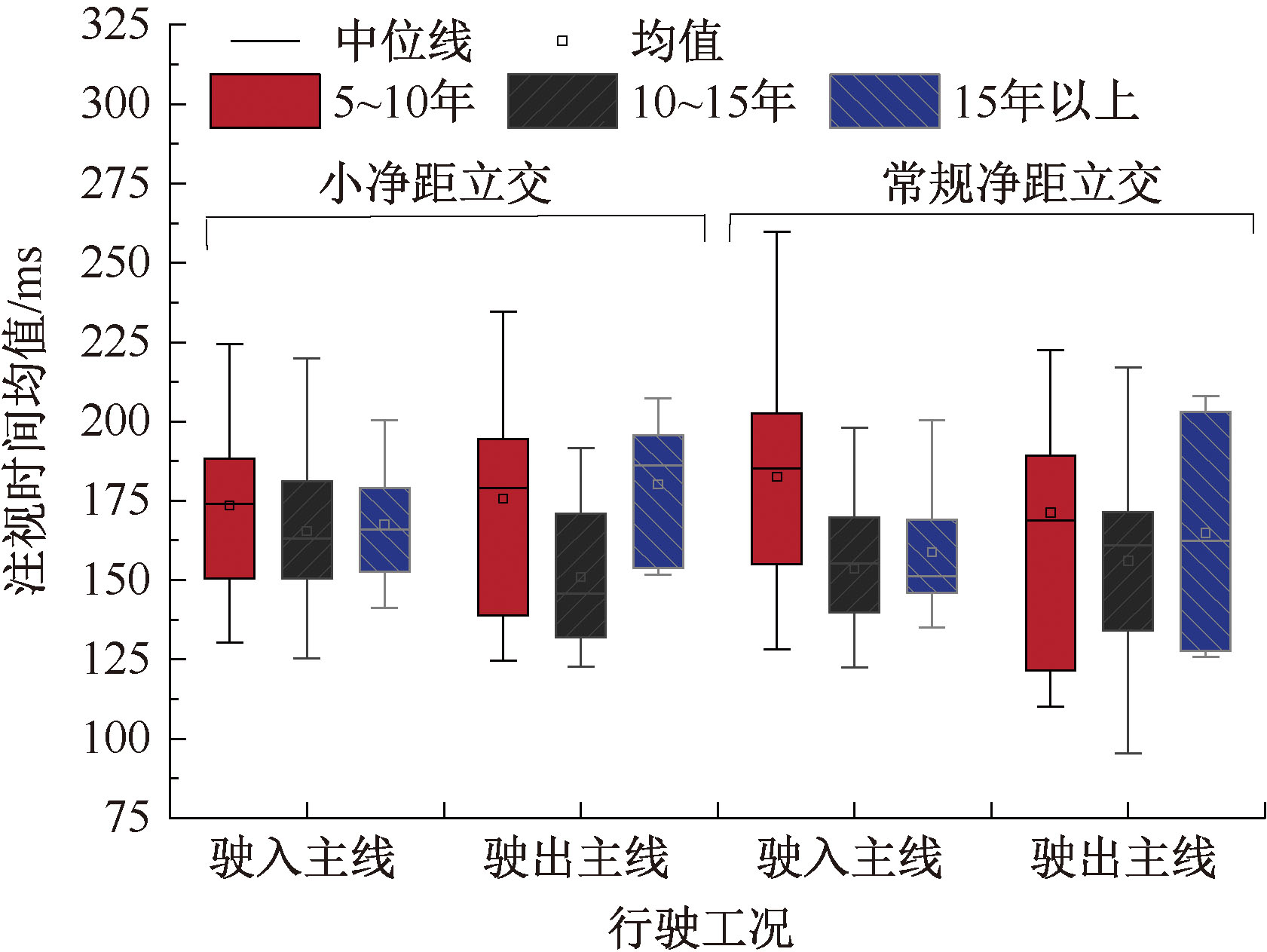

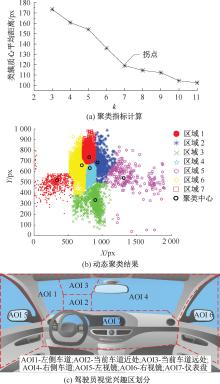

In order to study the influence characteristics of different driving conditions on driving behavior of small-clearance interchanges, eye tracker was used to collect the drivers' eye movement data in the real vehicle experiment. k-medoids dynamic clustering method was used to divide the drivers' visual interest area. A comparative analysis of gaze behavior and saccade characteristics of drivers was conducted of under mainline entry and exit conditions at conventional clear-distance and small-clearance interchanges and across different driving stages. The driving behavior characteristics of drivers under high-density interchange of the expressway were revealed. The results show that drivers mainly focus on the area of road ahead and instrument panel, and they also pay special attention to the area of the left mirror when driving into mainline conditions. The 500 ms gaze time is a common time window for drivers to capture key information. The mean value of the gaze time on small-clearance interchange is higher than that on regular-clearance interchanges. There is a clear bias in observing the horizontal and vertical information in different driving phases. The mean gaze duration was higher in the small-clearance interchanges than in the conventional interchanges. The reduction of clear distance of the interchanges increases drivers' scanning amplitude and changed the scanning direction, which is most obvious in the interweaving section. The scanning amplitude is uniformly distributed in the range of 200 px. There is no significant difference in the mean distribution of fixation time between drivers of different driving ages. There is no significant monotonic relationship between the drivers' gaze duration and scanning speed and amplitude, while there is a significant positive correlation between scanning speed and amplitude of scanning.

Key words: expressway, high density interchange, driving mode, driver, visual characteristic, k-medoids

CLC Number:

X951交通运输安全

YUAN Chunling, HOU Gen, YANG Zimiao, ZHU Xinglin, XU Jin. Analysis of drivers' visual characteristics under different driving conditions in high-density interchange of freeway[J]. China Safety Science Journal, 2025, 35(11): 180-189.

Figures/Tables 12

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Table 1

Table 2

References 19

[1]	易刚, 杨迪, 矫成武, 等. 高密度立交出入口区段车流量对驾驶人精神负荷影响[J]. 科学技术与工程, 2024, 24(3): 1224-1233.
	YI Gang, YANG Di, JIAO Chengwu, et al. Influence of traffic flow in the entrance and exit section of high density interchange on the driver's mental load[J]. Science Technology and Engineering, 2024, 24(3): 1224-1233.
[2]	牟俊龙, 杨迪, 矫成武, 等. 基于心率变异性的高密度立交出入口驾驶人精神负荷特性[J]. 交通信息与安全, 2024, 42(1): 28-40.
	MOU Junlong, YANG Di, JIAO Chengwu, et al. Drivers' mental load characteristics at the entrance and exit of high-density interchanges based on heart rate variability[J]. Journal of Transport Information and Safety, 2024, 42(1): 28-40.
[3]	李之红, 赵莉, 许旺土. 基于眼动实验的右转车辆驾驶员注视行为研究[J]. 重庆交通大学学报:自然科学版, 2018, 37(12): 111-117.
	LI Zhihong, ZHAO Li, XU Wangtu. Driver's graze behavior for right turning vehicle based on eye movement experiment[J]. Journal of Chongqing Jiaotong University:Natural Science, 2018, 37(12): 111-117.
[4]	周扬, 付锐, 刘卓凡. 考虑驾驶人不同分心类型的分心识别研究[J]. 交通运输系统工程与信息, 2022, 22(3): 132-139.
	ZHOU Yang, FU Rui, LIU Zuofan. Distracted driving recognition considering distraction types[J]. Journal of Transportation Systems Engineering and Information Technology, 2022, 22(3): 132-139. doi: 10.16097/j.cnki.1009-6744.2022.03.015
[5]	徐进, 孙子秋, 王思棋, 等. 高密度互通立交出口匝道驾驶人视觉搜索行为特征[J]. 东南大学学报:自然科学版, 2022, 52(6): 1189-1198.
	XU Jin, SUN Ziqiu, WANG Siqi, et al. Characteristics of driver's visual search behavior in exit ramp of high-density interchanges[J]. Journal of Southeast University:Natural Science Edition, 2022, 52(6): 1189-1198.
[6]	白婧荣, 唐伯明, 孙宗元, 等. 毗邻互通立交特长隧道驾驶负荷研究[J]. 交通运输系统工程与信息, 2022, 22(1): 301-310.
	BAI Jingrong, TANG Boming, SUN Zongyuan, et al. On driving load of super-long tunnel adjacent to interchanges[J]. Journal of Transportation Systems Engineering and Information Technology, 2022, 22(1): 301-310. doi: 10.16097/j.cnki.1009-6744.2022.01.032
[7]	汤文蕴, 丁纯璐, 潘义勇, 等. 高速公路连续隧道群驾驶人视觉特性分析[J]. 交通信息与安全, 2022, 40(1): 54-62.
	TANG Wenyun, DING Chunlu, PAN Yiyong, et al. An analysis of visual characteristics of drivers over continuous highway tunnels[J]. Journal of Transport Information and Safety, 2022, 40(1): 54-62.
[8]	HU Xinyun, GABRIEL L. Exploration of the effects of task-related fatigue on eye-motion features and its value in improving driver fatigue-related technology[J]. Transportation Research Part F: Traffic Psychology and Behaviour, 2021, 80: 150-171. doi: 10.1016/j.trf.2021.03.014
[9]	LEE J H, CHOI S Y, KIM S A, et al. The correlation between driving risk and visual attention when using smartphones while driving in novice drivers[J]. Medicine, 2024, 103(48):DOI: 10.1097/MD.0000000000040764.
[10]	GOTARDI G C, BARBIERI F A, SIMAO R O, et al. Parkinson's disease affects gaze behaviour and performance of drivers[J]. Ergonomics, 2022, 65(9): 1302-1311. doi: 10.1080/00140139.2022.2028901
[11]	郑霞忠, 张蒙, 陈云, 等. 基于眼-脑生理指标的大型地下洞室驾驶员疲劳演化特征研究[J]. 安全与环境学报, 2023, 23(10): 3612-3622.
	ZHENG Xiazhong, ZHANG Meng, CHEN Yun. Research on characteristics of drivers' fatigue evolution in large underground caverns based on eye-brain physiological indicators[J]. Journal of Safety and Environment, 2023, 23(10): 3612-3622.
[12]	USMAN S M, KHATTAK A J, CHAKRABORTY S, et al. Detection of distracted driving through the analysis of real-time driver, vehicle, and roadway volatilities[J]. Journal of Transportation Safety & Security, 2024, 16(12): 1426-1447.
[13]	梅家林, 杜志刚, 郑号染, 等. 不同时段特长隧道入口区域视觉负荷研究[J]. 中国安全科学学报, 2021, 31(6): 176-181. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.023
	MEI Jialin, DU Zhigang, ZHENG Haoran, et al. Research on visual load at entrance area of extra-long tunnel in different periods[J]. China Safety Science Journal, 2021, 31(6): 176-181. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.023
[14]	SCHNEIDER A, SONDEREGGER A, KRUEGER E, et al. The interplay between task difficulty and microsaccade rate: evidence for the critical role of visual load[J]. Journal of Eye Movement Research, 2021, 13(5):DOI: 10.16910/jemr.13.5.6.
[15]	江文艺, 杜志刚, 贺世明, 等. 雾天高速公路隧道入口区域驾驶人视觉行为特性研究[J]. 交通信息与安全, 2024, 42(4): 110-117,135.
	JIANG Wenyi, DU Zhigang, HE Shiming, et al. A study on the visual behavior characteristics of drivers at the entrance area of freeway tunnels in foggy weather[J]. Journal of Transport Information and Safety, 2024, 42(4): 110-117,135.
[16]	SUN Yali, FENG Shumin. Effects of lane-change scenarios on lane-change decision and eye movement[J]. Ergonomic, 2024, 67(1):69-80. doi: 10.1080/00140139.2023.2202846
[17]	徐进, 杨子邈, 陈钦, 等. 基于电子不停车收费数据的山区高速公路车速分布与车型分类研究[J]. 交通运输系统工程与信息, 2022, 22(5): 75-84,116.
	XU Jin, YANG Zimiao, CHEN Qin, et al. Speed distribution and vehicle type classification of mountain expressway based on electronic toll collection data[J]. Journal of Transportation Systems Engineering and Information Technology, 2022, 22(5): 75-84,116.
[18]	尚婷, 谢磊, 连冠, 等. 公路特长隧道内疲劳唤醒区视觉行为特征研究[J]. 公路, 2024, 69(8): 260-273.
	SHANG Ting, XIE Lei, LIAN Guan, et al. Characterization of visual behavior in the fatigue arousal zone in highway extra-long tunnels[J]. Highway, 2024, 69(8): 260-273.
[19]	商艳, 朱守林, 戚春华. 草原公路长直线段最佳信息量阈值研究[J]. 中国安全科学学报, 2021, 31(6): 189-195. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.025
	SHANG Yan, ZHU Shoulin, QI Chunhua. Research on optimal information threshold of long straight section on grassland highway[J]. China Safety Science Journal, 2021, 31(6): 189-195. doi: 10.16265/j.cnki.issn 1003-3033.2021.06.025

立交类型	驶入主线			驶出主线
立交类型	汇入段	交织段	主线段	主线段	交织段	汇出段
常规净距立交	335.42	297.03	256.89	274.58	294.71	267.59
小净距立交	366.24	329.78	284.37	303.47	324.43	314.71

变量	注视时间	扫视速度	扫视幅度
注视时间	1	—	—
扫视速度	-0.138^**	1	—
扫视幅度	-0.072^**	0.701^**	1
