Study on thermal and flame retardant properties of hydrated phase change materials for preventing coal spontaneous combustion

doi:10.16265/j.cnki.issn1003-3033.2025.12.0064

Abstract

Abstract:

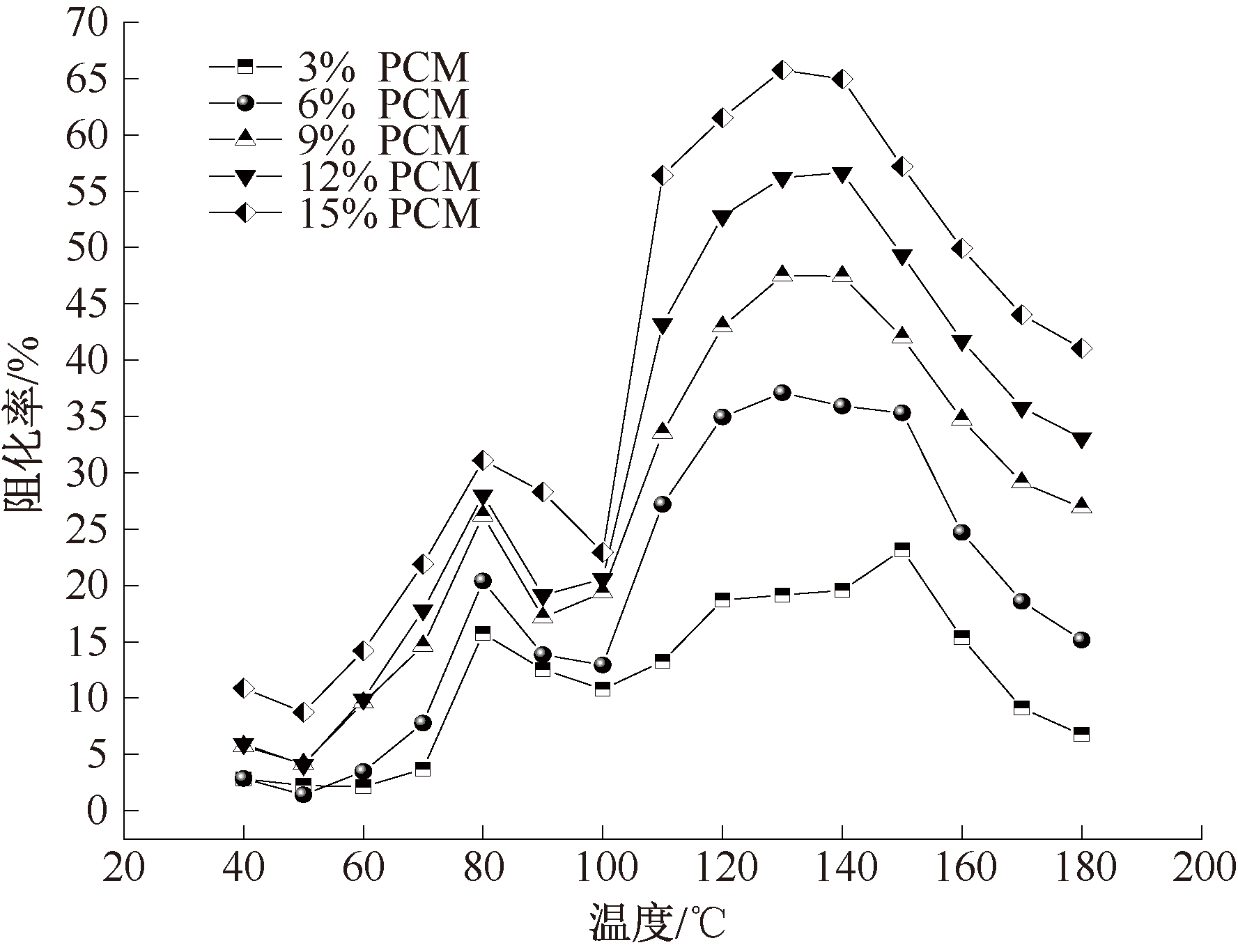

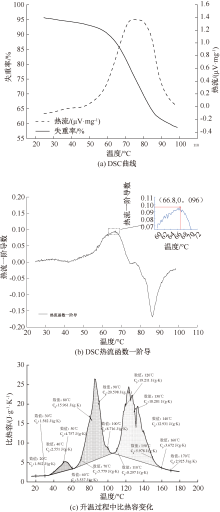

To effectively suppress the transition of coal spontaneous combustion oxidation in goaf areas into the accelerated stage, a stable and high-heat-storage PCM was prepared using ammonium aluminum sulfate dodecahydrate and magnesium sulfate heptahydrate as raw materials. Through differential scanning calorimetry tests, solid-liquid transition tests, programmed heating tests, infrared spectroscopy, thermal insulation tests, and microscopic analysis, PCM thermal properties, the driving mechanism of solid-liquid transition, heat storage capacity, and coal oxidation inhibitory performance were studied. The test results show that the developed material has a phase transition temperature of 66.8℃, a latent heat of phase transition of 300.708 J/g, and a relatively low specific heat capacity during the heating process. The melting time exhibits an exponential decrease with increasing temperature, and a dense covering film forms after melting. When the material is added at a mass fraction of 15%, the inhibitory rate reaches 41%. Under a 500℃ heat source, with a material thickness of 30 mm, the effective thermal insulation time reaches 65 minutes.

Key words: coal spontaneous combustion, hydrated phase change materials (PCM), inhibition, insulation, infrared spectra.

CLC Number:

X936

LI Jingjing, LU Yi, SHAO Shuzhen, SHI Shiliang, SHI Zhengjing, YU Bo. Study on thermal and flame retardant properties of hydrated phase change materials for preventing coal spontaneous combustion[J]. China Safety Science Journal, 2025, 35(12): 164-171.

Figures/Tables 13

Fig.1

Fig.2

Fig.3

Fig.4

Table 1

Fig.5

Fig.6

Fig.7

Table 2

Fig.8

Fig.9

Fig.10

Fig.11

References 20

[1]	高来举, 岳豪. 高质量发展阶段能源资源安全挑战与对策[J]. 中国安全科学学报, 2023, 33(5):66-73. doi: 10.16265/j.cnki.issn1003-3033.2023.05.0058
	GAO Laiju, YUE Hao. Challenges and solutions of energy and resources security in high-quality development stage[J]. China Safety Science Journal, 2023, 33(5):66-73. doi: 10.16265/j.cnki.issn1003-3033.2023.05.0058
[2]	梁运涛, 侯贤军, 罗海珠, 等. 我国煤矿火灾防治现状及发展对策[J]. 煤炭科学技术, 2016, 44(6):1-6,13.
	LIANG Yuntao, HOU Xianjun, LUO Haizhu, et al. Development counter measures and current situation of coal mine fire prevention & extinguishing in China[J]. Coal Science and Technology, 2016, 44(6):1-6,13.
[3]	王恩元, 张国锐, 张超林, 等. 我国煤与瓦斯突出防治理论技术研究进展与展望[J]. 煤炭学报, 2022, 47(1):297-322.
	WANG Enyuan, ZHANG Guorui, ZHANG Chaolin, et al. Research progress and prospect on theory and technology for coal and gas outburst control and protection in China[J]. Journal of China Coal Society, 2022, 47(1):297-322.
[4]	张贺磊, 方贤德, 赵颖杰. 相变储热材料及技术的研究进展[J]. 材料导报, 2014, 28(13):26-32.
	ZHANG Helei, FANG Xiande, ZHAO Yingjie. Progress in phase change materials and technologies[J]. Materials Reports, 2014, 28(13):26-32.
[5]	竹永健. 膨胀石墨基水合盐相变材料改性矿用聚氨酯泡沫的低放热特性研究[D]. 徐州: 中国矿业大学, 2023.
	ZHU Yongjian. Study on low exothermic properties of mine polyurethane foam modified by expanded graphite-based hydrated salt phase change material[D]. Xuzhou: China University of Mining & Technology, 2023.
[6]	肖力光, 朱晨阳. 气相二氧化硅/三元无机水合盐定型相变材料的制备及性能表征[J]. 化工新型材料, 2024, 52(5):245-248,254. doi: 10.19817/j.cnki.issn1006-3536.2024.05.007
	XIAO Liguang, ZHU Chenyang. Preparation and performance characterization of gas phase silica/ternary inorganic hydrate salt shape-stabilized phase change materials[J]. New Chemical Materials, 2024, 52(5):245-248,254. doi: 10.19817/j.cnki.issn1006-3536.2024.05.007
[7]	崔传波. 温敏胞衣阻化剂抑制煤自燃机理研究[D]. 徐州: 中国矿业大学, 2019.
	CUI Chuanbo. Study on mechanism of thermo-responsive recundine inhibitors inhibiting coal spontaneous combustion[D]. Xuzhou: China University of Mining & Technology, 2019.
[8]	TANG Guoxin, LU Yi, SHI Shiliang, et al. Research on the effect and mechanism of composite phase change materials inhibiting low-temperature oxidation of coal[J]. Journal of Thermal Analysis and Calorimetry, 2024: DOI:10.1007/s10973-024-13314-1.
[9]	LU Yi, TANG Guoxin, CHEN Jian, et al. Development of composite phase change material for preventing spontaneous combustion of coal and its thermo-physical properties[J]. Energy & Fuels, 2022, 36(7):3857-3866. doi: 10.1021/acs.energyfuels.1c04005
[10]	秦雷, 吝思恒, 李树刚, 等. 液氮循环冻结煤体融化过程未冻水含量特征及其对孔隙的影响机制[J]. 煤炭学报, 2023, 48(2):776-786.
	QIN Lei, LIN Siheng, LI Shugang, et al. Characteristics of unfrozen water content and its influence on pores of liquid nitrogen cyclic frozen coal during thawing process[J]. Journal of China Coal Society, 2023, 48(2):776-786.
[11]	王楠. 温度恒定和分级加载对冰水固流转化速率影响的研究[D]. 青岛: 青岛科技大学, 2016.
	WANG Nan. The study of the effect of constant temperature and hierarchical load on ice water flow conversion rate[D]. Qingdao: Qingdao University of Science & Technology, 2016.
[12]	邓军, 张宇轩, 赵婧昱, 等. 基于程序升温的不同粒径煤氧化活化能试验研究[J]. 煤炭科学技术, 2019, 47(1):214-219.
	DENG Jun, ZHANG Yuxuan, ZHAO Jingyu, et al. Experiment study on oxidation and activated energy of different particle size coal based on programmed temperature rising[J]. Coal Science and Technology, 2019, 47(1):214-219.
[13]	梁择文, 王俊峰, 董凯丽, 等. 高价态金属离子交联体系防灭火性能影响研究[J]. 中国安全科学学报, 2021, 31(7):113-119. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.016
	LIANG Zewen, WANG Junfeng, DONG Kaili, et al. Impact on fire-fighting performance of high-valent metal ions cross-linking system[J]. China Safety Science Journal, 2021, 31(7):113-119. doi: 10.16265/j.cnki.issn 1003-3033.2021.07.016
[14]	LU Yi, ZHOU Qinyun, KANG Wendong, et al. Study on preparation and thermal insulation properties of curing foam[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2024,703: DOI:10.1080/00102202.2024.2401059.
[15]	吴芳华, 施式亮, 鲁义, 等. 磷石膏基自产气膨胀浆体防灭火性能研究[J]. 中国安全科学学报, 2024, 34(3):148-154. doi: 10.16265/j.cnki.issn1003-3033.2024.03.0099
	WU Fanghua, SHI Shiliang, LU Yi, et al. Fire prevention and extinguishing performance of phosphogypsum based self-produced gas expansion slurry[J]. China Safety Science Journal, 2024, 34(3):148-154. doi: 10.16265/j.cnki.issn1003-3033.2024.03.0099
[16]	刘慧芳, 宋大钊, 何学秋, 等. 煤化作用对煤微表面结构特性影响研究[J]. 中国安全科学学报, 2020, 30(1):121-127. doi: 10.16265/j.cnki.issn1003-3033.2020.01.019
	LIU Huifang, SONG Dazhao, HE Xueqiu, et al. Influence of coalification on microstructure characteristics of coal surface[J]. China Safety Science Journal, 2020, 30(1):121-127. doi: 10.16265/j.cnki.issn1003-3033.2020.01.019
[17]	鲁义, 陈健, 邵淑珍, 等. 再生顶板煤自燃漏风裂隙控制机理[J]. 煤炭学报, 2023, 48(2):795-805.
	LU Yi, CHEN Jian, SHAO Shuzhen, et al. Control mechanism of air leakage cracks at regenerated roof with coal spontaneous combustion[J]. Journal of China Coal Society, 2023, 48(2):795-805.
[18]	ZHU Hongqing, ZHAO Hongru, WEI Hongyi, et al. Investigation into the thermal behavior and FTIR micro-characteristics of re-oxidation coal[J]. Combustion and Flame, 2020, 216:354-368. doi: 10.1016/j.combustflame.2020.03.007
[19]	张玉龙. 基于宏观表现与微观特性的煤低温氧化机理及其应用研究[D]. 太原: 太原理工大学, 2014.
	ZHANG Yulong. Study on low-temperature oxidation mechanism of coal based on macroscopic behaviour and microscopic characteristic and its application[D]. Taiyuan: Taiyuan University of Technology, 2014.
[20]	SHEN Yuandong, NIU Junyi, LUAN Yuzhu, et al. Preparation and thermal conductivity enhancement of binary non-eutectic phase change materials based on alum-urea for solar heat storage system[J]. Solar Energy Materials and Solar Cells, 2024,271: DOI:10.1016/j.solmat.2024.112850.

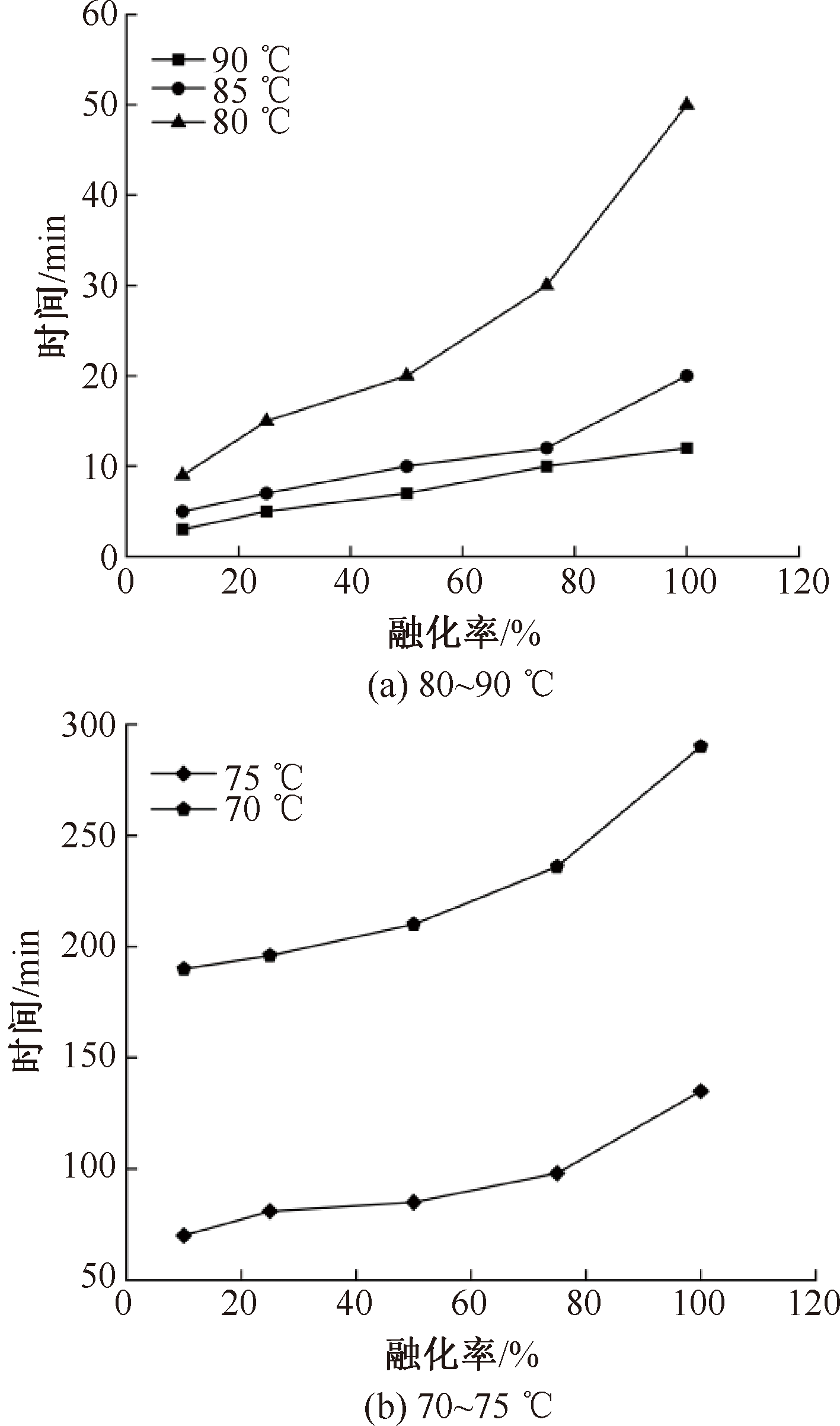

温度/ ℃	融化现象所需时间/min
温度/ ℃	t₁	t₂	t₃	t₄
90	1	3	7	12
85	3	5	10	20
80	5	9	20	50
75	15	65	85	135
70	100	190	210	290
65	290始终未融化
60	290始终未融化

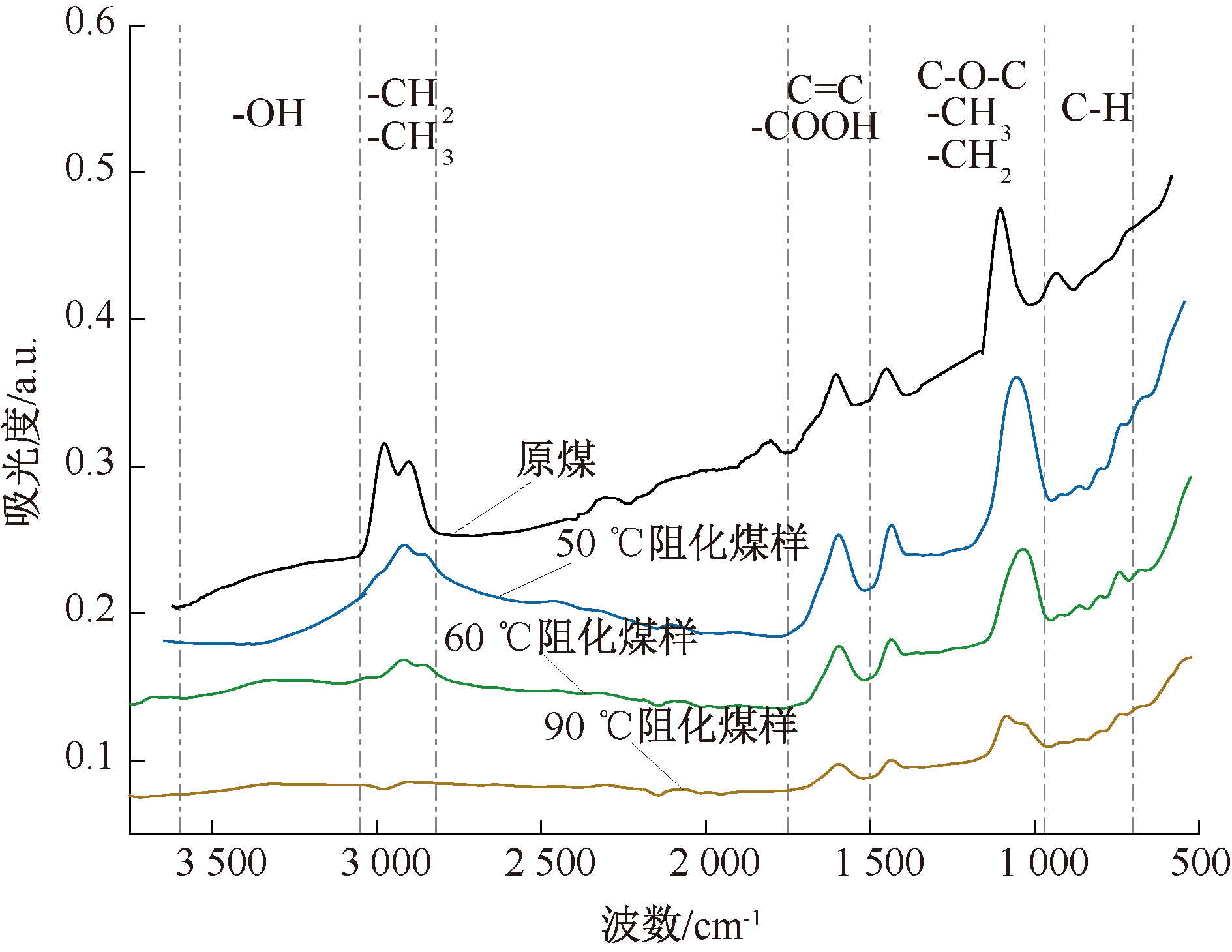

主要官能团	原煤		50 ℃处理抑制煤样		70 ℃处理抑制煤样		90 ℃处理抑制煤样
主要官能团	峰面积	面积占比/%	峰面积	面积占比/%	峰面积	面积占比/%	峰面积	面积占比/%
C-O-C伸缩振动	11.488 1	55.361 4	6.526 1	50.266 5	2.973 9	54.735 7	7.388 3	47.635 4
Ar-CO伸缩振动	1.489 4	7.177 5	1.177 8	9.071 9	0.148 7	2.736 9	0.528 3	3.406 2
-CH₃对称变形振动	0.875 0	4.216 6	0.704 5	5.426 3	0.258 9	4.765 1	1.565 6	10.094 1
-CH₂、-CH₃不对称变形振动	1.415 3	6.820 4	0.924 2	7.118 5	0.457 8	8.426 0	2.740 2	17.667 2
C=C伸缩振动	2.837 2	13.672 5	2.385 9	18.377 1	0.965 3	17.766 7	0.789 1	5.087 7
-COOH伸缩振动	2.646 1	12.751 6	1.264 5	9.739 7	0.627 6	11.551 2	2.498 6	16.109 5
