Influence of EPB construction sequence and soil chamber pressure on railway subgrade settlement

doi:10.16265/j.cnki.issn1003-3033.2025.S2.0007

Abstract

Abstract:

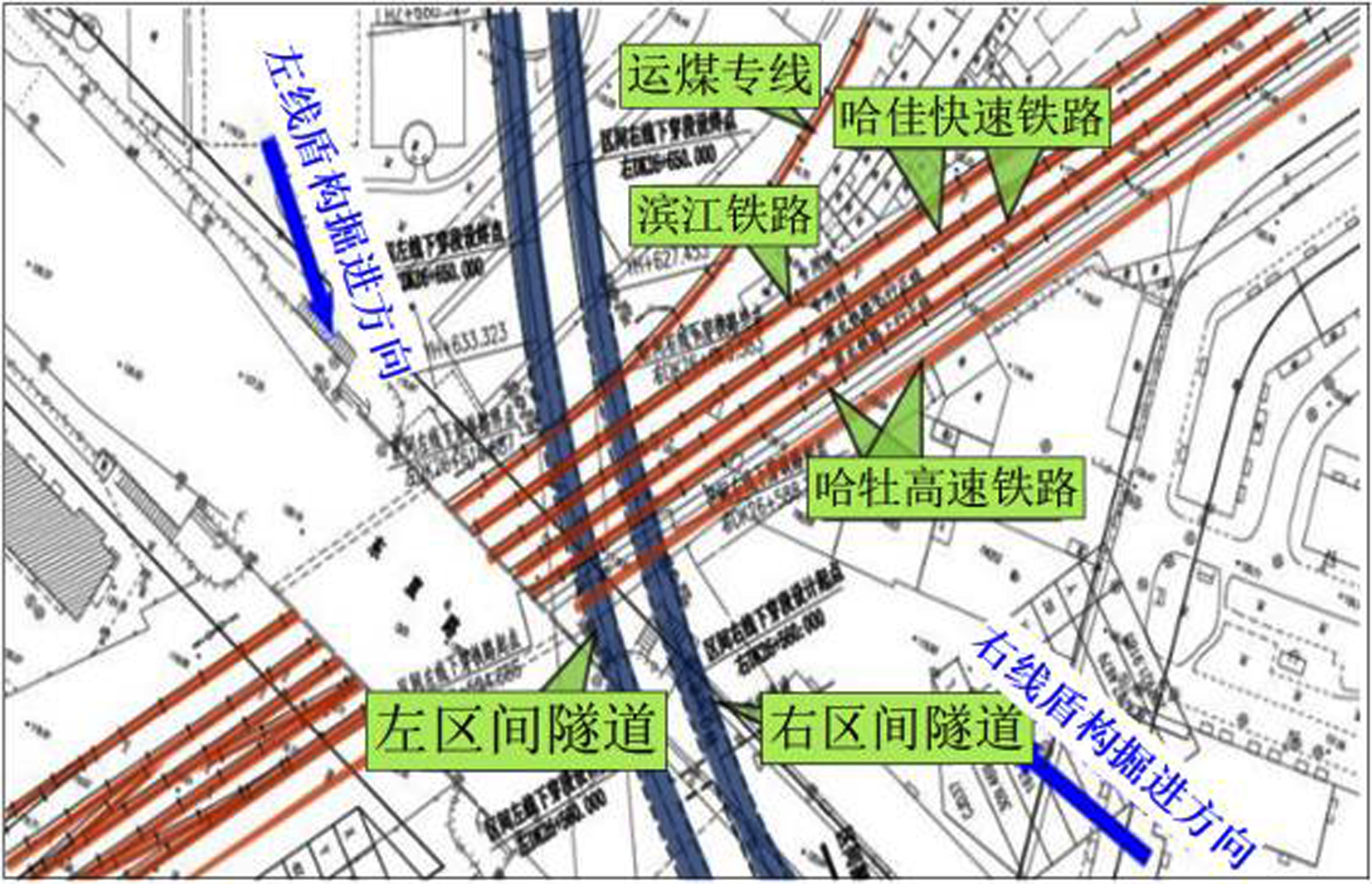

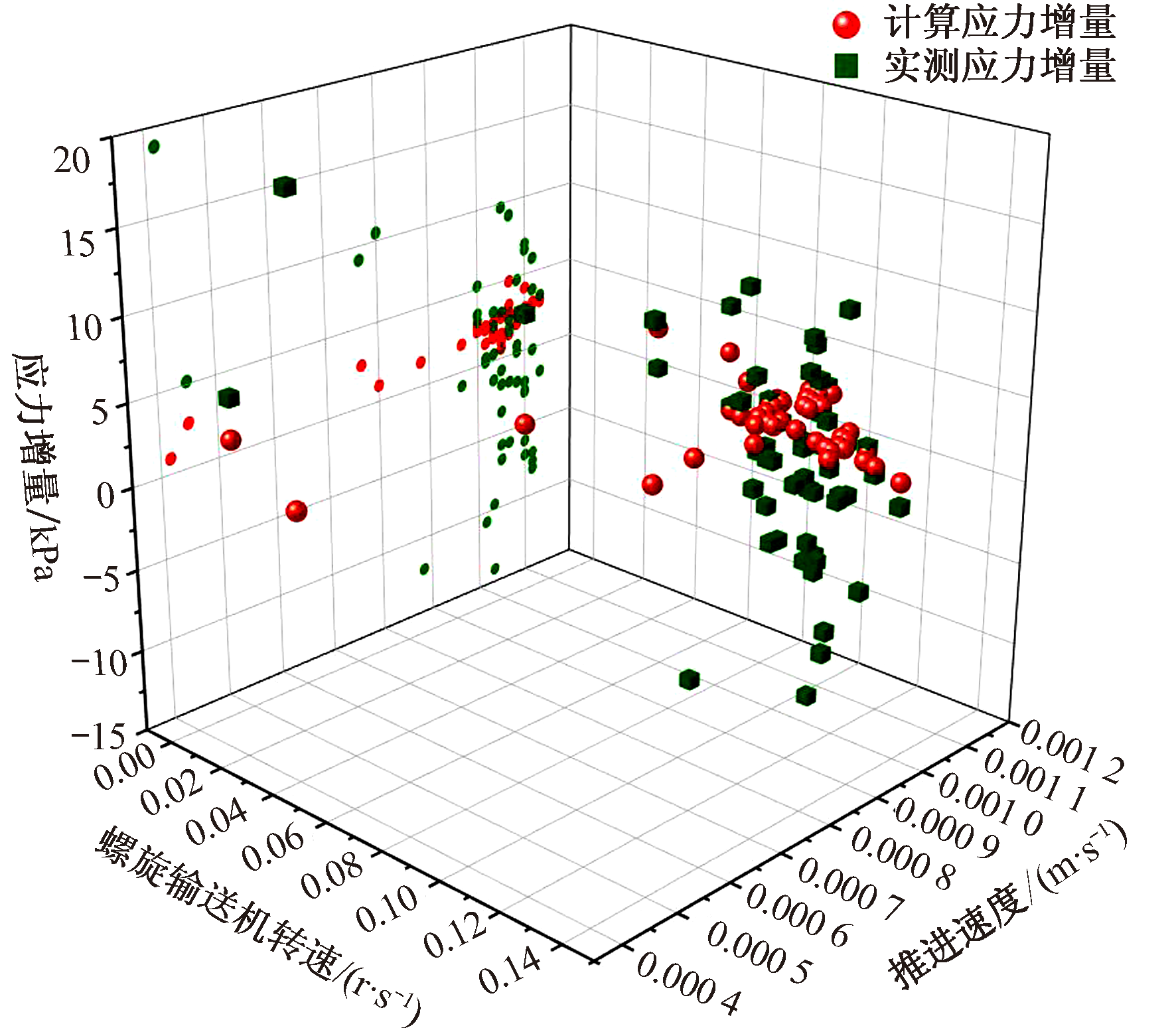

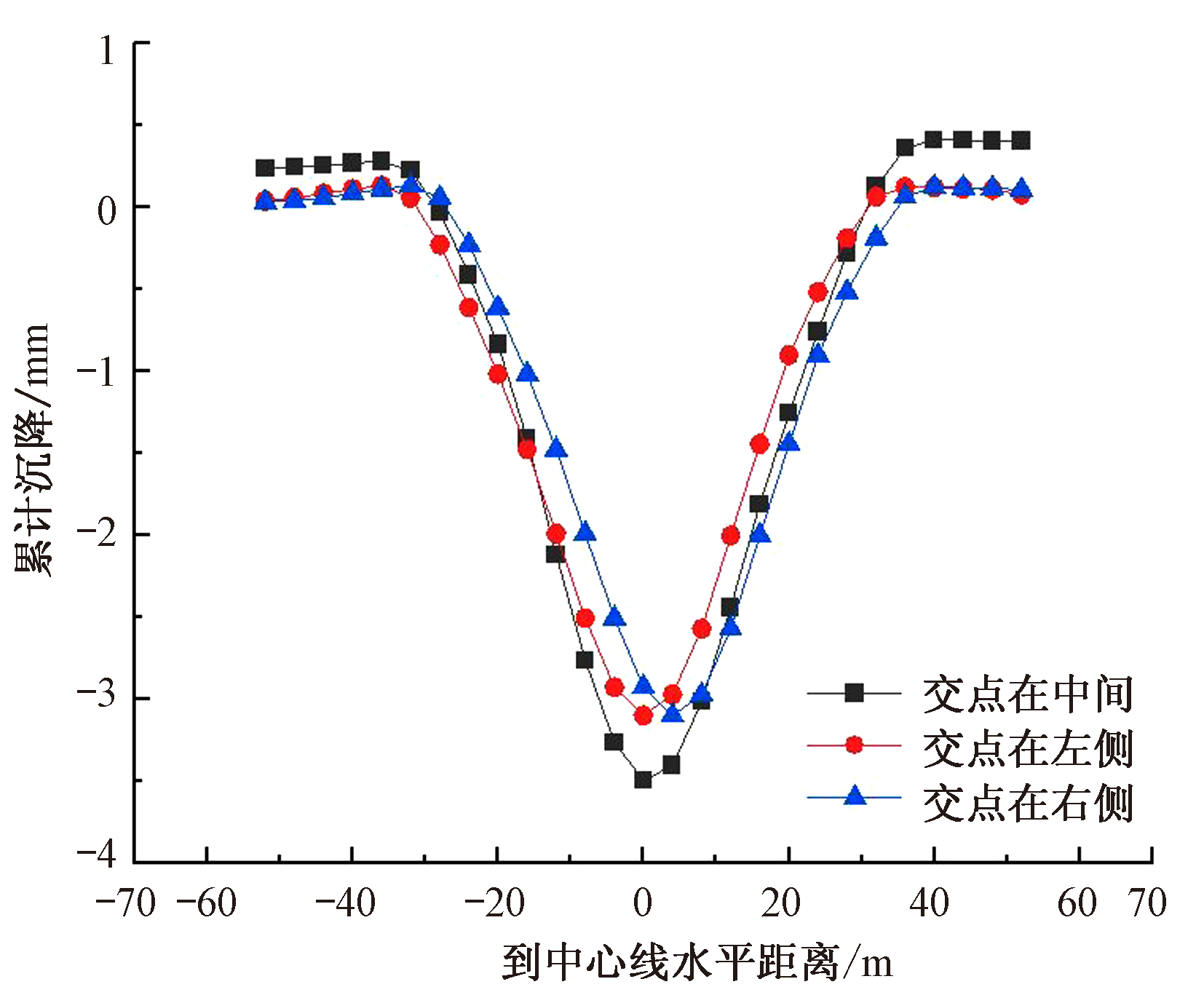

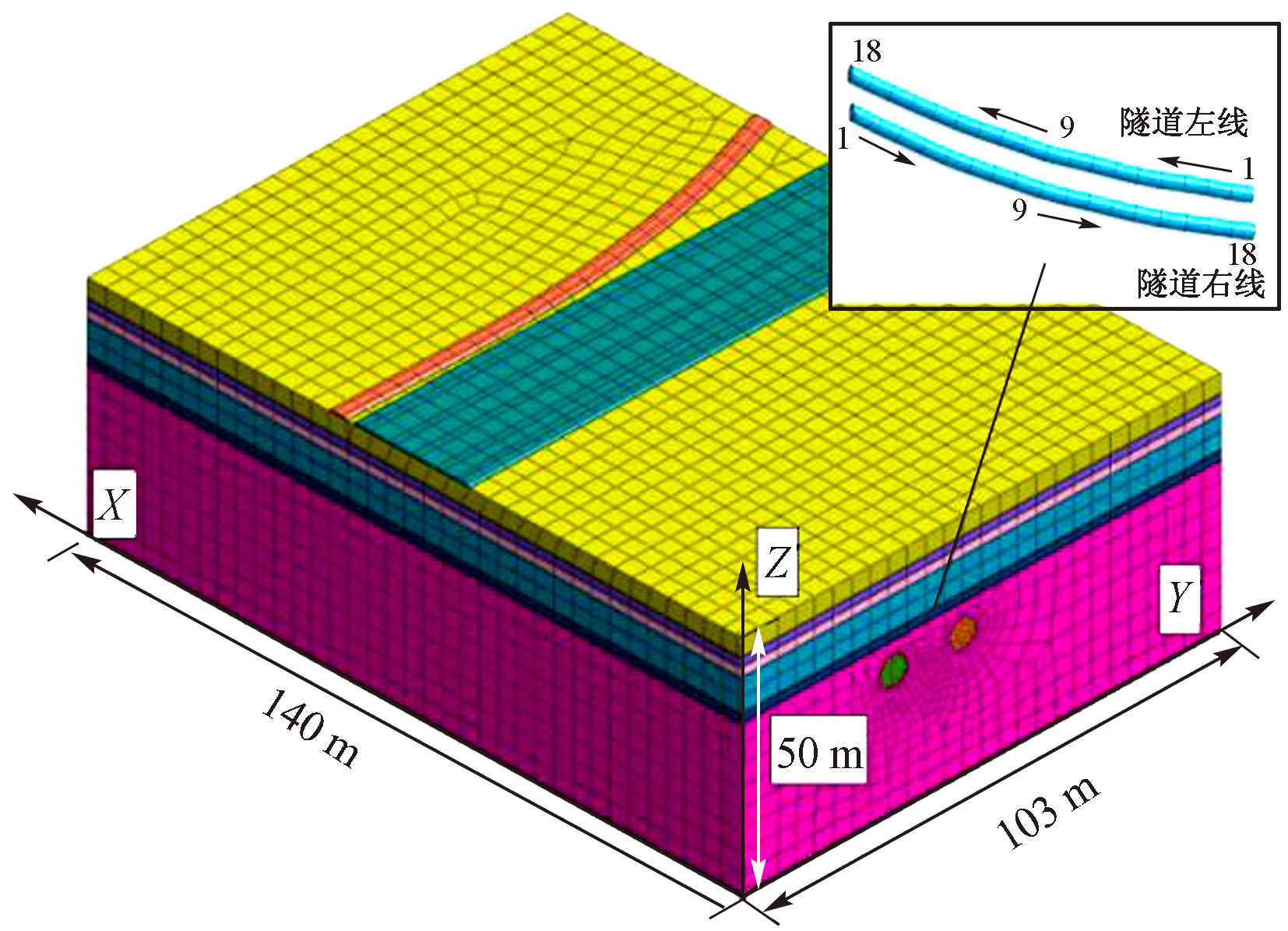

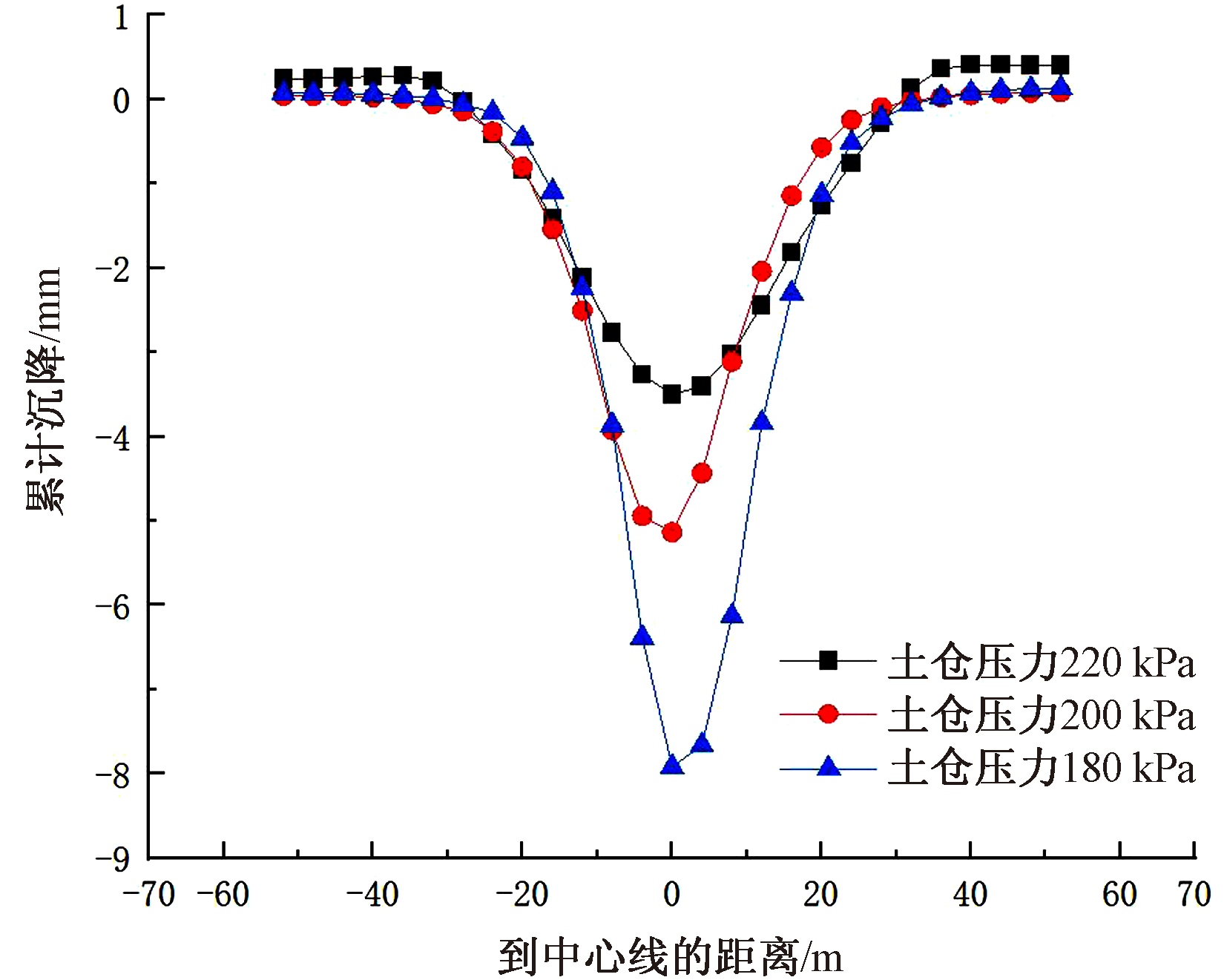

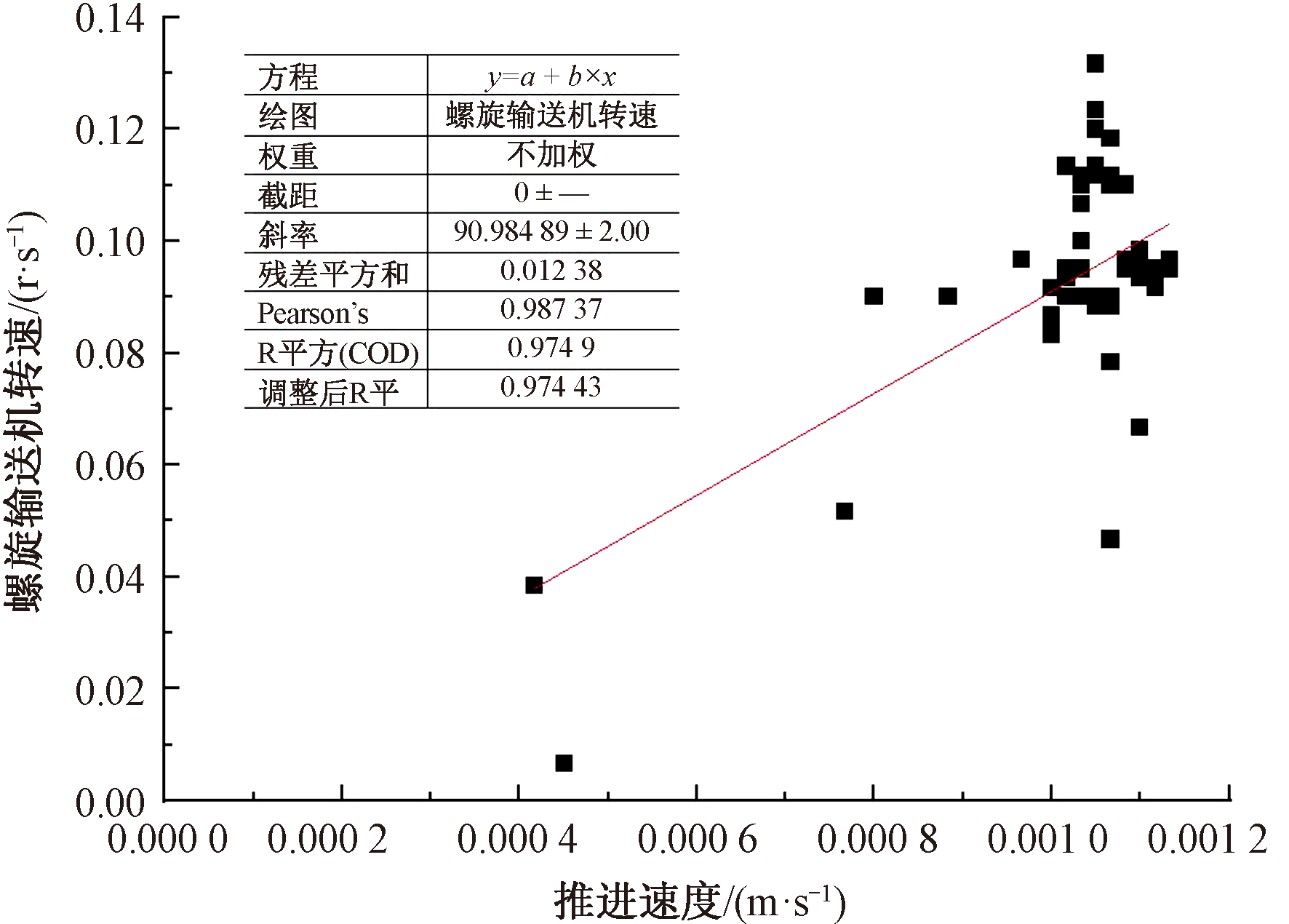

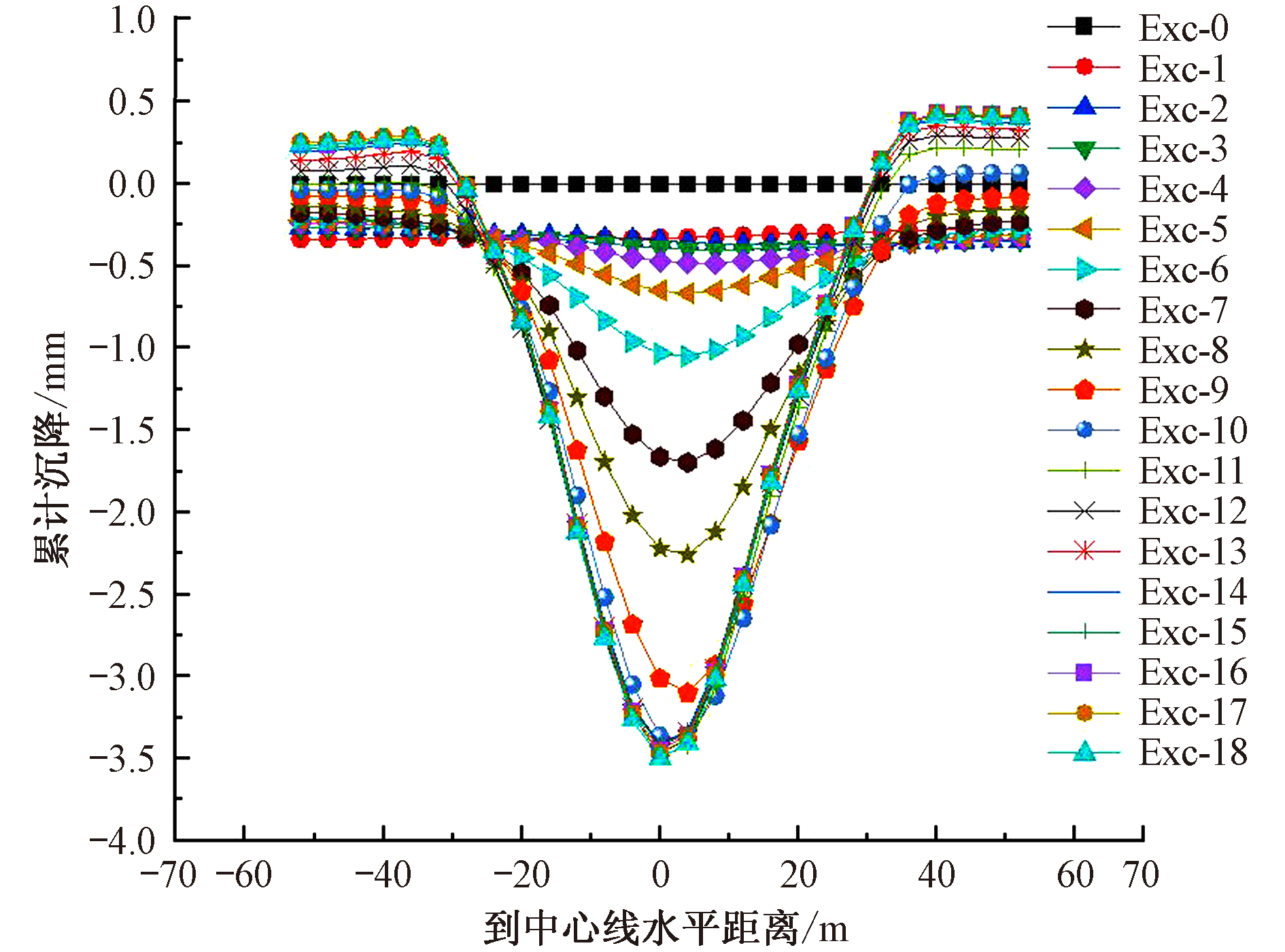

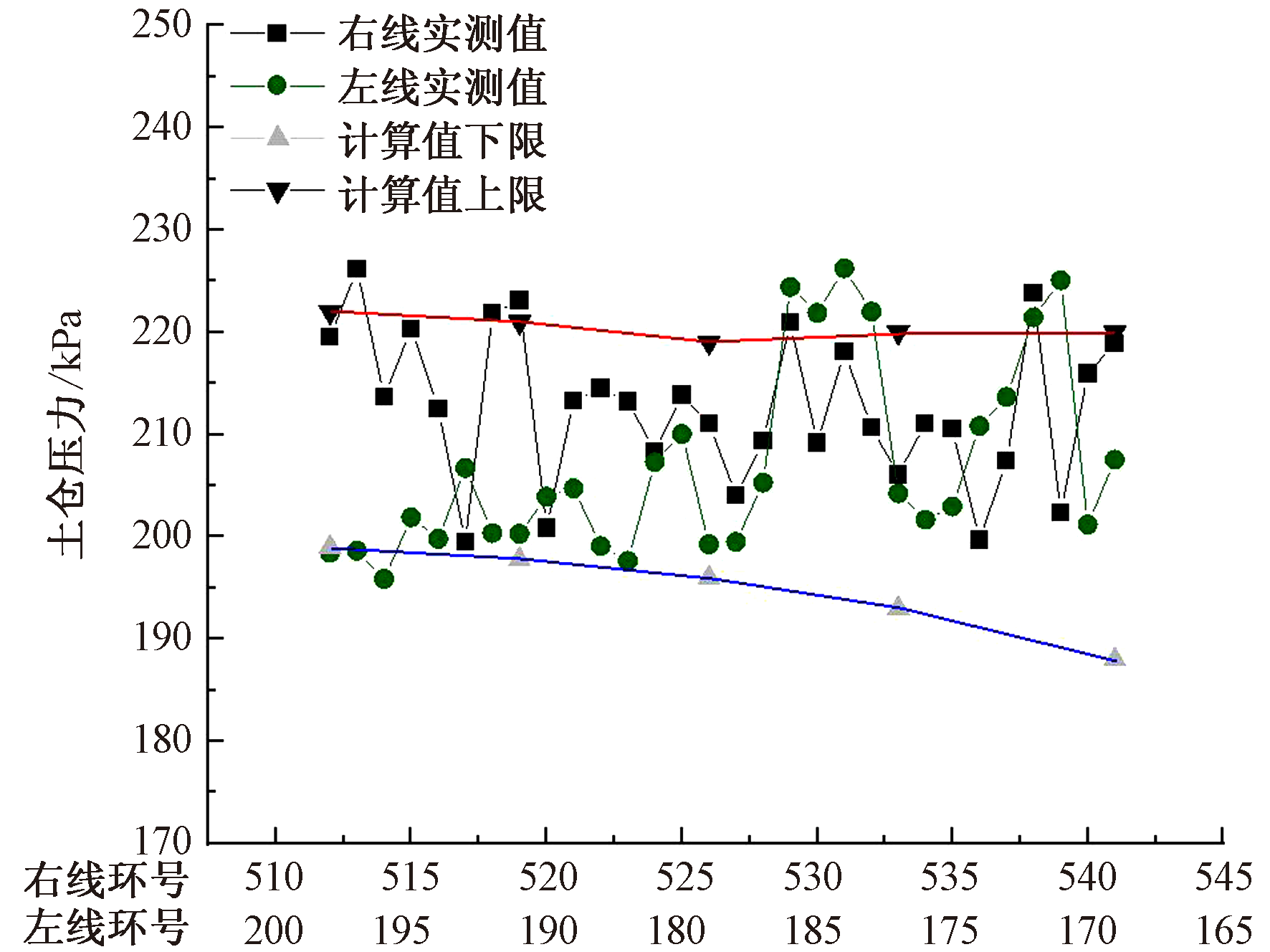

To research the coupling effect of construction sequence and soil chamber pressure, as well as the subgrade micro-deformation control during the process of shield tunneling under railway subgrades, the earth pressure balance (EPB) shield of Harbin Rail Transit Line 3 passing under multiple railway tracks, including the Harbin-Mudanjiang High-Speed Railway, was taken as the background. Methods such as numerical simulation, theoretical calculation, and on-site measurement were adopted to investigate the influence of different construction sequences of double-line tunnels and soil chamber pressure settings on stratum deformation. The numerical results show that when two EPB shields advancing towards each other meet directly below the railway subgrade, the settlement increases by 0.4 mm compared with meeting on both sides, with an increase rate of 12.86%. When the soil chamber pressure is set to 220, 200, and 180 kPa, the maximum settlements are 3.50, 5.14, and 7.92 mm, respectively. The correlation analysis of on-site tunneling parameters reveals that the ratio of screw conveyor rotating speed to tunneling speed is negatively correlated with soil chamber pressure, with a Pearson correlation coefficient of -0.49. The specific speed value of this stratum should be controlled at 90.98 r/m, and the fluctuation of soil chamber pressure should range from -20 kPa to 25 kPa. When the Rankine earth pressure at rest plus a 20 kPa reserve pressure (to offset pressure fluctuations) is used as the calculated value of soil chamber pressure, the measured values (196-227 kPa) after controlling the specific speed value are in good agreement with the formula-calculated values (180-222 kPa). By using the tunnel monitoring and early warning platform to monitor the settlement rate and cumulative settlement in real time, and adjust in time based on feedback, the final settlement of the railway subgrade is controlled at 3.41 mm, which meets the safety requirement of not exceeding 6 mm.

Key words: construction sequence, soil chamber pressure, subgrade settlement, numerical simulation, specific speed, micro-deformation control

CLC Number:

X947

LYU Jirui, CUI Ming, CAI Qingchi, ZHAO Yuanye, LI Qingwen. Influence of EPB construction sequence and soil chamber pressure on railway subgrade settlement[J]. China Safety Science Journal, 2025, 35(S2): 58-65.

Figures/Tables 19

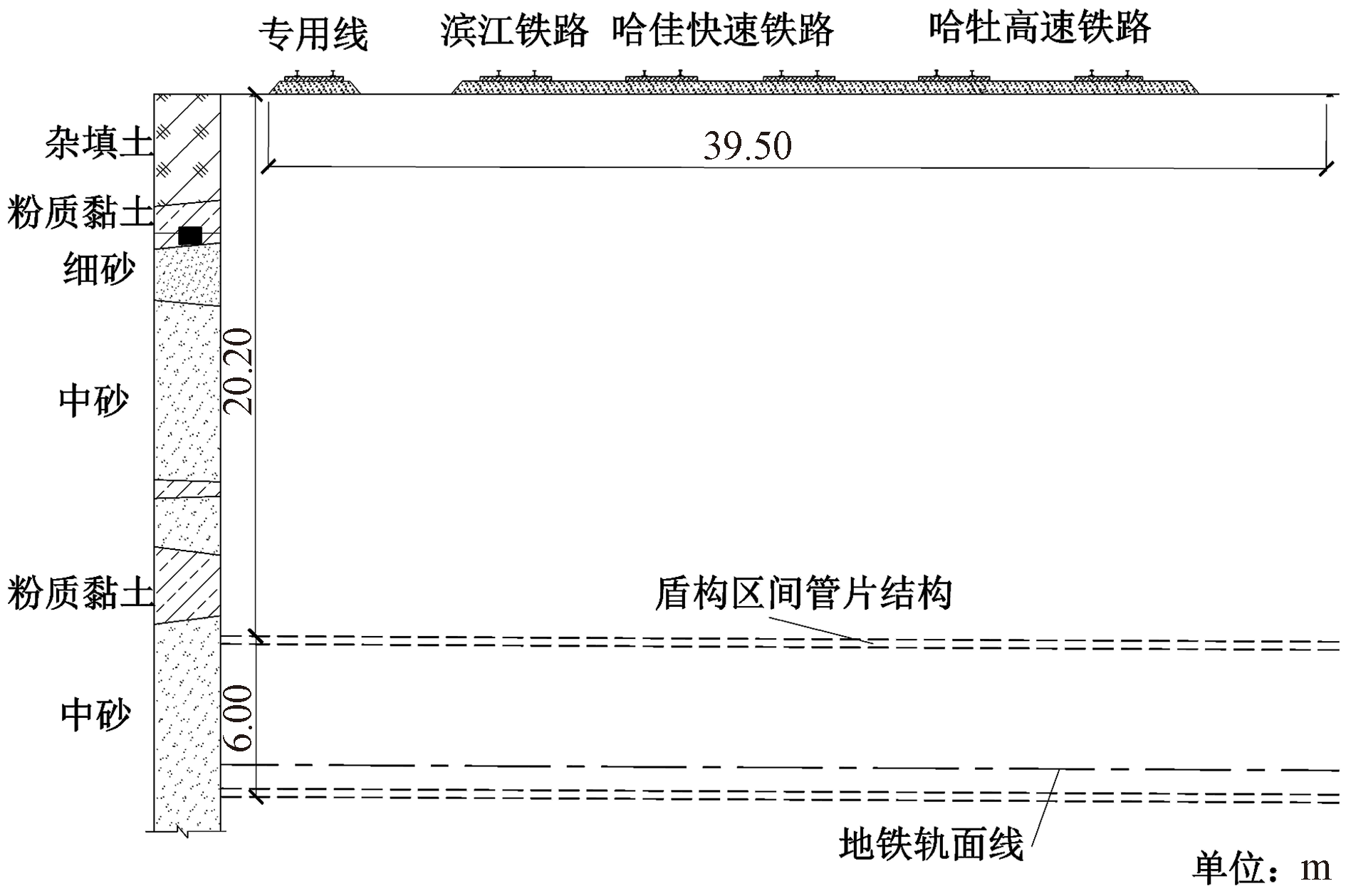

Fig.1

Fig.2

Fig.3

Table 1

Table 2

Table 3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

Table 4

Fig.11

Fig.12

Fig.13

Fig.14

Fig.15

References 11

[1]	杨林松, 刘继国, 舒恒, 等. 超大直径盾构隧道下穿铁路施工的离心机模型试验研究[J]. 现代隧道技术, 2021, 58(4):170-177,184.
	YANG Linsong, LIU Jiguo, SHU Heng, et al. Centrifugal model test on construction process of a super large diameter shield tunnel passing under existing railway[J]. Modern Tunnelling Technology, 2021, 58(4): 170-177,184.
[2]	孙国茹, 孟卫杰, 孙津津, 等. 砂土地区盾构下穿铁路股道变形影响分析[J]. 粉煤灰综合利用, 2025, 39(2):124-130.
	SUN Guoru, MENG Weijie, SUN Jinjin, et al. Analysis of the effect of deformation of shield tunnel under railway strand in sandy soil area[J]. Fly Ash Comprehensive Utilization, 2025, 39(2): 124-130.
[3]	娄洪峻, 苏栋, 林星涛, 等. 超大直径盾构下穿高铁路基的沉降数值分析[J]. 深圳大学学报:理工版, 2024, 41(3):377-386.
	LOU Hongjun, SU Dong, LIN Xingtao, et al. Numerical simulation analysis of settlement for super-large diameter shield tunneling undercrossing high-speed railway subgrade[J]. Journal of Shenzhen University:Science and Engineering, 2024, 41(3): 377-386. doi: 10.3724/SP.J.1249.2024.03377
[4]	陈明江, 路小民, 陆帅, 等. 超大直径泥水盾构下穿运营铁路沉降因素分析及控制方法[J]. 工程机械, 2024, 55(7):225-232,16-17.
	CHEN Mingjiang, LU Xiaomin, LU Shuai, et al. Analysis of settlement factors and control methods for large-diameter slurry shield passing beneath active railways[J]. Construction Machinery and Equipment, 2024, 55(7): 225-232, 16-17.
[5]	马相峰, 王立川, 龚伦, 等. 砂卵石地层双线地铁盾构下穿铁路路基变形及地层注浆加固研究[J]. 隧道建设:中英文, 2021, 41(增1):181-189.
	MA Xiangfeng, WANG Lichuan, GONG Lun, et al. Deformation and grouting reinforcement for railway subgrade crossed by a double-track metro shield tunnel in sandy-cobble strata[J]. Tunnel Construction, 2021, 41(S1): 181-189.
[6]	林家桢. 地铁盾构下穿高速铁路路基的变形控制方案研究[J]. 水利与建筑工程学报, 2025, 23(1):93-101.
	LIN Jiazhen. Deformation control scheme for high-speed railway subgrade when subway shield tunneling under-passing[J]. Journal of Water Resources and Architectural Engineering, 2025, 23(1): 93-101.
[7]	孙铁成, 王爱玉, 张岩俊, 等. 囊袋式注浆对盾构下穿高速铁路路基沉降的控制效果[J]. 铁道建筑, 2024, 64(9):120-126.
	SUN Tiecheng, WANG Aiyu, ZHANG Yanjun, et al. Control effect of capsuled grouting on settlement while shield tunneling underpass high speed railway subgrade[J]. Railway Engineering, 2024, 64(9): 120-126.
[8]	吴贤国, 冯宗宝, 刘俊, 等. 基于RF-NSGA-Ⅱ的盾构施工地表沉降安全控制多目标优化[J]. 中国安全科学学报, 2022, 32(8): 45-51. doi: 10.16265/j.cnki.issn1003-3033.2022.08.2702
	WU Xianguo, FENG Zongbao, LIU Jun, et al. Multi-objective optimization of surface settlement safety control during shield construction based on RF-NSGA-Ⅱ[J]. China Safety Science Journal, 2022, 32(8): 45-51. doi: 10.16265/j.cnki.issn1003-3033.2022.08.2702
[9]	吴贤国, 刘俊, 苏飞鸣, 等. 基于CatBoost-MOEAD的大直径泥水盾构施工多目标预测优化[J]. 中国安全科学学报, 2024, 34(6): 57-64. doi: 10.16265/j.cnki.issn1003-3033.2024.06.1734
	WU Xianguo, LIU Jun, SU Feiming, et al. Multi-objective prediction optimization for large-diameter slurry shield tunneling construction based on CatBoost-MOEAD[J]. China Safety Science Journal, 2024, 34(6): 57-64. doi: 10.16265/j.cnki.issn1003-3033.2024.06.1734
[10]	贾剑青, 贾超, 赖远明, 等. 高速铁路路基加固效果及稳定性分析[J]. 中国安全科学学报, 2020, 30(6):50-56. doi: 10.16265/j.cnki.issn1003-3033.2020.06.008
	JIA Jianqing, JIA Chao, LAI Yuanming. et al. Reinforcement effect and stability analysis of high speed railway roadbed[J]. China Safety Science Journal, 2020, 30(6): 50-56. doi: 10.16265/j.cnki.issn1003-3033.2020.06.008
[11]	刘博. 盾构机土仓压力控制模型参数辨识方法研究[D]. 大连: 大连理工大学, 2011.
	LIU Bo. Model parameters identification procedure of chamber pressure control in shield tunneling[D]. Dalian: Dalian University of Technology, 2011.

地层	杂填土	粉质黏土	细砂	中粗砂
泊松比μ	0.38	0.33	0.26	0.23
天然密度γ/(kg·m^-3)	17.85	18.30	18.25	20.15
割线模量${E}_{\mathrm{o}\mathrm{e}\mathrm{d}}^{\mathrm{r}\mathrm{e}\mathrm{f}}$/MPa	15	25	69	52
切线模量${E}_{\mathrm{o}\mathrm{e}\mathrm{d}}^{\mathrm{r}\mathrm{e}\mathrm{f}}$/MPa	15	25	69	52
卸荷弹模${E}_{\mathrm{u}\mathrm{r}}^{\mathrm{r}\mathrm{e}\mathrm{f}}$/MPa	45	75	207	156
有效黏聚力C/kPa	30.3	18.5	0	0
有效内摩擦角Φ/(°)	13.8	21.5	38.7	42.2
剪胀角Ψ/(°)	0	0	10.1	12.2
参考压力σ^ref/kPa	100	100	100	100
孔隙比e	0.69	0.58	0.49	0.45
破坏比R_f	0.9	0.9	0.9	0.9
静止土压力系数K₀	0.64	0.59	0.41	0.35
幂指数m	0.5	0.5	0.5	0.5

结构	厚度/mm	密度/(g·cm^-3)	弹性模/MPa	泊松比
管片	350	2.5	34 500	0.2
等代层	200	2.3	4	0.35

掘进参数	推进速度	推力	刀盘扭矩	刀盘转速	土仓压力	比速
推进速度	1
推力	-0.66^**	1
刀盘扭矩	0.55^**	-0.23	1
刀盘转速	-0.56^**	0.40^**	-0.94^**	1
土仓压力	0.13	-0.02	-0.37^**	0.04	1
比速	-0.64^**	0.43^**	-0.54^**	0.51^**	-0.29^*	1
