Study on distribution characteristics of wind flow in stopes of Haerwusu Open-Pit Coal Mine

doi:10.16265/j.cnki.issn1003-3033.2025.S1.0020

Abstract

Abstract:

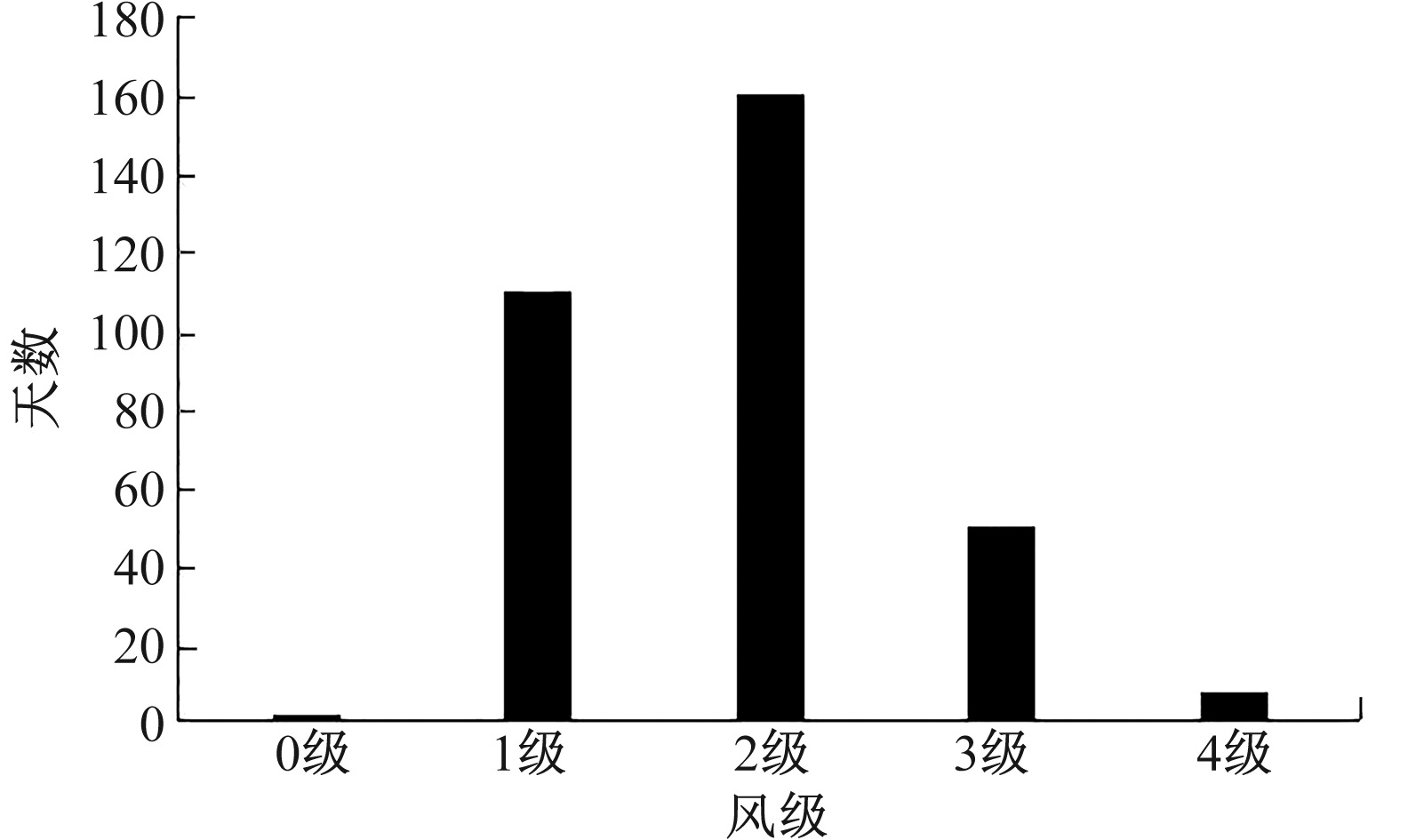

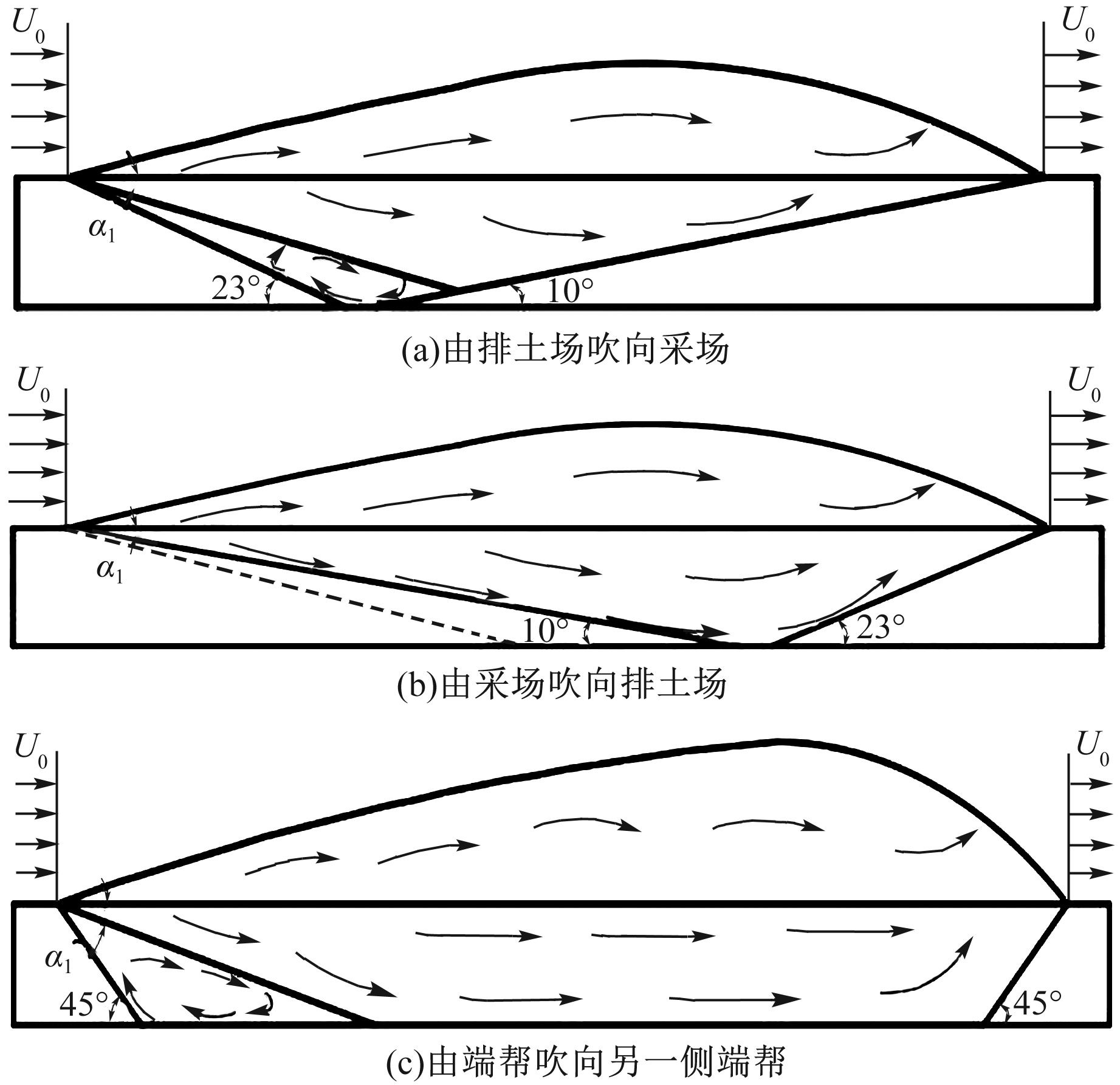

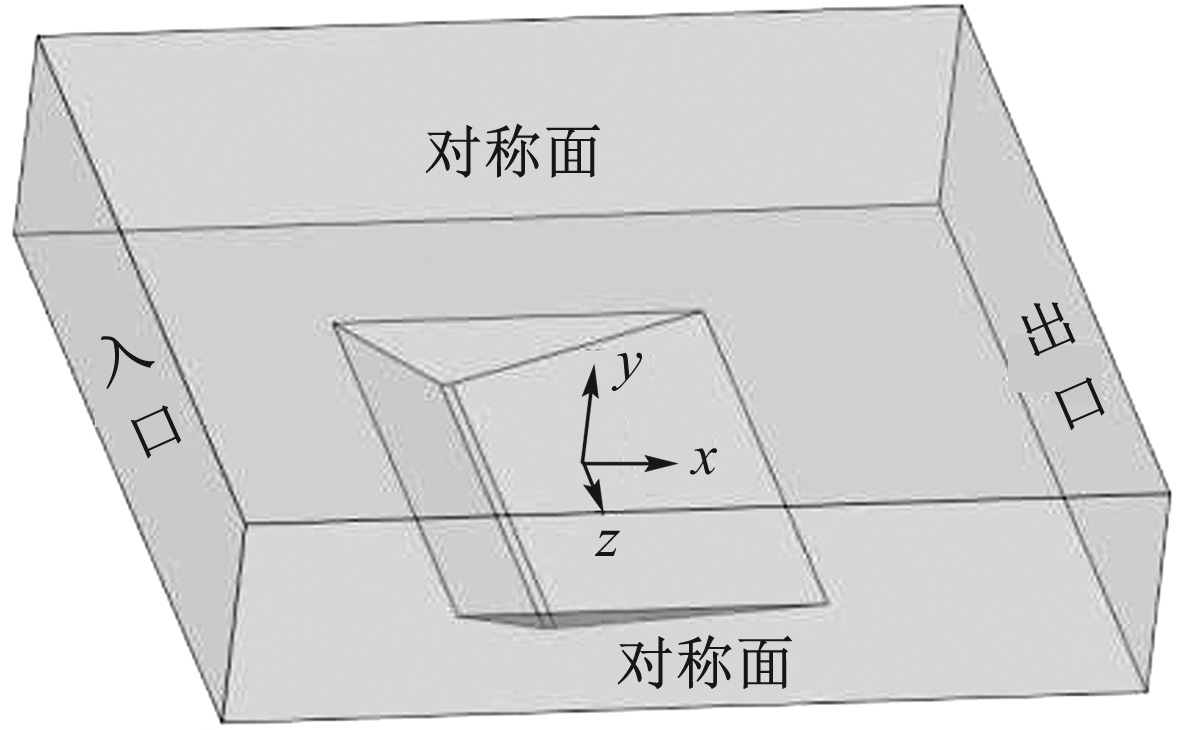

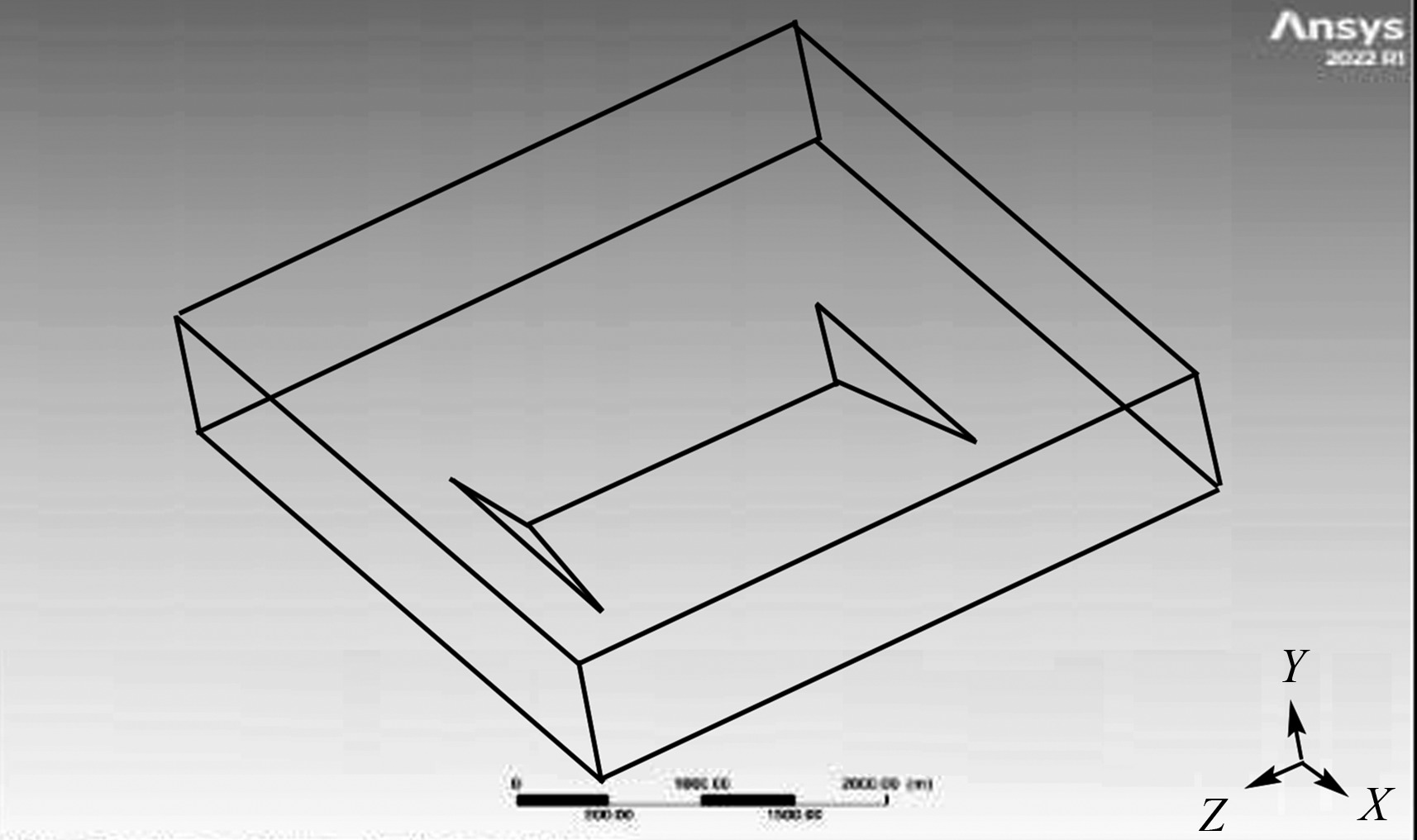

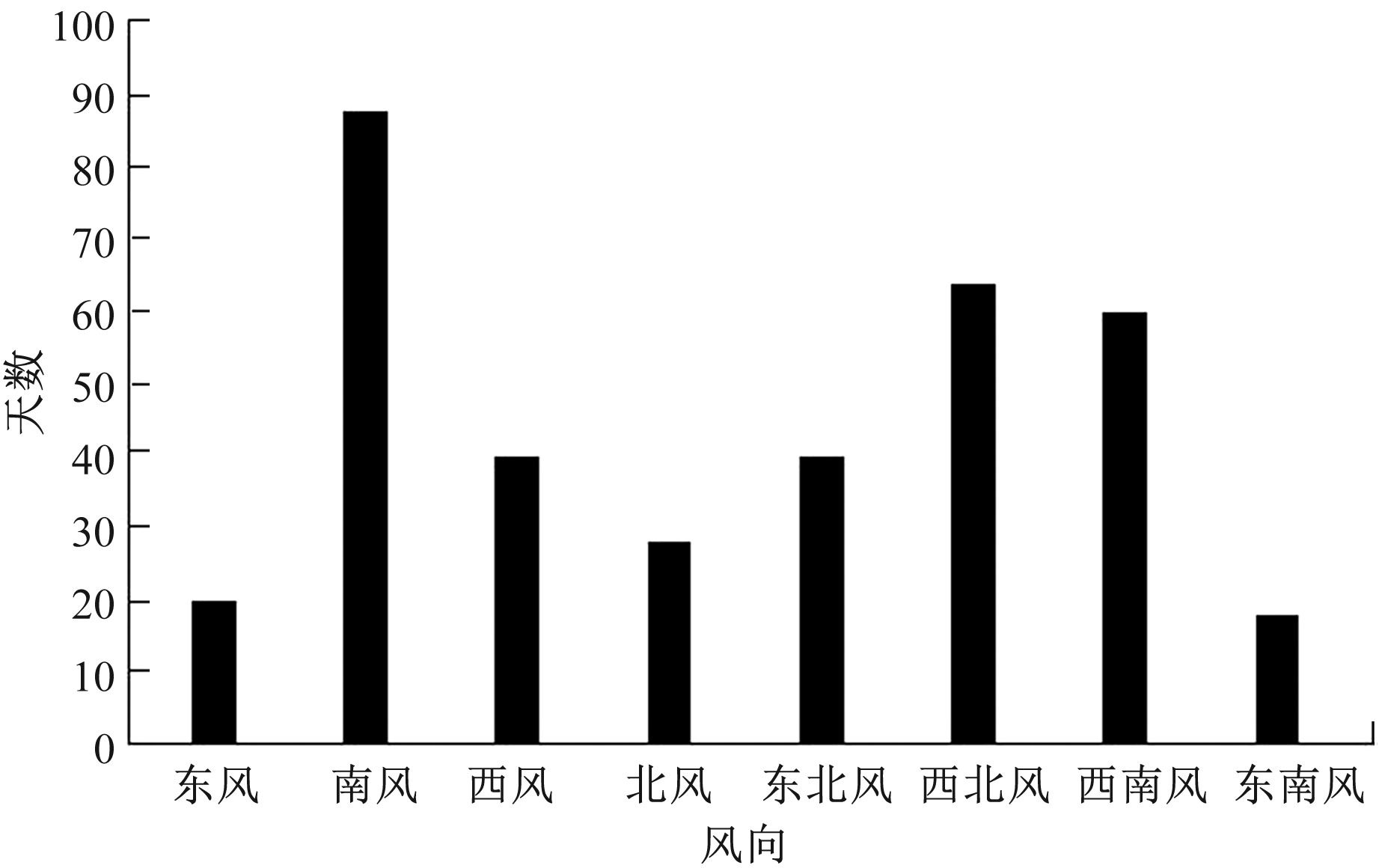

In order to explore the distribution characteristics of wind flow in stopes of Haerwusu Open-Pit Coal Mine, a simple model of Haerwusu Open-Pit Coal Mine was constructed by CFD numerical simulation method, and the wind flow structure in stopes was simulated under the conditions of south, northwest, and southwest winds at speeds of 3, 5, and 7 m/s. The influence of different wind directions and wind speeds on the wind flow distribution in Haerwusu Open-Pit Coal Mine was studied. The results show that south, northwest, and southwest winds are the main wind directions of the Haerwusu Open-Pit Coal Mine, and the main wind levels are Level 2, Level 3, and Level 4. The interior of the pit is dominated by the direct flow wind area, and the circulation area is concentrated on the bottom-leeward side of the pit. When the wind direction comes from the dump, there is no significant circulation in the stope. When the wind direction is from the end slope, the circulation area is concentrated on the leeward side. With the increase in surface wind speed, the wind speed at the bottom of the stope also increases at a uniform speed, but its amplitude is not large.

Key words: open-pit coal mine, wind flow in stope, numerical simulation, distribution characteristic, ventilation pattern

CLC Number:

X936

ZHANG Yu, ZHAO Meng, WANG Feiyu, WANG Ruixin. Study on distribution characteristics of wind flow in stopes of Haerwusu Open-Pit Coal Mine[J]. China Safety Science Journal, 2025, 35(S1): 130-136.

Figures/Tables 11

Fig.1

Fig.2

Fig.3

Fig.4

Table 1

Fig.5

Fig.6

Fig.7

Fig.8

Fig.9

Table 2

References 14

[1]	祁云, 薛凯隆, 李绪萍, 等. 多策略改进SSA优化KELM的边坡稳定性预测模型[J]. 中国安全科学学报, 2025, 35(3):92-98.
	QI Yun, XUE Kailong, LI Xuping, et al. Slope stability prediction model based on multi-strategy improved SSA for optimizing KELM[J]. China Safety Science Journal, 2025, 35(3):92-98.
[2]	汪伟, 崔欣超, 祁云, 等. 基于SSA-RF的采空区煤自燃温度回归分析模型[J]. 中国安全科学学报, 2023, 33(9):136-141.
	WANG Wei, CUI Xinchao, QI Yun, et al. Regression analysis model of coal spontaneous combustion temperature in goaf based on SSA-RF[J]. China Safety Science Journal, 2023, 33(9):136-141.
[3]	俄罗斯)尼基金, 比特科洛夫. 露天矿通风设计[M]. 陆国荣,吕乃璧,译. 北京: 煤炭工业出版社, 1981:191.
	NIKITIN B C, BITKOLO V. Open-pit mine ventilation design[M]. LU Guorong, LYU Naibi, Translated. Beijing: Coal Industry Press, 1981: 191.
[4]	蒋维楣, 石勇, 王卫国. 小尺度深凹地形PBL结构的数值模拟研究[J]. 气象科学, 1997(2):137-142.
	JIANG Weimei, SHI Yong, WANG Weiguo. The numerical simulation study on the PBL structure over the small-scale concave terrain[J]. Journal of the Meteorological Sciences, 1997(2):137-142.
[5]	刘红年, 蒋维楣. 深凹露天矿流场与污染物散布的模拟研究[J]. 环境科学学报, 1996(3):264-269.
	LIU Hongnian, JIANG Weimei. Simulation study on the flow field and air pollutant dispersion in deep open pit[J]. Acta Scientiae Circumstantiae, 1996(3):264-269.
[6]	杜翠凤, 白旭青. 深凹露天矿内复环流影响因素的数值模拟[J]. 矿业研究与开发, 2013, 33(1):84-87.
	DU Cuifeng, BAI Xuqing. Numerical simulation of effect factors of recirculation in deep open pit[J]. Mining Research and Development, 2013, 33(1):84-87.
[7]	杜翠凤, 赵云, 李永新. 深凹露天矿采场内流场分布规律的试验与数值模拟[J]. 东北大学学报:自然科学版, 2014, 35(6):875-879.
	DU Cuifeng, ZHAO Yun, LI Yongxin. Numerical simulation and experimental study on distributions of flow field in stope of deep sunken open-pit mines[J]. Journal of Northeastern University:Natural Science, 2014, 35(6):875-879.
[8]	HUERTAS J, HUERTAS M E, CERVANTES G, et al. Assessment of the natural sources of particulate matter on the opencast mines air quality[J]. Science of the Total Environment, 2014,493:1 047-1 055.
[9]	王远, 杜翠凤, 靳文波, 等. 深凹露天矿复环流决定参数准则方程式的建立[J]. 煤炭学报, 2018, 43(5):1 365-1 372.
	WANG Yuan, DU Cuifeng, JIN Wenbo, et al. Establishment of criterion equation for decision parameter of recombination circulation in deep sunken open-pit mine[J]. Journal of China Coal Society, 2018, 43(5):1 365-1 372.
[10]	王琪. 煤炭产业环境保护的路径探讨[J]. 陕西煤炭, 2020, 39(1):96-98,141.
	WANG Qi. Discussion on the ways of environmental protection in the coal industry[J]. Shaanxi Coal, 2020, 39(1):96-98,141.
[11]	王安智. 露天矿深部开采通风防尘技术探讨[J]. 中国钼业, 2000(6):47-49.
	WANG Anzhi. Investigation on the technique of dust prevention by ventilation during deep mining in open-pit mine[J]. China Molybdenum Industry, 2000(6):47-49.
[12]	罗怀廷. 寒区露天煤矿粉尘污染特征及预测[D]. 徐州: 中国矿业大学, 2022.
	LUO Huaiting. Characteristics and prediction of dust pollution in open-pit coal mines in cold regions[D]. Xuzhou: China University of Mining and Technology, 2022.
[13]	TANG Wanjun, LI Fengming. A new circulating accumulation emission model for assessing dust emission from open pit mine[J]. Scientific Reports, 2021, 11(1):DOI:10.1038/s41598-021-03774-y.
[14]	李明, 许郑生. 深凹露天矿地表粗糙度对复环流结构影响的模拟[J]. 安全与环境学报, 2021, 21(5):1 998-2 005.
	LI Ming, XU Zhengsheng. Simulated study on the influence of the surface roughness on the recirculating structure in the deep open-pit mining[J]. Journal of Safety and Environment, 2021, 21(5):1 998-2 005.

风级	对应风速/(m·s^-1)
0	0~0.2
1	0.3~1.5
2	1.6~3.3
3	3.4~5.4
4	5.5~7.9

平均风速	3	5	7
南风	0.230	0.380	0.540
西北风	0.165	0.285	0.410
西南风	0.176	0.294	0.420
