大采高工作面回风巷道支护参数优化研究

doi:10.16265/j.cnki.issn1003-3033.2022.S2.0098

摘要/Abstract

摘要：

为减少大采高回采巷道支护成本,提高掘进效率,以补连塔煤矿12511大采高工作面回风巷道为对象,通过对比不同支护方案巷道围岩的稳定性,研究巷道支护参数的可优化性。针对现有支护方案,开展理论分析、现场实测进行巷道围岩稳定性分析;针对参数优化后支护方案,采用数值模拟分析巷道围岩的稳定性。结果表明:现有支护条件满足安全生产要求,采动影响下巷道围岩未发生明显破坏,支护强度偏大;通过改变锚杆、锚索的直径、数量和排距,优化支护参数;优化后方案相较于现有支护方案,正帮、副帮和顶板的变形量仅分别增加10%、6%和16%,满足巷道支护要求;方案优化后支护成本降低47.3%,提高巷道掘进效率,改善矿井接续紧张局面。

关键词: 大采高工作面, 回风巷道, 支护参数, 锚杆, 围岩, 数值模拟

Abstract:

In order to reduce the support cost and improve the tunneling efficiency of mining roadways with large mining height, a return air roadway was taken as the object. The roadway was from 12511 working face with large mining height in Bulianta coal mine. The optimization of support parameters of the roadway was studied by comparing the stability of surrounding rock of the roadway under different support schemes. In view of the existing support scheme, theoretical analysis and field measurement were carried out, so as to analyze the stability of the surrounding rock. For the support scheme after parameter optimization, the stability of the surrounding rock was analyzed by numerical simulation. The results show that the existing support conditions have met the requirements of safe production. The surrounding rock of the roadway under the influence of mining is not greatly damaged, and the support strength is too large. By changing the diameter, quantity, and row spacing of anchor bolts and cables, the support parameters are optimized. Compared with the existing support scheme, the optimized scheme increases the deformation of the main side, auxiliary side, and roof by 10%, 6%, and 16%, respectively. The values have met the requirements of roadway support. In addition, the scheme reduces the support cost by 47.3%, increases the tunneling efficiency of the roadway, and alleviates the tension in the mine connection.

Key words: mining roadways with large mining height, return air roadway, support parameters, anchor bolt, surrounding rock, numerical simulation

范东林, 王巍. 大采高工作面回风巷道支护参数优化研究[J]. 中国安全科学学报, 2022, 32(S2): 166-171.

FAN Donglin, WANG Wei. Study on support parameter optimization of mining roadway in working face with large mining height[J]. China Safety Science Journal, 2022, 32(S2): 166-171.

图/表 7

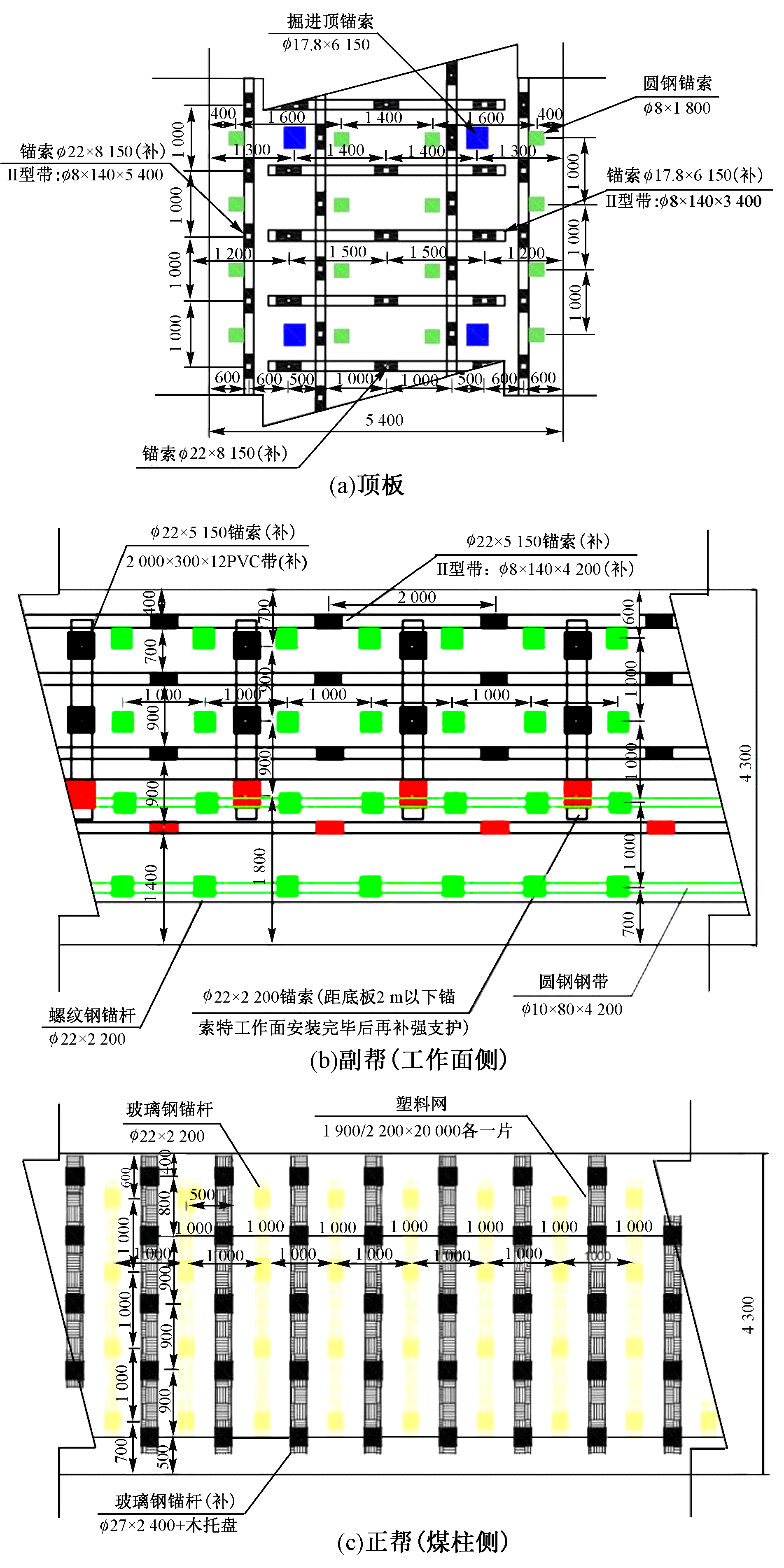

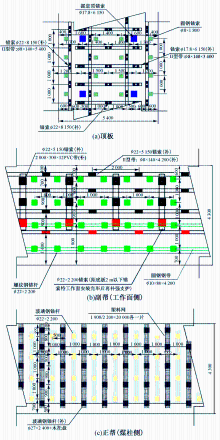

图1

图2

图3

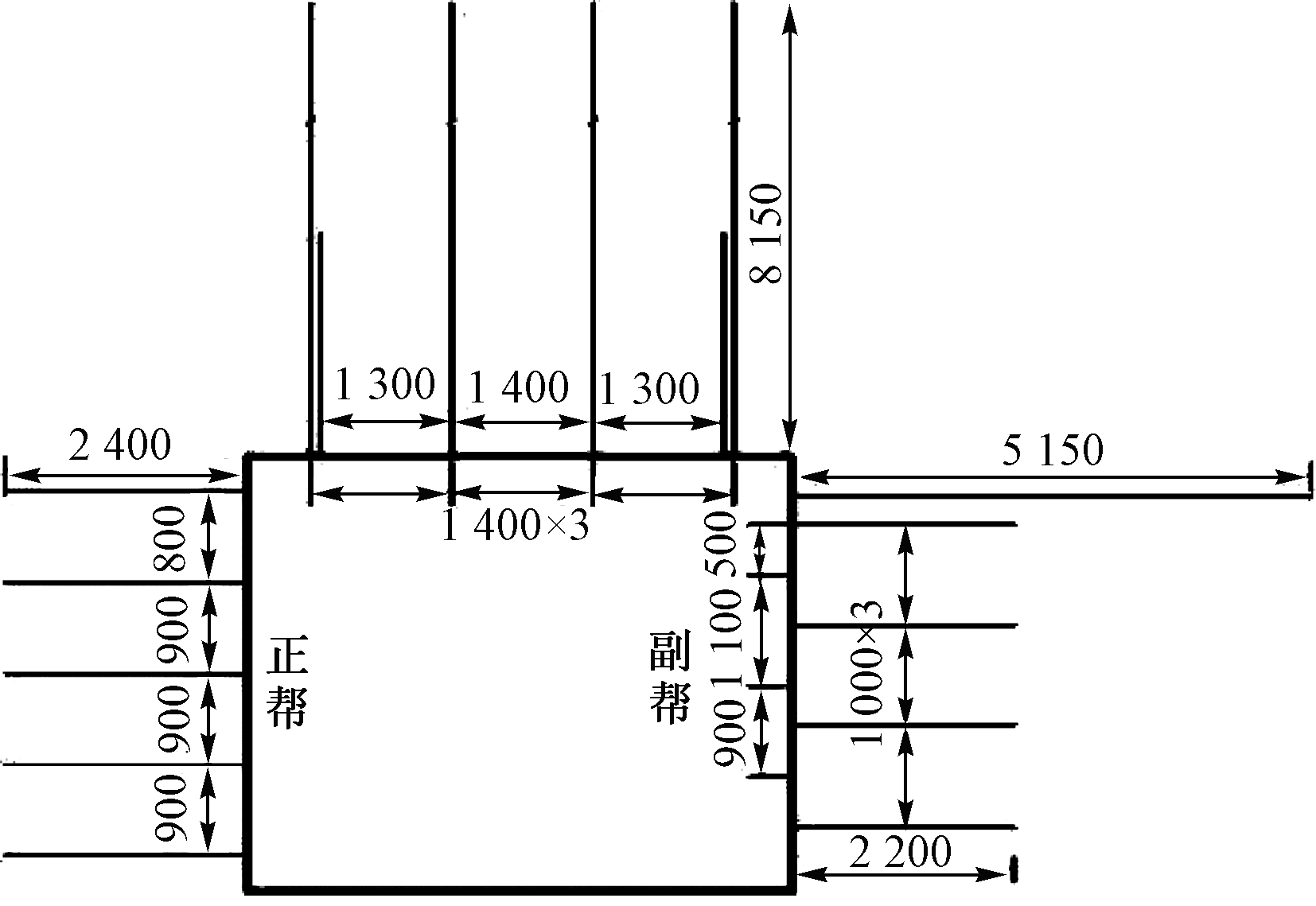

图4

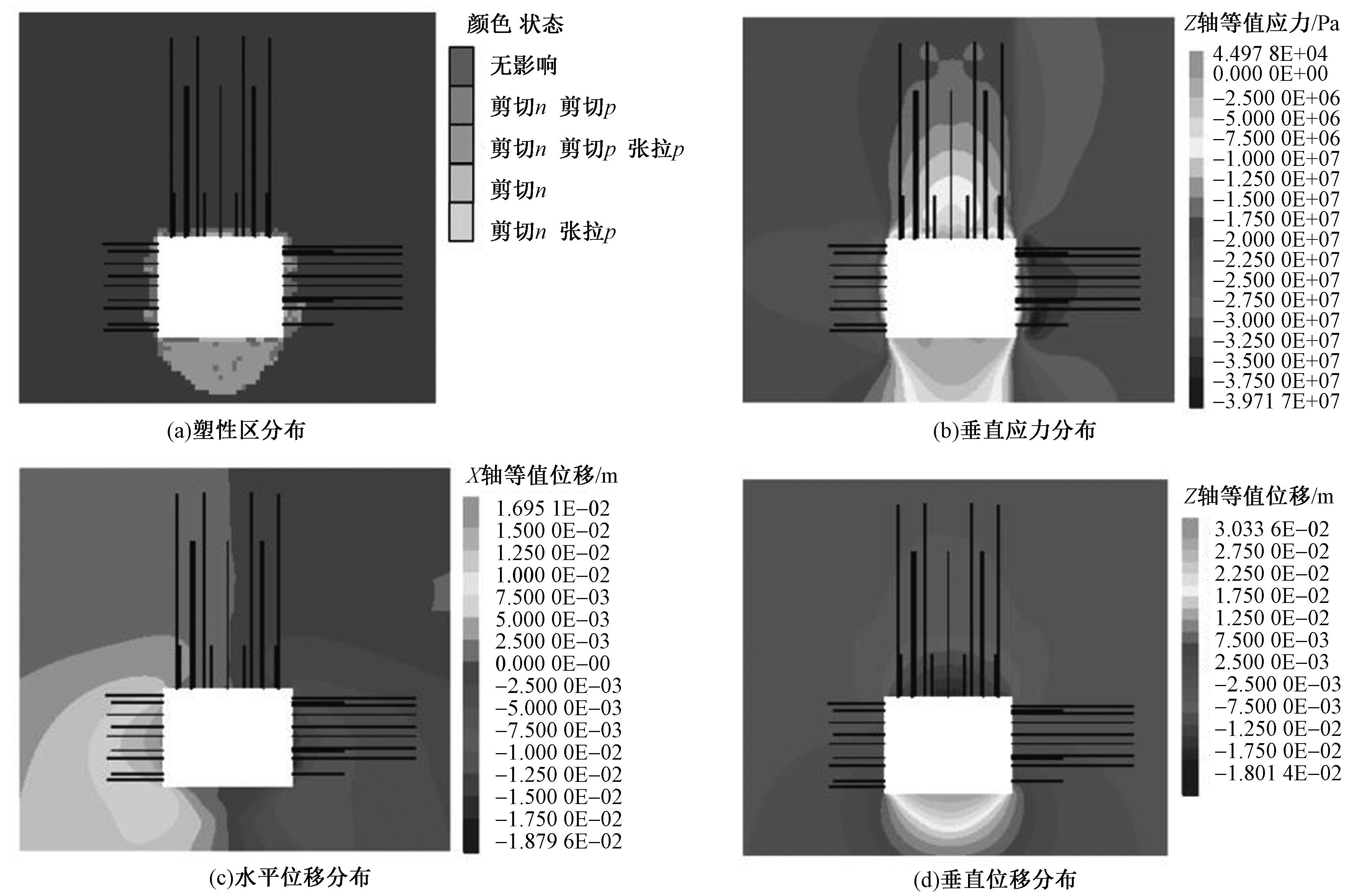

图5

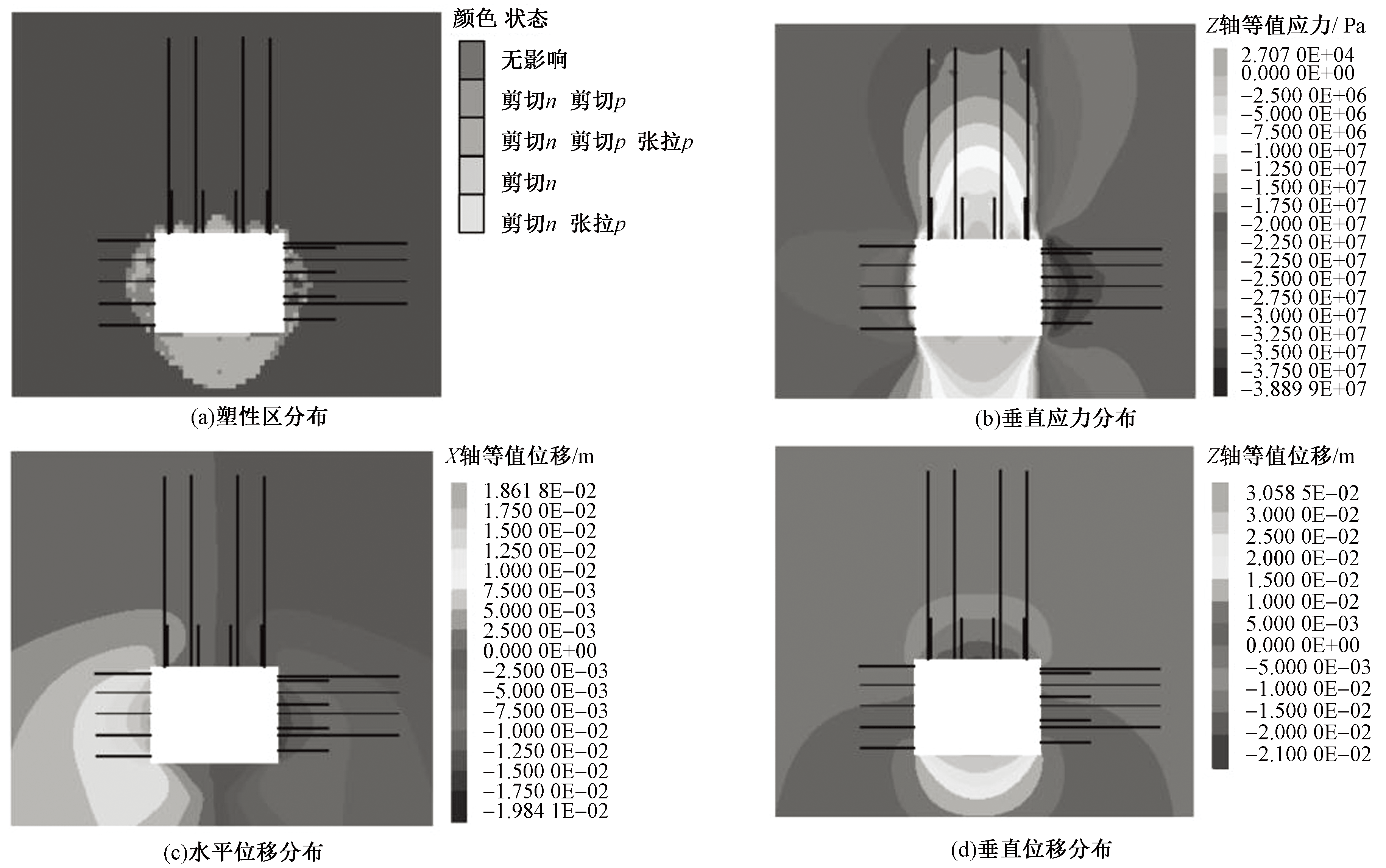

图6

表1

参考文献 20

[1]	杨小朋, 闫瑞兵, 彭莉莉. 大型煤炭企业事故致因模型及对策分析[J]. 中国安全科学学报, 2021, 31(增1):73-79.
	YANG Xiaopeng, YAN Ruibing, PENG Lili. Analysis on accident cause model and countermeasure for large coal enterprises[J]. China Safety Science Journal, 2021, 31(S1):73-79. doi: 10.16265/j.cnki.issn1003-3033.2021.S1.014
[2]	王双明. 对我国煤炭主体能源地位与绿色开采的思考[J]. 中国煤炭, 2020, 46(2):11-16.
	WANG Shuangming. Thoughts about the main energy status of coal and green mining in China[J]. China Coal, 2020, 46(2):11-16.
[3]	李文平, 朱厅恩, 王启庆, 等. 鄂尔多斯盆地巨厚白垩系下煤层开采突泥溃砂物源及成灾模式[J]. 煤炭学报, 2022, 47(1):360-370.
	LI Wenping, ZHU Ting'en, WANG Qiqing, et al. Material source and disaster model of mud-sand inrush in coal mining under extremely thick Cretaceous in Ordos Basin[J]. Journal of China Coal Society, 2022, 47(1):360-370.
[4]	谢生荣, 王恩, 陈冬冬, 等. 深部强采动大断面煤巷围岩外锚-内卸协同控制技术[J]. 煤炭学报, 2022, 47(5):1946-1 957.
	XIE Shengrong, WANG En, CHEN Dongdong, et al. Collaborative controlt technology of external anchor-internal unloading of surrounding rockin deep large-section coal roadway under strong mining influence[J]. Journal of china Coal Society, 2022, 47(5):1946-1 957.
[5]	王新丰, 何毅, 陆明远, 等. 开挖卸荷扰动深部巷道围岩变形破坏特征研究[J]. 中国安全科学学报, 2021, 31(8):83-90. doi: 10.16265/j.cnki.issn1003-3033.2021.08.012
	WANG Xinfeng, HE Yi, LU Mingyuan, et al. Study on deformation and failure characteristics of deep roadway surrounding rock under excavation unloading disturbance[J]. China Safety Science Journal, 2021, 31(8):83-90. doi: 10.16265/j.cnki.issn1003-3033.2021.08.012
[6]	姚直书, 王晓云, 王要平, 等. 煤矿TBM掘进巷道围岩时效变形分析及支护参数优化研究[J]. 煤炭工程, 2022, 54(7):31-37.
	YAO Zhishu, WANG Xiaoyun, WANG Yaoping, et al. Time-dependent deformation analysis and support parameter optimization of surrounding rock of TBM tunneling roadway in coal mine[J]. Coal Engineering, 2022, 54(7):31-37.
[7]	王美美, 王金安. 冲击巷道锚网支护参数优化研究[J]. 中国矿业, 2020, 29(4):126-130, 135.
	WANG Meimei, WANG Jin'an. On the optimization of bolt meshanchor support parameters in dynamic pressure e roadways[J]. China Mining Magazine, 2020, 29(4):126-130,135.
[8]	余涛, 赵光明, 孟祥瑞, 等. 复合顶板稳定性分析及支护参数设计[J]. 煤炭科学技术, 2020, 48(增1):18-23.
	YU Tao, ZHAO Guangming, MENG Xiangrui, et al. Stability analysis and supporting parameter design of composite roof[J]. Coal Science and Technology, 2020, 48(S1):18-23.
[9]	侯渊. 近距离煤层大断面开切眼支护设计与掘进技术探讨[J]. 煤炭工程, 2018, 50(增1):50-53.
	HOU Yuan. Discussion on design and driving technology of large section opening hole support in close coal seam[J]. Coal Engineering, 2018, 50(S1):50-53.
[10]	李冠军, 赵光明, 孟祥瑞, 等. 综放沿空动压巷道锚网索耦合支护研究[J]. 中国安全科学学报, 2019, 29(2):125-132.
	LI Guanjun, ZHAO Guangming, MENG Xiangrui, et al. Research on bolt-net-anchor coupling support for fully-mechanized caving roadway along gob subject to dynamic pressure[J]. China Safety Science Journal, 2019, 29(2):125-132.
[11]	赵田田. 裕兴煤矿15109工作面回风巷支护技术研究[J]. 煤炭科学技术, 2020, 48(增1):92-99.
	ZHAO Tiantian. Research on return air roadway support technology in No.15109 mining face of Yuxing coal mine[J]. Coal Science and Technology, 2020, 48(S1):92-99.
[12]	白志云, 徐青云, 王爱国, 等. 厚煤层大断面托顶煤巷道围岩稳定控制研究[J]. 煤矿安全, 2022, 53(6):178-186.
	BAI Zhiyun, XU Qingyun, WANG Aiguo, et al. Study on stability and control of surrounding rock of roadway with large section in thick coal seam[J]. Safety in Coal Mines, 2022, 53(6):178-186.
[13]	张清清. 断层破碎区动压巷道稳定性分析及支护参数优化[J]. 煤炭技术, 2022, 41(4):49-52.
	ZHANG Qingqing. Stability controlling analysis and support parameters optimization of roadway with dynamic pressure in fault broken zone[J]. Coal Technology, 2022, 41(4):49-52.
[14]	ZHU Xunguo, YANG Shuai, XIA Hongchun, et al. Joint support technology and its engineering application to deep soft rock tunnel with strong creep[J]. Geotechnical and Geological Engineering, 2020, 38:3 403-3 414. doi: 10.1007/s10706-019-01031-8
[15]	KANG Hongpu, YANG Jinghe, GAO Fuqiang, et al. Experimental study on the mechanical behavior of rock Bolts subjected to complex static and dynamic loads[J]. Rock Mechanics and Rock Engineering, 2020, 53(11):4 993- 5004.
[16]	CHEN Cao, REN Ting, ZHNAG Yidong, et al. Experimental investigation of the effect of grout with additive in improving ground support[J]. International Journal of Rock Mechanics & Mining Sciences, 2016, 85:52-59.
[17]	MOSTAFA G, KOROSH S, HOSSEIN J. Optimization of the fully grouted rock bolts for load transfer enhancement[J]. International Journal of Mining Science and Technology, 2015, 25(5):707-712. doi: 10.1016/j.ijmst.2015.07.002
[18]	原亚鹏, 王志刚, 宁帅, 等. 倾斜煤层双巷布置留巷支护参数优化设计[J]. 煤炭技术, 2022, 41(1):31-35.
	YUAN Yapeng, WANG Zhigang, NING Shuai, et al. Optimum design on support parameters of double roadway layout in inclined coal seam[J]. Coal Technology, 2022, 41(1):31-35. doi: 10.1016/0257-8972(90)90128-Y
[19]	张琪, 杨宵, 乔博阳. 锦界矿回采巷道围岩破坏特征与支护参数优化[J]. 煤矿安全, 2019, 50(6):219-223, 229.
	ZHANG Qi, YANG Xiao, QIAO Boyang. Surrounding rock destruction characteristics and support parameters optimization of mining roadway in jinjie mine[J]. Safety in Coal Mines, 2019, 50(6):219-223, 229.
[20]	丁飞. 超大采高综采工作面支护技术与装备研究[D]. 阜新: 辽宁工程技术大学, 2019.
	DING Fei. Research on supporting technology and equipment in ultra large height mining face[D]. Fuxin:Liaoning Technical University, 2019.

支护方案	锚杆成本/(元·m^-1)	锚索成本/(元·m^-1)	总成本/(元·m^-1)	巷道长/m	成本降低/%
原支护	426	1 567.94	1 993.94	3 250	—
优化支护	402.5	647.5	1 050	3 250	47.3
