中国安全科学学报 ›› 2023, Vol. 33 ›› Issue (S1): 192-195.doi: 10.16265/j.cnki.issn1003-3033.2023.S1.5004

• 安全工程技术 • 上一篇    下一篇

基于卷积神经网络的煤泥水外溢检测算法

张琦(), 吉日格勒

  1. 国能准能集团有限责任公司, 内蒙古 鄂尔多斯 010300
  • 收稿日期:2023-03-13 修回日期:2023-05-21 出版日期:2023-06-30
  • 作者简介:

    张琦 (1991—),男,蒙古族,内蒙古鄂尔多斯人,专科,助理工程师,主要从事应用系统维护工作。E-mail:

    吉日格勒 工程师

  • 基金资助:
    国家自然科学基金资助(51208282)

Detection algorithm of slime water overflow based on convolutional neural network

ZHANG Qi(), JIRGEL

  1. Guoneng Zhunneng Group Co., Ltd., Ordos Inner Mongolia 010300, China
  • Received:2023-03-13 Revised:2023-05-21 Published:2023-06-30

摘要:

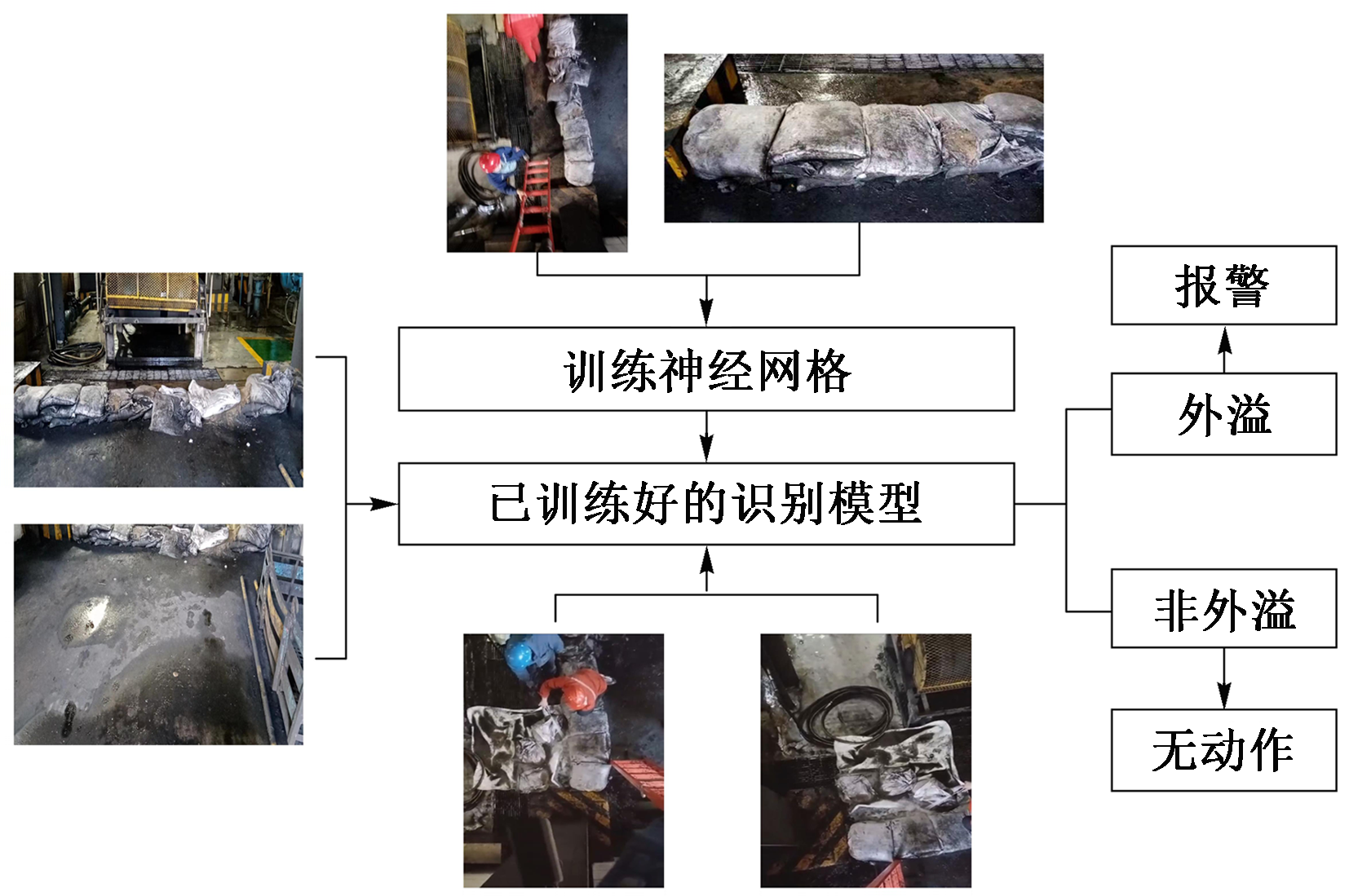

为解决工厂煤泥水外溢这一难题,提出一种实时监督煤泥水外溢的解决方案。首先,构建基于深度学习的煤泥水外溢视频检测模型,利用卷积神经网络(CNN)提取煤泥水监测图像特征;然后,将提取到的特征代入模型进行训练,通过微调方法,使准确率不断提升;最后,采用相关评价指标评估模型的性能。结果表明:采用基于CNN的煤泥水外溢检测模型相较于传统的检测算法,在各项评价指标上可提高15%以上;在煤泥水外溢的严重程度上也能做出精准判断,各项评价指标均达到90%以上,有助于降低煤泥水外溢状况发生。

关键词: 卷积神经网络(CNN), 煤泥水外溢, 视频检测, 特征提取, 评价指标

Abstract:

In order to solve the problem of slime water overflow in the factory, a solution of real-time monitoring of slime water overflow was put forward. First, CNN was used to extract features from the slime water monitoring images, and then the extracted features were sent into the model for training. The accuracy rate was continuously improved through fine tuning. Finally, relevant evaluation indicators were used to evaluate the performance of the model. The results show that compared with the traditional detection algorithm, the slime water overflow detection model based on the CNN has an improvement of 15% in terms of evaluation indicators. Accurate judgment can also be made on the severity of slime water overflow, and all evaluation indicators exceed 90%, which is helpful to reduce the occurrence of slime water overflow.

Key words: convolutional neural network (CNN), slime water overflow, video detection, feature extraction, evaluation indicator
