环境风下多层航站楼排烟效果及人员疏散研究

doi:10.16265/j.cnki.issn1003-3033.2024.01.1866

摘要/Abstract

摘要：

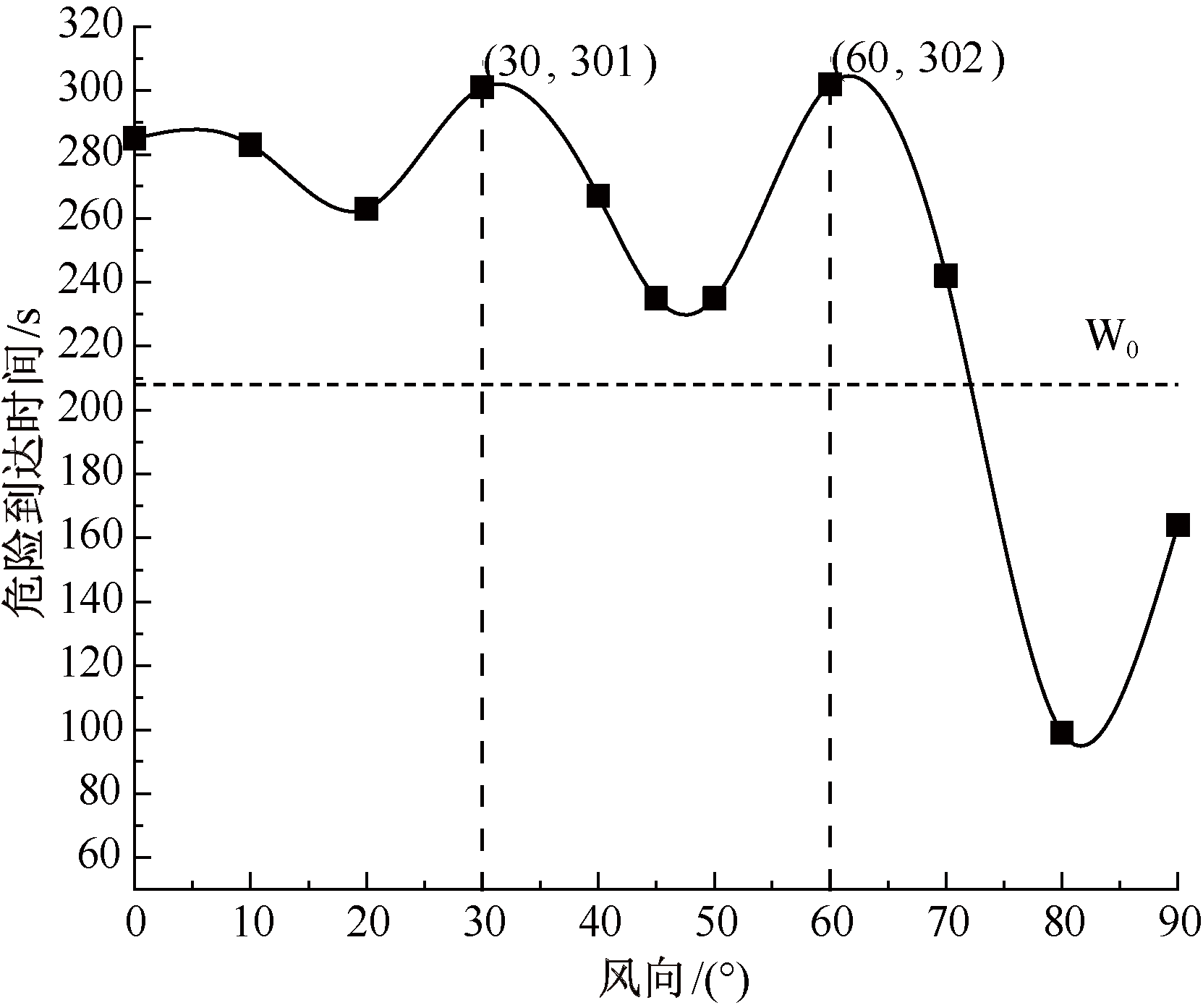

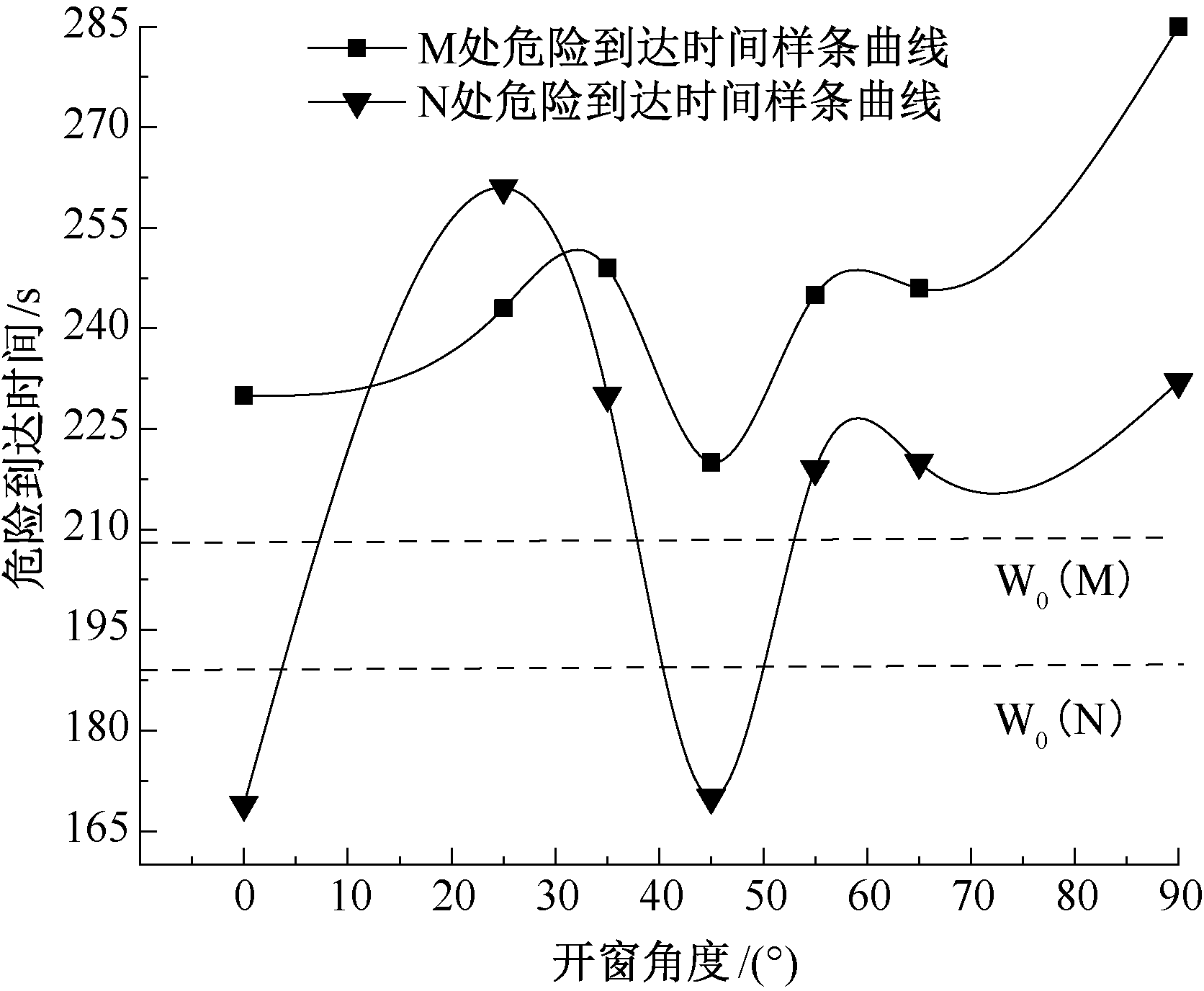

为探究环境风下机场航站楼排烟模式对人员安全疏散的影响,以某航站楼为研究对象,选择多楼层区域作为数据获取范围,针对排烟窗控制模式的33种工况,采用火灾动力学(FDS)软件模拟排烟效果;以北风经东北风转为东风构造风向区间,获得风向与危险到达时间的曲线关系;以0~90°为高侧窗开启角度区间,获得适宜开窗范围,并根据环境风进行安全疏散的判定与优化。结果表明:对于楼内排烟效果而言,若高侧窗全开,无风和低风速下有利于排烟,环境风速较高时,垂直于楼层走势的风向排烟效果较好;在风向区间内,0~70°风向会对高侧窗排烟起促进作用,30和60°风向点最优,顺楼层走势的风向会有烟气倒灌;在高侧窗开启角度内,实际以5~30°下悬窗或全开窗为宜;结合风向下的危险到达时间,进行楼层人员疏散优化,调控后疏散时间比未优化时减少10%。

关键词: 航站楼, 环境风, 排烟效果, 人员疏散, 高侧窗, 危险到达时间

Abstract:

In order to investigate the effect of smoke evacuation patterns under ambient winds on the safe evacuation of people, taking a terminal building as the subject of the study, the multi-floor area was selected as the data acquisition range, 33 control conditions were divided by controlling the smoke exhaust window, and fire dynamics simulator (FDS) software was used to obtain the smoke exhaust effect in the building under different conditions. Further construct wind direction intervals with north winds shifting to east winds via northeast winds to obtain the curve law of wind direction and time to reach hazards, and 0-90° as the high side window opening angle interval to obtain the suitable window opening range, according to the environmental wind to determine and optimize the safe evacuation. The results show that for the smoke exhaust effect in the building, if the high side windows are fully opened, it is conducive to smoke exhaust under no wind and low wind speed. If the wind speed is high, the wind direction perpendicular to the floor alignment is more effective for smoke evacuation. In the wind direction range, the wind direction of 0-70° will promote the smoke exhaust of the high side window, and the wind direction of 30 and 60° is the best, and the wind direction along the floor trend will have smoke backflow. Within the high side window opening angle, a 5-30° down-hung window or full opening window is appropriate. Combined with the time to reach hazards of the wind direction, the evacuation of floor personnel is optimized, and the evacuation time after adjustment is reduced by 10% compared with the unoptimized time.

Key words: terminal building, ambient wind, smoke exhaust efficiency, evacuation, high side windows, time to reach hazards

中图分类号:

X932爆炸安全与防火、防爆

宋洋, 马文举. 环境风下多层航站楼排烟效果及人员疏散研究[J]. 中国安全科学学报, 2024, 34(1): 206-214.

SONG Yang, MA Wenju. Research on smoke exhaust efficiency and evacuation of multi-storey terminal buildings under action of environmental wind[J]. China Safety Science Journal, 2024, 34(1): 206-214.

图/表 15

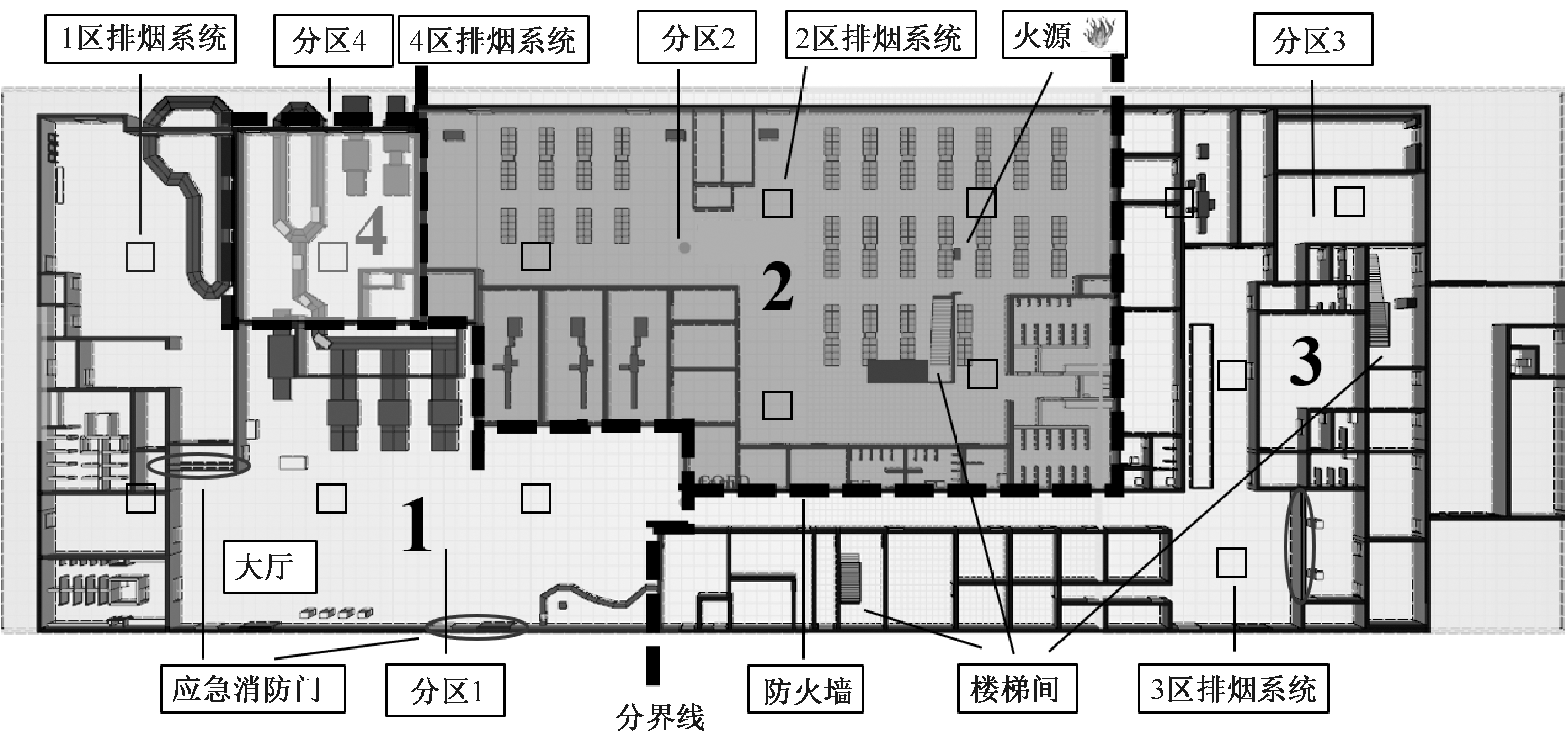

图1

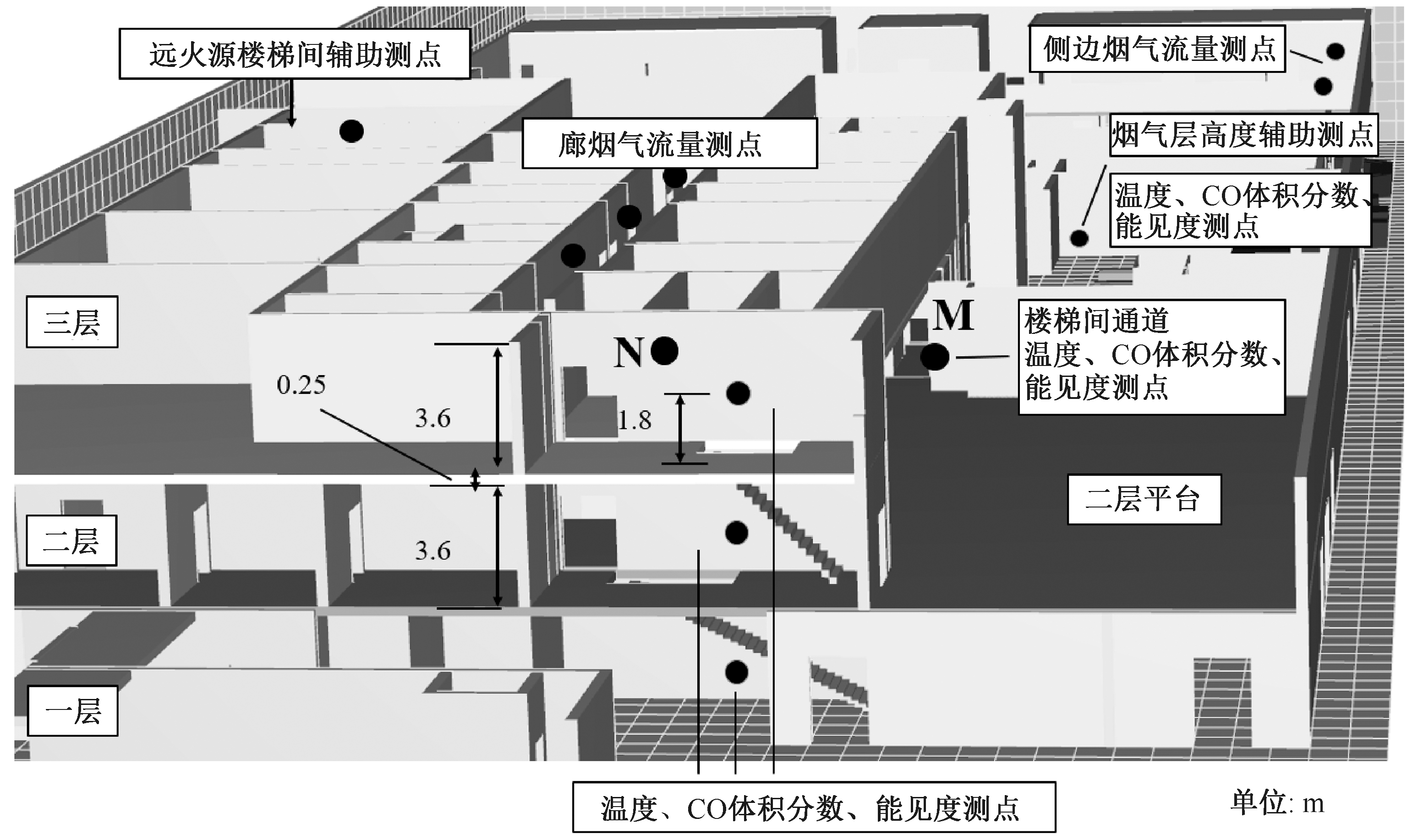

图2

图3

表1

表2

表3

表4

图4

图5

图6

图7

图8

图9

表5

表6

参考文献 21

[1]	赵鹏程, 姚斌. 环境风作用下弧形立面机场航站楼自然排烟效果的数值模拟研究[J]. 火灾科学, 2020, 29(1):63-70.
	ZHAO Pengcheng, YAO Bin. Numerical simulation study on natural smoke exhaust effect of arc-shaped airport terminal under the action of environmental wind[J]. Fire Science, 2020, 29(1):63-70.
[2]	窦清华. 机场航站楼自然排烟模式的数值模拟研究[D]. 合肥: 中国科学技术大学, 2018.
	DOU Qinghua. Numerical simulation research on natural smoke exhaust mode of airport terminal building[D]. Hefei: University of Science and Technology of China, 2018.
[3]	邓玲, 韩峥. 环境风速对前室自然排烟效果的影响[J]. 消防科学与技术, 2020, 39(7):931-934.
	DENG Ling, HAN Zheng. Influence of ambient wind speed on the effect of natural smoke exhaust in the front room[J]. Fire Science and Technology, 2020, 39(7):931-934.
[4]	刘博, 王春雨, 耿伟超, 等. 大空间设置上、下悬窗自然排烟效果对比研究[J]. 中国安全生产科学技术, 2022, 18(1):87-94.
	LIU Bo, WANG Chunyu, GENG Weichao. et al. A comparative study on the natural smoke exhaust effect of large space with upper and lower hanging windows[J]. Journal of Safety Science and Technology, 2022, 18(1):87-94.
[5]	CHOW W K, LI Junmei. Wind action on natural smoke exhaust in atria[J]. Journal of Computational Science, 2018, 28:140-147. doi: 10.1016/j.jocs.2018.09.001
[6]	WANG Aijuan, MANESCAU B, SERRA Q, et al. Numerical simulations of outdoor wind effects on smoke spreading along a corridor: physical and sensitivity analysis[J]. International Journal of Thermal Sciences, 2019, 142:332-347. doi: 10.1016/j.ijthermalsci.2019.02.027
[7]	LIU Xiaosheng, DONG Hou, JUN Ji. et al. Experiment and numerical simulation of cable trench fire detection[J]. Case Studies in Thermal Engineering, 2021,28: DOI:10.1016/j.csite.2021.101338.
[8]	王乐. 利用Pyrosim对某高架仓库火势蔓延和烟气变化的数值模拟[D]. 北京: 中国地质大学, 2020.
	WANG Le. Numerical simulation of fire spread and smoke change in a high-bay warehouse using Pyrosim[D]. Beijing: China University of Geosciences (Beijing), 2020.
[9]	GB 51236—2017, 民用机场航站楼设计防火规范[S].
	GB 51236-2017,Code for fire protection design of civil airport terminal[S].
[10]	GB 51251—2017, 建筑防烟排烟系统技术标准[S].
	GB 51251-2017,Technical standard for smoke management systems in buildings[S].
[11]	李引擎, 史毅. 建筑防火工程[M]. 北京: 化学工业出版社, 2004:536-552.
[12]	任飞, 史聪灵, 李建, 等. 半地下有轨电车车站火灾自然排烟模式研究[J]. 中国安全科学学报, 2021, 31(3):156-161. doi: 10.16265/j.cnki.issn1003-3033.2021.03.022
	REN Fei, SHI Congling, LI Jian, et al. Study on natural smoke extraction mode of fire in semi-underground tram stations[J]. China Safety Science Journal, 2021, 31(3):156-161. doi: 10.16265/j.cnki.issn1003-3033.2021.03.022
[13]	霍然, 袁宏永. 性能化建筑防火分析与设计[M]. 合肥: 安徽科学技术出版社, 2003:232-239.
[14]	李娜, 张艳, 华宇东, 等. 外界风场对高铁车厢行李火灾发展的影响[J]. 中国安全科学学报, 2020, 30(12):141-147. doi: 10.16265/j.cnki.issn 1003-3033.2020.12.020
	LI Na, ZHANG Yan, HUA Yudong. et al. Influence of external wind field on the development of luggage fires in high-speed railway carriages[J]. China Safety Science Journal, 2020, 30(12): 141-147. doi: 10.16265/j.cnki.issn 1003-3033.2020.12.020
[15]	JGJ 102—2003,玻璃幕墙工程技术规范[S].
	JGJ 102-2003,Technical code for glass curtain wall engineering[S].
[16]	彭志昊. 环境风条件下超高层建筑火灾烟气运动规律研究[D]. 成都: 四川师范大学, 2022.
	PENG Zhihao. Research on the smoke movement law of super high-rise building fire under ambient wind conditions[D]. Chengdu: Sichuan Normal University, 2022.
[17]	YI Liang, CHEN Yijun, BU Rongwei, et al. Visualization study on the effect of ambient wind on smoke layer height in chamber fires under natural smoke exhaust condition[J]. Journal of Wind Engineering and Industrial Aerodynamics, 2021,208: DOI:10.1016/j.jweia.2020.104458.
[18]	叶成豪, 刘月婵, 孙超, 等. 考虑火灾产物影响条件下的人员疏散仿真研究[J]. 中国安全科学学报, 2020, 30(6):142-151. doi: 10.16265/j.cnki.issn1003-3033.2020.06.021
	YE Chenghao, LIU Yuechan, SUN Chao. et al. Simulation study of personnel evacuation considering the influence of fire products[J]. China Safety Science Journal, 2020, 30(6):142-151. doi: 10.16265/j.cnki.issn1003-3033.2020.06.021
[19]	中国残疾人联合会. 残疾人运输管理办法[EB/OL].(2022-04-22). http://www.cdpf.org.cn//ywpd/wq/wzahjjs/29bbb38ff2ea4e6c8f997eb49f36e5f2.htm.
[20]	GB/T 31593.9—2015, 消防安全工程第9部分:人员疏散评估指南[S].
	GB/T 31593. 9-2015,Fire safety engineering-Part 9: guidance on evaluation of behaviour and movement of people[S].
[21]	宋洋, 陈申高, 兰思洁, 等. 民用机场航站楼火灾人员疏散仿真研究[J]. 中国安全科学学报, 2018, 28(8):31-37. doi: 10.16265/j.cnki.issn1003-3033.2018.08.006
	SONG Yang, CHEN Shengao, LAN Sijie, et al. Simulation study of personnel evacuation in civil airport terminal fire[J]. China Safety Science Journal, 2018, 28(8):31-37. doi: 10.16265/j.cnki.issn1003-3033.2018.08.006

工况	环境风向	环境风速/ (m·s^-1)	开窗模式
工况	环境风向	环境风速/ (m·s^-1)	W₁	W₂	W₃
A₁—A₃	无风	0	221	205	225
B₁—B₁₅	北风	0.8	249	243	242
		1.5	285	250	259
		2.5	279	253	248
		5.0	251	256	201
		10.0	287	263	269
C₁—C₁₅	东北风	0.8	248	163	193
		1.5	235	135	215
		2.5	279	167	229
		5.0	-	222	248
		10.0	-	385	-

工况	环境风向	环境风速/ (m·s^-1)	开窗模式
工况	环境风向	环境风速/ (m·s^-1)	W₁	W₂	W₃
A₁—A₃	无风	0	351	193	316
B₁—B₁₅	北风	0.8	221	198	230
		1.5	232	208	246
		2.5	246	221	262
		5.0	275	260	290
		10.0	340	323	284
C₁—C₁₅	东北风	上述5种风速	未至危险到达时间 (≥400)

工况	环境风向	环境风速/ (m·s^-1)	开窗模式
工况	环境风向	环境风速/ (m·s^-1)	W₁	W₂	W₃
A₁—A₃	无风	0	2.183	0.210	2.190
B₁—B₁₅	北风	0.8	1.781	0.212	1.782
		1.5	1.826	0.213	1.863
		2.5	1.889	0.210	1.932
		5.0	1.998	0.212	2.024
		10.0	2.124	0.196	2.163
C₁—C₁₅	东北风	0.8	1.707	0.208	1.734
		1.5	1.765	0.205	1.750
		2.5	1.766	0.199	1.751
		5.0	1.757	0.193	1.754
		10.0	1.748	0.204	1.733

监测位置	通过人数	通过出口时间/s	出口最大人员流量/(人·s^-1)	通向区域
E楼梯间	100	190.33	1.88	一层大厅
F楼梯间	126	161.43	1.46	一层大厅
I楼梯间	53	114.60	0.88	第二楼层
J楼梯间	133	166.42	1.37	第二楼层

监测位置	通过人数	通过出口时间/s	出口最大人员流量/(人·s^-1)
E楼梯间	63	107.44	1.74
F楼梯间	168	185.04	1.46
I楼梯间	96	138.28	1.26
J楼梯间	91	116.39	1.35
