疲劳对操纵员监视行为影响机制的脑电试验

doi:10.16265/j.cnki.issn1003-3033.2024.09.0997

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (9): 50-58.doi: 10.16265/j.cnki.issn1003-3033.2024.09.0997

• 安全社会科学与安全管理 • 上一篇下一篇

疲劳对操纵员监视行为影响机制的脑电试验

张勉¹(), 易灿南², 蒋复量¹^,²^,^**(), 胡鸿², 吴文², 张思佳²

¹ 南华大学资源环境与安全工程学院,湖南衡阳 421001
² 湖南工学院安全与管理工程学院,湖南衡阳 421002

收稿日期:2024-03-26 修回日期:2024-06-26 出版日期:2024-09-28
通信作者:
^** 蒋复量(1978—),男,湖南东安人,博士,教授,主要从事安全管理与风险分析等方面的研究。E-mail: jfljfd@163.com。
作者简介:
张勉 (1999—),男,四川广元人,硕士研究生,研究方向为核设施安全监测、预警理论与技术。E-mail:158788876@qq.com。
易灿南，教授；
胡鸿，教授
基金资助:
国家级大学生创新创业训练计划项目(202211528009); 湖南工学院省级应用特色学科安全科学与工程开放基金资助(KFB22028); 湖南工学院省级应用特色学科安全科学与工程开放基金资助(KFB22029); 湖南省教育厅项目(21C0811)

Effects of fatigue on operator monitoring behavior based on EEG experiments

ZHANG Mian¹(), YI Cannan², JIANG Fuliang¹^,²^,^**(), HU Hong², WU Wen², ZHANG Sijia²

¹ School of Resources Environment and Safety Engineering, University of South China, Hengyang Hunan 421001, China
² School of Safety and Management Engineering, Hunan Institute of Technology, Hengyang Hunan 421002, China

Received:2024-03-26 Revised:2024-06-26 Published:2024-09-28

摘要/Abstract

摘要：

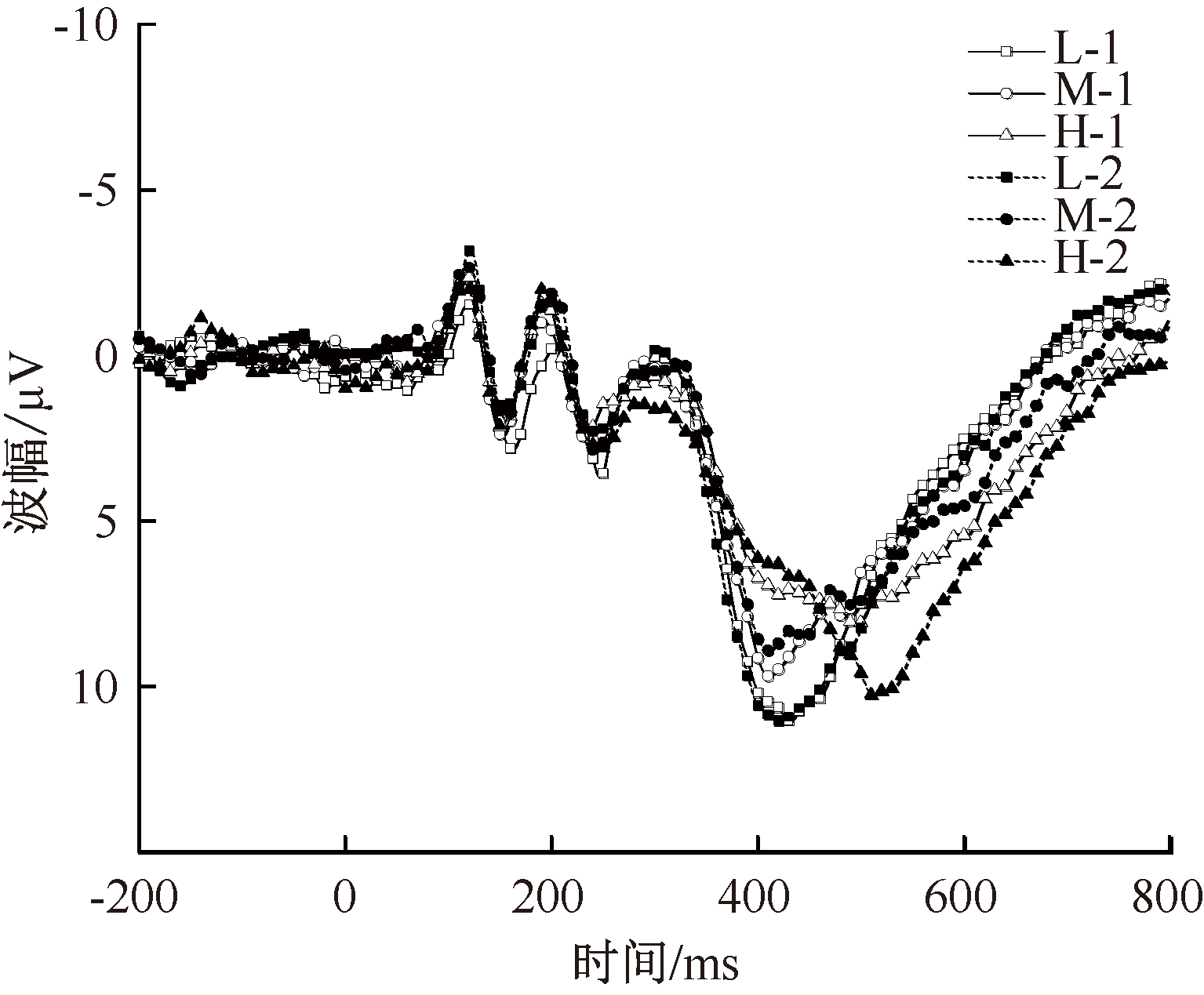

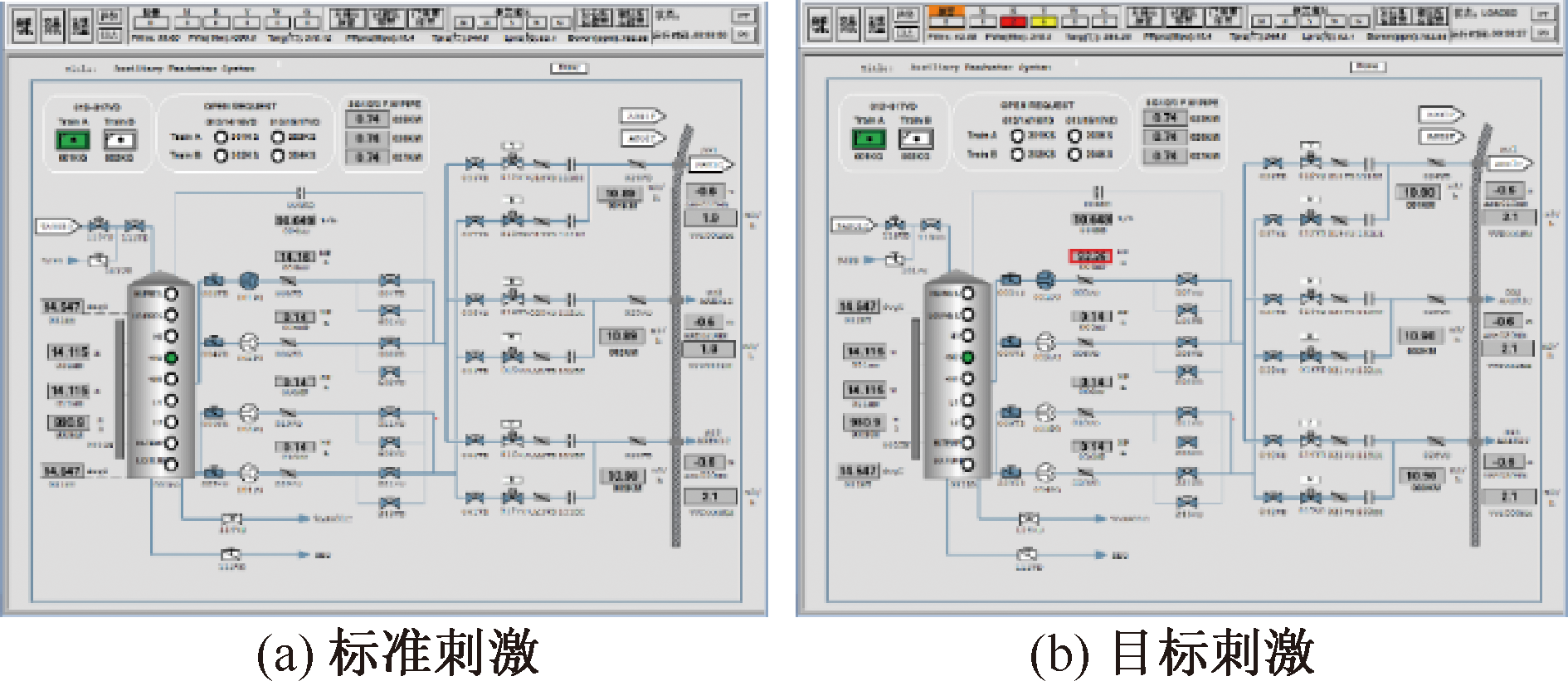

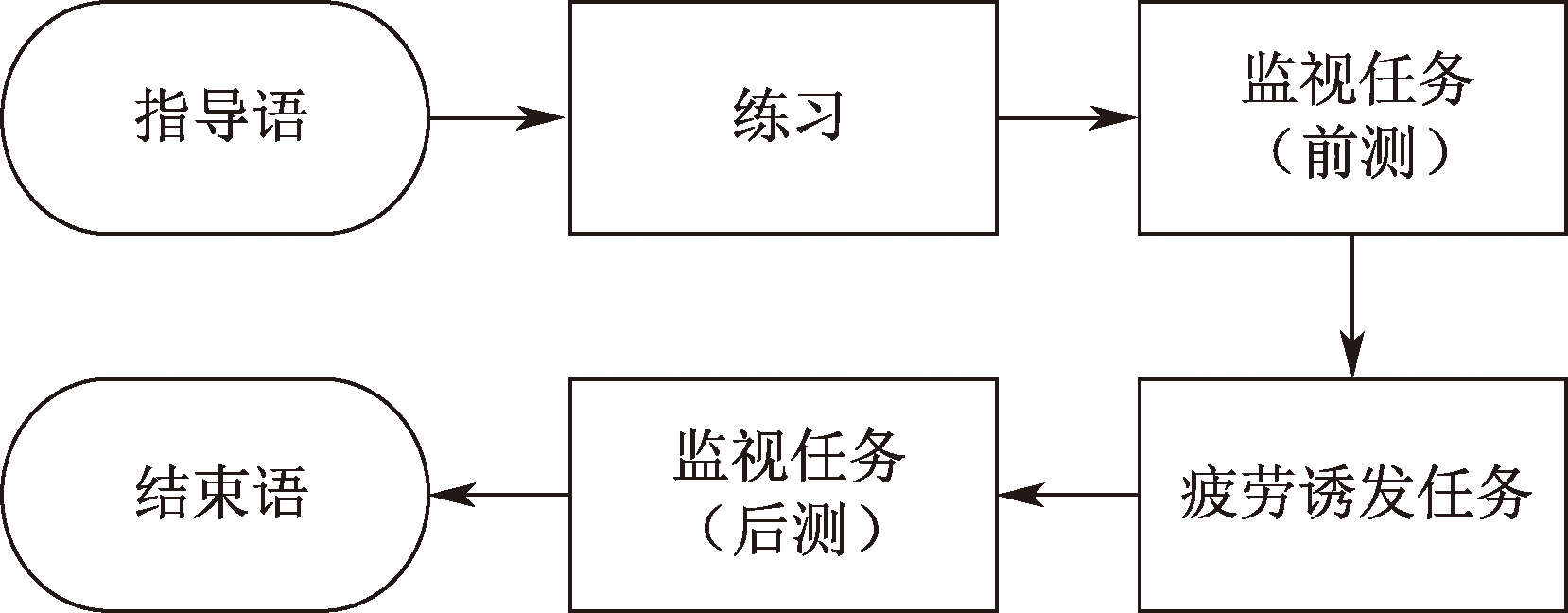

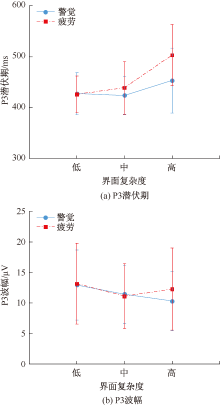

为优化操纵员疲劳风险管理,降低疲劳对操纵员作业绩效的影响,完成疲劳诱发前后的监视任务,首先,以某压水堆核电厂数字化主控室为背景,设计2-back范式的疲劳诱发任务和oddball范式的监视任务,并以低、中、高3种复杂度的控制界面为素材;然后,采集23名被试的主观疲劳评分、行为数据和脑电(EEG)信号,用相关疲劳指标验证疲劳诱发的有效性;最后,对比分析疲劳诱发前后3种不同复杂度界面下被试的行为数据、事件相关电位P3成分的差异性。结果表明:最短30 min、最长60 min的2-back任务能够诱发疲劳;疲劳或界面复杂度增加都会导致监视行为的绩效水平下降,疲劳状态下高复杂度界面与中复杂度界面之间的绩效水平差异最大;其中,正确率下降4.9%,反应时增加10.4%;P3潜伏期的变化趋势与反应时一致,P3波幅仅在高复杂度界面下显著增大。结合绩效数据和事件相关电位数据变化特征分析表明:界面复杂度的提高会加深疲劳对操纵员脑力负荷的负面影响。

关键词: 疲劳, 操纵员, 监视行为, 脑电(EEG), 界面复杂度

Abstract:

To optimize operator fatigue risk management and reduce the impact of fatigue on operator performance, the monitoring tasks before and after fatigue induction were conducted. Firstly, the fatigue-inducing task of the 2-back paradigm and the monitoring task of the oddball paradigm were designed with the digital main control room of a pressurized-water reactor nuclear power plant, and the control interfaces of low, medium, and high complexity were used. Then, human trials with 23 participants were performed to obtain subjective fatigue ratings, behavioral data, and EEG signals. Moreover, the effectiveness of fatigue induction was verified using relevant fatigue indicators. Finally, the participator's behavioral data and event-related potential P3 components under three different complexity interfaces before and after fatigue induction were analyzed. The results showed that the shortest 2-back task lasting 30 to 60 min induced fatigue. Fatigue or interface complexity increase resulted in a decrease in the monitoring behavior performance, and the maximum performance difference was observed between high-complexity and medium-complexity interfaces under fatigue conditions. Moreover, a 4.9% decrease in accuracy and a 10.4% increase in reaction time were observed. The trend of P3 latency was consistent with that of reaction time, and P3 amplitude increased significantly only under high-complexity interfaces. Based on the performance analysis and event-related potential data, it was concluded that the interface complexity increased the negative impact of fatigue on operators' mental workload.

Key words: fatigue, operators, monitor behavior, electro-encephalogram(EEG), interface complexity

中图分类号:

X945

张勉, 易灿南, 蒋复量, 胡鸿, 吴文, 张思佳. 疲劳对操纵员监视行为影响机制的脑电试验[J]. 中国安全科学学报, 2024, 34(9): 50-58.

ZHANG Mian, YI Cannan, JIANG Fuliang, HU Hong, WU Wen, ZHANG Sijia. Effects of fatigue on operator monitoring behavior based on EEG experiments[J]. China Safety Science Journal, 2024, 34(9): 50-58.

图/表 15

图1

表1

图2

图3

图4

图5

表2

表3

表4

图6

图7

图8

图9

表5

表6

参考文献 22

[1]	李鹏程, 陈国华, 张力, 等. 核电厂操纵员人因失误影响因素分析[J]. 中国安全科学学报, 2017, 27(7): 42-47. doi: 10.16265/j.cnki.issn1003-3033.2017.07.008
	LI Pengcheng, CHEN Guohua, ZHANG Li, et al. Analysis of influencing factors triggering operator's error in nuclear power plants[J]. China Safety Science Journal, 2017, 27(7): 42-47. doi: 10.16265/j.cnki.issn1003-3033.2017.07.008
[2]	陈悦源. 人机交互多任务环境中脑力疲劳对任务中断的影响及机理研究[D]. 北京: 北京交通大学, 2022.
	CHEN Yueyuan. Effect and mechanism of mental fatigue on task interruption in human-computer interaction multitasking environment[D]. Beijing: Beijing Jiaotong University, 2022.
[3]	王政, 李延军, 严曲, 等. 监控作业脑力疲劳综合评定方法研究[J]. 航天医学与医学工程, 2010, 23(1):20-24.
	WANG Zheng, LI Yanjun, YAN Qu, et al. Research on comprehensive assessment method of mental fatigue in monitoring task[J]. Space Medicine & Medical Engineering, 2010, 23(1): 20-24.
[4]	张力, 杨大新, 王以群. 数字化控制室信息显示对人因可靠性的影响[J]. 中国安全科学学报, 2010, 20(9):81-85.
	ZHANG Li, YANG Daxin, WANG Yiqun. The effect of information display on human reliability in a digital control room[J]. China Safety Science Journal, 2010, 20(9):81-85.
[5]	ZHANG Xiaowei, LU Dawei, PAN Jing, et al. Fatigue detection with covariance manifolds of electroencephalography in transportation industry[J]. IEEE Transactions on Industrial Informatics, 2021, 17(5): 3497-3507.
[6]	SUH Y A, YIM M S. "High risk non-initiating insider" identification based on EEG analysis for enhancing nuclear security[J]. Annals of Nuclear Energy, 2018, 113: 308-318.
[7]	TANG Wenzhe, CHEN Shanguang, XUE Chengqi, et al. Influence of nuclear power plant interface complexity on user decision-making: an ERP study[J]. Ergonomics, 2023, 66(8): 1099-1117.
[8]	李延庭. 基于ERP技术对数字化主控室操纵员监视行为认知负荷研究[D]. 衡阳: 南华大学, 2016.
	LI Yanting. The research based on ERP technology of the digital nuclear power plant operator monitoring behavior cognitive load[D]. Hengyang: University of South China, 2016.
[9]	冯浩. 基于脑电技术的模拟核电站主控室操作人员失误分析[D]. 天津: 河北工业大学, 2019.
	FENG Hao. Research on human error analysis in the simulated main control room of nuclear power plant based on EEG technology[D]. Tianjin: Hebei University of Technology, 2019.
[10]	王莉莉, 朱敏. 基于脑电数据的管制架次对管制员疲劳影响研究[J]. 中国安全科学学报, 2021, 31(2): 173-178. doi: 10.16265/j.cnki.issn 1003-3033.2021.02.024
	WANG Lili, ZHU Min. Research on influence of controlled sorties on controllers' fatigue based on EEG data[J]. China Safety Science Journal, 2021, 31(2): 173-178. doi: 10.16265/j.cnki.issn 1003-3033.2021.02.024
[11]	郭孜政, 刘仙, 陈瑞雅, 等. 疲劳影响驾驶员心理旋转能力的ERP试验研究[J]. 中国安全科学学报, 2017, 27(10): 7-12. doi: 10.16265/j.cnki.issn1003-3033.2017.10.002
	GUO Zizheng, LIU Xian, CHEN Ruiya, et al. ERP-based study on influence of fatigue on drivers' mental rotation ability[J]. China Safety Science Journal, 2017, 27(10): 7-12. doi: 10.16265/j.cnki.issn1003-3033.2017.10.002
[12]	BAI Yuxin, SHAO Jiang, ZHANG Ying, et al. ERP study of mine management system warning interface under fatigue[J]. International Journal of Environmental Research and Public Health, 2022, 19(19): DOI: 10.3390/ijerph191912616.
[13]	ÅKERSTEDT T, GILLBERG M. Subjective and objective sleepiness in the active individual[J]. International Journal of Neuroscience, 1990, 52(1/2): 29-37.
[14]	TANAKA M, MIZUNO K, TAJIMA S, et al. Central nervous system fatigue alters autonomic nerve activity[J]. Life Sciences, 2009, 84(7): 235-239.
[15]	贾倩倩, 张良驹. 基于图像熵的数字化核电站人机界面复杂度快速评价[J]. 原子能科学技术, 2014, 48(12):2370-2374. doi: 10.7538/yzk.2014.48.12.2370
	JIA Qianqian, ZHANG Liangju. Quick assessment of human-machine interface complexity in digital nuclear power plant based on image entropy[J]. Atomic Energy Science and Technology, 2014, 48(12):2370-2374. doi: 10.7538/yzk.2014.48.12.2370
[16]	VAN ZON N C M, BORST C, POOL D M, et al. Touchscreens for aircraft navigation tasks: comparing accuracy and throughput of three flight deck tnterfaces using Fitts' Law[J]. Human Factors, 2020, 62(6): 897-908.
[17]	WU E Q, DENG Pingyu, QIU Xuyi et al. Detecting fatigue status of pilots based on deep learning network using EEG signals[J]. IEEE Transactions on Cognitive and Developmental Systems, 2021, 13(3): 575-585.
[18]	SCHMIDT E A, SCHRAUF M, SIMON M, et al. Drivers' misjudgement of vigilance state during prolonged monotonous daytime driving[J]. Accident Analysis & Prevention, 2009, 41(5): 1087-1093.
[19]	GUO Fu, CHEN Jiahao, LI Mingming, et al. Effects of visual complexity on user search behavior and satisfaction: an eye-tracking study of mobile news apps[J]. Universal Access in the Information Society, 2021, 21(4): 795-808.
[20]	MINAMI T, GOTO K, KITAZAKI M, et al. Asymmetry of P3 amplitude during oddball tasks reflects the unnaturalness of visual stimuli[J]. NeuroReport, 2009, 20(16): 1471-1476. doi: 10.1097/WNR.0b013e3283321cfb pmid: 19786924
[21]	WICKENS C D. Multiple resources and mental workload[J]. Human Factors: The Journal of the Human Factors and Ergonomics Society, 2008, 50(3): 449-455.
[22]	SIREVAAG E J, KRAMER A F, REISWEBER C D W M, et al. Assessment of pilot performance and mental workload in rotary wing aircraft[J]. Ergonomics, 1993, 36(9): 1121-1140. pmid: 8404840

分类	H范围	H平均值
低复杂度	(1.112,1.732]	1.274 3
中复杂度	(1.732,2.351]	1.979 5
高复杂度	(2.351,2.969]	2.597 3

任务编号	绩效类型	均值	标准差
B-1	正确率/%	89.0	3.5
B-1	反应时/ms	839.38	113.33
B-2	正确率/%	87.0	5.0
B-2	反应时/ms	922.25	115.13

任务编号	绩效类型	均值	标准差
L-1	正确率/%	96.5	4.1
L-1	反应时/ms	561.58	55.47
M-1	正确率/%	95.1	6.2
M-1	反应时/ms	575.52	62.74
H-1	正确率/%	93.2	5.3
H-1	反应时/ms	621.64	55.88
L-2	正确率/%	94.6	5.7
L-2	反应时/ms	578.62	65.29
M-2	正确率/%	93.2	5.9
M-2	反应时/ms	593.66	62.6
H-2	正确率/%	88.3	9.8
H-2	反应时/ms	655.79	59

数据类型	配对样本	t	p
正确率	L-1&L-2	1.91	0.069
	M-1&M-2	0.84	0.41
	H-1&H-2	3.333	0.003
反应时	L-1&L-2	-1.776	0.09
	M-1&M-2	-3.141	0.044
	H-1&H-2	-5.565	0

数据类型	配对样本	t	p
P3潜伏期	L-1&L-2	0.118	0.907
	M-1&M-2	-1.475	0.154
	H-1&H-2	-3.529	0.002
P3波幅	L-1&L-2	-0.309	0.760
	M-1&M-2	0.564	0.679
	H-1&H-2	-2.234	0.036
