瓦斯爆炸冲击-地应力动静载荷下巷道壁面损伤特性

doi:10.16265/j.cnki.issn1003-3033.2024.10.0037

中国安全科学学报 ›› 2024, Vol. 34 ›› Issue (10): 116-123.doi: 10.16265/j.cnki.issn1003-3033.2024.10.0037

瓦斯爆炸冲击-地应力动静载荷下巷道壁面损伤特性

贾真真¹^,²^,³(), 叶青¹^,²^,³, 杨卓华¹

¹ 湖南科技大学资源环境与安全工程学院,湖南湘潭 411101
² 地下空间防火防爆材料与装备湖南省工程研究中心,湖南湘潭 411201
³ 火灾爆炸防控与应急技术湖南省普通高等学校重点实验室,湖南湘潭 411201

收稿日期:2024-06-21 修回日期:2024-08-22 出版日期:2024-10-28
作者简介:
贾真真 (1982—),女,河南漯河人,博士,副教授,主要从事瓦斯灾害防治、安全管理与评价等方面的研究。E-mail:jiazhenzhen1982@126.com。
叶青，教授
基金资助:
国家自然科学基金资助(52174177); 国家自然科学基金资助(52174178)

Damage characteristics of roadway wall under dynamic-static loads by gas explosion impact and geostress

JIA Zhenzhen¹^,²^,³(), YE Qing¹^,²^,³, YANG Zhuohua¹

¹ School of Resource, Environment and Safety Engineering, Hunan University of Science and Technology, Xiangtan Hunan 411101, China
² Hunan Engineering Research Center for Fire and Explosion Prevention Materials and Equipment in Underground Spaces, Xiangtan Hunan 411201, China
³ Key Laboratory of Fire and Explosion Prevention and Emergency Technology in Hunan Province, Xiangtan Hunan 411201, China

Received:2024-06-21 Revised:2024-08-22 Published:2024-10-28

摘要/Abstract

摘要：

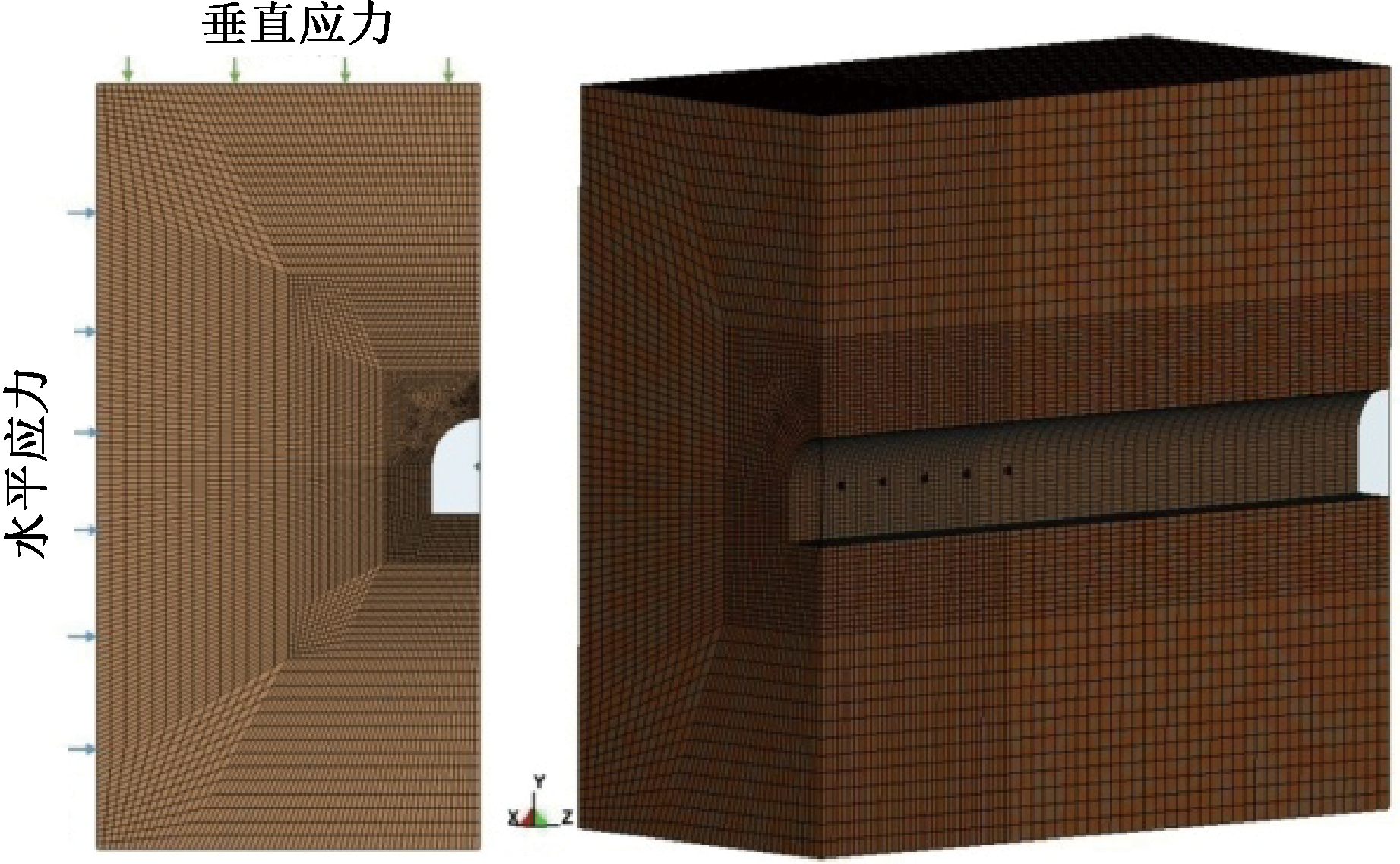

为了解决瓦斯爆炸事故中的深部高地应力巷道壁面破坏问题,采用LS-Dyna软件,建立巷道壁面动力响应损伤数学模型和物理分析模型,分析瓦斯爆炸冲击-地应力动静载荷作用下的巷道壁面位移、应力和损伤特征,并研究瓦斯爆炸冲击-不同地应力(水平地应力和垂直地应力)动静载荷下巷道壁面的响应和损伤特性。结果表明: 高地应力造成了壁面的初始损伤变形,隅角处的应力集中和初始损伤最大,但是其在瓦斯爆炸过程中,动力响应小于顶板处;在瓦斯爆炸冲击-地应力动静载荷作用下,巷道各个部位的损伤应变随着地应力升高而增加,其中隅角处的损伤度受影响最大且损伤最为严重,其次为顶板位置;地应力升高会使壁面初始损伤变形更为严重,但是明显削弱了爆炸冲击波在围岩中的传播。

关键词: 瓦斯爆炸冲击, 地应力, 动静载荷, 巷道壁面, 损伤

Abstract:

In order to study the wall dynamic response and damage characteristics of deep roadway with high geostress in gas explosion accidents, a mathematical model and a physical analysis model of the roadway wall dynamic response damage were established by using LS-Dyna software, and the numerical model was verified. The displacement, stress and damage characteristics of the roadway wall under the dynamic and static loads of gas explosion impact and geostress were analyzed by numerical simulation. The response and damage change of the roadway wall under different geostress conditions (horizontal geostress and vertical geostress) and gas explosion impact loads were investigated. The results show that high geostress causes the initial damage deformation. The stress concentration and initial damage are greatest at the corner, but its dynamic response is smaller than that at the roof. Under the dynamic and static loads of gas explosion impact and geostress, the damage strain of each part of the roadway increases with the increase of geostress, among which the damage degree at the corners is most affected and most serious, followed by the roof position. The increase of geostress makes the initial damage deformation of the roadway wall more serious, but it obviously weakens the propagation of the shock wave in the surrounding rock.

Key words: gas explosion impact, geostress, dynamic and static load, roadway wall, damage

中图分类号:

X932爆炸安全与防火、防爆

贾真真, 叶青, 杨卓华. 瓦斯爆炸冲击-地应力动静载荷下巷道壁面损伤特性[J]. 中国安全科学学报, 2024, 34(10): 116-123.

JIA Zhenzhen, YE Qing, YANG Zhuohua. Damage characteristics of roadway wall under dynamic-static loads by gas explosion impact and geostress[J]. China Safety Science Journal, 2024, 34(10): 116-123.

图/表 15

图1

图2

图3

图4

图5

图6

图7

图8

图9

表1

图10

图11

图12

图13

图14

参考文献 13

[1]	LI Shujuan, JIA Zhenzhen, YE Qing. Study on dynamic response of damper under gas explosion impact[J]. Sustainability, 2023, 15: DOI:10.3390/su15043356.
[2]	景国勋, 彭乐, 班涛, 等. 甲烷煤尘耦合爆炸传播特性及伤害研究[J]. 中国安全科学学报, 2022, 32(1):72-78. doi: 10.16265/j.cnki.issn1003-3033.2022.01.010
	JING Guoxun, PENG Le, BAN Tao, et al. Research on pressure propagation and injury of methane and coal dust coupled explosion[J]. China Safety Science Journal, 2022, 32(1):72-78. doi: 10.16265/j.cnki.issn1003-3033.2022.01.010
[3]	杨应柳, 晋良海, 邵波. 基于复杂网络的煤矿火灾爆炸致因研究[J]. 中国安全科学学报, 2023, 33(1):145-151. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0601
	YANG Yingliu, JIN Lianghai, SHAO Bo. Research on causes of coal mine fire and explosion based on complex network[J]. China Safety Science Journal, 2023, 33(1):145-151. doi: 10.16265/j.cnki.issn1003-3033.2023.01.0601
[4]	JIA Zhenzhen, YE Qing. Analysis of the response characteristics of a roadway wall under the impact of gas explosion[J]. Energy Science and Engineering, 2023,11:2486-2504.
[5]	JIA Zhenzhen, YE Qing, LI He. Damage assessment of roadway wall caused by dynamic and static load action of gas explosion[J]. Processes, 2023,11: DOI:10.3390/pr11020580.
[6]	高卫亮, 王光勇, 张运强. 爆破作用下山岭隧道衬砌动态响应分析[J]. 应用力学学报, 2020, 37(4): 1737-1744.
	GAO Weiliang, WANG Guangyong, ZHANG Yunqiang. Dynamic response of mountain tunnel lining under blasting[J]. Chinese Journal of Applied Mechanics, 2020, 37(4):1737-1744.
[7]	田园, 董英健. 地下巷道在爆破振动作用下的动态响应特征研究[J]. 爆破器材, 2019, 48(6):60-65.
	TIAN Yuan, DONG Yingjian. Dynamic response characteristics of underground roadway under blasting vibration[J]. Explosive Materials, 2019, 48(6):60-65.
[8]	何琪, 严鹏, 卢文波, 等. 微差段间重复扰动导致深埋隧洞围岩损伤机制[J]. 岩石力学与工程学报, 2016, 35(7):1386-1396.
	HE Qi, YAN Peng, LU Wenbo, et al. Damage mechanism of surrounding rocks due to repeated disturbance between blasting delays in deep tunnels[J]. Chinese Journal of Rock Mechanics and Engineering, 2016, 35(7):1386-1396.
[9]	YANG Jianhua, YAO Chi, JIANG Qinghui, et al. 2D Numerical analysis of rock damage induced by dynamic in-situ stress redistribution and blast loading in underground blasting excavation[J]. Tunneling and Underground Space Technology, 2017,70: 221-232.
[10]	郭双, 武鑫, 甯尤军. 地应力条件下爆破载荷破岩的DDA模拟研究[J]. 工程爆破, 2018, 24(5):8-14.
	GUO Shuang, WU Xin, NING Youjun. DDA simulations of rock fracture by blasting loads under geostress conditions[J]. Engineering Blasting, 2018, 24(5):8-14.
[11]	吴燕燕. 室内燃气爆炸作用下钢框架结构动力响应与连续倒塌分析[D]. 哈尔滨: 东北林业大学, 2012.
	WU Yanyan. Analysis on dynamic responses and progressive collapse of steel frame structure subject to internal gas explosion[D]. Harbin: Northeast Forestry University, 2012.
[12]	周靖轩, 朱传杰, 任洁, 等. 高预应力与爆炸载荷耦合作用下的巷道围岩损伤破坏机制[J]. 煤炭学报, 2020, 45(增1):319-329.
	ZHOU Jingxuan, ZHU Chuanjie, REN Jie, et al. Damage mechanism of roadway surrounding rock under coupling of high pre-stress and explosion[J]. Journal of China Coal Society, 2020, 45 (S1):319-329.
[13]	李志鹏, 吴顺川, 严琼, 等. 隧道瓦斯爆炸数值分析与爆源类型确定研究[J]. 振动与冲击, 2018, 37(14): 94-101.
	LI Zhipeng, WU Shunchuan, YAN Qiong, et al. Numerical analysis on the tunnel gas explosion and study on the method for determining the type of burst source[J]. Journal of Vibration and Shock, 2018, 37(14):94-101.

[1]	门树臣. 露天煤矿软岩边坡泥岩非线性蠕变损伤模型研究[J]. 中国安全科学学报, 2024, 34(S1): 59-64.
[2]	吴放, 李庆, 杨三军, 高笛, 孟昀晨, 陈强盛. 国家矿山救护队员职业损伤特征与风险因素筛查[J]. 中国安全科学学报, 2024, 34(9): 241-247.
[3]	郑亮, 谭磊, 杨晓辉, 李雨航, 邓扬. 既有建筑砌体结构健康监测和损伤预警研究[J]. 中国安全科学学报, 2024, 34(8): 170-177.
[4]	陈娜, 胡毅彤, 袁英峰, 秦向南, 刘军. 基于博弈论组合赋权-云模型的消防员训练损伤风险评估[J]. 中国安全科学学报, 2024, 34(4): 232-238.
[5]	夏正洪, 何琥, 吴江, 陈玲, 王裕林, 康瑞. 飞机刹车盘动片损伤程度及更换需求智能评估算法[J]. 中国安全科学学报, 2024, 34(10): 88-94.
[6]	董海清, 兰天伟, 袁永年, 令向东, 李亚斌, 李阳. 利民煤矿井田地应力场反演及分区特征[J]. 中国安全科学学报, 2023, 33(S2): 105-110.
[7]	张卫军, 张志佳, 胥海东, 王顺翔, 赵文菊, 兰天伟. 麦垛山煤矿巷道围岩地质力学测试试验[J]. 中国安全科学学报, 2023, 33(S2): 18-22.
[8]	刘向阳, 刘永豪, 张顺峰, 兰天伟, 赵文菊. 麦垛山煤矿地应力测量及井田应力场特征分析[J]. 中国安全科学学报, 2023, 33(S2): 91-95.
[9]	冷建成, 毛厚彬, 钱万东, 庞哲. 基于刚度参数变化的导管架平台结构损伤定量识别[J]. 中国安全科学学报, 2023, 33(7): 68-74.
[10]	陈爽, 白根铭, 肖畅, 曲宏略, 汪林, 刘哲言. 断层构造对高地应力隧道初始地应力场影响分析[J]. 中国安全科学学报, 2023, 33(2): 146-151.
[11]	陈昌华, 许帅帅, 蒋玉香, 杨小杰, 熊光辉. 多因子修正的补货作业负荷评估模型及仿真研究*[J]. 中国安全科学学报, 2022, 32(8): 201-207.
[12]	何静, 侯娜, 张昌凡, 胡新亮, 刘建华. 基于金字塔拆分注意力的列车轮对踏面损伤诊断[J]. 中国安全科学学报, 2022, 32(5): 35-40.
[13]	洪亮, 刘刚, 葛如海, 李梁, 李思远. 混杂工况下校车常开式安全气囊的多目标优化[J]. 中国安全科学学报, 2022, 32(4): 72-79.
[14]	吴学海, 李波波, 高政, 许江, 付佳乐. 气体压力降低对煤岩变形和渗流的影响机制[J]. 中国安全科学学报, 2022, 32(4): 129-134.
[15]	田林强, 来枫, 张玥, 翁孝刚, 姚三巧, 任文杰. 二甲双胍改善瓦斯爆炸肾损伤的试验研究[J]. 中国安全科学学报, 2022, 32(10): 207-213.

瓦斯爆炸冲击-地应力动静载荷下巷道壁面损伤特性

Damage characteristics of roadway wall under dynamic-static loads by gas explosion impact and geostress

RichHTML

PDF

可视化

摘要/Abstract

引用本文

使用本文

图/表 15

参考文献 13

相关文章 15

编辑推荐

Metrics

本文评价

工况序号	水平地应力σ_x/MPa	垂直地应力σ_y/MPa
1	10	10
2	20	20
3	30	30
4	10	20
5	20	10
