规避效应下中央分隔设施对道路空间路权的影响

doi:10.16265/j.cnki.issn1003-3033.2024.12.0209

摘要/Abstract

摘要：

为寻求最佳的中央分隔设施布设方式,通过驾驶仿真建立中国常见的4种中分带形式,提取轨迹、速度相关数据;以道路空间路权中的横向路权为基础,选取道路利用率为指标,分析实际路权与名义路权的差异特性。结果表明:不同高度设施下的驾驶人轨迹整体波动范围具有显著性差异。由规避效应所触发的向右偏移中,弹性交通柱场景R₅下的轨迹偏移达到最大,其次是交通隔离栏R₇、突起路标R₂,均大于未设置设施的双黄线场景R₁;虽然设施的增设触发驾驶人的规避效应,但一定程度的横向偏移可以提高道路利用率,最高可提升11.15%,出现在R₅中;同时,设施的设置抑制驾驶人的行车速度,可实现交通安全与交通设计的双向提高;最终计算得出,满足最大限度名义路权利用率的中分带宽度为0.844 m,设施高度为138.62 cm。

关键词: 规避效应, 中央分隔设施, 空间路权, 设施高度, 驾驶行为

Abstract:

In order to seek the best way of laying median strip facilities, four typical forms of median strips in China were established through driving simulation, and trajectory and speed-related data were extracted. Based on the horizontal right of way in the road spatial right of way, the road utilisation rate was selected as an indicator to analyse the difference characteristics between the actual right of way and the nominal right of way. The results show that the overall range of fluctuations in driver trajectories at different height facilities is significantly different. Among the rightward offsets triggered by the shy away effect, the trajectory offset reaches the maximum in the reboundable traffic cylinders scenario R₅, followed by the traffic separate railings R₇ and raised pavement markers R₂, which are larger than that of the double yellow line scenario R₁ without the facility. While adding facilities triggers a shy away effect in drivers, a certain degree of lateral offset can improve road utilisation rate, up to 11.15%, which was found in R₅. At the same time, the installation of the facility inhibits the speed of drivers, achieving a two-way improvement in traffic safety and traffic design. Finally, the width of the median strip to satisfy the maximum nominal right-of-way utilisation was calculated to be 0.844 m and the facility's height to be 138.62 cm.

Key words: shy away effect, median strip facility, spatial right of way, facility height, driving behaviour

中图分类号:

陈莹, 杜志刚. 规避效应下中央分隔设施对道路空间路权的影响[J]. 中国安全科学学报, 2024, 34(12): 195-202.

CHEN Ying, DU Zhigang. Impact of median strip facilities on spatial right of way of roads under shy away effects[J]. China Safety Science Journal, 2024, 34(12): 195-202.

图/表 11

图1

图2

图3

表1

表2

表3

表4

表5

表6

图4

表7

参考文献 17

[1]	LIOI A, HAZOOR A, CASTRO M, et al. Impact on driver behaviour of guardrails of different height in horizontal-vertical coordinated road scenarios with a limited available sight distance[J]. Transportation Research Part F-Traffic Psychology and Behaviour, 2022, 84:287-300.
[2]	TAY R, CHURCHILL A. Effect of different median barriers on traffic speed[J]. Canadian Journal of Transportation, 2007, 1(1):56-66.
[3]	AASHO-2011, Roadside design guide[S].
[4]	魏文海. 多因素交互作用下缩减车道对驾驶行为的影响[J]. 长安大学学报: 自然科学版, 2020, 40(4):117-126.
	WEI Wenhai. Influence of lane reduction on driving behavior characteristics under multi-factor interaction[J]. Journal of Chang'an University: Natural Science Edition, 2020, 40(4):117-128.
[5]	吴文川. 城市道路增设中央隔离护栏相关问题及解决措施[J]. 福建建设科技, 2021(4):80-81, 117.
	WU Wenchuan. The related problems and solutions of adding central isolation guardrail on urban roads[J]. Fujian Construction Science & Technology, 2021(4): 80-81, 117.
[6]	陶盼盼, 李元, 王益川. 北京市道路交通隔离设施精细化设置思路探讨[J]. 市政技术, 2022, 40(10):57-62.
	TAO Panpan, LI Yuan, WANG Yichuan. Discussion on refined setting of traffic barricade in Beijing[J]. Journal of Municipal Technology, 2022, 40(10):57-62.
[7]	张宁, 陈恺, 何铁军, 等. 城市道路中间分隔带对比分析及设计[J]. 城市交通, 2007, 5(3):86-91.
	ZHANG Ning, CHEN Kai, HE Tieijun, et al. Comparative study and design of urban street median[J]. Urban Transport of China, 2007, 5(3):86-91.
[8]	ROQUE C, LOURENÇO CARDOSO J, CONNELL T, et al. Topic analysis of road safety inspections using latent dirichlet allocation: a case study of roadside safety in Irish main roads[J]. Accident Analysis and Prevention, 2019, 131:336-349.
[9]	程瑞, 盘烨, 代军吉, 等. 公路路侧事故风险评估与路侧安全设计研究综述[J]. 中国安全科学学报, 2023, 33(9): 214-226. doi: 10.16265/j.cnki.issn1003-3033.2023.09.1864
	CHENG Rui, PAN Ye, DAI Junji, et al. Research overview of roadside accident risk assessment and roadside safety design[J]. China Safety Science Journal, 2023, 33(9):214-226. doi: 10.16265/j.cnki.issn1003-3033.2023.09.1864
[10]	郑号染, 杜志刚, 王首硕, 等. 基于线性诱导的高速公路隧道交通安全优化设计[J]. 中国安全科学学报, 2023, 33 (8): 134-141. doi: 10.16265/j.cnki.issn1003-3033.2023.08.1180
	ZHENG Haoran, DU Zhigang, WANG Shoushuo, et al. Design of traffic safety optimization for expressway tunnel based on linear guidance[J]. China Safety Science Journal, 2023, 33(8):134-141. doi: 10.16265/j.cnki.issn1003-3033.2023.08.1180
[11]	王首硕. 高速公路隧道视线诱导信息组合理论及应用研究[D]. 武汉: 武汉理工大学, 2023.
	WANG Shoushuo. Study on theory and application of combining the visual guiding information in freeway tunnels[D]. Wuhan: Wuhan University of Technology, 2023.
[12]	CHEN Ying, DU Zhigang, JIANG Zehao, et al. Driver's shy away effect in urban extra-long underwater tunnel[J]. Promet-Traffic & Transportation, 2023, 35(4):552-566.
[13]	杨理波, 杜志刚, 徐弯弯, 等. 隧道内不同组合信息条件下驾驶员视错觉研究[J]. 中国安全科学学报, 2018, 28(1): 32-37. doi: 10.16265/j.cnki.issn1003-3033.2018.01.006
	YANG Libo, DU Zhigang, XU Wanwan, et al. Research on drivers' visual illusion in tunnels under different combined visual information conditions[J]. China Safety Science Journal, 2018, 28(1):32-37. doi: 10.16265/j.cnki.issn1003-3033.2018.01.006
[14]	徐进, 张玉, 戴振华, 等. 人类自然驾驶状态下车辆轨迹摆动特性与车道宽度[J]. 汽车安全与节能学报, 2022, 13(4):718-728.
	XU Jin, ZHANG Yu, DAI Zhenhua, et al. Vehicle trajectory oscillation characteristics and lane width control under human natural driving conditions[J]. Journal of Automotive Safety and Energy, 2022, 13(4):718-728.
[15]	陈莹, 杜志刚, 许富强, 等. 基于规避行为的城市水下特长隧道驾驶负荷评价[J]. 公路, 2023, 68 (12): 206-214.
	CHEN Ying, DU Zhigang, XU Fuqiang, et al. Driving load evaluation of urban underwater extra-long tunnel based on evasive behavior[J]. Highway, 2023, 68(12): 206-214.
[16]	CJJ37—2012, 城市道路工程设计规范(2016年版)[S].
	CJJ37- 2012, Design specification for urban road engineering ( 2016 Edition)[S].
[17]	EL ESAWEY M, SAYED T. Evaluating safety risk of locating above ground utility structures in the highway right-of-way[J]. Accident Analysis and Prevention, 2012, 49:419-428.

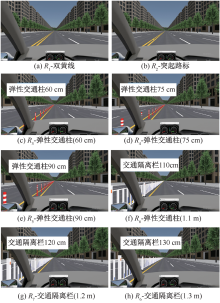

路侧设施种类	编号	道路参数	设施参数
