不同煤阶煤中水分自发渗吸特性试验研究

doi:10.16265/j.cnki.issn1003-3033.2025.08.1322

摘要/Abstract

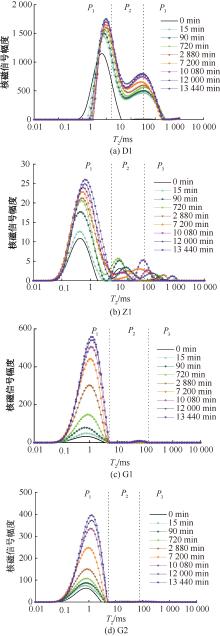

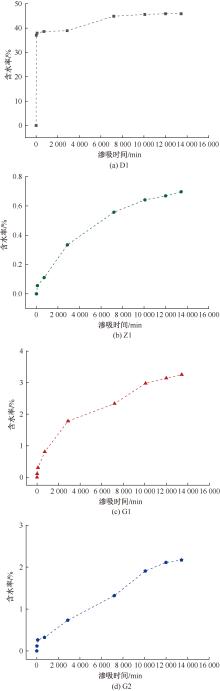

摘要： 为了解不同煤阶煤自发渗吸过程中水分运移特征,以蒙泰满来梁矿、九里山矿、天地王坡矿、平顶山十矿煤样为研究对象,利用低场核磁共振(NMR)试验系统测试煤样渗吸过程中水分在不同时刻的T₂谱,结合煤样中水分质量变化,探究煤样在渗吸过程中水分随时间和空间的变化特征。结果表明:低阶煤润湿性较高阶煤和中阶煤好,相同试验条件下,低阶煤的渗吸量最大,其次是高阶煤,中阶煤的渗吸量最小;根据煤样渗吸过程中水分随时间变化情况,可将煤样渗吸过程划分为3个阶段:渗吸初期、渗吸中期和渗吸后期。渗吸初期,低阶煤对水力作用的敏感程度高于高阶煤和中阶煤,低阶煤渗吸速度最大,其次是中阶煤,高阶煤的渗吸速度最小。渗吸中、后期,高阶煤的渗吸速度较中阶煤大;在渗吸过程中,微小孔/中孔范围内由于毛细管力作用,水分会从孔径较小的孔隙向孔径较大的孔隙运移,运移过程中,水分在低阶煤中受到的阻力小于在高阶煤中受到的阻力。

关键词: 不同煤阶, 煤中水分, 自发渗吸, 润湿效果, 低场核磁共振(NMR), 毛细管力

Abstract:

In order to understand the characteristics of water transport during spontaneous infiltration and absorption of coal of different rank, coal samples from Mengtai Manlailiang mine, Jiulishan mine, Tiandiwangpo mine, and Pingdingshan No.10 mine were taken as the research objects, The T₂ spectrum of water in the coal sample at different times during the imbibition process was measured by using the low-field NMR experimental system, and the variation of water in the coal sample with time and space during the imbibition process was explored based on the change of water quality in the coal sample. The results show that the wettability of low-rank coal is better than that of high-rank coal and medium-rank coal, and the imbibition capacity of low-rank coal is the largest under the same experimental conditions, followed by high-rank coal, and the imbibition capacity of medium-rank coal is the smallest. According to the change of water in the process of coal sample imbibition with time, the coal sample imbibition process can be divided into three stages: the initial stage of imbibition, the middle stage of imbibition and the late stage of imbibition. In the early stage of imbibition, the sensitivity of low-rank coal to hydraulic action is higher than that of high-rank coal and medium-rank coal, and the imbibition velocity of low-rank coal is the largest, followed by medium-rank coal, and the imbibition velocity of high-rank coal is the smallest. In the middle and late stages of imbibition, the imbibition rate of high-rank coal is larger than that of medium-rank coal. In the process of imbibition and sorption, water will be transported from the pores with smaller pore size to the pores with larger pore size due to capillary force in the micropores/mesopores of the same magnitude, and the resistance of water in the lower rank coal is less than that in the higher rank coal.

Key words: different coal ranks, moisture in coal, spontaneous imbibition, wetting effect, low-field nuclear magnetic resonance(NMR), capillary force

中图分类号:

X936

杨明, 江舒纬, 徐靖, 周子恒, 王明洋, 高建良. 不同煤阶煤中水分自发渗吸特性试验研究[J]. 中国安全科学学报, 2025, 35(8): 110-117.

YANG Ming, JIANG Shuwei, XU Jing, ZHOU Ziheng, WANG Mingyang, GAO Jianliang. Experimental study on spontaneous water infiltration and absorption characteristics in different coal grades[J]. China Safety Science Journal, 2025, 35(8): 110-117.

图/表 8

表1

图1

表2

图2

图3

图4

图5

图6

参考文献 18

[1]	肖知国, 王兆丰. 煤层注水防治煤与瓦斯突出机理的研究现状与进展[J]. 中国安全科学学报, 2009, 19(10):150-158.
	XIAO Zhiguo, WANG Zhaofeng. Status and progress of studies on mechanism of preventing coal and gas outburst by coal seam infusion[J]. China Safety Science Journal, 2009, 19(10):150-158.
[2]	文建东, 刘烜, 李作泉, 等. 魏家地煤矿钻孔静压注水治理瓦斯技术[J]. 中国安全科学学报, 2023, 33(增2):60-64.
	WEN Jiandong, LIU Xuan, LI Zuoquan, et al. Gas control technology by static pressure water injection in borehole of weijiadi coal mine[J]. China Safety Science Journal, 2023, 33(S2):60-64. doi: 10.16265/j.cnki.issn1003-3033.2023.S2.0014
[3]	吕渐江, 唐海, 吕栋梁, 等. 利用相渗曲线研究低渗气藏水锁效应的新方法[J]. 天然气勘探与开发, 2008(3):49-52.
	LYU Jianjiang, TANG Hai, LYU Dongliang, et al. New research method of water locking effect in low permeability gas reservoir by relative-permeability curve[J]. Natural Gas Exploration and Development, 2008(3):49-52.
[4]	王彬, 王兆丰, 岳基伟, 等. NMR成像技术测试煤样渗吸过程中水分变化规律研究[J]. 中国安全生产科学技术, 2018, 14(10):32-38.
	WANG Bin, WANG Zhaofeng, YUE Jiwei, et al. Study on change laws of moisture during imbibition process of coal samples tested by NMR imaging technology[J]. China Safety Production Science and Technology, 2018, 14(10):32-38.
[5]	王鑫, 曾溅辉, 孔祥晔, 等. 页岩孔隙润湿性对自发渗吸的控制作用[J]. 中南大学学报:自然科学版, 2022, 53(9):3323-3336.
	WANG Xin, ZENG Jianhui, KONG Xiangye, et al. Controlling effect of shale pore wettability on spontaneous imbibition[J]. Journal of Central South University:Natural Science Edition, 2022, 53(9):3323-3336.
[6]	SEYYEDI M, SOHRABI M. Enhancing water imbibition rate and oil recovery by carbonated water in carbonate and sandstone rocks[J]. Energy & Fuels, 2016, 30(1):285-293.
[7]	王青松, 金龙哲, 孙金华. 煤层注水过程分析和煤体润湿机理研究[J]. 安全与环境学报, 2004, 4(1):70-73.
	WANG Qingsong, JIN Longzhe, SUN Jinhua. Analysis of coal seam water injection process and study on wetting mechanism of coal body[J]. Journal of Safety and Environment, 2004, 4(1):70-73.
[8]	杨雪, 廖锐全, 袁旭. 基于核磁共振技术的致密岩心高温高压自发渗吸实验[J]. 大庆石油地质与开发, 2023, 42(3):58-65.
	YANG Xue, LIAO Ruiquan, YUAN Xu. Spontaneous imbibition experiment in high-temperature and high-pressure for tight cores based on NMR technology[J]. Petroleum Geology and Development in Daqing, 2023, 42(3):58-65.
[9]	孙晓彤, 周宏伟, 薛东杰, 等. 基于NMR的低渗煤体自渗吸实验研究[J]. 中国矿业大学学报, 2021, 50(4):804-812.
	SUN Xiaotong, ZHOU Hongwei, XUE Dongjie, et al. Experimental study of spontaneous imbibition of low-permeability coal based on NMR[J]. Journal of China University of Mining and Technology, 2021, 50(4):804-812.
[10]	岳基伟, 王兆丰. 不含瓦斯重塑煤体的渗吸特性[J]. 煤炭学报, 2017, 42(增2):377-384.
	YUE Jiwei, WANG Zhaofeng. Imbibition characteristics of remolded coal without gas[J]. Journal of China Coal Society, 2017, 42(S2):377-384.
[11]	杨明, 徐靖, 何敏, 等. 浸润环境下煤体多态水分布及运移规律[J]. 煤炭学报, 2023, 48(2):787-794.
	YANG Ming, XU Jing, HE Min, et al. Distribution and transport law of polymorphic water in coal body under infiltration environment[J]. Journal of China Coal Society, 2023, 48(2):787-794.
[12]	姚艳斌, 刘大锰. 基于核磁共振弛豫谱的煤储层岩石物理与流体表征[J]. 煤炭科学技术, 2016, 44(6):14-22.
	YAO Yanbin, LIU Dameng. Petrophysics and fluid properties characterizations of coalbed methane reservoir by using NMR relaxation time analysis[J]. Coal Science and Technology, 2016, 44(6):14-22.
[13]	杨明, 韩龙祥, 张铁岗, 等. 变压注水环境下煤体孔隙动态演化规律研究[J]. 煤炭学报, 2024, 49(增2)1-9.
	YANG Ming, HAN Longxiang, ZHANG Tiegang, et al. Study on the dynamic evolution of coal pore under variable pressure water injection environment[J]. Journal of China Coal Society, 2024, 49(S2)1-9.
[14]	杨甫, 贺丹, 马东民, 等. 低阶煤储层微观孔隙结构多尺度联合表征[J]. 岩性油气藏, 2020, 32(3):14-23. doi: 10.12108/yxyqc.20200302
	YANG Fu, HE Dan, MA Dongmin, et al. Multi-scale joint characterization of micro-pore structure of low-rank coal reservoir[J]. Lithologic Reservoir, 2020, 32(3):14-23.
[15]	高建良, 关孟瑶, 张琛, 等. 高阶煤润湿过程中水分运移的低场核磁共振试验[J]. 中国安全科学学报, 2023, 33(10):46-52. doi: 10.16265/j.cnki.issn1003-3033.2023.10.0009
	GAO Jianliang, GUAN Mengyao, ZHANG Chen, et al. Low-field nuclear magnetic resonance tests characterizing moisture transport during wetting of high-rank coal[J]. China Safety Science Journal, 2023, 33(10):46-52. doi: 10.16265/j.cnki.issn1003-3033.2023.10.0009
[16]	李祥春, 聂百胜. 煤吸附水特性的研究[J]. 太原理工大学学报, 2006, 37(4):417-419.
	LI Xiangchun, NIE Baisheng. Study on the characteristics of coal adsorption water[J]. Journal of Taiyuan University of Technology, 2006, 37(4):417-419.
[17]	王俊杰, 胡勇, 刘义成, 等. 致密砂岩气层毛细管自吸水锁损害及控制因素[J]. 断块油气田, 2019, 26(5):626-631.
	WANG Junjie, HU Yong, LIU Yicheng, et al. Damage of water blocking by spontaneous imbibition in tight sandstone gas reservoir and its controlling factors[J]. Fault-Block Oil and Gas Fields, 2019, 26(5):626-631.
[18]	WANG Ning, DU Yi, FU Changqing, et al. Experimental study on spontaneous imbibition of coal samples of different ranks based on the NMR relaxation spectrum[J]. Acs Omega, 2023, 8(37):33526-33 542.

煤样	工业分析				最大镜质组反射率/%	接触角/(°)
煤样	M_ad/%	A_ad/%	V_daf/%	FC_ad/%	最大镜质组反射率/%	接触角/(°)
G1	0.90	14.92	9.76	75.96	2.77	56.1
G2	1.46	13.65	7.53	80.82	3.09	58.2
Z1	0.69	9.50	23.45	68.75	1.41	77.2
D1	10.86	5.44	27.49	60.69	0.42	41.2

渗吸时间	测样时间间隔
0~60	15
60~240	30
240~2 880	240
2 880~7 200	360
7 200~12 000	480
12 000~13 440	1 440
