Human factor association rules mining and analysis for hazardous chemical accidents

doi:10.16265/j.cnki.issn1003-3033.2022.11.2387

Abstract

Abstract:

Apriori algorithm was used to mine the association rules of human factors in hazardous chemical accidents. 217 accident reports were employed as data samples. Based on the accident statistics, 895 association rules were obtained by Apriori algorithm. The rules cover the correlation between human factors, accident time and month and four types of accidents:leakage, explosion, fire and poisoning and asphyxiation. Based on the analysis results, a graph of non-human factors and illegal fire operation lift direction was drawn in this study. Furthermore, a graph of non-human factors and human factors lift direction was drawn. The results show that explosion and fire accidents, leakage and poisoning and asphyxiation accidents have strong correlation rules with each other. Each accident has a strong correlation with the accident time and month. Illegal fire work and three types of accidents (explosion, fire, leakage) are forming strong correlation rules. Nine types of non-human factors, such as inadequate management of work procedures, mixed explosive gas/physical environment, and removed/uninstalled blind, have strong association rules with illegal fire work.

Key words: hazardous chemicals accidents, human factor, Apriori algorithm, association rules, illegal fire work

LI Xin, YANG Fuqiang. Human factor association rules mining and analysis for hazardous chemical accidents[J]. China Safety Science Journal, 2022, 32(11): 134-139.

Figures/Tables 8

Tab.1

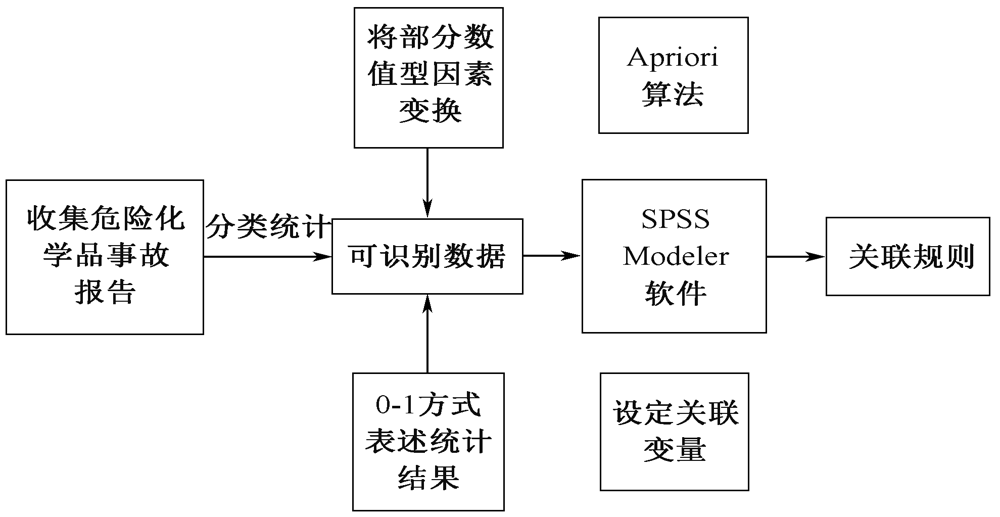

Fig.1

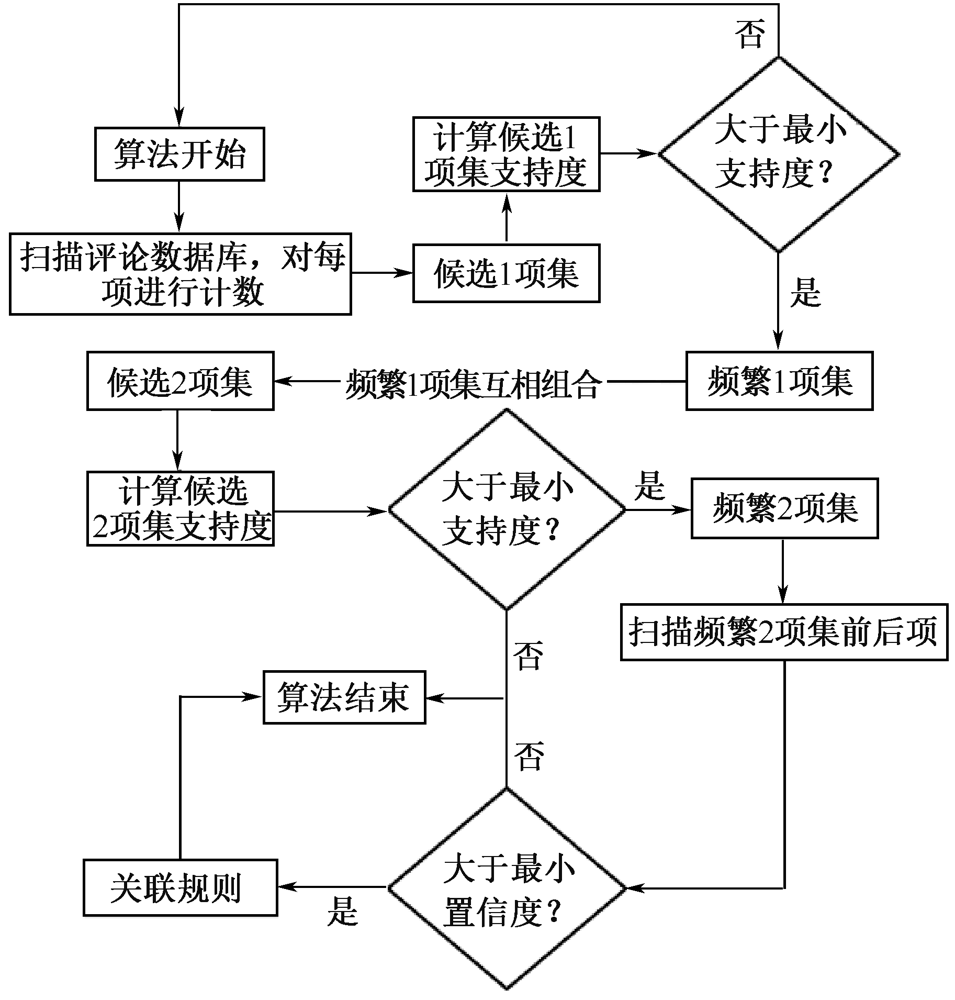

Fig.2

Fig.3

Tab.2

Association rules between accident types and human factors

关联规则	S	C	L	关联规则	S	C	L
物料投放量/速度不合理 $⇒$ 爆炸	0.081	0.875	1.456	物料/气体投入错误 $⇒$ 火灾	0.070	0.500	2.106
使用物具过程产生火花 $⇒$ 爆炸	0.146	0.862	1.434	非法生产、销售和使用危化品 $⇒$ 火灾	0.141	0.393	1.655
物料/气体投入错误 $⇒$ 爆炸	0.070	0.857	1.426	发现隐患未及时上报/未处理 $⇒$ 火灾	0.136	0.370	1.560
温度调控不当 $⇒$ 爆炸	0.182	0.833	1.387	使用物具过程产生火花 $⇒$ 火灾	0.146	0.345	1.453
违规动火作业 $⇒$ 爆炸	0.167	0.818	1.361	违规动火作业 $⇒$ 火灾	0.167	0.303	1.277
盲目施救 $⇒$ 中毒窒息	0.202	1.000	2.870	非法生产、销售和使用危化品 $⇒$ 泄漏	0.141	0.393	1.255
空气吹扫与置换未进行/ 量少 $⇒$ 中毒窒息	0.172	0.676	1.941	工艺装置阀门操作不当 $⇒$ 泄漏	0.136	0.370	1.183
未佩戴防护用品 $⇒$ 中毒窒息	0.414	0.573	1.645	违规动火作业 $⇒$ 泄漏	0.166	0.364	1.161
作业前环境检查不到位 $⇒$ 中毒窒息	0.338	0.418	1.199	员工专业能力不足 $⇒$ 泄漏	0.354	0.343	1.095
废料/残渣处理不当 $⇒$ 中毒窒息	0.136	0.407	1.169	废料/残渣处理不当 $⇒$ 泄漏	0.136	0.333	1.065

Tab.2

Tab.3

Rules for correlating accident time and accident month to accident type

关联规则	S	C	L	关联规则	S	C	L
A2 $⇒$ 火灾	0.131	0.346	1.458	A5 $⇒$ 泄漏	0.167	0.364	1.161
B2 $⇒$ 火灾	0.263	0.385	1.620	B2 $⇒$ 泄漏	0.242	0.396	1.264
A2 $⇒$ 中毒窒息	0.111	0.455	1.304	A3 $⇒$ 爆炸	0.131	0.731	1.216
B3 $⇒$ 中毒窒息	0.242	0.438	1.255	B4 $⇒$ 爆炸	0.227	0.644	1.072

Tab.3

Fig.4

Fig.5

References 16

[1]	河北张家口中国化工集团盛华化工公司“11·28”重大爆燃事故调查报告[EB/OL]. [2021-10-10]. http://www.jiangmen.gov.cn/bmpd/jmsyjglj/zwgk/zdlyxxgk/scaqsgdcbgxx/content/post_1487627.html.
[2]	应急管理部办公厅关于山东济南齐鲁天和惠世制药有限公司“4·15”重大着火中毒事故的通报[EB/OL].[2021-10-20]. https://www.mem.gov.cn/gk/tzgg/tb/201905/t20190506_257244.shtml.
[3]	ZAREI E, KHAN F, ABBASSI R. Importance of human reliability in process operation:a critical analysis[J]. Reliability Engineering and System Safety, 2021,211:DOI:10.1016/j.ress.2021.107607. doi: 10.1016/j.ress.2021.107607
[4]	胡志宏, 曾嵘, 刘祖德. 基于系统动力学理论的事故解释方法[J]. 中国安全科学学报, 2018, 28(10):50-55. doi: 10.16265/j.cnki.issn1003-3033.2018.10.009
	HU Zhihong, ZENG Rong, LIU Zude. A method for interpreting work safety accident based on system dynamics theory[J]. China Safety Science Journal, 2018, 28(10):50-55. doi: 10.16265/j.cnki.issn1003-3033.2018.10.009
[5]	李季, 宋富美, 柏松. 危险化学品库区应急处置流程与机制研究[J]. 中国安全科学学报, 2020, 30(10):164-170. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.023
	LI Ji, SONG Fumei, BAI Song. Study on emergency disposal process and mechanism for hazardous chemicals storage areas[J]. China Safety Science Journal, 2020, 30(10):164-170. doi: 10.16265/j.cnki.issn 1003-3033.2020.10.023
[6]	SALZANO E, DEBERNARD M L, RICCIO D, et al. A case study of multiple explosions of chemicals under fire conditions[J]. Journal of Loss Prevention in the Process Industries, 2019,62:DOI:10.1016/j.jlp.2019.103932. doi: 10.1016/j.jlp.2019.103932
[7]	IKWAN F, SANDERS D, HASSAN M. Safety evaluation of leak in a storage tank using fault tree analysis and risk matrix analysis[J]. Journal of Loss Prevention in the Process Industries, 2021, 73:DIO:10.1016/j.jlp.2021.104597. doi: 10.1016/j.jlp.2021.104597
[8]	廖婵娟, 赵淑琪, 刘燊, 等. 2010—2015年我国危险化学品泄漏事故统计分析与对策[J]. 安全与环境工程, 2017, 24(5):151-157.
	LIAO Chanjuan, ZHAO Shuqi, LIU Shen, et al. Statistical analysis of hazardous chemicals leakage accidents in China during 2010-2015 and its countermeasures[J]. Safety and Environmental Engineering, 2017, 24(5):151-157.
[9]	李娜, 陈建宏. 2013—2019年我国危险化学品统计分析[J]. 应用化工, 2020, 49(5):1261-1265.
	LI Na, CHEN Jianhong. Statistical analysis of dangerous chemicals in China from 2013 to 2019[J]. Applied Chemical Industry, 2020, 49(5):1261-1265.
[10]	WANG Yichen, HENRIKSEN T, DEO M, et al. Factors contributing to US chemical plant process safety incidents from 2010 to 2020[J]. Journal of Loss Prevention in the Process Industries, 2021, 71:DIO:10.1016/j.jlp.2021.104512. doi: 10.1016/j.jlp.2021.104512
[11]	中华人民共和国应急管理部. 警示信息[EB/OL].(2021-10-20). https://www.mem.gov.cn/fw/jsxx/.
[12]	王新浩, 秦绪华, 罗云. 基于垂直数据格式的企业隐患预警方法研究[J]. 中国安全科学学报, 2017, 27(2):157-162. doi: 10.16265/j.cnki.issn1003-3033.2017.02.028
	WANG Xinhao, QIN Xuhua, LUO Yun. Research on vertical data format based method for enterprise hidden trouble early warning[J]. China Safety Science Journal, 2017, 27(2):157-162. doi: 10.16265/j.cnki.issn1003-3033.2017.02.028
[13]	陈述, 习俊博, 王建平, 等. 水电工程施工安全隐患关联规则挖掘[J]. 中国安全科学学报, 2021, 31(8):75-82. doi: 10.16265/j.cnki.issn1003-3033.2021.08.011
	CHEN Shu, XI Junbo, WANG Jianping, et al. Mining association rules of near-misses of hydropower projects construction[J]. China Safety Science Journal, 2021, 31(8):75-82. doi: 10.16265/j.cnki.issn1003-3033.2021.08.011
[14]	LI Heng, LI Xiaoying, LUO Xiaochun, et al. Investigation of the causality patterns of non-helmet use behavior of construction workers[J]. Automation in Construction, 2017, 80:95-103. doi: 10.1016/j.autcon.2017.02.006
[15]	ANTONIO T C, MARIA M R, JESUS C C, et al. Occupational accident analysis according to professionals of different construction phases using association rules[J]. Safety Science, 2021, 144:10.1016/j.ssci.2021.105457. doi: 10.1016/j.ssci.2021.105457
[16]	HONG J, TAMAKLOE R, PARK D. Application of association rules mining algorithm for hazardous materials transportation crashes on expressway[J]. Accident Analysis and Prevention, 2020,142:DOI:10.1016/j.aap.2020.105497. doi: 10.1016/j.aap.2020.105497

数值型	布尔型	编号	数值型	布尔型	编号
7:00—12:00	上午	A1	3、4、5	春	B1
12:00—15:00	中午	A2	6、7、8	夏	B2
15:00—18:00	下午	A3	9、10、11	秋	B3
18:00—22:00	晚上	A4	12、1、2	冬	B4
22:00—7:00	凌晨	A5
