Integrated evaluation methods of seismic resilience of urban group buildings

doi:10.16265/j.cnki.issn1003-3033.2025.04.1116

Abstract

Abstract:

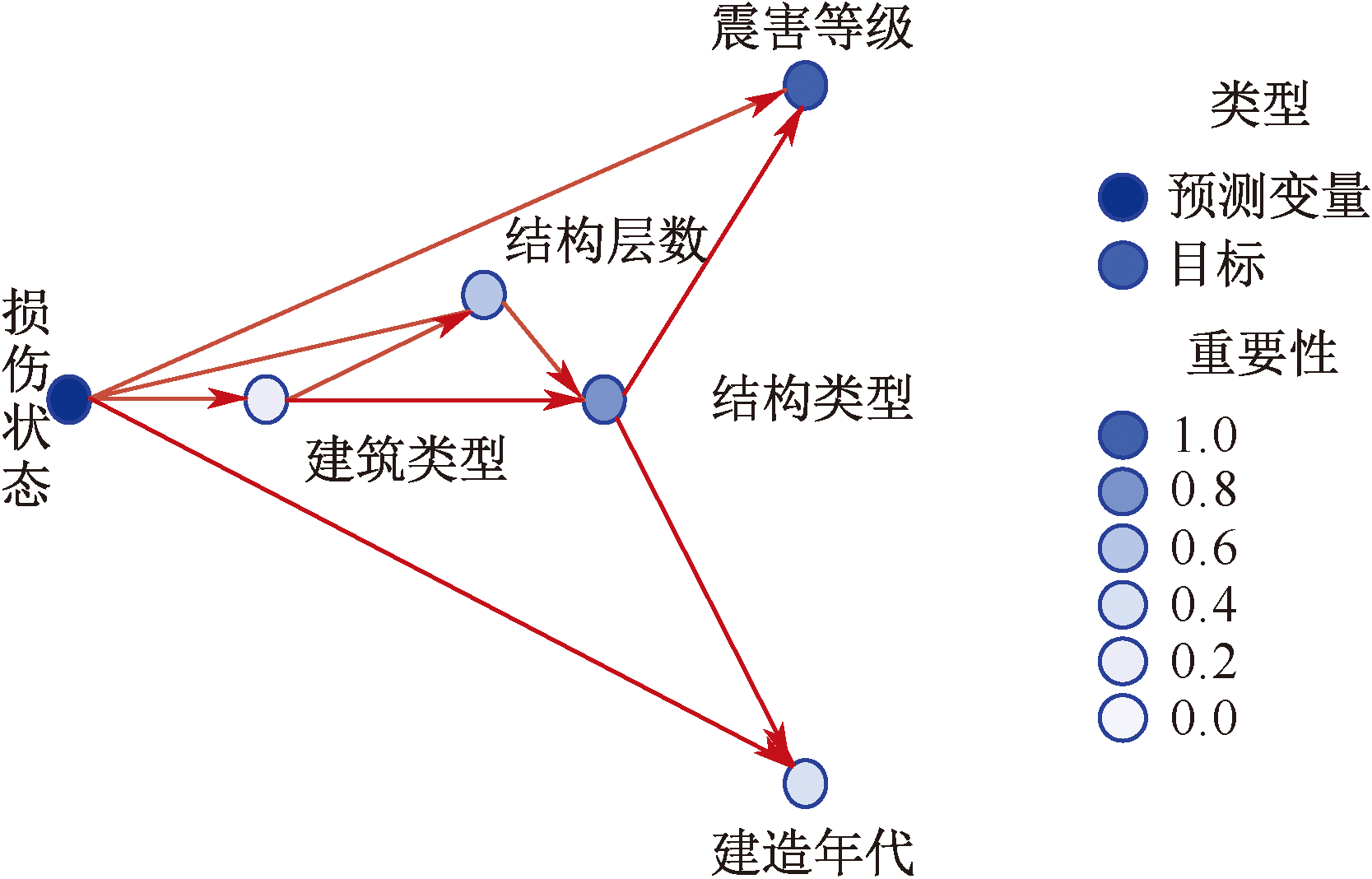

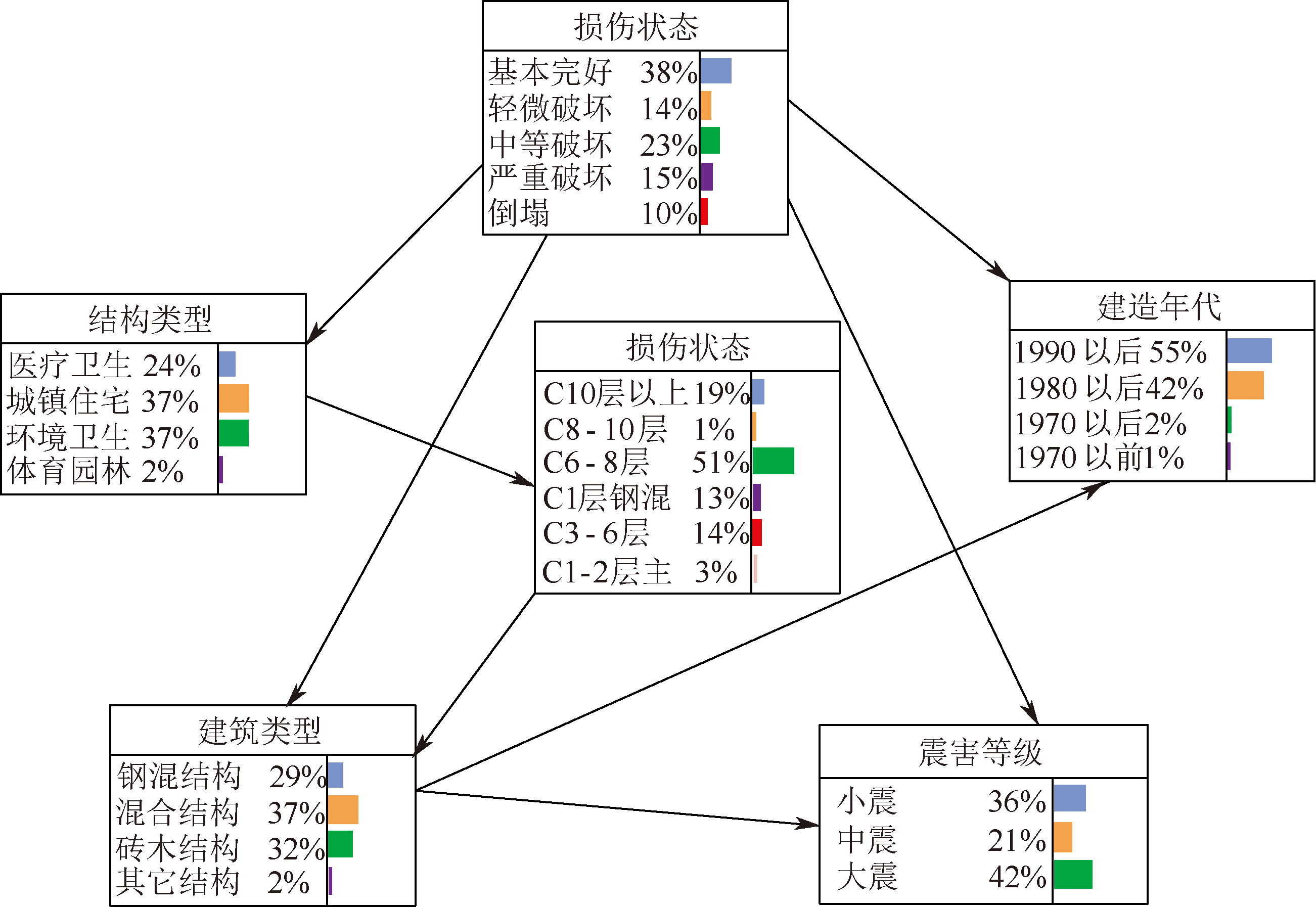

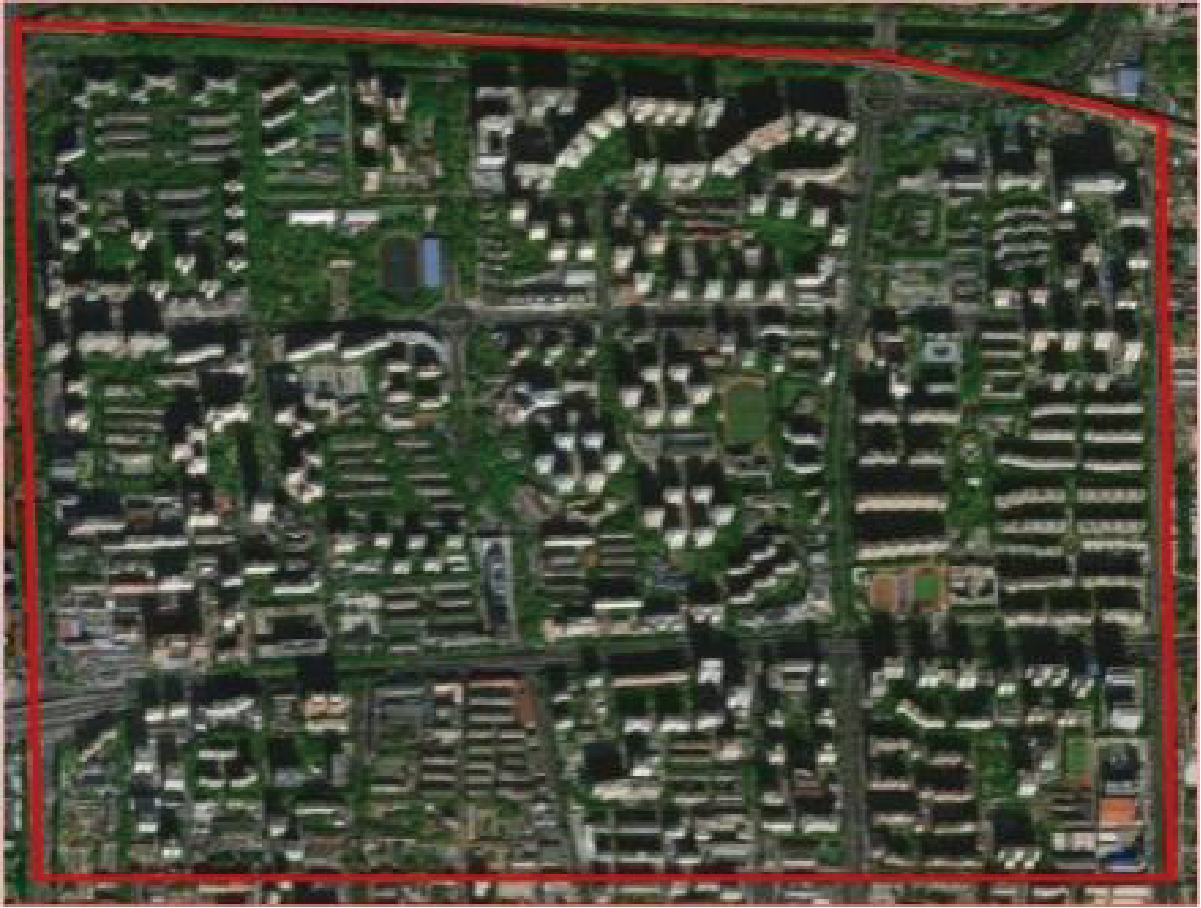

To evaluate the seismic resilience of urban group buildings under different demands, an integrated assessment methodology was developed for urban building clusters' earthquake resistance. A tree-augmented naive Bayesian method was employed to construct a BN model that rapidly predicted structural damage states under various target earthquakes through multi-parameter analysis including building types, construction eras, and structural configurations. Multiple resilience evaluation theories and methods-comprising the resilience index method, resilience element rating method, risk-resilience analysis method, and group buildings resilience indicator evaluation method-were integrated to comprehensively assess the seismic resilience of group buildings in a specific street of Fengtai District, Beijing. Comparative analyses were conducted to examine the advantages, limitations, and applicability of these approaches. The results indicate that the resilience index method proves suitable for rapid assessment of building recovery capacity, while the resilience element rating method facilitates intuitive visualization of structural resilience levels. The risk-resilience analysis method demonstrates superior capability in handling disaster uncertainties and stochastic characteristics, whereas the group buildings resilience indicator evaluation method emphasizes the critical influence of functional requirements on comprehensive assessments.

Key words: urban group buildings, seismic resilience, integrated evaluation, damage states, Bayesian network (BN)

CLC Number:

X915.5

WANG Wei, GONG Yuzhuo, ZHU Junyi, XIA Chenhong, GUO Xiaodong. Integrated evaluation methods of seismic resilience of urban group buildings[J]. China Safety Science Journal, 2025, 35(4): 219-226.

Figures/Tables 15

Fig.1

Table 1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Table 2

Fig.8

Table 3

Table 4

Fig.9

Fig.10

Fig.11

References 13

[1]	Federal Emergency Management Agency. National response framework (4^th ed.)[R], 2018.
[2]	MOSALAM K M, KASALANTI A. PEER annual report 2020—2021[R]. Pacific Earthquake Engineering Research Center, University of California, 2021.
[3]	AGHABABAEI M, KOLIOU M, WATSON M, et al. Quantifying post-disaster business recovery through Bayesian methods[J]. Structure and Infrastructure Engineering, 2021, 17(6): 838-856.
[4]	LI Peiran, LI Xueqian, WANG Xin, et al. Seismic resilience evaluation of reinforced concrete frame considering the effect of mainshock-aftershock sequences[J]. Applied Sciences, 2023, 13(23): DOI:10.3390/app132312620.
[5]	CHEN Xinglin, YU Longxing, LIN Weidong, et al. Urban resilience assessment from the multidimensional perspective using dynamic Bayesian network: a case study of Fujian province, China[J]. Reliability Engineering & System Safety, 2023, 238: DOI:10.1016/j.ress.2023.109469.
[6]	REN Hao, RONG Chong, TIAN Qinhu, et al. Evaluation model for seismic resilience of urban building groups[J]. Buildings, 2023, 13(10): DOI:10.3390/buildings13102502.
[7]	SALADO C J G, BRUNEAU M, ELHAMI-KHORASANI N. Functionality measures for quantification of building seismic resilience index[J]. Engineering Structures, 2022, 253: DOI: 10.1016/j.soildyn.2024.108601.
[8]	SANDERSON D, COX D, NARAHARISETTY G. A spatially explicit decision support framework for parcel- and community-level resilience assessment using Bayesian networks[J]. Sustainable and Resilient Infrastructure, 2022, 7(5): 531-551.
[9]	KAMESHWAR S, COX D T, BARBOSA A R, et al. Probabilistic decision-support framework for community resilience: Incorporating multi-hazards, infrastructure interdependencies, and resilience goals in a Bayesian network[J]. Reliability Engineering and System Safety, 2019, 191: DOI:10.1016/j.ress.2019.106568.
[10]	金赟赟, 李杰. 基于易损性贝叶斯网络的群体建筑快速震害预测[J]. 自然灾害学报, 2020, 29(5): 64-72.
	JIN Yunyun, LI Jie. Rapid earthquake damage prediction for group buildings based on vulnerability Bayesian network[J]. Journal of Natural Disasters, 2020, 29(5): 64-72.
[11]	张涵. 社区建筑群落的抗震韧性评估研究[D]. 大连: 大连理工大学, 2021.
	ZHANG Han. Research on evaluation of seismic resilience for community building portfolio[D]. Dalian: Dalian University of Technology, 2021.
[12]	贾明明, 袁昊祯, 彭慧君. 松原地区群体建筑结构地震响应及抗震韧性分析[J]. 地震工程学报, 2022, 44(3):509-517.
	JIA Mingming, YUAN Haozhen, PENG Huijun. Earthquake response and seismic resilience of group building structures in the Songyuan area[J]. China Earthguake Engineering Journal, 2022, 44(3): 509-517.
[13]	王威, 贾文雪, 缪惠全, 等. 基于“源体力”理论的城市抗震安全韧性评估[J/OL]. 工程力学:1-12. [2024-07-14]. http://kns.cnki.net/kcms/detail/11.2595.O3.20240710.2113.009.html
	WANG Wei, JIA Wenxue, MIAO Huiquan, et al. Urban seismic safety resilience evaluation based on "risk source-risk exposure-mitigation force" theory[J/OL]. Engineering Mechanics: 1-12. [2024-07-14]. http://kns.cnki.net/kcms/detail/11.2595.O3.20240710.2113.009.html

指标	序号	分类描述
场地类型	1	I类
	2	II类
	3	III类
	4	IV类
结构类型	1	钢混结构
	2	混合结构
	3	砖木结构
	4	其他结构
结构层数	1	[1,2]主要指老旧房屋
	2	[3,6]
	3	[7,8]
	4	[9,10]
	5	(10,∞)
建造年代 /年份	1	(0,1970)
	2	[1970,1979]
	3	[1980,1989]
	4	[1990,1999]
	5	[2000,2025]
建筑类型	1	医疗卫生、教育、行政办公建筑
	2	城镇住宅、文化娱乐建筑
	3	环境卫生、餐饮服务建筑
	4	体育、园林等其他建筑

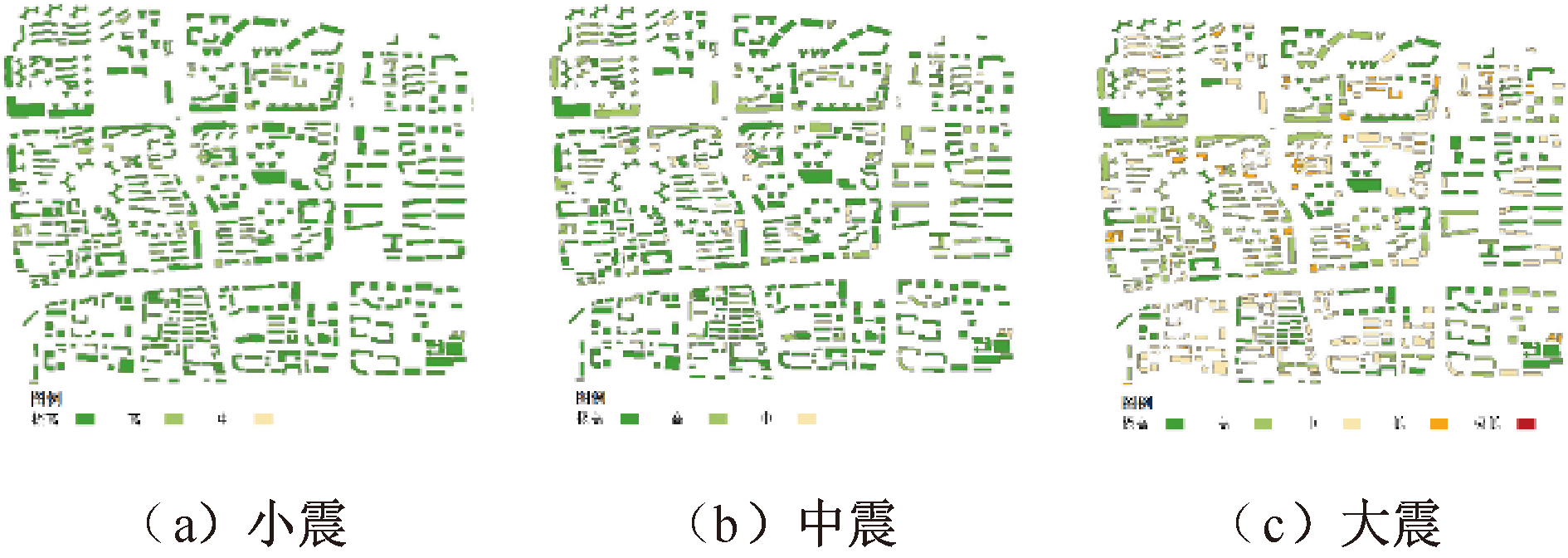

破坏等级	基本完好	轻微破坏	中等破坏	严重破坏	倒塌
小震	90.52	9.47	0.01	—	—
中震	29.09	45.51	25.39	0.01	—
大震	5.98	29.43	44.22	20.34	0.03

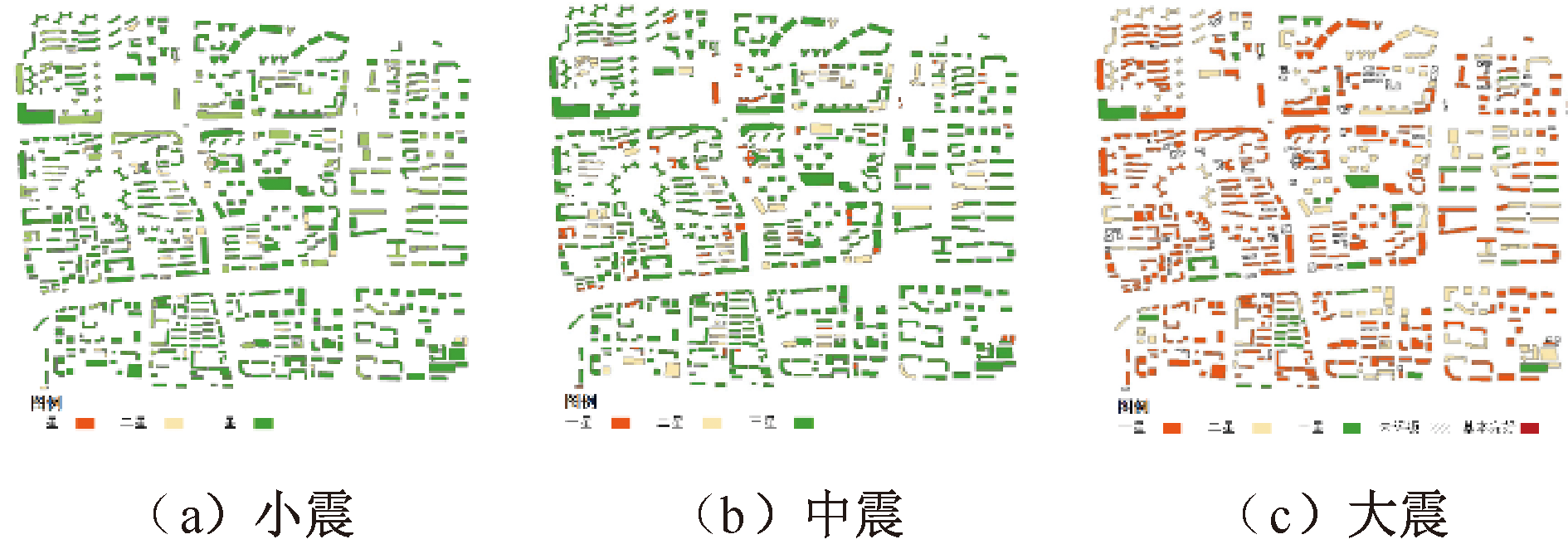

目标地震	一星	二星	三星
小震	9	25	66
中震	24	43	31
大震	51	22	13
