Research on influencing factors of rainstorm waterlogging resilience at rail transit stations based on complex network

doi:10.16265/j.cnki.issn1003-3033.2025.06.0726

Abstract

Abstract:

To enhance the operational stability of urban rail transit stations during rainstorms and waterlogging for safe resident travel, a method for evaluating the importance of resilience influencing factors was proposed based on complex networks. Based on the definition and connotation of resilience, 23 influencing factors of rainstorm waterlogging resilience were extracted from four aspects of stability, robustness, resilience and adaptability. The complex network of influencing factors of resilience was constructed according to the influence relationship between influencing factors. The evaluation index system for the importance of these factors was established, including degree centrality (DC), closeness centrality (CC), betweenness centrality (BC), and clustering coefficient. The order relation analysis method(G1)-Coefficient of Variation (CV) combination weighting method was used to weight the index, and the VlseKriterijumska Optimizacija I Kompromisno Resenje (VIKOR)method was used to identify the key influencing factors. The results show that risk monitoring and early warning system, mobile communication equipment, water retaining capacity of stations, maintenance and repair frequency of flood control equipment, emergency power supply equipment, professional level of flood control staff, drainage capacity of stations, and frequency of flood control training and drilling are the key factors influencing the resilience of urban rail transit stations. The research results can provide new ideas and targeted suggestions for the emergency waterlogging prevention strategies of urban rail transit stations in the rainstorm waterlogging scenario.

Key words: complex network, rail transit stations, rainstorm waterlogging, resilience, influencing factors

CLC Number:

X951交通运输安全

MA Liqiang, ZHAO Ang, ZHENG Binbin. Research on influencing factors of rainstorm waterlogging resilience at rail transit stations based on complex network[J]. China Safety Science Journal, 2025, 35(6): 142-147.

Figures/Tables 7

Fig.1

Table 1

Fig.2

Table 2

Table 3

Table 4

Fig.3

References 16

[1]	FERNANDA S, ELISABETTA G, PAOLO T. Analysing the attractiveness, availability and accessibility of healthcare providers via social network analysis(SNA)[J]. Decision Support Systems, 2019, 120:25-37.
[2]	交通运输部. 2022年交通运输行业发展统计公报[R], 2023.
[3]	邓旭东, 王雪, 徐文平, 等. 城市地铁网络脆弱性对比分析[J]. 中国安全科学学报, 2017, 27(3): 152-156. doi: 10.16265/j.cnki.issn1003-3033.2017.03.027
	DENG Xudong, WANG Xue, XU Wenping, et al. Comparative analysis of vulnerability of urban metro network[J]. China Safety Science Journal, 2017, 27(3): 152-156. doi: 10.16265/j.cnki.issn1003-3033.2017.03.027
[4]	何郑, 杨宇轩, 颜红艳, 等. 暴雨内涝灾害下地铁项目施工韧性评估与实证研究[J]. 铁道科学与工程学报, 2023, 20(12):4781-4790.
	HE Zheng, YANG Yuxuan, YAN Hongyan, et al. Assessment and empirical research for construction resilience of railway projects under waterlogging disasters[J]. Journal of Railway Science and Engineering, 2023, 20(12): 4781-4790.
[5]	祝连波, 王世笛, 林陵娜, 等. 基于博弈论组合赋权-物元可拓模型的地铁车站抗涝韧性评估研究[J]. 灾害学, 2023, 38(3):1-6,42.
	ZHU Lianbo, WANG Shidi, LIN Lingna, et al. Based on the combination of game theory and weighted matter-element extension model study on waterlogging resilience assessment of metro stations[J]. Journal of Catastrophology, 2023, 38(3): 1-6,42.
[6]	郑建春, 张岑, 李永坤, 等. 基于InfoWorks ICM模型的地铁场站内涝积水防控研究[J]. 北京师范大学学报:自然科学版, 2019, 55(5):648-655.
	ZHENG Jianchun, ZHANG Cen, LI Yongkun, et al. Prevention and control of waterlogging in metro stations: an InfoWorks ICM analysis[J]. Journal of Beijing Normal University: Natural Science, 2019, 55(5): 648-655.
[7]	焦柳丹, 李东荣, 张羽, 等. 暴雨灾害下城市轨道交通车站韧性关键影响因素研究[J]. 重庆交通大学学报:自然科学版, 2023, 42(5):109-115.
	JIAO Liudan, LI Dongrong, ZHANG Yu, et al. Key influencing factors of urban rail transit station resilience under rainstorm disaster[J]. Journal of Chongqing Jiaotong University: Natural Science, 2023, 42(5): 109-115.
[8]	JIAO Liudan, LI Dongrong, ZHANG Yu, et al. Identification of the key influencing factors of urban rail transit station resilience against disasters caused by rainstorms[J]. Land, 2021, 10(12): DOI:10.3390/2021/10121298.
[9]	WU Xiao, LYU Xuejiao, ZHAO Yanling, et al. Ecological resilience assessment of an arid coal mining area using index of entropy and linear weighted analysis: a case study of Shendong coalfield, China[J]. Ecological Indicators, 2020, 109: DOI: 10.1016/j.ecolind.2019.105843.
[10]	石婷婷. 从综合防灾到韧性城市:新常态下上海城市安全的战略构想[J]. 上海城市规划, 2016(1): 13-18.
	SHI Tingting. From comprehensive defense to resilient cities: strategic conception of Shanghai's city security in the new normal[J]. Shanghai Urban Planning Review, 2016(1): 13-18.
[11]	GB50517—2013, 地铁设计规范[S].
	GB50517-2013, Code for design of metro[S].
[12]	李磊, 马梦格, 折亚亚, 等. 复杂网络下雨洪灾害链风险分析及断链减灾研究[J]. 中国安全科学学报, 2023, 33(12):192-197. doi: 10.16265/j.cnki.issn1003-3033.2023.12.2006
	LI Lei, MA Mengge, SHE Yaya, et al. Risk analysis of rainstorm flood disaster chain and research on disaster mitigation of broken chain under complex network[J]. China Safety Science Journal, 2023, 33(12): 192-197. doi: 10.16265/j.cnki.issn1003-3033.2023.12.2006
[13]	宋亮亮, 张劲松, 杜建波, 等. 基于云模型的水利工程运行安全韧性评价[J]. 水资源保护, 2023, 39(2):208-214.
	SONG Liangliang, ZHANG Jinsong, DU Jianbo, et al. Assessment of operation safety resilience of water conservancy projects based on cloud model[J]. Water Resources Protection, 2023, 39(2): 208-214.
[14]	王景春, 赵福全, 王炳华, 等. 多因素影响下的地铁车站深基坑韧性评估[J]. 中国安全科学学报, 2019, 29(10):154-159. doi: 10.16265/j.cnki.issn1003-3033.2019.10.024
	WANG Jingchun, ZHAO Fuquan, WANG Binghua, et al. Resilience evaluation for deep foundation pit of metro station under influence of multiple factors[J]. China Safety Science Journal, 2019, 29(10): 154-159. doi: 10.16265/j.cnki.issn1003-3033.2019.10.024
[15]	代革联, 王松松, 牛超, 等. 基于G1-CV熵组合权重模型的含水层富水性研究[J]. 煤炭技术, 2023, 42(8):132-138.
	DAI Gelian, WANG Songsong, NIU Chao, et al. Study on aquifer water richness based on G1-CV entropy combined weight model[J]. Coal Technology, 2023, 42 (8): 132-138.
[16]	徐冬梅, 徐梦臣, 王文川, 等. VIKOR法在城市供水方案优选中的应用[J]. 人民长江, 2020, 51(2):116-118, 159.
	XU Dongmei, XU Mengchen, WANG Wenchuan, et al. Application of VIKOR method in urban water supply scheme optimization[J]. Yangtze River, 2020, 51(2): 116-118, 159.

因素	F₁	F₂	F₃	F₄	F₅	F₆	F₇	F₈	…	F₂₂	F₂₃
F₁	0	0	1	0	1	1	0	0	…	0	0
F₂	0	0	1	1	0	0	0	0	…	0	0
F₃	1	1	0	1	0	0	0	0	…	0	0
F₄	1	1	0	0	0	1	0	0	…	0	0
F₅	1	1	0	1	0	0	0	0	…	0	0
F₆	0	0	1	1	0	0	0	0	…	0	0
F₇	0	0	0	0	0	0	0	1	…	0	0
F₈	0	0	0	0	0	0	0	0	…	0	0
︙	︙	︙	︙	︙	︙	︙	︙	︙		︙	︙
F₂₂	0	0	0	0	0	0	0	0	…	0	0
F₂₃	0	1	1	1	1	1	0	0	…	1	0

属性	因素	DC_j	CC_j	BC_j	E_j
稳定性	F₁	0.273	0.413	14.83	0.417
	︙	︙	︙	︙	︙
	F₅	0.273	0.412	1.500	0.400
	F₆	0.318	0.451	3.670	0.367
抵抗性	F₇	0.227	0.39	1.500	0.450
	︙	︙	︙	︙	︙
	F₁₂	0.182	0.330	0	0.500
恢复性	F₁₃	0.682	0.400	43.330	0.214
	︙	︙	︙	︙	︙
	F₁₈	0.636	0.783	0	0.220
适应性	F₁₉	0.182	0.366	0	0.583
	︙	︙	︙	︙	︙
	F₂₃	0.636	0.791	0	0.220

权重	DC	CC	BC	聚类系数
ω_ai	0.268	0.223	0.159	0.350
ω_bi	0.224	0.238	0.368	0.170
ω_i	0.255	0.240	0.252	0.253

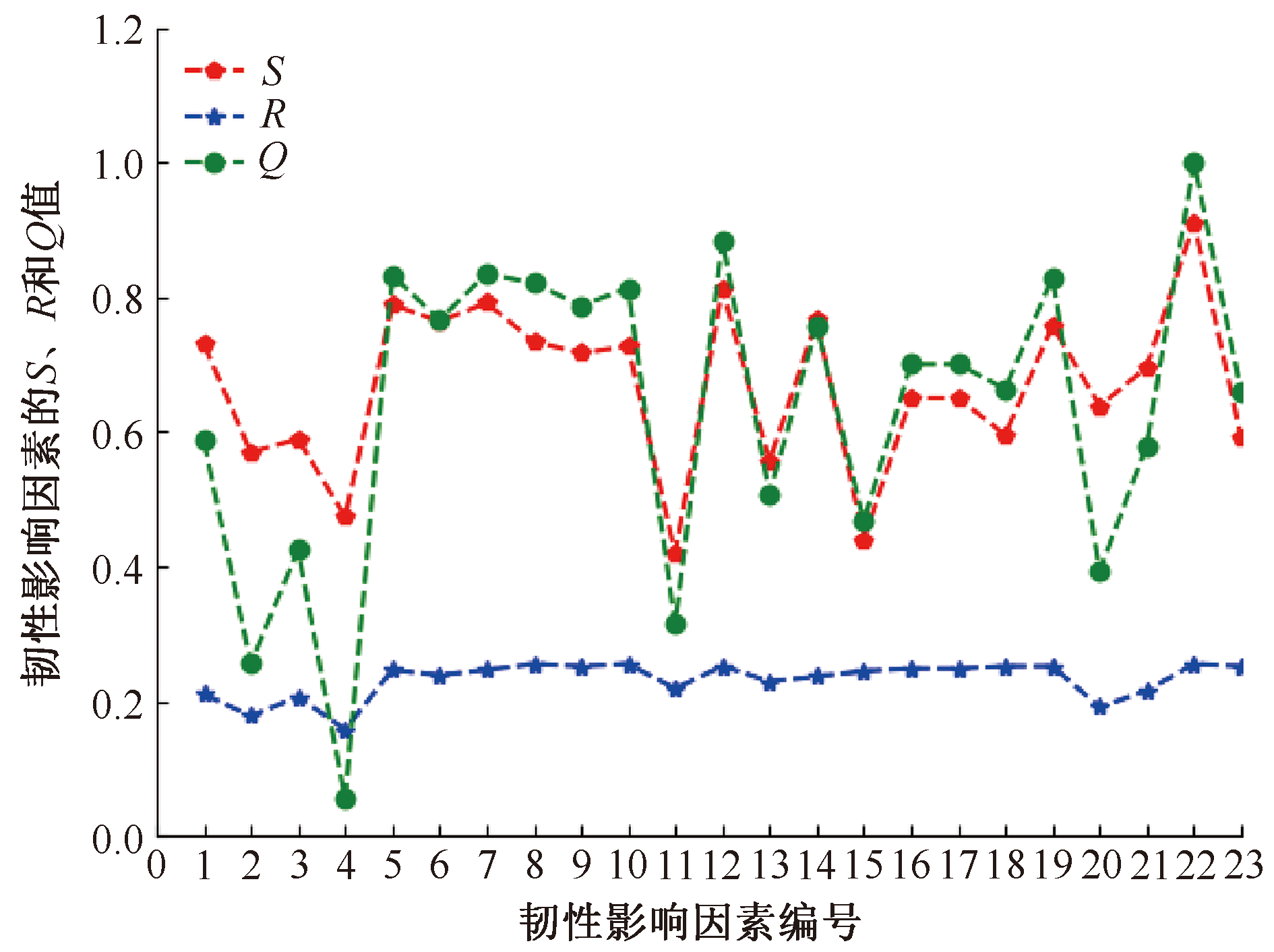

因素	S_j	R_j	Q_j
F₁	0.73	0.21	0.59
F₂	0.57	0.18	0.26
F₃	0.59	0.20	0.42
F₄	0.47	0.16	0.05
F₅	0.79	0.25	0.83
F₆	0.76	0.24	0.77
F₇	0.79	0.25	0.84
︙	︙	︙	︙
F₂₂	0.91	0.26	1
F₂₃	0.59	0.25	0.66
