朔黄铁路隧道车载式救援设备方案设计

doi:10.16265/j.cnki.issn1003-3033.2022.S2.0059

摘要/Abstract

摘要：

为解决因重载铁路隧道内空间限制而导致现有救援设备无法实施救援的问题,研究一种重载铁路隧道车载式救援设备的设计方案。重载铁路隧道车载式救援设备以凹底平车为载体,结合折叠式龙门吊的设计思路,利用凹底平车升降,龙门吊支腿、橫梁展开与折叠,将事故车体与货物同时吊起、平移到凹底平车上运出隧道,实现吊、装、运、卸一体化;该设备可以适应狭窄隧道空间救援作业,减少救援作业环节,节省人力、物力投入,提高救援效率,快速恢复线路开通,且避免强行拖出和卸空货物等方式造成的车辆损毁和经济损失。结果表明:车载式救援设备的设计提供一种新的重载铁路隧道救援装备方案,可实现隧道内颠覆性事故整体车辆运出,解决隧道内受空间限制无法实施救援的问题。

关键词: 隧道, 车载式, 救援设备, 事故车辆, 龙门吊, 支腿

Abstract:

This paper discussed the design scheme of a vehicle mounted rescue equipment for heavy haul railway tunnels, which aimed to solve the problem that the existing rescue equipment could not implement rescue due to the space limitation in heavy haul railway tunnels. Vehicle mounted rescue equipment for heavy haul railway tunnels took the concave bottom flat vehicle as the carrier, and incorporated the design idea of folding gantry crane. By using the concave bottom flat vehicle to lift, unfold and fold the outriggers and beams of the gantry crane, the accident vehicle and goods were lifted and translated onto the concave bottom flat vehicle and transported out of the tunnel, realizing the integration of lifting, loading, transportation and unloading. The equipment could adapt to space rescue operation in narrow tunnels, reduce rescue operation links, save manpower and material resources, improve rescue efficiency, fast recovery line opening, and avoid vehicle damage and economic losses caused by forced dragging and unloading of goods. The design of vehicle mounted rescue equipment provides a new scheme for heavy haul railway tunnel rescue equipment, and realizes the overall transportation of vehicles for subversive accidents in the tunnel.

Key words: tunnel, vehicle mounted, rescue equipment, accident vehicle, gantry crane, outrigger

崔志超, 肖志宇, 崔天琦. 朔黄铁路隧道车载式救援设备方案设计[J]. 中国安全科学学报, 2022, 32(S2): 106-110.

CUI Zhichao, XIAO Zhiyu, CUI Tianqi. Scheme design of vehicle mounted rescue equipment for Shuohuang railway tunnel[J]. China Safety Science Journal, 2022, 32(S2): 106-110.

图/表 4

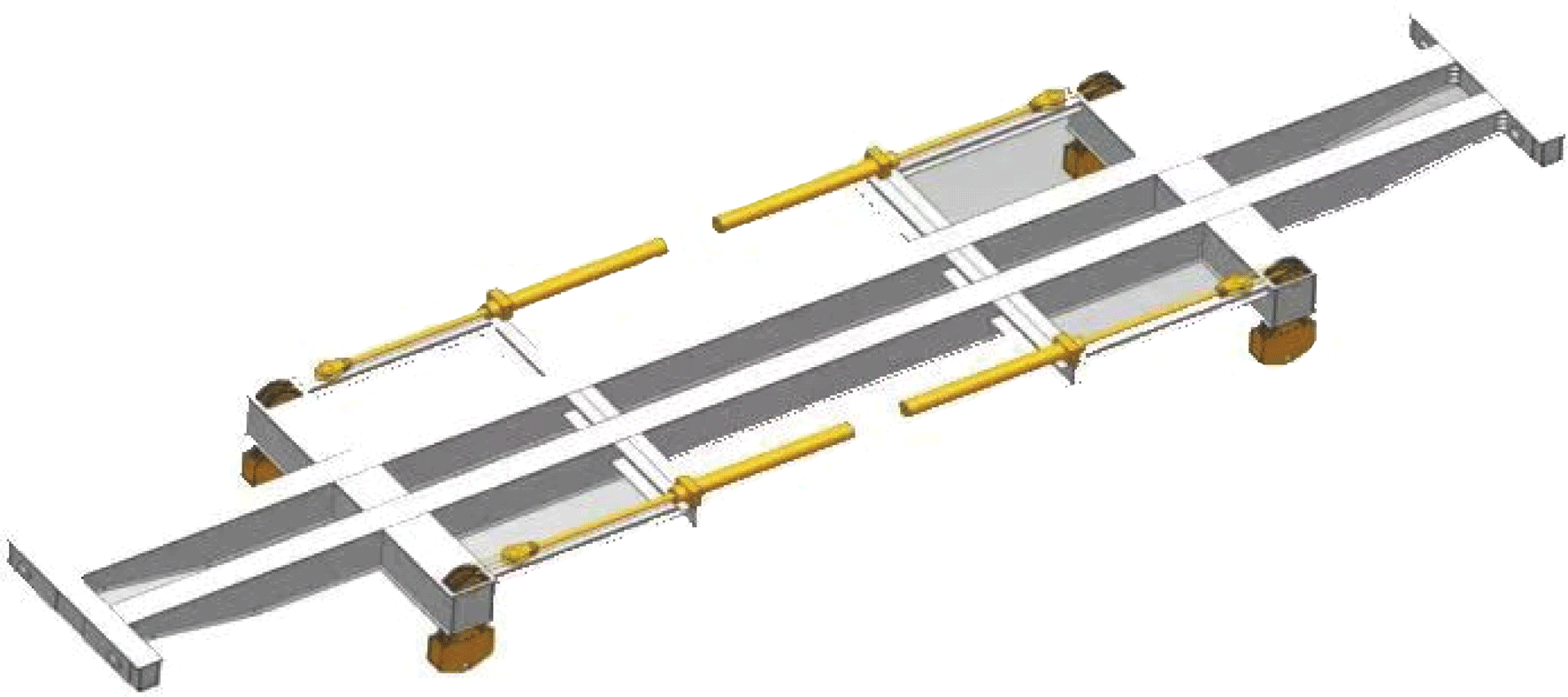

图1

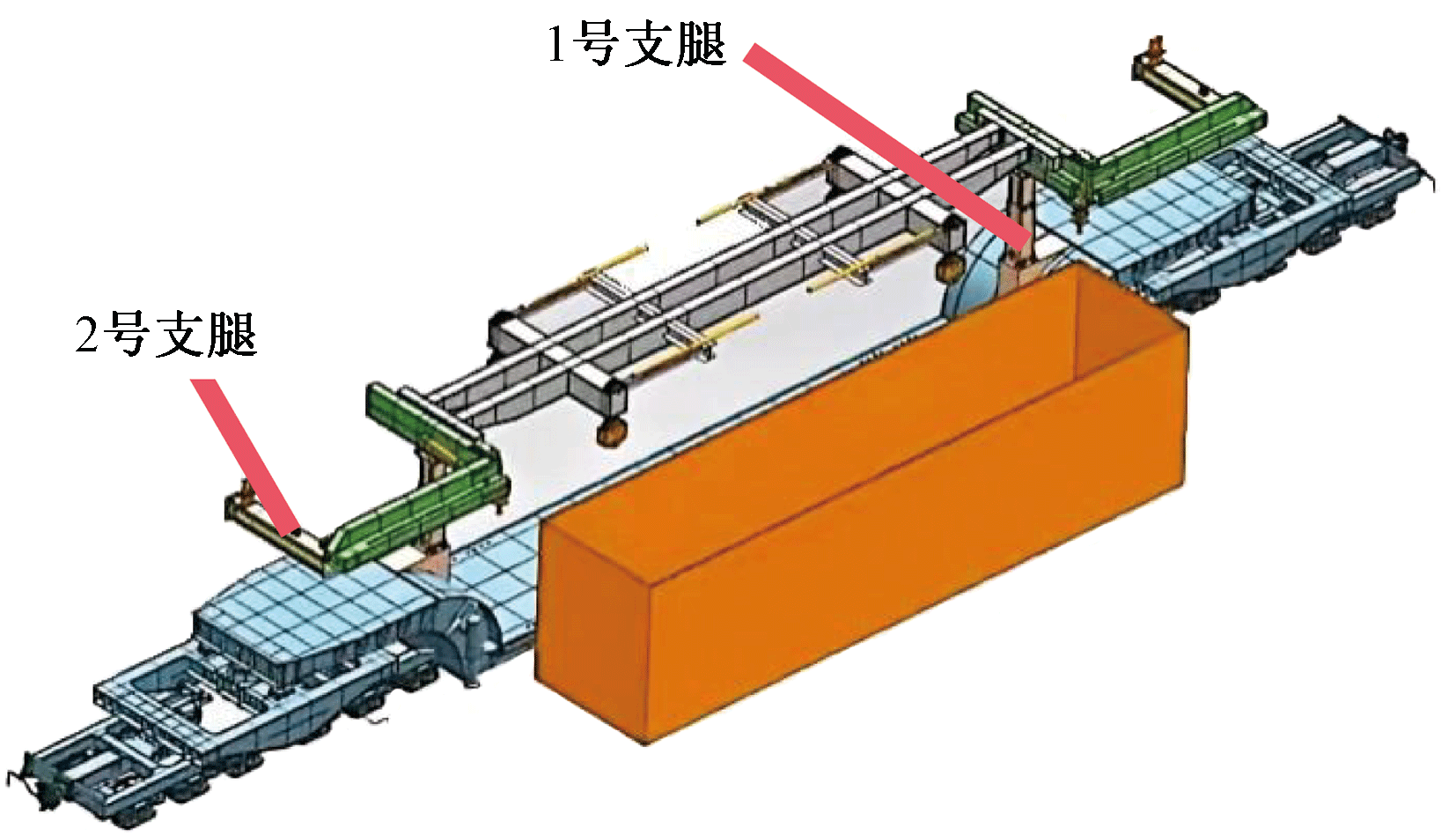

图2

表1

图3

参考文献 14

[1]	杨晨, 李晓宇, 白付维, 等. 重载铁路应急救援能力评估体系研究[J]. 中国铁路, 2022(1):85-90.
	YANG Chen, LI Xiaoyu, BAI Fuwei, et al. Research on evaluation system for emergency rescue capability of heavy haul railway[J]. China Railway, 2022(1):85-90.
[2]	王奉鹏. 高铁救援铁路起重机关键工艺技术[J]. 工业技术创新, 2022, 9(2):53-60.
	WANG Fengpeng. Key process technologies of high-speed rescue railway crane[J]. Industrial Technology Innovation, 2022, 9(2):53-60.
[3]	尹冰艳, 刘卫红. 我国高速铁路应急救援机制的完善[J]. 中国安全科学学报, 2018, 28(增2):180-184.
	YIN Bingyan, LIU Weihong. Perfection of mechanism of China's high-speed railway emergency rescue[J]. China Safety Science Journal, 2018, 28(S2):180-184. doi: 10.16265/j.cnki.issn1003-3033.2018.S2.034
[4]	温晓杰. 铁路行车事故救援快速反应体系研究[J]. 中国安全科学学报, 2019, 29(增2):187-194.
	WEN Xiaojie. Research on establishing rapid response system for railway traffic accident rescue[J]. China Safety Science Journal, 2019, 29(S2):187-194. doi: 10.16265/j.cnki.issn1003-3033.2019.S2.031
[5]	杜宇, 钟昊, 李明春. 基于高通量卫星的铁路应急指挥通信系统[J]. 中国安全科学学报, 2021, 31(增1):187-191.
	DU Yu, ZHONG Hao, LI Mingchun. Railway emergency command and communication system based on high-throughput satellite[J]. China Safety Science Journal, 2021, 31(S1):187-191. doi: 10.16265/j.cnki.issn1003-3033.2021.S1.033
[6]	李正康, 周文婕, 沈睿, 等. 复线电气化铁路列车火灾救援安全防护措施[J]. 中国铁路, 2022(2):156-163.
	LI Zhengkang, ZHOU Wenjie, SHEN Rui, et al. Safety measures for fire rescue efforts of trains on double-track electrified railway[J]. China Railway, 2022(2):156-163.
[7]	陈辉, 王磊. 铁路车辆液压顶复救援设备故障诊断及使用建议[J]. 甘肃科技纵横, 2021, 50(10):19-21.
	CHEN Hui, WANG Lei. Fault diagnosis and application suggestions of hydraulic jacking and rescuing equipment for railway vehicles[J]. scientific & Technical Information of Gansu, 2021, 50(10):19-21.
[8]	覃毅. 折臂起重机在电气化铁路区段的应用分析[J]. 铁道运营技术, 2022, 28(4):17-19.
	QIN Yi. Application analysis of folding boom crane in electrified railway section[J]. Railway Operation Technology, 2022, 28(4):17-19.
[9]	杨心怡. 救援起重机和救援列车通行简支梁荷载特征图式[J]. 铁道建筑, 2021, 61(12):58-62.
	YANG Xinyi. Load characteristic diagram of rescue crane and rescue train passing simply supported girders[J]. Railway Engineering, 2021, 61(12):58-62.
[10]	冯勃, 刘永, 于跃. 大吨位铁路救援起重机展腿油缸设计[J]. 铁道技术监督, 2022, 50(8):42-45,50.
	FENG Bo, LIU Yong, YU Yue. Design of outrigger extension cylinder of large tonnage railway rescue crane[J]. Railway Quality Control, 2022, 50(8):42-45,50.
[11]	任继红. 铁路T梁桥上组立门式起重机技术研究[J]. 施工技术, 2021, 49(23):25-28.
	REN Jihong. Study on technique of assembling gantry crane on railway T beam bridge[J]. Construction Technology, 202149(23):25-28.
[12]	于跃, 侯广慧, 刘永, 等. 铁路救援起重机起升装置故障分析与解决措施[J]. 机电工程技术, 2022, 51(6):260-262.
	YU Yue, HOU Guanghui, LIU Yong, et al. Failure analysis and solution for lifting device of railway rescue crane[J]. Mechanical & Electrical Engineering Technology, 2022, 51(6):260-262.
[13]	王培武, 李忠, 阮洪生. 铁路救援起重机通用吊臂平车的研制[J]. 铁道车辆, 2018, 56(6):25-27,4-5.
	WANG Peiwu, LI Zhong, RUAN Hongsheng. Development of general purpose hanging arm flat cars for railway rescue cranes[J]. Rolling Stock, 2018, 56(6):25-27,4-5.
[14]	黄耀怡, 刘培勇, 李坤, 等. 关于我国高铁运架一体机的设计与应用[J]. 铁道建筑技术, 2014(2):6-13.
	HUANG Yaoyi, LIU Peiyong, LI Kun, et al. Design and application of combine machines for concrete beams transporting and erecting in China high speed railway[J]. Railway Construction Technology, 2014(2):6-13.

整机参数		部件参数
整机工作级别	A4	吊梁行车	起升速度/(m·min^-1)	0.3
额定起重量/t	120		吊梁行车运行速度/(m·min^-1)	6
最大起升高度/mm	900		吊梁行车重载最大速度/(m·min^-1)	3
满足最大车体长度/m	14	1号支腿	支腿顶升速度/(m·min^-1)	0.5
支腿纵向间距/m	15.44		支腿调坡油缸速度/(m·min^-1)	0.2
支腿横向间距/m	5.83		插销油缸/(m·min^-1)	0.1
龙门吊自重/t	35	2号支腿	支腿顶升速度/(m·min^-1)	0.5
发电机组功率/kW	50		顶升插销速度/(m·min^-1)	0.1
—	—		支腿折叠速度/(r·min^-1)	0.15
—	—		折叠插销速度/(m·min^-1)	0.1
—	—	可折叠主梁	折叠速度/(r·min^-1)	0.15
—	—	可折叠主梁	插销速度/(m·min^-1)	0.1
