轮扣式支模架结构整体稳定性分析

doi:10.16265/j.cnki.issn1003-3033.2022.07.1917

摘要/Abstract

摘要：

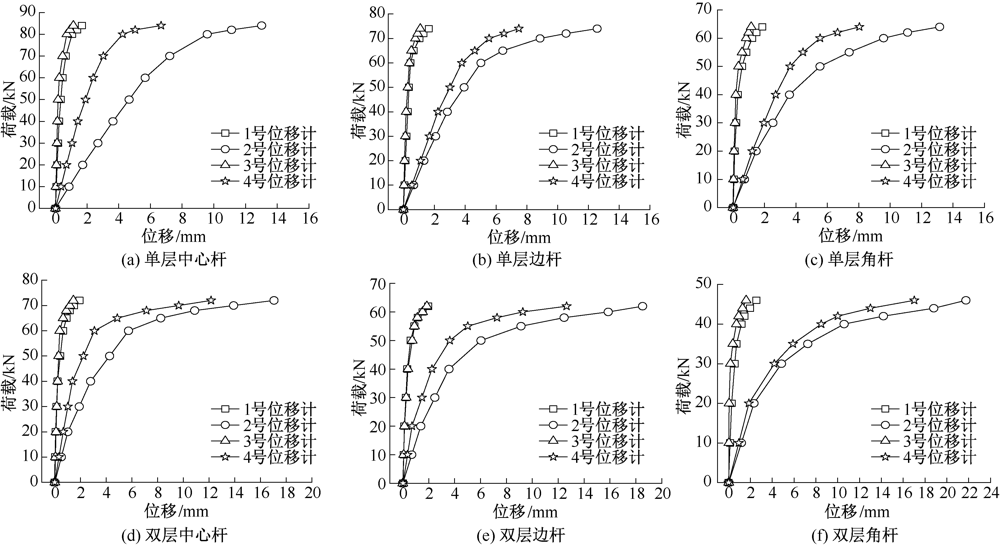

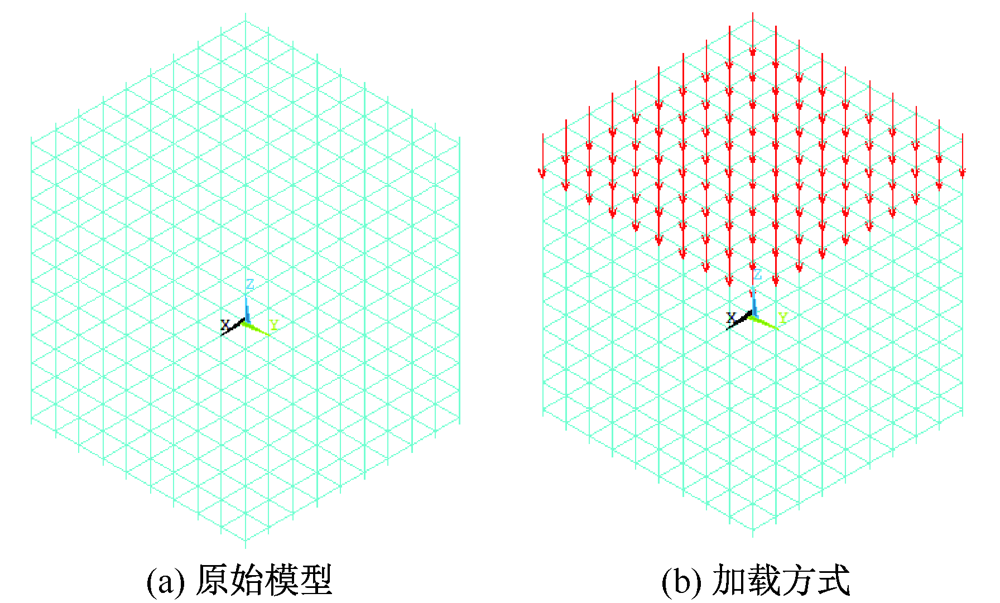

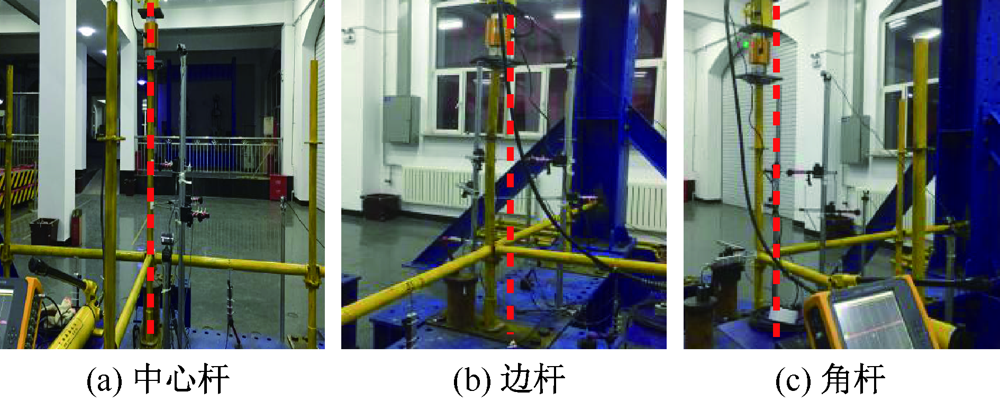

为解决轮扣式支模架结构在施工过程中安全性差、施工方案难以确定的问题,基于轮扣式支模架正常工作的受力状况,进行单双层中心杆、边杆、角杆3种工况立杆的稳定承载力试验,并对比分析试验结果与有限元分析结果,相互验证其可行性与正确性;基于验证的有限元模型和半刚性连接节点的非线性特性,通过轮扣式支模架结构一阶屈曲模态和非线性屈曲分析,研究节点抗弯刚度及加载方式等参数对轮扣式支模架结构整体稳定性的影响特征。结果表明:随着节点抗弯刚度的增加,临界荷载越来越大,结构整体稳定性越好;采用中心加载方式的结构稳定性最好。

关键词: 轮扣式支模架, 节点半刚性, 稳定性, 抗弯刚度, 屈曲分析

Abstract:

In order to address problems like poor safety of wheel coupler formwork support and difficulty in determining construction scheme, stability bearing capacity of central pole, side pole and corner pole at single layer and double layers was experimentally carried out based on normal operation stress state of the formwork support. The experiment results were analyzed and compared with finite element analysis results, and their feasibility and correctness were verified. Then, based on verified finite element model and nonlinear characteristics of semi-rigid connection joints, first-order buckling modal analysis and nonlinear buckling analysis of wheel coupler formwork support were carried out, and influence of joint bending stiffness and loading method on the support's stability was studied. The results show that along with increase of joint bending stiffness, critical load will grow bigger while overall stability of the support is better, which will be the best when central loading method is adopted.

Key words: wheel coupler formwork support, semi-rigid connection joint, stability, bending stiffness, buckling analysis

董金凤, 刘海卿, 雷明, 陈子木, 程杨, 徐红武. 轮扣式支模架结构整体稳定性分析[J]. 中国安全科学学报, 2022, 32(7): 85-92.

DONG Jinfeng, LIU Haiqing, LEI Ming, CHEN Zimu, CHENG Yang, XU Hongwu. Overall structural stability analysis on wheel coupler formwork support[J]. China Safety Science Journal, 2022, 32(7): 85-92.

图/表 21

表1

表2

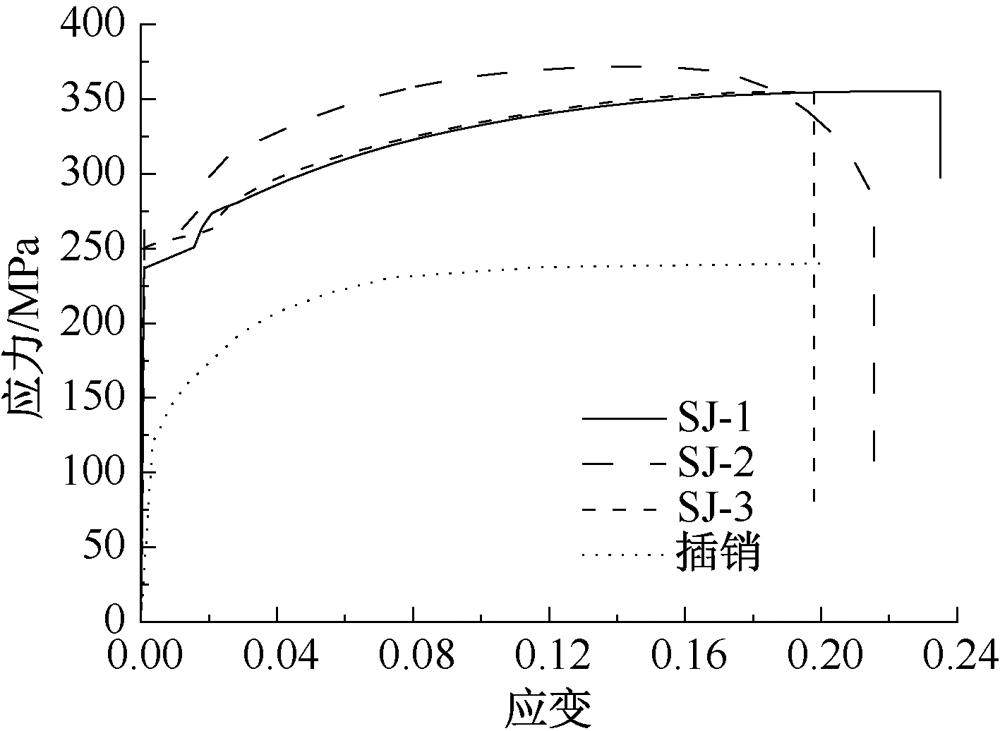

图1

图2

图3

图4

图5

图6

图7

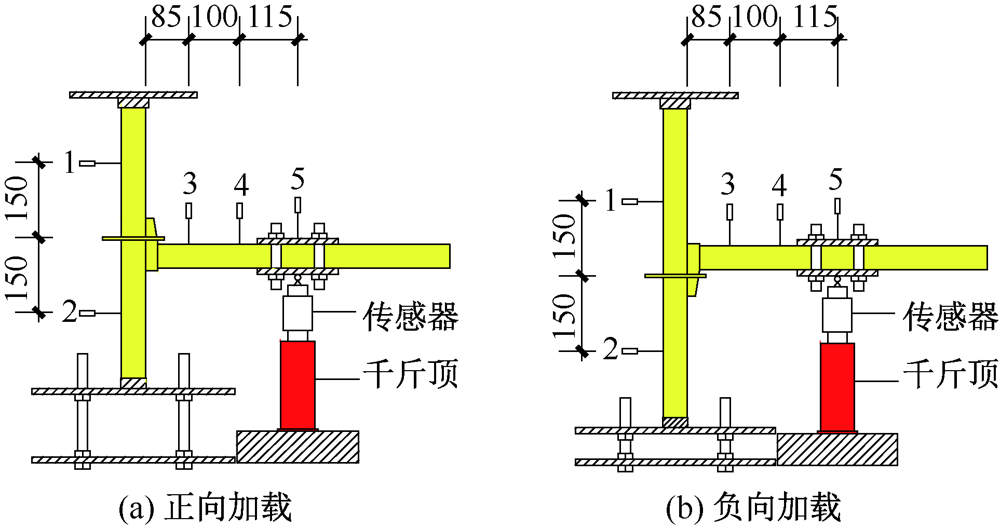

图8

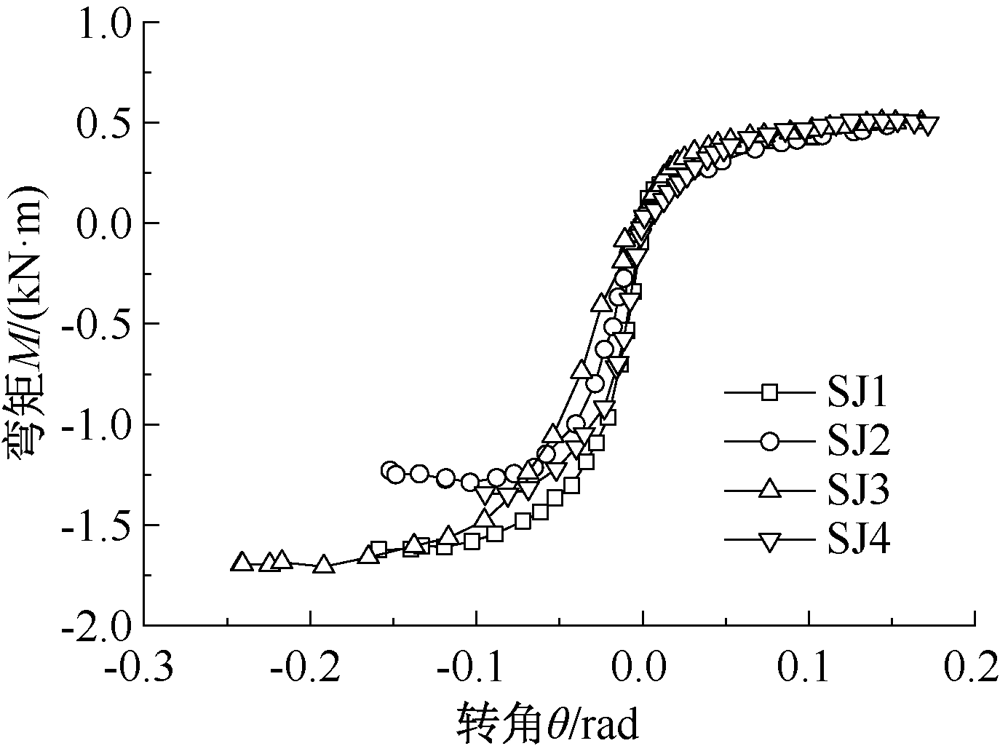

图9

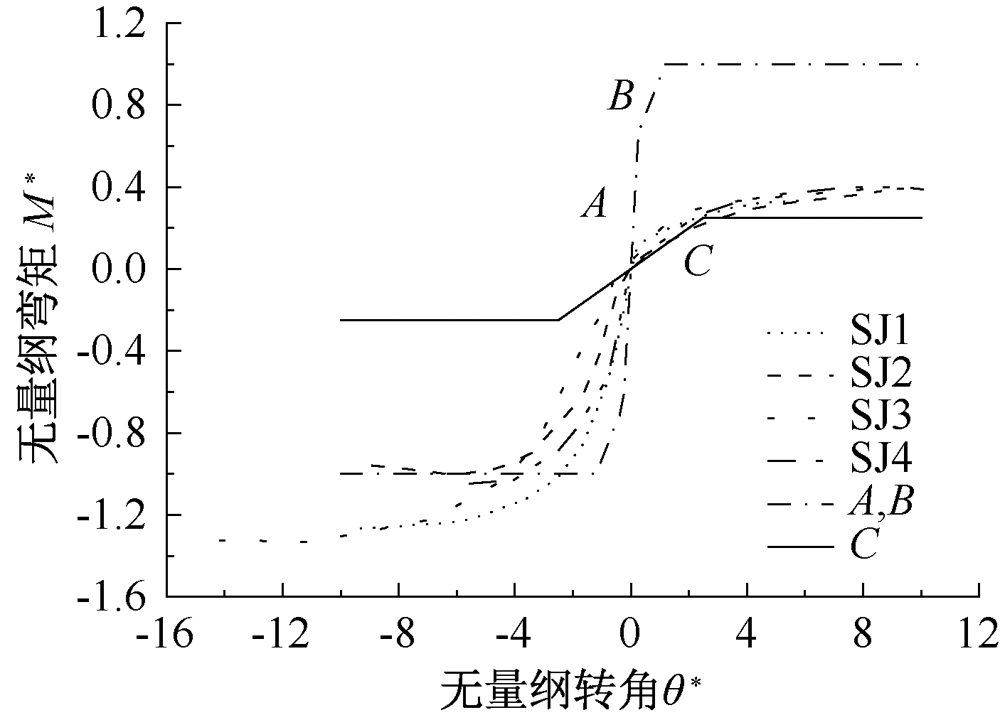

图10

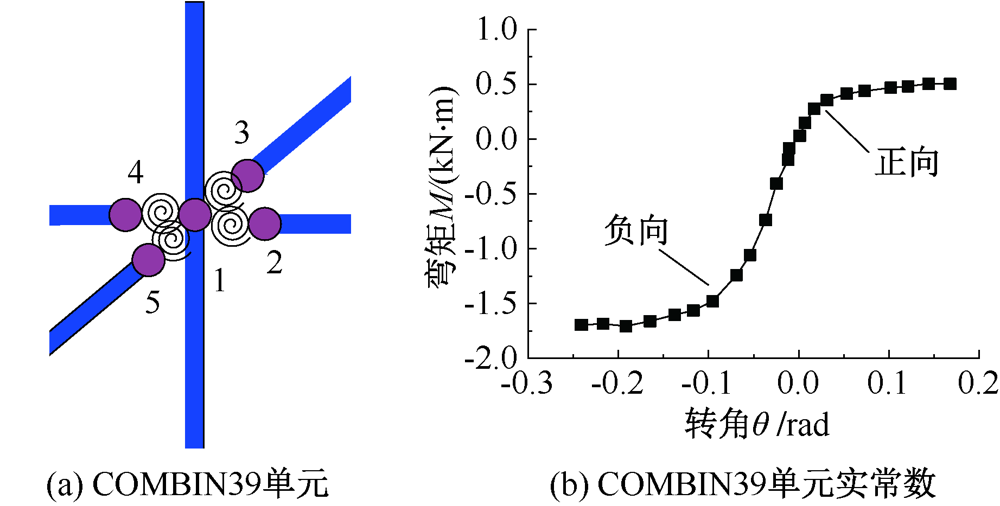

图11

表3

图12

图13

图14

图15

图16

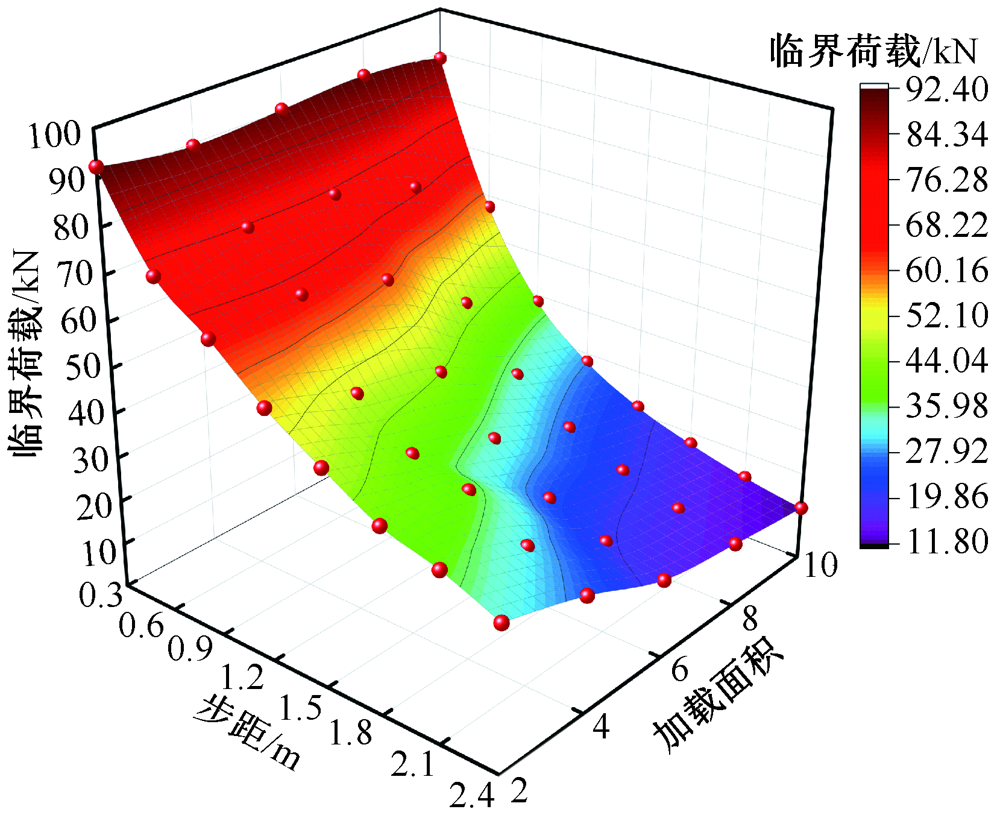

图17

图18

参考文献 16

[1]	张孟春, 方东平, 佟瑞鹏. 脚手架工人低估不安全行为风险的研究[J]. 中国安全科学学报, 2011, 21(8):145-150.
	ZHANG Mengchun, FANG Dongping, TONG Ruipeng. Study on underestimating risks of scaffolders to unsafe behaviors[J]. China Safety Science Journal, 2011, 21(8):145-150.
[2]	刘辉, 郑向莞, 张智超, 等. 定量改进 JHA 法的建筑施工高危作业风险分析[J]. 中国安全科学学报, 2019, 29(4):146-151. doi: 10.16265/j.cnki.issn1003-3033.2019.04.023
	LIU Hui, ZHENG Xiangwan, ZHANG Zhichao, et al. Risk analysis of high-risk operations in construction by a quantitatively improved JHA method[J]. China Safety Science Journal, 2019, 29(4):146-151. doi: 10.16265/j.cnki.issn1003-3033.2019.04.023
[3]	陈志华, 陆征然, 王小盾, 等. 基于有侧移半刚性连接框架理论的无支撑模板支架稳定承载力分析及试验研究[J]. 建筑结构学报, 2010, 31(12):56-63.
	CHEN Zhihua, LU Zhengran, WANG Xiaodun, et al. Experimental and theoretical research on capacity of unbraced steel tubular formwork support based on sway frame with semi-rigid connection theory[J]. Journal of Building Structures, 2010, 31(12):56-63.
[4]	陆征然, 陈志华, 王小盾, 等. 扣件式钢管满堂支撑体系稳定性的有限元分析及试验研究[J]. 土木工程学报, 2012, 45(1):49-60.
	LU Zhengran, CHEN Zhihua, WANG Xiaodun, et al. Experimental and theoretical study of the bearing capacity of fastener steel tube full-hall formwork support system[J]. China Civil Engineering Journal, 2012, 45(1):49-60.
[5]	杨伟军, 杨永达, 杨曙. 轮扣式钢管支模架节点连接性能试验研究[J]. 工业建筑, 2012, 42(10):101-107.
	YANG Weijun, YANG Yongda, YANG Shu. Experimental study on connection property of joints of pulley-clip supporting frame[J]. Industrial Construction, 2012, 42(10):101-107.
[6]	柏石豪. 轮扣式钢管支架节点力学性能研究[D]. 长沙: 长沙理工大学, 2018.
	BAI Shihao. Research on the connection node mechanical properties of wheel-coupler type steel tube formwork support[D]. Changsha: Changsha University of Science & Technology, 2018.
[7]	杨曙. 轮扣式钢管支模架稳定承载力研究[D]. 长沙: 长沙理工大学, 2011.
	YANG Shu. The research on stability bearing capacity of wheel buckle steel tubular formwork support frame[D]. Changsha: Changsha University of Science & Technology, 2011.
[8]	张淏. 轮扣式脚手架钢管轴心受压稳定承载力研究[D]. 西安: 西安建筑科技大学, 2016.
	ZHANG Hao. Study on stability and bearing capacity of axially compressed disk-pin joined steel tubular scaffold[D]. Xi'an: Xi'an University of Architecture and Technology, 2016.
[9]	程勇. 轮扣式钢管脚手架结构性能研究[D]. 广州: 华南理工大学, 2017.
	CHENG Yong. Performance research of wheel-coupler type steel tubular scaffolding[D]. Guangzhou: South China University of Technology, 2017.
[10]	刘卫然, 于海丰, 黄俊, 等. 轮扣式模板支撑架稳定承载力试验研究及有限元分析[J]. 建筑结构学报, 2022, 43(1):219-227.
	LIU Weiran, YU Haifeng, HUANG Jun, et al. Experimental study and finite element analysis of stable bearing capacity of wheel-buckle formwork supporting frame[J]. Journal of Building Structures, 2022, 43(1):219-227.
[11]	刘敏. 基于碗扣节点力学性能的钢管支架稳定性分析[D]. 西安: 长安大学, 2016.
	LIU Min. Analysis on stability of the steel tubular bracket based on the mechanical properties research of cuplock nodes[D]. Xi' an: Chang' an University, 2016.
[12]	王洲春. 承插型钢管脚手架试验研究[D]. 长沙: 湖南大学, 2013.
	WANG Zhouchun. The experimental investigation of socket type steel pipe scaffold[D]. Changsha: Hunan University, 2013.
[13]	谢晶旭. 承插型键槽式钢管支模架受力性能试验研究[D]. 长沙: 中南大学, 2014.
	XIE Jingxu. Experimental research on mechanical behavior of socket type steel tubular scaffold[D]. Changsha: Central South University, 2014.
[14]	GB/T 228.1—2010, 金属材料拉伸试验,第1部分:室温试验方法[S].
	GB/T 228.1-2010, Metallic materials-tensile testing-Part 1: method of test at room temperature[S].
[15]	刘鸿文. 材料力学I (第6版)[M]. 北京: 高等教育出版社, 2017:304-324.
[16]	杜荣军. 科学规范脚手架结构施工支架的设计和计算规定(2)[J]. 施工技术, 2010, 39(2):110-116.
	DU Rongjun. Scientizing and standarding regulations on design and calculation of construction falsework in scaffold structure(2)[J]. Construction Technology, 2010, 39(2):110-116.

试件编号	层数	工况	立杆数量/根	水平杆数量/根
SJ1	单层	中心杆	5	4
SJ2	单层	边杆	4	3
SJ3	单层	角杆	3	2
SJ4	双层	中心杆	10	8
SJ5	双层	边杆	8	6
SJ6	双层	角杆	6	4

试件编号	标距	厚度	弧度	外径
SJ1	50	3.0	10.48	47.93
SJ2	50	3.0	10.48	47.93
SJ3	50	3.0	10.48	47.93
