不同开采工况诱发边坡变形与时效稳定性分析

doi:10.16265/j.cnki.issn1003-3033.2022.S1.0003

中国安全科学学报 ›› 2022, Vol. 32 ›› Issue (S1): 72-78.doi: 10.16265/j.cnki.issn1003-3033.2022.S1.0003

不同开采工况诱发边坡变形与时效稳定性分析

王文才¹(), 李俊鹏¹^,^**(), 王创业¹, 陈世江¹, 王鹏¹, 李仕璋²

¹ 内蒙古科技大学矿业与煤炭学院, 内蒙古包头 014010
² 山东鲁碧建材有限公司, 山东济南 271104

收稿日期:2022-01-12 修回日期:2022-04-11 出版日期:2022-06-30 发布日期:2022-12-30
通讯作者: 李俊鹏
作者简介:
王文才 (1964—),男,内蒙古伊金霍洛旗人,博士,教授,博士生导师,主要从事采矿及矿山安全工程的教学和研究。E-mail: wencai99999@163.com。
王创业教授
陈世江教授
李仕璋工程师
基金资助:
国家自然科学基金资助(52064043); 国家自然科学基金资助(51764044); 国家自然科学基金资助(51464036); 内蒙古自治区自然科学基金资助(2020MS05010); 内蒙古自治区科学技术厅项目(20180823); 包头市科技计划项目(2019Z3004-8)

Analysis on slope deformation and aging stability induced by different mining conditions

WANG Wencai¹(), LI Junpeng¹^,^**(), WANG Chuangye¹, CHEN Shijiang¹, WANG Peng¹, LI Shizhang²

¹ Institute of Mining, Inner Mongolia University of Science and Technology, Baotou Inner Mongolia 014010, China
² Shandong Lubi Building Materials Co., Ltd., Ji'nan Shandong 271104, China

Received:2022-01-12 Revised:2022-04-11 Online:2022-06-30 Published:2022-12-30
Contact: LI Junpeng

摘要/Abstract

摘要：

为解决露天端帮开采中边坡失稳问题,通过相似模拟和数值模拟方法建立不同开采工况的边坡结构模型,结合雷达监测系统分析不同开采工况下边坡原岩结构、稳定性劣化与时效稳定性之间的关系。结果表明:露天开采过程可分为开采初期、开采中期、开采终止3个阶段,直至开采终止边坡存在局部变形破坏现象,稳定性较好;端帮上层煤开采可分为表生改造、结构改造和时效变形3个阶段。表生改造阶段,边坡岩体围绕采空区形成变形,未对边坡形成扰动;结构改造阶段,会形成悬臂梁和固支梁结构,2种结构交替变化,使顶板上方破坏区呈半蝶型向边坡岩体上部扩展;时效变形阶段,受垮落岩体支撑边坡变形破坏未持续向上扩展,但存在竖向裂隙的延展,边坡稳定性较好,最终变形破坏呈金字塔状;端帮下煤层开采使的上下采空区形成贯通,边坡发生向采空区方向的失稳;露采后边坡时效变形分3个阶段,初期舒缓、中期加速、后期平稳,端帮上煤层开采后边坡时效变形分为加速移动和稳态移动2个阶段,这2个阶段随时间变化边坡稳定性均较好。

关键词: 露天天采, 开采工况, 边坡变形, 时效稳定性, 数值模拟

Abstract:

In order to solve the problem of slope instability in open-pit end mining, this paper establishes slope structure models under different mining conditions through similarity simulation and numerical simulation methods, and combines the radar monitoring system to analyze the relationship between the original rock structure, stability deterioration and aging stability of slope under different mining conditions. The results show that the process of open-pit mining can be divided into three stages: the initial stage of mining, the middle stage of mining and the end of mining. The slope has local deformation and failure phenomenon until the end of mining, and the stability is good. The upper coal mining of the end wall can be divided into three stages: supergene transformation, structural transformation and aging deformation. In the supergene transformation stage, the slope's rock mass deforms around the goaf and does not disturb the slope. In the stage of structural transformation, cantilever beam and fixedly supported beam structures will be formed, and the two structures will change alternately, so that the failure zone above the roof will expand to the upper part of the slope rock mass in a semi-butterfly shape. In the aging deformation stage, the deformation and failure of the slope supported by the caved rock mass do not extend upward continuously, but there are vertical cracks extending, the slope stability is good, and the final deformation and failure are pyramid-shaped. The upper and lower goaf are connected by the coal seam mining under the end wall, and the slope is unstable toward the goaf. The aging deformation of the slope after open mining can be divided into three stages, the initial stage is slow, the middle stage is accelerated, and the late stage is stable. The aging deformation of the slope after coal seam mining on the end wall can be divided into two stages, namely, the accelerated movement stage and the steady movement stage.

Key words: open-pit mining, mining condition, slope deformation, aging stability, numerical simulation

王文才, 李俊鹏, 王创业, 陈世江, 王鹏, 李仕璋. 不同开采工况诱发边坡变形与时效稳定性分析[J]. 中国安全科学学报, 2022, 32(S1): 72-78.

WANG Wencai, LI Junpeng, WANG Chuangye, CHEN Shijiang, WANG Peng, LI Shizhang. Analysis on slope deformation and aging stability induced by different mining conditions[J]. China Safety Science Journal, 2022, 32(S1): 72-78.

图/表 11

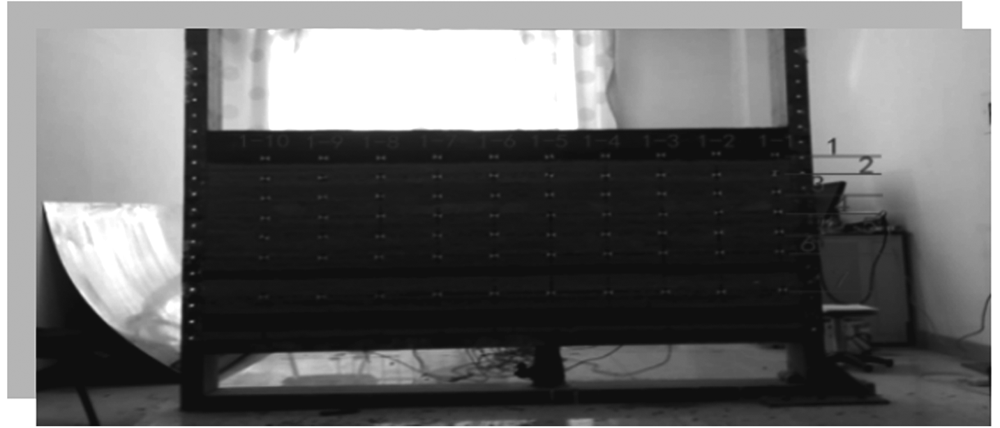

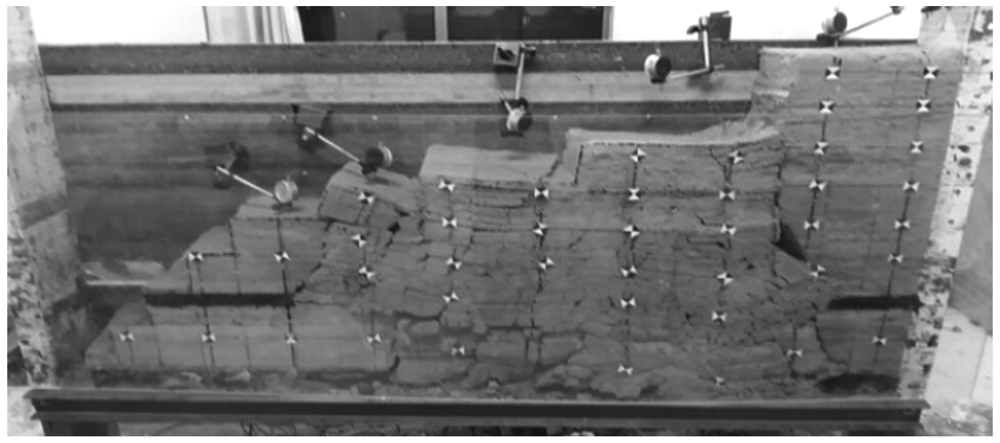

图1

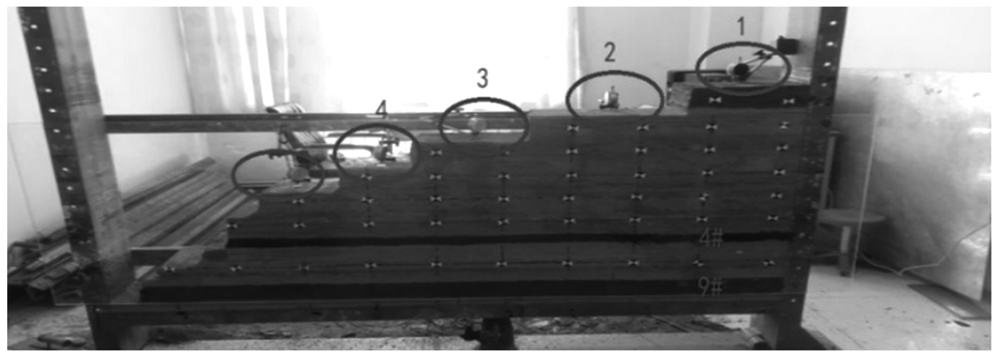

图2

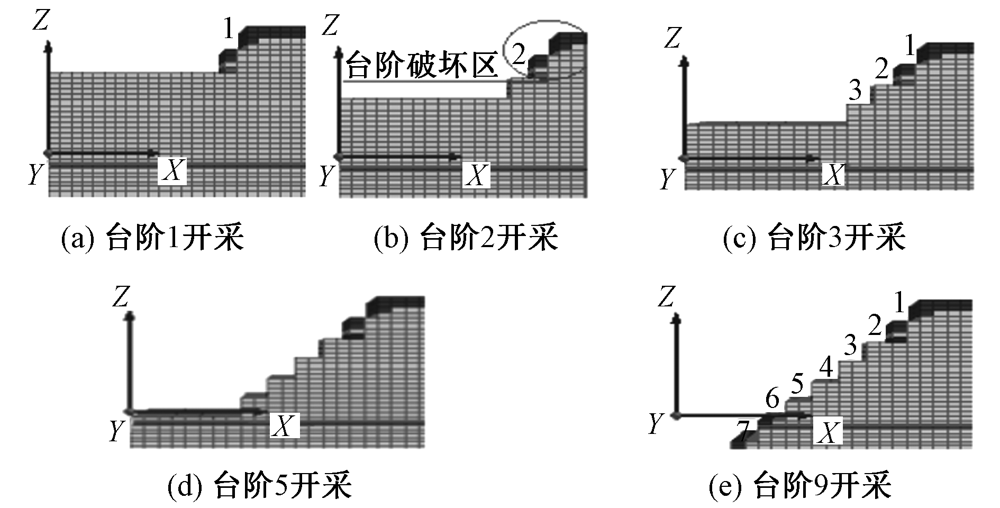

图3

图4

图5

图6

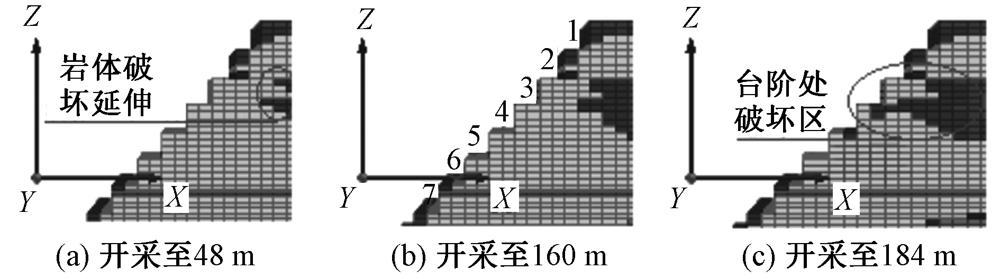

图7

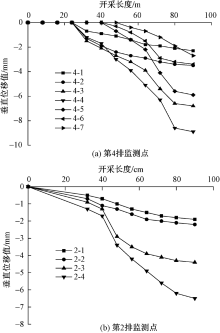

图8

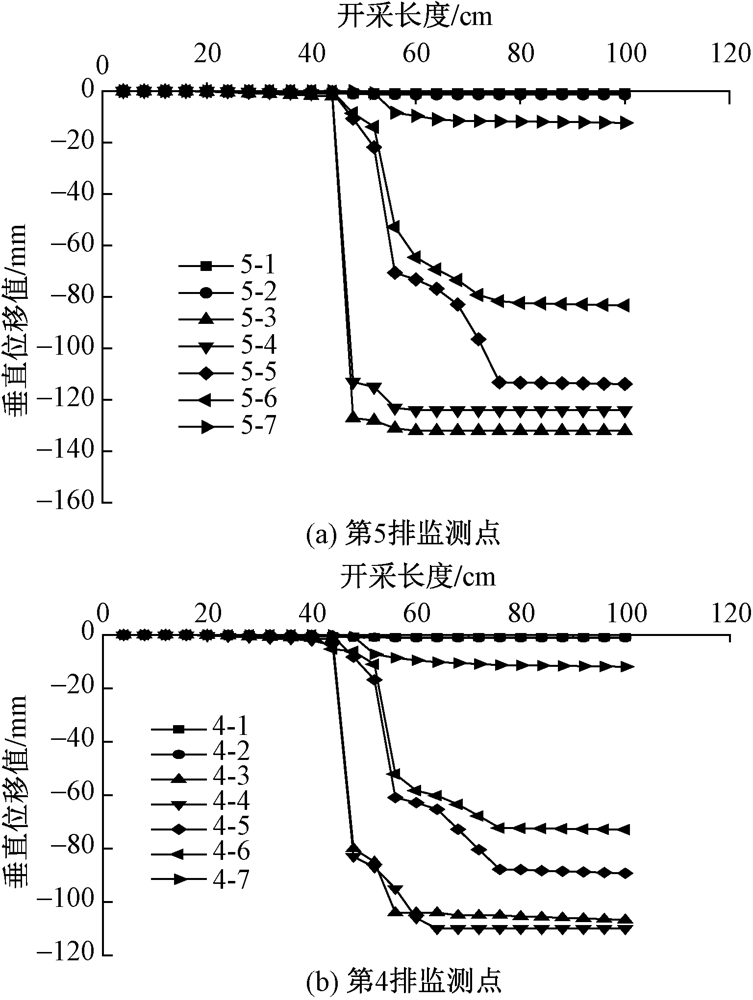

图9

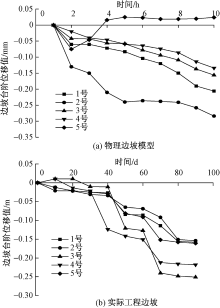

图10

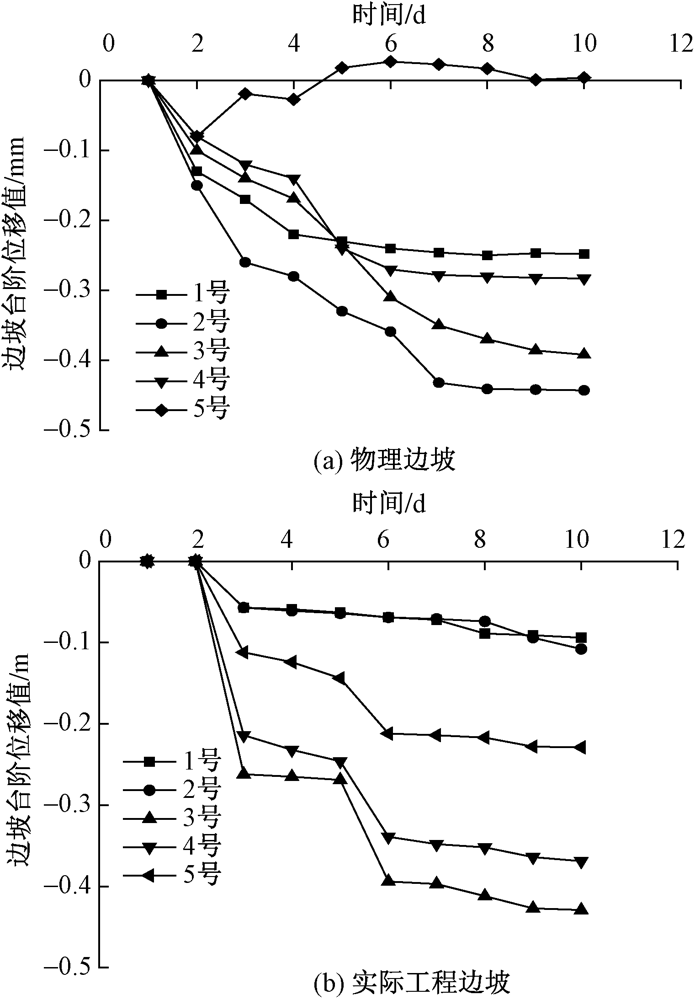

图11

参考文献 14

[1]	姬长生. 我国露天煤矿开采工艺发展状况综述[J]. 采矿与安全工程学报, 2008, 25(3): 297-300.
	JI Changsheng. Summary of my country's open-pit coal mining technology development status[J]. Journal of Mining and Safety Engineering, 2008, 25(3): 297-300.
[2]	李绍臣, 周杰, 李宏杰, 等. 井采方向对露井协采边坡稳定影响的分析及优化[J]. 煤炭学报, 2014, 9(4): 666-672.
	LI Shaochen, ZHOU Jie, LI Hongjie, et al. Analysis and optimization of the influence of the direction of well production on the slope stability of open well assisted mining[J]. Journal of China Coal Society, 2014, 9(4): 666-672.
[3]	曹兰柱, 王珍, 王东, 等. 扎哈淖尔露天煤矿南帮压煤回采边坡稳定性分析[J]. 安全与环境学报, 2018, 18(1): 113-118.
	CAO Lanzhu, WANG Zhen, WANG Dong, et al. Stability analysis of compressed coal mining slope on the south side of Zhaha Naoer open-pit coal mine[J]. Journal of Safety and Environment, 2018, 18(1): 113-118.
[4]	侯跃华, 朱建明, 吴剑平. 露天-井下联合开采矿井边界参数确定及优化[J]. 中国矿业, 2010, 18(3): 79-81,85.
	HOU Yuehua, ZHU Jianming, WU Jianping. Determination and optimization of boundary parameters of open-pit-underground joint mining wells[J]. China Mining Industry, 2010, 18(3): 79-81,85.
[5]	朱建明, 刘宪权, 吴剑平, 等. 露井联采下边坡稳定的相似模拟研究[J]. 工程地质学报, 2009, 17(2): 206-211.
	ZHU Jianming, LIU Xianquan, WU Jianping, et al. Similar simulation study on slope stability under open well combined mining[J]. Journal of Engineering Geology, 2009, 17(2): 206-211.
[6]	蓝航, 李凤明, 姚建国. 露天煤矿排土场边坡下采动沉陷规律研究[J]. 中国矿业大学学报, 2007, 36(4): 482-486.
	LAN Hang, LI Fengming, YAO Jianguo. Research on subsidence of dump slope induced by mining in open colliery[J]. Journal of China University of Mining & Technology, 2007, 36(4): 482-486.
[7]	才庆祥, 周伟, 舒继森, 等. 大型近水平露天煤矿端帮边坡时效性分析及应用[J]. 中国矿业大学学报, 2008, 37(6): 740-744.
	CAI Qingxiang, ZHOU Wei, SHU Jisen, et al. Time-effect analysis and application of the end slope of a large near-level open-pit coal mine[J]. Journal of China University of Mining and Technology, 2008, 37(6): 740-744.
[8]	李正胜, 李宏杰. 房柱式采空区影响下露天端帮煤开采安全控制技术[J]. 煤炭科学技术, 2020, 48(8): 76-81.
	LI Zhengsheng, LI Hongjie. Safety control technology for open-pit side coal mining under the influence of room and pillar goaf[J]. Coal Science and Technology, 2020, 48(8): 76-81.
[9]	丁鑫品, 李凤明, 付天光, 等. 端帮采场覆岩移动破坏规律及边坡稳定控制方法研究[J]. 煤炭科学技术, 2021, 46(9): 2 883-2 894.
	DING Xinpin, LI Fengming, FU Tianguang, et al. Study on the movement and failure law of the overburden strata of the end slab stope and the slope stability control method[J]. Coal Science and Technology, 2021, 46(9): 2 883-2 894.
[10]	丁其乐. 端帮压煤井工开采覆岩运动规律及控制研究[D]. 徐州: 中国矿业大学, 2017.
	DING Qile. Research on the law and control of overlying strata movement in coal mining with sidewall pressure[D]. Xuzhou: China University of Mining and Technology, 2017.
[11]	范鹏贤, 王明洋, 邢灏喆, 等. 模型试验中材料变形破坏的时间相似问题[J]. 岩石力学与工程学报, 2014, 33(9): 1 843-1 851.
	FAN Pengxian, WANG Mingyang, XING Haozhe, et al. Time similarity problem of material deformation and failure in model test[J]. Chinese Journal of Rock Mechanics and Engineering, 2014, 33(9): 1 843-1 851.
[12]	徐卫亚, 肖武. 基于强度折减和重度增加的边坡破坏判据研究[J]. 岩土力学, 2007, 28(3): 505-511.
	XU Weiya, XIAO Wu. Slope failure criterion based on strength reduction and severe increase[J]. Rock and Soil Mechanics, 2007, 28(3): 505-511.
[13]	王创业, 李俊鹏, 张琪, 等. 地下采动条件下露天矿边坡覆岩移动规律研究[J]. 矿业研究与开发, 2018, 38(4): 75-78.
	WANG Chuangye, LI Junpeng, ZHANG Qi, et al. Research on movement law of overburden rock on open-pit slope under underground mining conditions[J]. Mining Research and Development, 2018, 38(4): 75-78.
[14]	南存全, 王礼江, 吕进国, 等. 露天边帮煤井工长壁综放开采工作面顶板压力计算[J]. 煤炭学报, 2019, 44(6): 1 753-1 763.
	NAN Cunquan, WANG Lijiang, LYU Jinguo, et al. Calculation of roof pressure in longwall fully mechanized top caving face of open-pit side coal well[J]. Journal of China Coal Society, 2019, 44(6): 1 753-1 763.
